  • Display Size10"
  • Net Weight1 kg
  • Operating SystemNone
  • VESA Patterns75x75
  • Panel TypeTFT Panel
  • ResolutionWXGA

Book a Free Product Demo

Remote or on-site. No obligation.

Integrator or Installer?

Trade pricing, volume discounts, same-day collection.

Request a Trade Account

Education & Public Sector Solutions

Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.

Official Purchase Orders We accept formal POs with VAT-compliant invoicing for all verified institutions.
Contract & Volume Discounts Competitive rates for multi-site, long-term, or framework-based deployments.
Dedicated Account Management Single point of contact for lead times, coordination, and sourcing.
Flexible 30-Day Terms Available to verified schools, councils, and government bodies.
  • Description
  • Specifications
  • Downloads

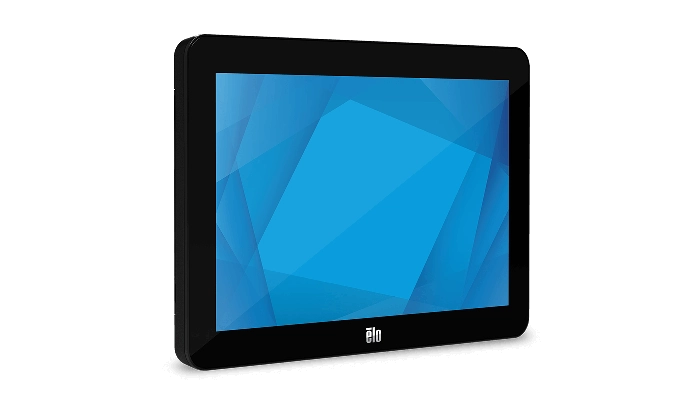

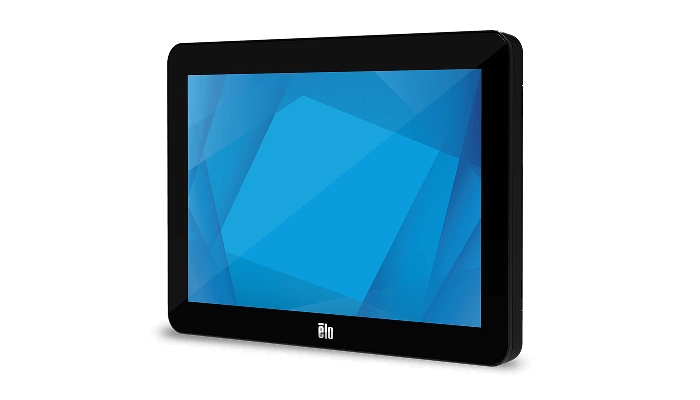

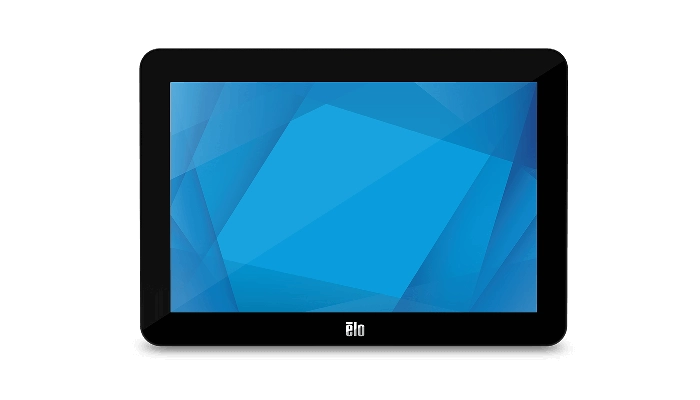

  • Elo 1002L 10" LED Monitor | WXGA | Non-Touch (Worldwide) – Compact POS & Self-Service Display

    Elo's 1002LTouchscreen Monitor
    The Elo 1002L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1002L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.

    Single Cable Connection
    The 1002L provides a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn't equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.

    One for You.One for Your Customers.
    The 02-Series offers dual functionality. Use it as a traditional POS terminal or customer facing display - or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion.

    Well-Suited for...
    Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.

    Elo Edge Connect™ Lets You do More!
    Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

    EMV Cradles
    The ability to take payment is essential to complete a transaction. The 1002L offers compatible EMV cradles to securely mount an EMV Payment device directly to the display.

    Barcode Scanner
    Enhance POS terminals and price-checker applications by coupling a high-performance barcode scanner onto the Elo touchscreen.

    MSR
    Elo offers the flexibility of integrating payment devices, including a Magtek 3-track encryptable MSR payment terminal.

    Mount with Flexibility
    Customers demand a seamless shopping experience from their first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party kiosk enclosures, the touchscreens can be integrated with ease.

    Brilliant Displays from 7 to 27-inches
    The brilliant touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.

    Built-to-Last
    The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build, and stand by the complete solution, with touch integrated from the start.

  • Feature Description
    Model / Part Number 1002L – Non-Touch (Worldwide) – E324341
    Available Variants PCAP (Worldwide) – E155834; Non-Touch (Worldwide) – E324341
    Enclosure Color Black
    Touch Technology & Capacity Non-Touch (E324341). PCAP (E155834) supports 10 Touch.
    Diagonal Size 10.1" diagonal, Active matrix TFT LCD (LED)
    Monitor Thickness 1.12" / 28.45 mm panel depth
    Aspect Ratio 16:10
    Active Area 8.54" × 5.34" / 216.96 mm × 135.6 mm
    Resolution 1280 × 800
    Other Supported Resolutions 640×480 @60Hz; 800×600 @60Hz; 1024×768 @60Hz; 1280×800 @60Hz; 1920×1080 @60Hz; 1920×1200 @60Hz
    Viewing Angle Horizontal: ±85° (170° total) / Vertical: ±85° (170° total)
    Number of Colors 262,000
    Brightness (typical) LCD Panel: 350 nits; PCAP + DC Power: 315 nits; PCAP + USB-C 5V power: 200 nits
    Response Time (typ.) 29 ms
    Contrast Ratio 800:1
    Surface Treatment Anti-glare
    On-Screen Display (OSD) Accessible via switches (bottom). Controls: Menu, Up, Down, Select. Settings include Brightness, Contrast, Clock, Phase, H/V Position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temp, OSD Timeout/Language, Volume, Mute, Recall Defaults, Audio Select, Video Priority, Info, Touch on Sleep, Peripheral Port. Languages: EN, FR, IT, DE, ES, JP, ZH-TW, ZH-CN. Lockouts: OSD, Power.
    I/O Ports 1× USB Type-C; 1× Audio jack (Line-in); 1× VGA (Micro-HDMI female); 1× HDMI; 1× 12V DC input; 3× Micro-USB (Top/Left/Right) for Elo Edge Connect
    Speakers 2 × 2 W internal speakers
    Video Analog VGA; HDMI; USB Type-C (DP Alt Mode). Recommended cable: Elo USB-C to USB-C (E710364).
    Input Video Frequency Horizontal: 31.5–80 kHz; Vertical: 60 Hz
    Power Options Option 1: USB Type-C (5V/9V/15V/20V ranges). Option 2: External 12V/36W DC adapter (included). Input 100–240VAC, 50/60Hz.
    Power Consumption On: 7.43 W; Sleep: 1.26 W; Off: 0.2 W
    Dimensions (W×H×D) 10.03" × 6.99" × 1.14" / 254.8 mm × 177.5 mm × 29.0 mm
    Shipping Box Dimensions 12.4" × 9.57" × 5.67" / 315 mm × 243 mm × 144 mm
    Weight (Unpackaged) 1.95 lbs / 0.8842 kg
    Weight (Packaged) 4.02 lbs / 1.8266 kg
    Operating Temperature 0°C to 40°C / 32°F to 104°F
    Storage Temperature −20°C to 60°C / −4°F to 140°F
    Humidity Operating: 20%–80%; Storage: 10%–95% (38.7°C max wet bulb)
    MTBF 50,000 hours demonstrated

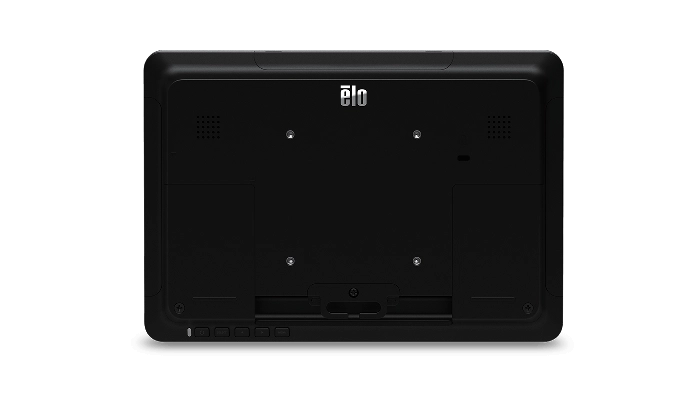

    Mounting Options VESA 75 mm 4-hole interface (rear)
    Ingress Protection IPX1 (front side)
    Impact Protection IK05
    Warranty 3-year
    Extended Service Options 4-yr – E898247; 5-yr – E898449; 3-yr + AUR – E898648; 4-yr + AUR – E894921; 5-yr + AUR – E895125
    Regulatory UL, FCC (US); cUL, IC (Canada); CE (Europe); UKCA (UK); VCCI (Japan); CCC (China); KCC/e-standby (Korea); RCM (Australia); NOM (Mexico); BSMI (Taiwan); CB (Intl.); BIS (India); EAC (Russia); RoHS, China RoHS, WEEE, REACH
    What’s in the Box Touchmonitor; HDMI cable; USB-A→USB-C cable; Quick Install Guide; EEI Label; Power brick; NA power cable; EU power cable; 2× cable clamps; 2× tie wraps; 3× M3×8 mm screws (cable clamps); 2× M3×10 mm screws (cable doors)
    Optional Peripherals MSR – E001002; Fingerprint Scanner – E134286; 2D Barcode Scanners SE2707 (E393160), SE4720 (E384627), SE4107 (E245047); PCAP Stylus – E066148; EMV Cradles (E375343, E586981, E710930); Status Light – E644767; Webcam – E201494; RFID – E673037; Elo Edge Connect Speaker Bar (Black – E894719; White – E133780)
    Stands, Mounts & Kits Wall Mount Kit (75/100 mm VESA) – E143088; Short Tabletop Stand (10" I-Series) – E160104; Shelf Mount Bracket – E043382; Floor Stand – E048069; Mounting Bracket for 0700L – E332358; Pole Mounts 6"/12"/18" – E047458/E047663/E047864; Pole Mount Bracket – E045151; Elo Stand 1302L – E307788; Wallaby POS Stand – E949536; plus cables & power bricks (various P/Ns). See full accessory list for details.
  • Description Downloads
    Elo 1002L 10" WXGA TFT LCD Non-Touch LED Monitor | E324341 DataSheet Download
    Elo 1002L 10" WXGA TFT LCD Non-Touch LED Monitor | E324341 User Manual Download
    Elo 1002L 10" WXGA TFT LCD Non-Touch LED Monitor | E324341 Quick Installation Guide Download
