iiyama ProLite T2234MSC-B7X 21.5 inch IPS

iiyama ProLite T2234MSC-B7X 21.5 inch IPS

£358.00 - £358.00
£358.00
£358.00 - £358.00
£358.00
Excl. VAT
SKU T2234MSC-B7

By iiyama

This product is over + 58 in stock

22" Full HD 10pt touchscreen featuring IPS panel technology and touch through glass function

The ProLite T2234MC-B7X uses 10 pt Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS technology, it offers exceptional colour performance and wide viewing angles, making it a perfect display for Interactive Digital Signage, kiosk integrators, Instore Retail, Gaming and Interactive Presentations. In addition to the superb image quality, the monitor comes with IP65 rating, which means it is dust and water resistant and with Touch-Through-Glass technology delivering seamless and accurate touch response for true kiosk integration or behind-glass-retail.

  • IPS

    IPS

    IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

  • Touch technology - Capacitive

    TOUCH TECHNOLOGY - CAPACITIVE

    This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

  • Scratch resistance

    SCRATCH RESISTANCE

    Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

  • Anti-fingerprint coating

    ANTI-FINGERPRINT COATING

    This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.

  • Speakers

    SPEAKERS

    This LED monitor is equipped with two high quality stereo speakers.

DISPLAY CHARACTERISTICS

Diagonal 21.5", 54.6cm
Panel IPS LED
Native resolution 1920 x 1080 (2.1 megapixel Full HD)
Aspect ratio 16:9
Panel brightness 350 cd/m²
Brightness 305 cd/m² with touch
Light transmittance 87%
Static contrast 1 000:1 with touch
Response time (GTG) 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 16.7mln
Horizontal Sync 30.0 - 84.0kHz
Viewable area W x H 476.0 x 267.7mm
Pixel pitch 0.247mm
Bezel colour and finish black, matte

TOUCH

Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection yes

INTERFACES / CONNECTORS / CONTROLS

Analog signal input VGA x1
Digital signal input HDMI x1
DisplayPort x1
Audio output Speakers 2 x 3W
HDCP yes

FEATURES

Extra Anti-fingerprint coating, touch through-glass
Glass thickness 2.5mm
Glass hardness 7H
Water and dust protection IP65 (front)

GENERAL

OSD languages EN, DE, FR, ES, IT, CN, JP
Control buttons Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
User controls Picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position,Touch switch), option (reset, language, source select, display mode, volume, mute, factory)
Plug&Play DDC2B

MECHANICAL

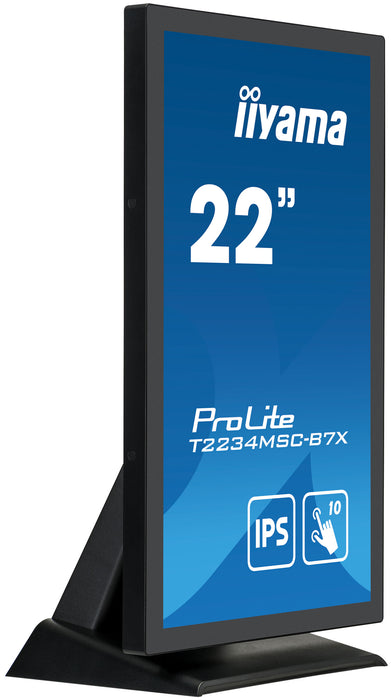

Orientation landscape, portrait, face-up
Tilt angle 90° up; 5° down
VESA mounting 100 x 100mm
Cable management system yes

ACCESSORIES INCLUDED

Cables power, USB, HDMI, Audio, DP
Guides quick start guide, safety guide
Other AC adapter
Cable cover yes

POWER MANAGEMENT

Power supply unit external
Power supply DC 12 V
Power usage 21W typical, 1.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations CE, EAC, RoHS support, ErP, WEEE, cULus, VCCI, REACH
Energy efficiency class (Regulation (EU) 2017/1369) F
REACH SVHC above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D 517.5 x 351.5 x 219mm
Box dimensions W x H x D 615 x 405 x 330mm
Pallet volume 24pcs
Pallet dimensions W x H x D 1090 x 1090 x 1987mm
Weight (without box) 6.6kg
Weight (with box) 7.2kg
EAN code 4948570118359

RELATED INFORMATION

Related products RC TOUCHV01
