Iiyama ProLite TE7504MIS-B2AG 75” 4K Touchscreen Display
75’’ Interactive 4K UHD LCD Touchscreen with integrated annotation software
Captivate your audience with the ProLite TE7504MIS-B2AG; a perfect solution for educational and corporate use. This 75’’ PureTouch-IR 20-point touchscreen with iiWare 9.0 (Android OS) is featuring a Note, web browser, file manager, cloud drives, WPS office, and ScreenSharePro. It comes with dual-function touch pens, allowing users to annotate easily in 4K on files and on-screen content which can be saved directly to a USB device, 32GB internal memory, or a selected cloud drive. The display supports playback of presentations, high-resolution video, and almost any other type of content. Now with an additional USB-C connection to support the latest in video, audio, and touch signal via a single port and even charge your device with 65W power delivery.
- Product Descriptions
- Product Features
- Product Specifications
Captivate your audience with the ProLite TE7504MIS-B2AG; a perfect solution for educational and corporate use. This 75’’ PureTouch-IR 20-point touchscreen with iiWare 9.0 (Android OS) is featuring Note, web browser, file manager, cloud drives, WPS office and ScreenSharePro. It comes with dual function touch pens, allowing users to annotate easily in 4K on files and on-screen content which can be saved directly to a USB device, 32GB internal memory or a selected cloud drive. The display supports playback of presentations, high-resolution video and almost any other type of content. Now with additional USB-C connection to support the latest in video, audio and touch signal via a single port and even charge your device with 65W power delivery. The high-quality commercial IPS LCD screen with a 4K UHD resolution (3840x2160), 350cd/m² and a contrast ratio of 1200:1 provide vibrant, detailed and high-quality images from anywhere in the class or meeting room. The anti-glare coating drastically reduces ambient reflection in high-brightness environments without compromising the sharpness and clarity of the image. The screen has a 24/7 non-stop operating time and is equipped with an all-metal bezel, 3mm thick hardened glass to ensure robust durability in high-use environments such as classrooms or meeting rooms. Share, stream and edit content from any device directly on screen and transform your team meetings or lessons into an easy, fast and seamless interactive session with the included WiFi module (OWM002), the ScreenSharePro and EShare app.
PureTouch-IR from iiyama delivers 1mm touch accuracy for the smoothest and fastest annotation.
iiWare 9.0 features Note, Browser, Cloud Drive and the option for you to sideload relevant apps you require for your organisation.
ScreenSharePro supports AirPlay, Chromecast, and Miracast to easily stream content from your device to your 04 Series and vice versa, back to your notebook, tablet, or phone.
Utilize Screen lock and USB passcode protection to ensure user security and the new Clean app will clear all data and passwords used.
24/7 displays are designed for continuous operation.
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting color reproduction, contrast, and sharpness. It also makes the screen less susceptible to dust, grease, and dirt marks.
UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and workspace than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.
Design Thin bezel Diagonal 75", 189.3cm Panel IPS, AG coated glass, zero air-gap Native resolution 3840 x 2160 (8.3 megapixels 4K UHD) Aspect ratio 16:9 Panel brightness 400 cd/m² Light transmittance 88% Static contrast 1200:1 Dynamic contrast 3500:1 Response time (GTG) 8ms Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° Colour support 1.07B 8bit+FRC Horizontal Sync 30 - 80kHz Viewable area W x H 1650 x 928mm, 65 x 36.5" Bezel width (sides, top, bottom) 14mm, 14mm, 43mm Pixel pitch 0.4296mm Bezel colour and finish black, matte
Touch technology PureTouch-IR Touch points 20 (HID, only with supported OS) Touch accuracy +- 1mm Touch method stylus, finger, glove Touch interface USB Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
INTERFACES / CONNECTORS / CONTROLS
Analog signal input VGA x1 (max. 1920x1080 @60Hz) Digital signal input HDMI x3 (2.0 - max. 3840x2160 @60Hz, RGB444)
USB-C x1 (3.1, 3840x2160 @60Hz - RGB444) - (65W charging, Touch)
Audio input Mini jack x1 Monitor control input RS-232c x1 (DSUB 9pin)
RJ45 (LAN) x1 (LAN Control)
Audio output S/PDIF (Optical) x1
Mini jack x1
Speakers 2 x 16W
HDCP yes USB ports x5 (media playback / peripherals / storage – front side: 2x v.3.0, right side: 2x v.3.0, 1x USB-C v.3.1) RJ45 (LAN) x2 (Auto switch for PC & Android, 1000MB)
Integrated software iiWare 9.0 (Android OS) featuring Note, web browser, file manager, cloud drives, WPS office, ScreenSharePro and EShare for wireless connection with Windows/iOS/Android devices WiFi yes (WiFi Module OWM002 - Dual WiFi Bandwidth: 2.4GHz/5GHz, WiFi Standard: IIEEE 802.11 a/b/g/n/ac, Bluetooth Support: 2.1/3.0/4.2/5.0) Hardware Quad core A73 CPU, Mali G52 GPU, 4GB RAM, 32GB internal memory Extra Ambient light sensor, OTA firmware update Kiosk mode yes Max. non-stop operating time 24/7 Media playback yes Glass thickness 3mm Glass hardness 7H Housing (bezel) metal OSD key lock yes
OSD languages EN, DE, FR, ES, IT, RU, CZ, NL, PL Control buttons Power, Power Indicator, Remote Sensor, Light Sensor, USB Connector (3.0) User controls common settings (input, volume, backlight), audio settings (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift, eye care, auto light, ECO, ECR), display settings (brightness, contrast, hue, sharpness, display mode, colour temp.), adjust settings (H-position, V-position, clock, phase, auto), settings (wireless & networks, personal, input & output, application, system) Plug&Play DDC2B Warranty 5 years (for details and eligible countries please check the Warranty section of our website)
Orientation landscape Fanless design yes VESA mounting 800 x 400mm Operation temperature range 0°C - 40°C Storage temperature range - 20°C - 60°C MTBF 50.000 hours (excluding backlight)

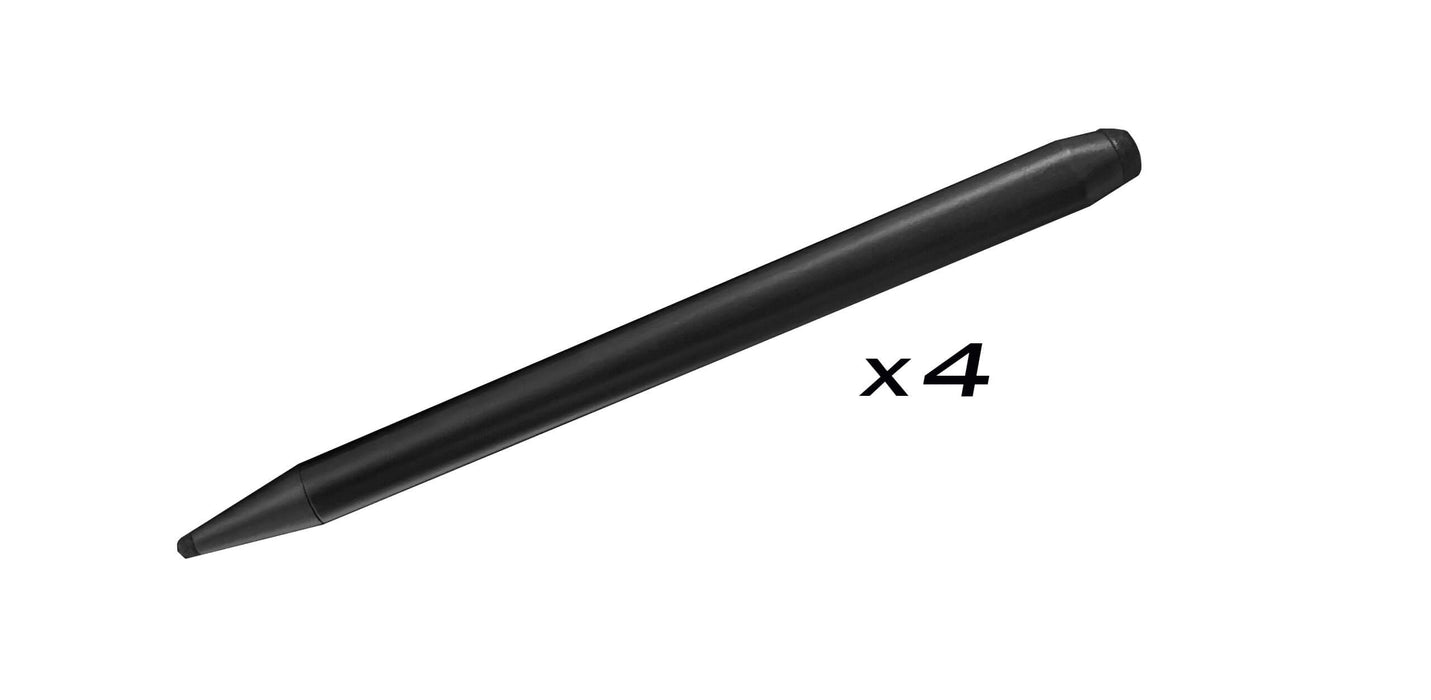

Cables power, HDMI, USB for Touch Touch pen x4 (Dual function tips) Guides quick start guide, safety guide Other Mounting bracket for NUC, Mounting bracket for webcam Remote control yes (batteries included)
Power supply unit internal Power supply AC 100 - 240V, 50/60Hz Power usage 260W typical, 0.5W stand by, 0.5W off mode
Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS, PFOS, PFC) Other REACH SVHC above 0.1%: Lead
DIMENSIONS / WEIGHT
Product dimensions W x H x D 1709 x 1020 x 86mm Box dimensions W x H x D 1930 x 280 x 1140mm Pallet volume 4pcs Weight (without box) 50.8kg Weight (with box) 69kg EAN code 4948570119004
Other PC Slot
