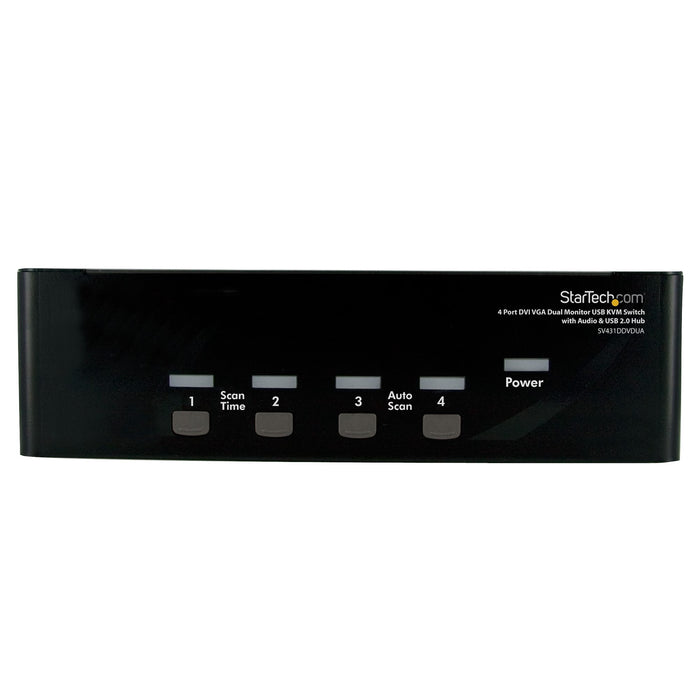

StarTech 4 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub | SV431DDVDUA
The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set.
This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers.
The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance.
NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source.
Applications
Perfect solution for desktops, workstations and servers with both VGA and DVI-digital ports, allowing a user to take advantage of dual monitor configurations
Ideal for financial/banking industries, graphic designers, engineers, multi-media designers, and industries using CAD/CAM applications, where high resolution dual monitor units are needed
Suitable for use in environments with electromagnetic interference, based on sturdy metal design
Versatile support for setups where one machine is DVI & VGA, and the other is VGA & VGA (with available adapters)
-
| Category |
Detail |
| Warranty Information |
3 Years |

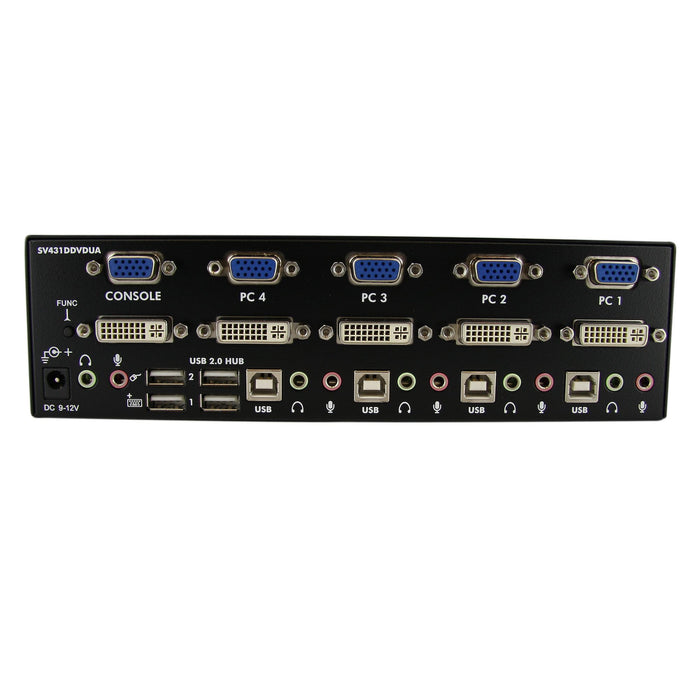

| Connector(s) |
|
| Console Interface(s) |
1 - VGA (15 pin, High Density D-Sub) |
|
4 - USB 2.0 Type-A (4 pin, 480Mbps) |
|
1 - DVI-I (29 pin) |
|
2 - 3.5 mm Mini-Jack (3 Position) |
| Host Connectors |
4 - 3.5 mm Mini-Jack (3 Position) |
|
4 - DVI-I (29 pin) |
|
4 - USB B (4 pin) |
|
4 - VGA (15 pin, High Density D-Sub) |
| Environmental |
|
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
| Humidity |
80% RH |
| Hardware |
|
| Audio |
Yes |
| KVM Ports |
4 |
| PC Interface |
USB |
| PC Video Type |
DVI + VGA |
| Number of Monitors Supported |
2 |
| Rack-Mountable |
Optional |
| Cables Included |
No |
| Daisy-Chain |
No |
| Indicators |
|
| LED Indicators |
2 - Green (PC Detected) |
|
1 - Green (Power) |
|
2 - Red (PC Indicator) |
| Packaging Information |
|
| Package Height |
8.4 cm [3.3 in] |
| Package Length |
29.8 cm [11.7 in] |
| Shipping (Package) Weight |
1.8 kg [3.9 lb] |
| Package Width |
24.6 cm [9.7 in] |
| Package Quantity |
1 |
| Performance |
|
| On-Screen Display |
No |
| DVI Support |
Yes - Single Link |
| IP Control |
No |
| Hot-Key Selection |
Yes |
| Maximum Analog Resolutions |
1920 x 1400 |
| Maximum Digital Resolutions |
1920 x 1200 |
| Maximum Number of Users |
1 |
| Port Selection Support |
Push Button and Hotkeys |
| MTBF |
140,000 hours |
| Physical Characteristics |
|
| Weight of Product |
1.3 kg [2.8 lb] |
| Color |
Black |
| Material |
Steel |
| Product Length |
16.3 cm [6.4 in] |
| Product Width |
22 cm [8.7 in] |
| Product Height |
6 cm [2.4 in] |
| Product Depth |
130 mm [5.1 in] |
| Power |
|
| Power Source |
AC Adapter Included |
| Input Voltage |
100 - 240 AC |
| Input Current |
0.8A |
| Output Voltage |
12V DC |
| Output Current |
1.5A |
| Center Tip Polarity |
Positive |
| Plug Type |
M |
| Power Consumption (In Watts) |
18W |
| Software |
|
| OS Compatibility |
OS independent; No software or drivers required |
| Special Notes / Requirements |
|
| Note |
DVI-I (analog) and DVI-D (digital) must match between source PCs for proper switching. |

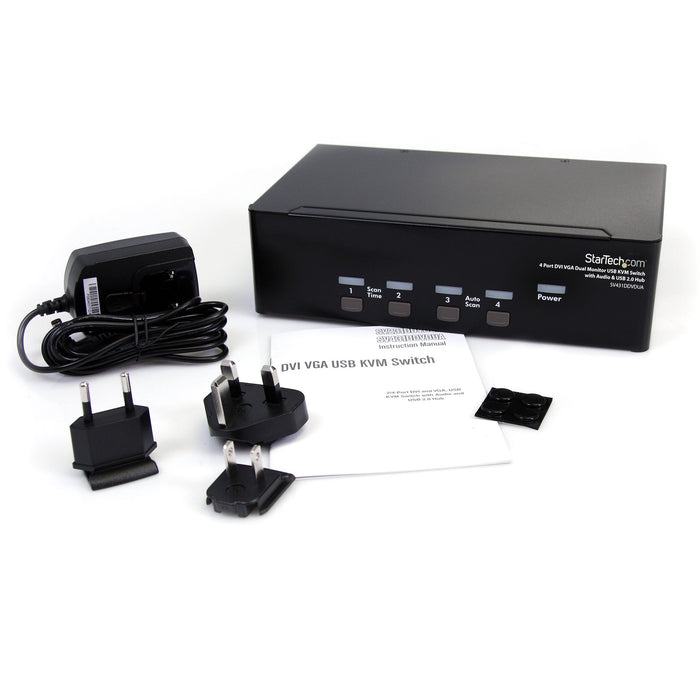

| What's in the Box |
|
| Included in Package |
1 - 4-port KVM switch |
|
4 - Foot pads |
|
1 - Universal power adapter (NA/EU/UK/AU) |
|
1 - Instruction manual |
-
