Synology NAS/storage Server - Active SAN For Mission-Critical Environments | UC3400
Reliability and High Availability
Active-active dual controllers work simultaneously to ensure zero downtime in the event of a controller failure while the non-transparent bridge (NTB) enables inter-domain communication to maximize the protection of in-flight data.Active-Active SAN with enterprise-class performance
Designed for mission-critical environments, UC3400 is a high-availability SAN solution supporting Fibre Channel (FC) and iSCSI protocols. With over 180,000 4K random write IOPS, it supports a wide range of demanding workloads.
Virtualization-ready
Full certification for VMware, vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack environmentsSupport for Windows Offloaded Data Transfer (ODX), VMware vSphere Storage APIs Array Integration (VAAI), and ALUA ensure optimized and efficient storage operations
OpenStack® Cinder support enables UC3400 to become a block-based storage component
Flexible network options

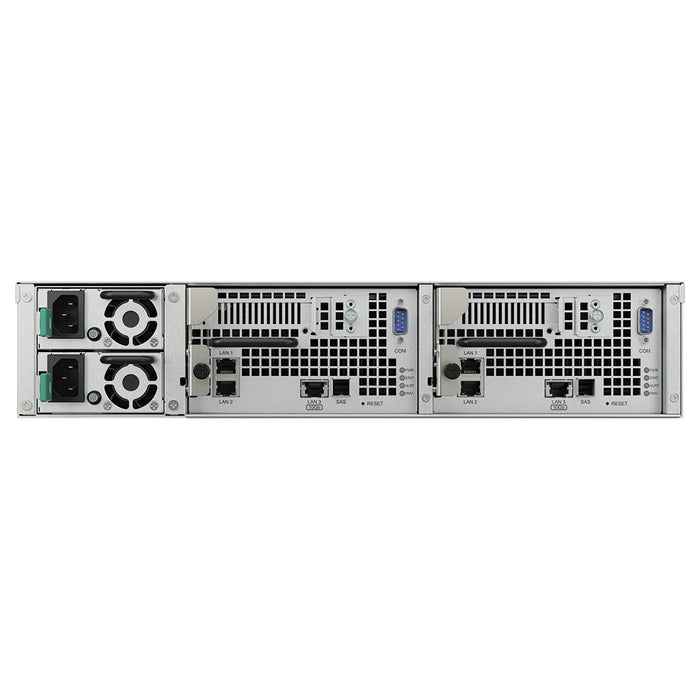

Boost network from 10GbE and dual 1GbE RJ-45 ports to 10/25 Gb Ethernet cards or 16 Gb Fibre channel host bus adapters on each controller.
Built-in data protection and security
Maximize service uptime for critical services and enhance data security with snapshot protection and self-encrypting drive support in UC3400.Storage expansion
Simple capacity expansion of up to 576 TB of raw storage is available with two Synology RXD1219sas Expansion Units.Performance backed by Synology drives
Leverage high sustained performance and reliability with enterprise-grade drives with built-in protection designed for Synology systems. -
Category Specification Battery Battery Type UN3091 - Lithium METAL inside equipment Lithium Weight (g) 0.064 g Design Chassis Type Rack (2U) Cooling Type Active Fan Diameter 6 cm Number of Fans 2 fan(s) Legal Information UNSPSC Code (Icecat) 43201835 Memory Internal Memory 8 GB Internal Memory Type DDR4 Maximum RAM Supported 64 GB Network Ethernet LAN Yes Ethernet LAN Data Rates 10/100/1000/10000 Mbit/s Link Aggregation Yes Supported Protocols SMB1/SMB2/SMB3, NFSv3/NFSv4/NFSv4.1, HTTP, FTP, iSCSI, LDAP, etc. Operational Conditions Operating Humidity (H-H) 5 - 95 % Operating Temperature 0 - 35 °C Storage Temperature -20 - 60 °C Package Dimensions Gross Weight 3.9 kg Performance Access Control List Yes Backup Function Yes Reset Button Yes Snapshot Yes Type NAS Ports & Interfaces Ethernet LAN Ports 3 USB Port No Power AC Input Frequency 50/60 Hz AC Input Voltage 100 - 240 V Power Supply Units 2 PSU Capacity 500 Watt Redundant Power Supply Yes Processor CPU Configuration 1 Processor Boost Freq. 2.7 GHz Processor Cache 12 MB Processor Cores 8 Processor Family Intel® Xeon® D Processor Frequency 2.1 GHz Processor Manufacturer Intel Processor Model D-1541 Special Features Intel Secure Key Technology v1.00, Intel TSX-NI v1.00 Product Dimensions Net Weight 3 kg Depth 72.4 cm Height 8.8 cm Width 48.2 cm Storage Hot-Swap Drive Bays Yes Installed Drive Type No Drives Supported 12 RAID Levels 0/1/10/5/JBOD RAID Support Yes Drive Interface Serial Attached SCSI (SAS) Drive Sizes Supported 2.5/3.5 " Drive Types Supported HDD & SSD File Systems BTRFS/ext4 Vendor Information Brand Name Synology Warranty 1 Year(s)
