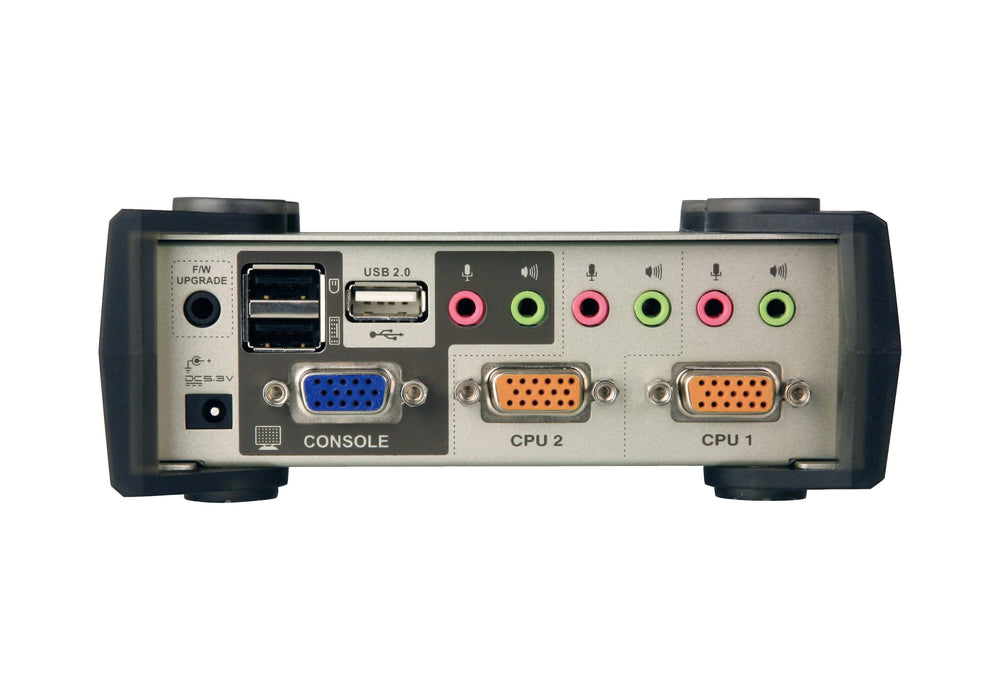

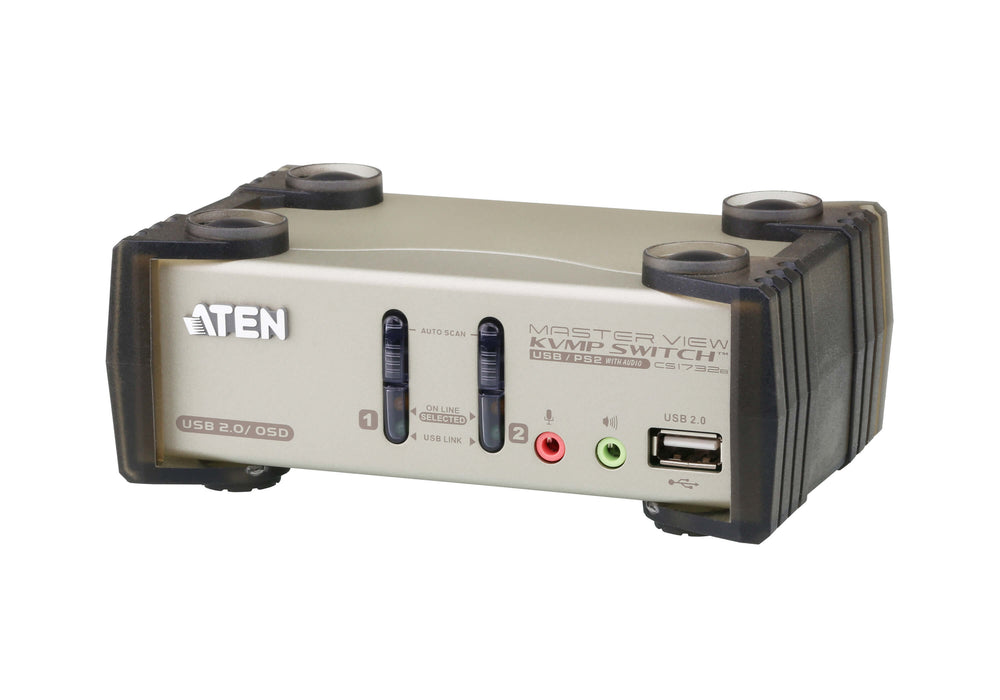

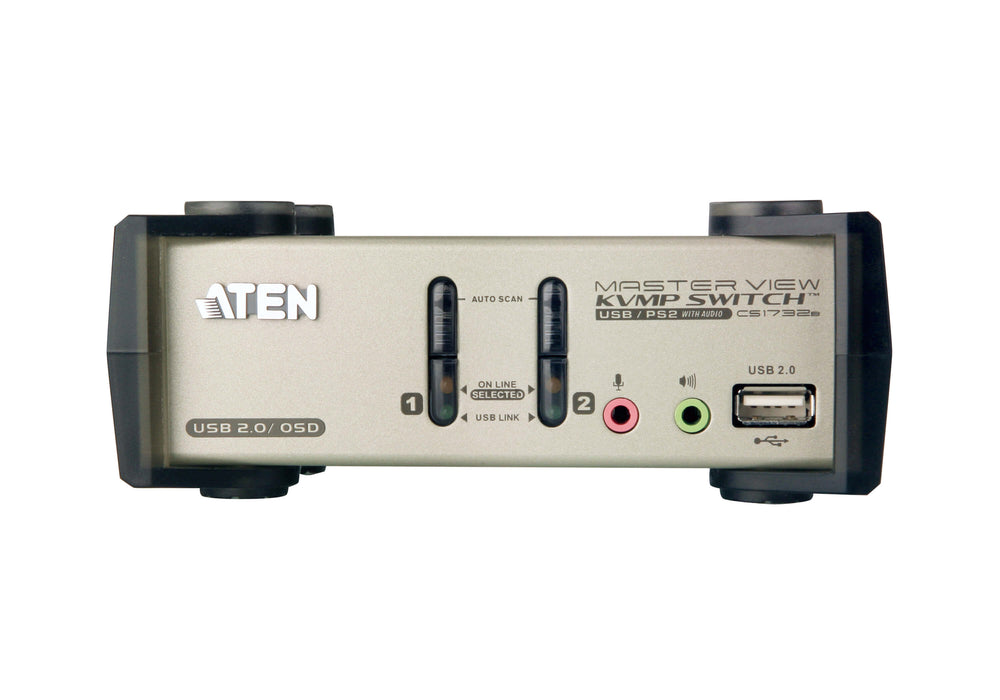

Aten 2-Port USB KVM Switch with Audio - CS1732B-AT-E
SKU: CS1732B-AT-E
£97.77 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Aten 2-Port USB KVM Switch with Audio - CS1732B-AT-E

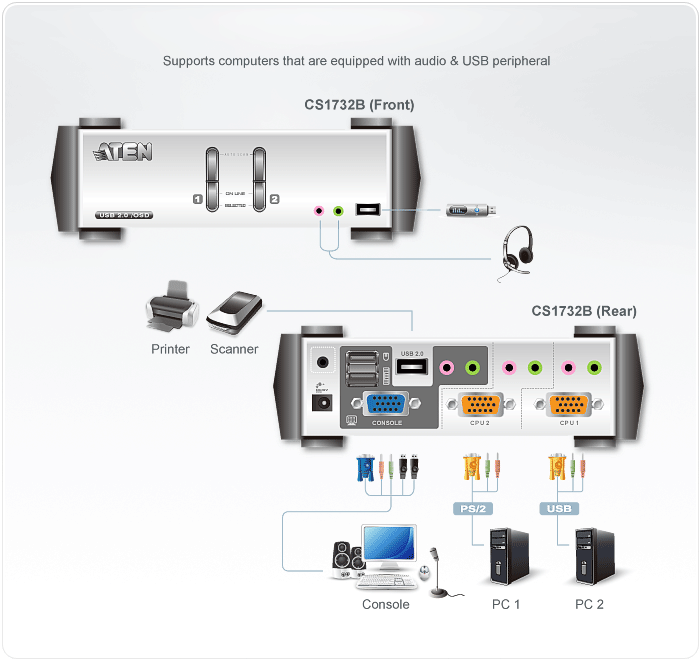

The CS1732B is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access two computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.
1 x CS1732B 2-Port USB 2.0 KVMP™ Switch
2 x 2L-5301U USB KVM Cables (1.2m)
1 x LIN5-04A2-J13G Firmware Upgrade Cable
1 x 0AD8-1605-24M1 Power Adapter
2 x OSD/Hotkey Stickers
1 x User InstructionsSuperior video quality; 2048 x 1536; DDC2B
Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), hotkeys and mouse
Supports computers with PS/2 or USB keyboard and mouse configurations
Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
-
Design Cable length 1.2 m Hot keys Yes Housing material Metal LED indicators Yes Product colour Black/Metallic Push button Yes Display On Screen Display (OSD) Yes Legal Information UNSPSC Code 43211601 Operational conditions Operating relative humidity (H-H) 0 - 80 % Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 60 °C Package dimensions Depth (package,cm) 28.3 cm Gross Weight (Package, kg) 1.353 kg Height (package,cm) 17.3 cm Width (package,cm) 6.2 cm Packaging content Cables included KVM Manual Yes Quick installation guide Yes Performance DDC2B support Yes Firmware upgradeable Yes HD type QXGA Maximum resolution 2048 x 1536 Pixels Scan interval 1/255 Second Video bandwidth 60 Hz Ports & interfaces Audio connections Yes Console ports 3.5mm headphone/3.5mm mic DC-in jack Yes Headphone outputs 4 Keyboard port type USB, PS/2 Mouse port type USB, PS/2 Number of computers controlled 2 Number of microphone inputs 4 USB 2.0 Type-A hub ports quantity 2 USB hub Yes Video port type VGA Power DC input voltage 5.3 V Power consumption (typical) 2.5 Watt Power source DC Product dimensions Net Weight (Product, kg) 0.1 kg Product Depth 8.8 cm Product Height 5.55 cm Product Width 14 cm System requirements Mac operating systems supported Yes Windows operating systems supported Yes Vendor information Brand Name Aten Warranty Warranty 2 Year(s) -
Description Downloads Product Brochure Downloads
