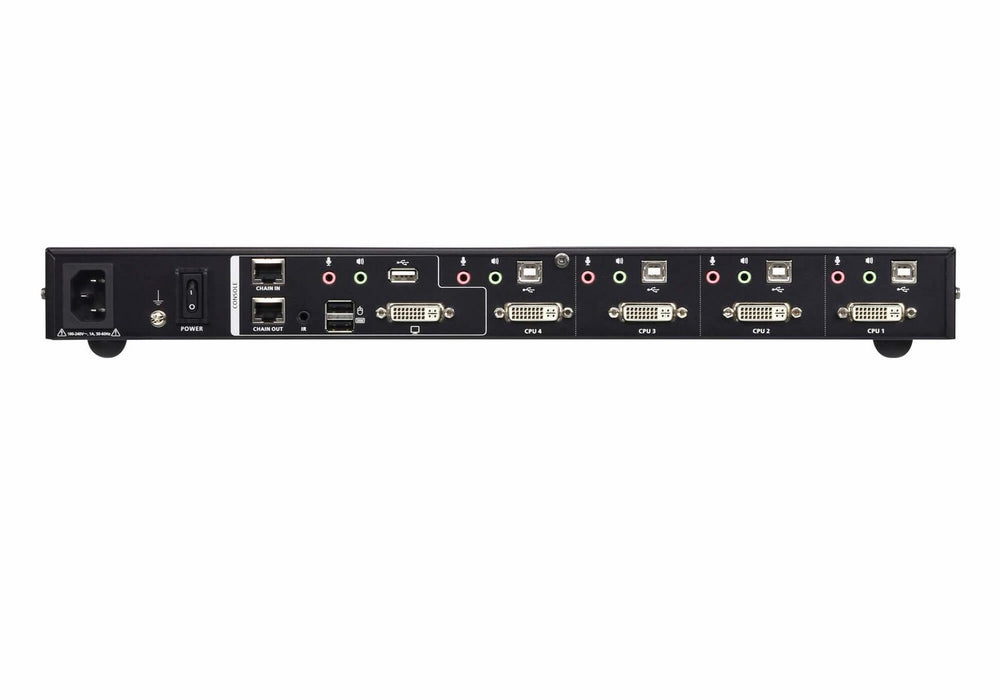

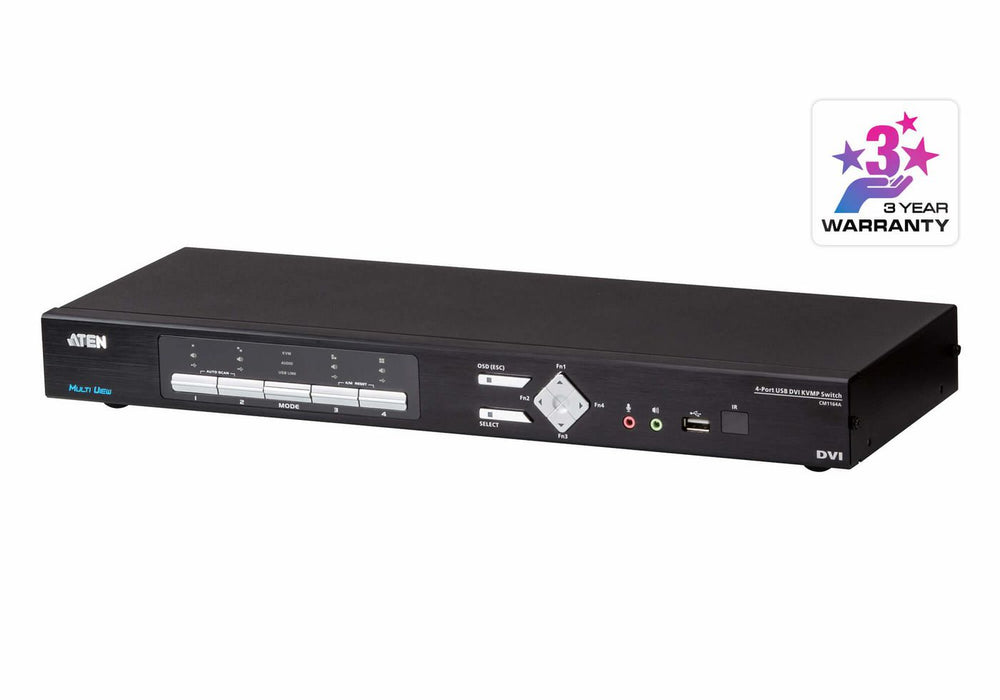

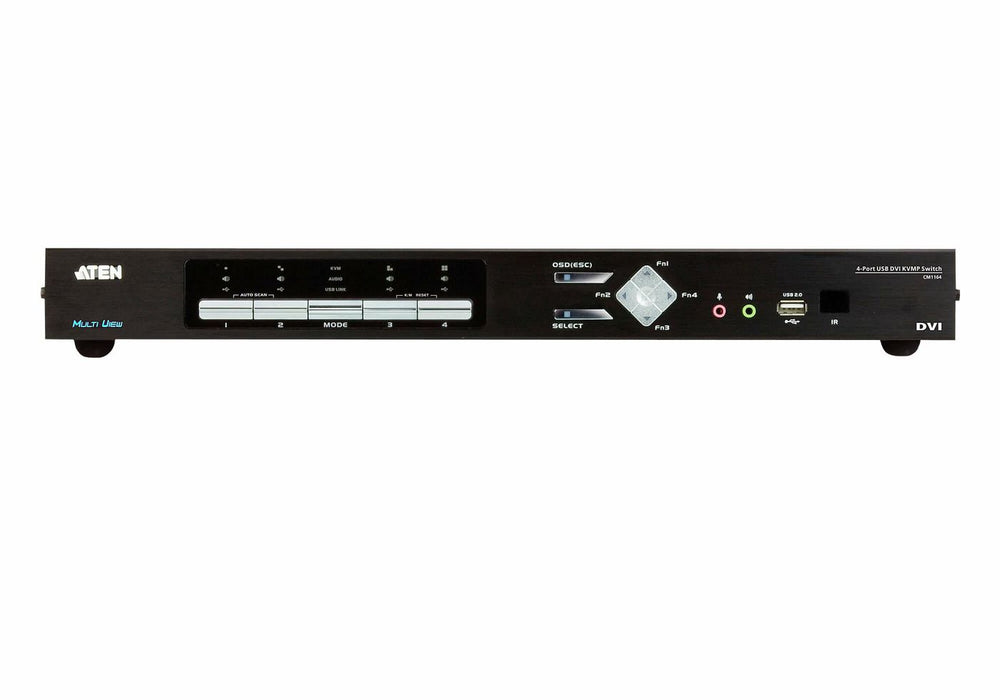

Aten 4-Port USB DVI Multi-View KVMP Switch - CM1164A-AT-E
SKU: CM1164A-AT-E
£1,212.57 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Aten 4-Port USB DVI Multi-View KVMP Switch - CM1164A-AT-E
4-Port USB DVI Multi-View KVMP Switch
ATEN CM1164A 4-Port USB DVI Multi-View KVMP™ Switch improves the operational efficiency of intensive monitoring applications. With limited screen, to allow users to manage the data more efficiently, up to 16 video sources can be selected, switched and displayed at the same time with independent keyboard, mouse control. The CM1164A provides users a real-time monitoring functionality by combining a 4-port DVI-D switch with a 2-port USB hub and providing the following display modes: Quad View, Picture in Picture (PiP), Picture by Picture (PbP), Picture on Picture (PoP), and Full Screen mode.
1x CM1164A 4-Port USB DVI Multi-View KVMP™ Switch
4x LIN5-35W1-W11G KVM Cables (DVI-D, USB, Audio)
1x LIN2-418K-E12G Power Cord
1x 2XRT-0013G IR Remote Control
1x Rack Mount Kit
1x User Instructions
Multi-view console controls up to four video sources on one screen with display modes including Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP)Easily resize and / or reposition any PiP or PbP to suit users’ viewing needs; Supports superior video quality – up to 1920 x 1200; YCbCr 4:2:2
DCC (Daisy Chain Control) — Controls up to 3 additional CM1164A units from a single console; Cascade up to 2 levels — Controls up to 16 computers (with up to 4 x 4 Multi-view mode)
Boundless Switching – Simply moves the mouse cursor across windows to switch to other video sources
-
Feature Details Design Cascadable Yes Hot keys Yes Housing material Metal LED indicators Yes Product colour Black Push button Yes Rack capacity 1U Rack mounting Yes Display Built-in display No On Screen Display (OSD) Yes Legal Information UNSPSC Code 43211601 Network Ethernet LAN Yes Ethernet LAN (RJ-45) ports 2 Operational conditions Operating relative humidity (H-H) 0 - 80 % Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -10 - 60 °C Package dimensions Depth (package, cm) 54 cm Gross Weight (Package, kg) 4.38 kg Height (package, cm) 23.3 cm Width (package, cm) 13.1 cm Packaging content AC adapter included Yes Cables included KVM Manual Yes Rack mount kit Yes Performance Daisy chain Yes HD type Full HD HDCP Yes Maximum resolution 1920 x 1200 Pixels Scan interval 10/15/30/5/60/90 Second Video bandwidth 60 Hz Ports & interfaces Audio connections Yes Console ports 3.5mm headphone/DVI-I/RJ–45/USB A Console USB ports quantity 2 DVI-D ports quantity 5 HDCP Yes Headphone outputs 6 Keyboard port type USB Mouse port type USB Number of computers controlled 4 Number of microphone inputs 6 USB 2.0 Type-A hub ports quantity 2 USB 2.0 Type-B ports quantity 4 USB connector type USB Type-A/USB Type-B USB hub Yes Video port type DVI-D Power AC input frequency 50 - 60 Hz AC input voltage 110 - 220 V Power consumption (typical) 9.7 Watt Power source AC Product dimensions Net Weight (Product, kg) 0.1 kg Product Depth 16.4 cm Product Height 4.4 cm Product Width 43.72 cm Sustainability Sustainability certificates RoHS Technical details Sustainability certificates RoHS Vendor information Brand Name Aten -
Description Downloads Datasheet Downloads
