Atlona Three-Input HDBaseT and HDMI Switcher Mixer Amplifier and USB Hub | AT-OME-CS31-SA-HDBT

SKU: AT-OME-CS31-SA-HDBT
Atlona Three-Input HDBaseT and HDMI Switcher Mixer Amplifier and USB Hub | AT-OME-CS31-SA-HDBT Matrix Switcher Atlona
Availability:
Only 3 left at this price!
Save £1,090.65 Save £1,090.65

£1,392.05 (Excl. VAT)

- £1,670.46 (Inc. VAT)
£1,392.05 - £1,392.05
- - £1,670.46
Availability:
Only 3 left at this price!
  • Visa
  • Mastercard
  • American Express
  • Apple Pay
  • Google Pay
  • Paypal
  • Shop Pay
  • Klarna
  • Bank Transfer (BACS)
Download Product Datasheet i
Trade pricing for verified resellers, proforma issued on official company letterhead for PO processing.
Education & Public Sector Pricing available for schools, universities, NHS, and government organisations. Contact our Public Sector Team on 020 8191 9223 or email info@screenmoove.com.
  • Description
  • Specifications
  • Downloads

  • Atlona Three-Input HDBaseT and HDMI Switcher Mixer Amplifier and USB Hub

    AT-OME-CS31-SA-HDBT

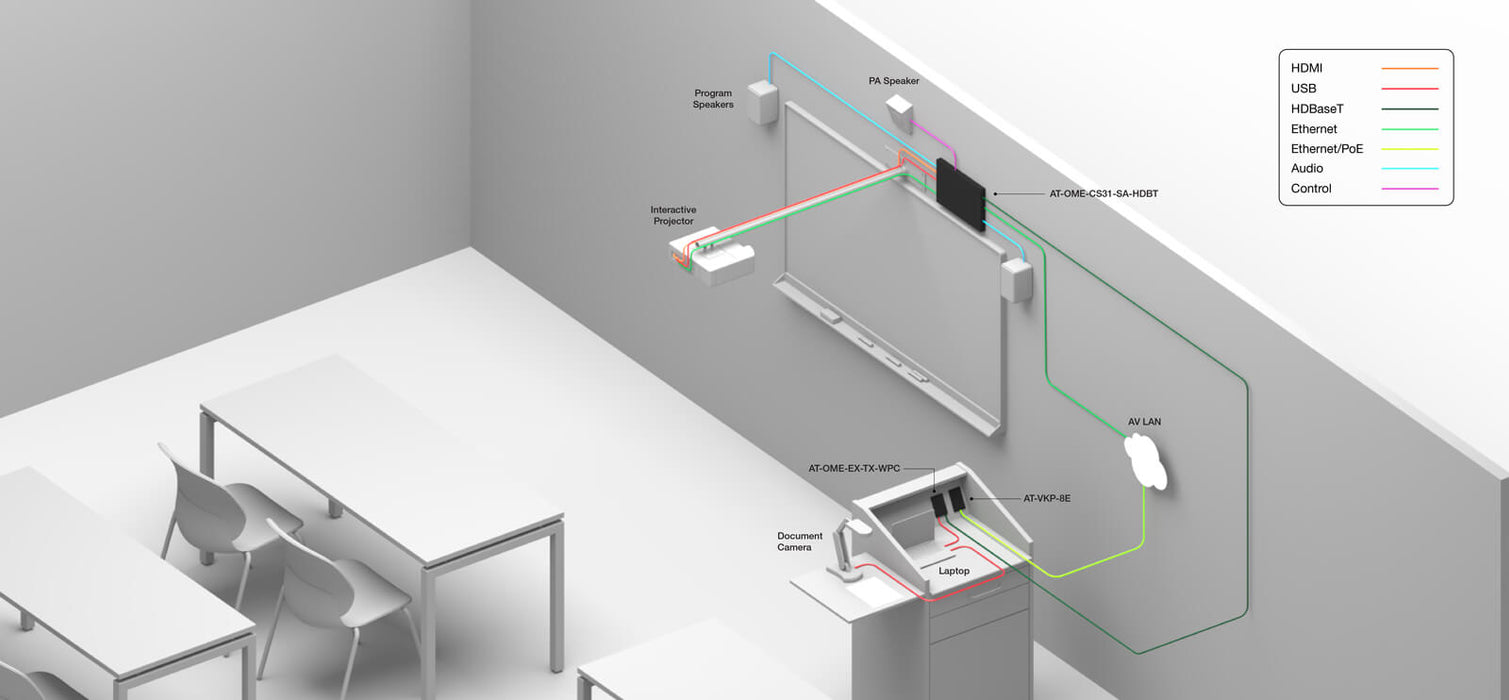

    Full-featured AV solution for classrooms and meeting rooms

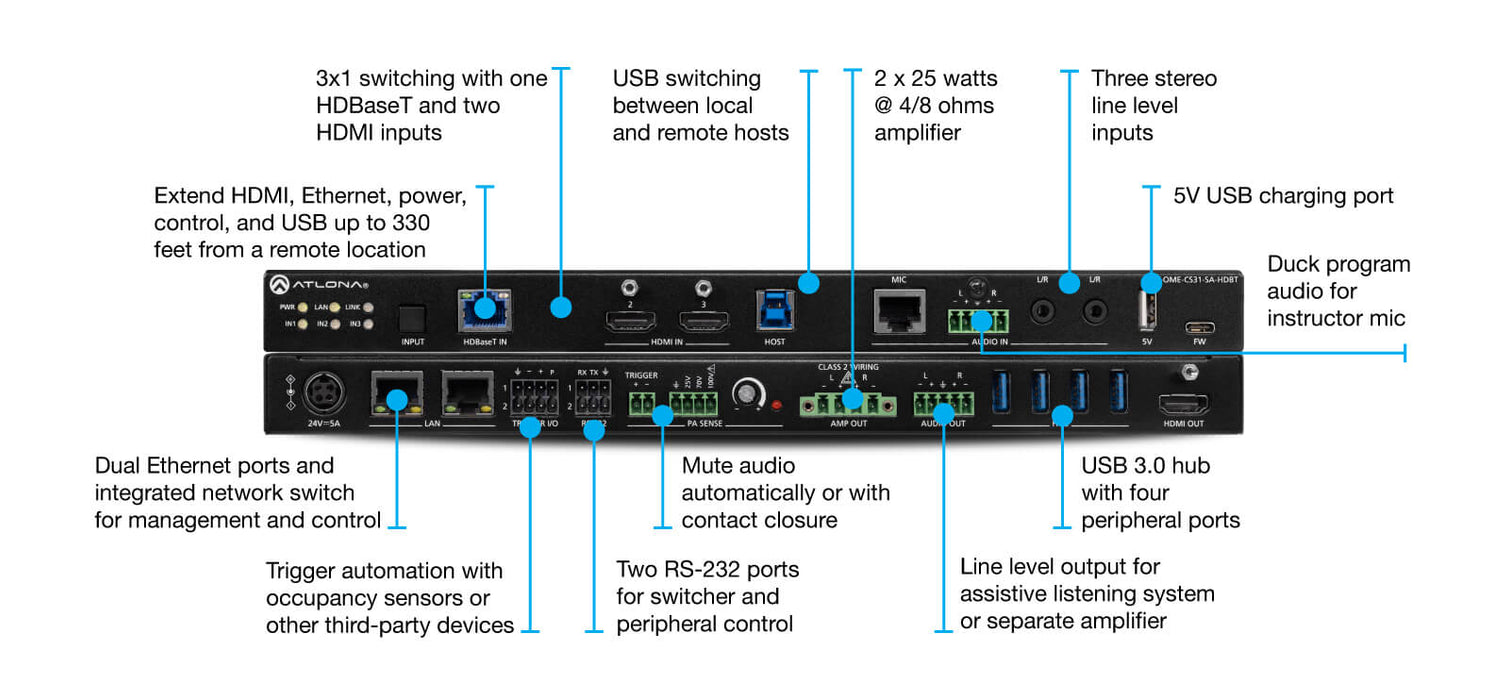

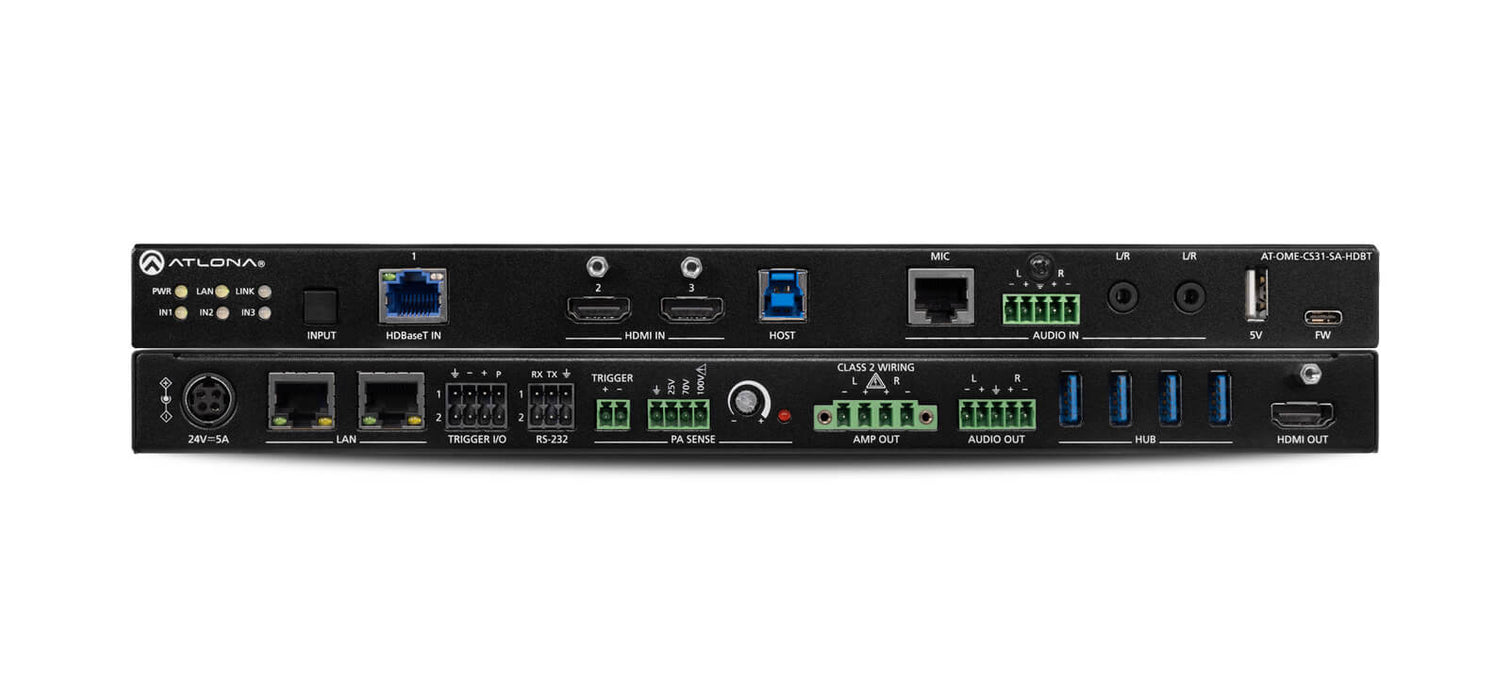

    The AT-OME-CS31-SA-HDBT is an AV presentation and collaboration system featuring a 3×1 switcher with HDMI and HDBaseT inputs, 50 watt mixer amplifier, and USB routing.


    AT-OME-CS31-SA-HDBT


    Specialized Classroom Capabilities
    Ducking lowers program audio levels when the teacher speaks into their microphone connected to the balanced line input. Mute audio when a PA message is detected or with a contact closure. Both features ensure important lesson material and announcements are heard clearly.

    AT-OME-CS31-SA-HDBT


    Flexible Control
    Automate system operation based on switcher activity, integration with occupancy sensors, or use with a Velocity control system.

    AT-OME-CS31-SA-HDBT
  • Category Attribute Value
    Video Inputs HDMI, HDBaseT
    Outputs HDMI
    Copy Protection HDCP 2.2
    Pixel Clock HDMI: 600MHz, HDBaseT: 300MHz
    Max Resolutions Up to 4K @ 60Hz (DCI/UHD)
    VESA Support 640×480 to 2560×2048, incl. 21:9 formats
    Color Space YUV, RGB
    Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
    Color Depth 8, 10, 12-bit
    HDR Formats HDR10, HLG, Dolby Vision
    Audio HDMI Pass-Through LPCM, Dolby, DTS, Atmos, DTS:X
    Bit Depth / Sample Rate 24-bit, 32–192 kHz
    Analog Audio In Balanced: +4 dBu / Unbalanced: -10 dBV
    Analog Audio Out Balanced: +4 dBu
    Amp Output 2 × 25W @ 4 or 8Ω
    USB Signal USB 3.0, 5 Gbps
    Internal Hub 1 (4x USB-A Ports)
    Ethernet Ports 2 × RJ45
    Protocols HTTP, HTTPS, Telnet, SSH, JSON
    Speed 10/100/1000 Mbps
    IP Modes DHCP / Static
    RS-232 Ports 2 × 3-pin Captive Screw
    Baud Rates 9600–115200
    CEC Trigger HDMI OUT
    Distances HDMI (4K / 1080p) 5m / 10m
    CAT5e 90m / 100m
    CAT6/6a/7 100m / 100m
    Controls Buttons 1 × Input Select
    Indicators 6 × Green LEDs
    Connectors HDMI IN / OUT 2 IN / 1 OUT (Type A)
    HDBaseT IN 1 × RJ45
    USB USB-B, USB-C, 4x USB-A
    Audio Ports MIC, L/R, AMP, AUDIO OUT
    RS-232, LAN, Trigger Captive Screws / RJ45
    Power 24V / 5A (DIN 4-pin)
    Environmental Operating Temp 0 to 50°C (32–122°F)
    Storage Temp -20 to 60°C (-4–140°F)
    Humidity 20%–90%, non-condensing
    Power Consumption 95.3W
    BTU 325.2 BTU/h
    Supply 100–240V AC → 24V/5A DC
    Dimensions Unit (H×W×D) 25×300×210 mm
    PSU (AT-PS-245-D4) 40.6×66×157 mm
    Weight Device 1.7 kg (3.8 lbs)
    Certifications Unit CE, RoHS, FCC
    PSU CE, FCC, UL, TUV-GS, CB, PSE, CCC
    Compliance NDAA-889 Yes
