Aurora DTX-44D 4x4 Dante DSP with 4x4 Analog in and Out
SKU: DTX-44D
£1,374.02 (Excl. VAT)
- Description
- Specifications
- Downloads
-

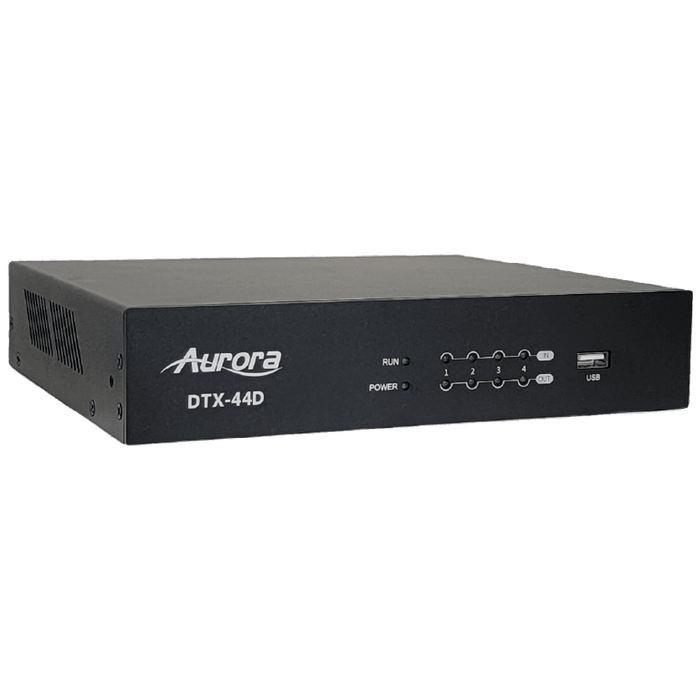

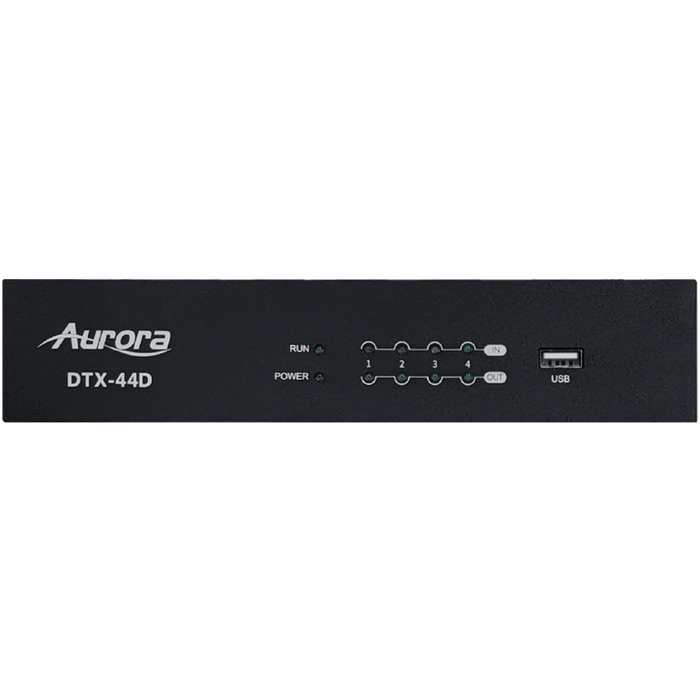

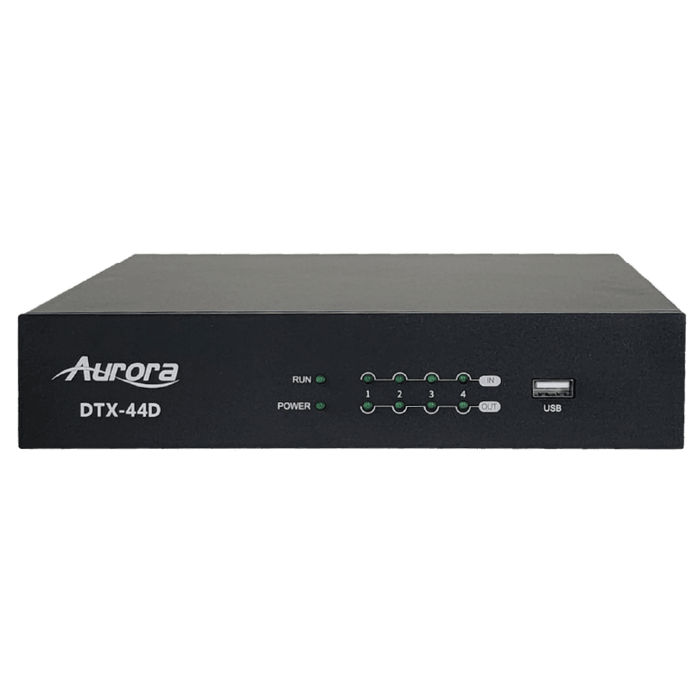

Aurora DTX-44D 4x4 Dante DSP with 4x4 Analog in and Out
Aurora’s DTX-44D is a Dante enabled, digital audio DSP. This fully networked and PoE powered DSP, is an ideal complement to Aurora’s IPX and VPX Video over IP solutions for House of Worship, Bars and Restaurants, Conferencing, and Education markets. The DTX ecosystem of products are purpose built to deliver pristine audio throughout the network while significantly reducing traditional device count and cabling costs. A single network cable handles power, transmission, management, and control, making it easy to transmit and control audio safely, quietly, and conveniently for reliable performance and perfect integration throughout the network.
Features
ADI SHARC 21489 processor

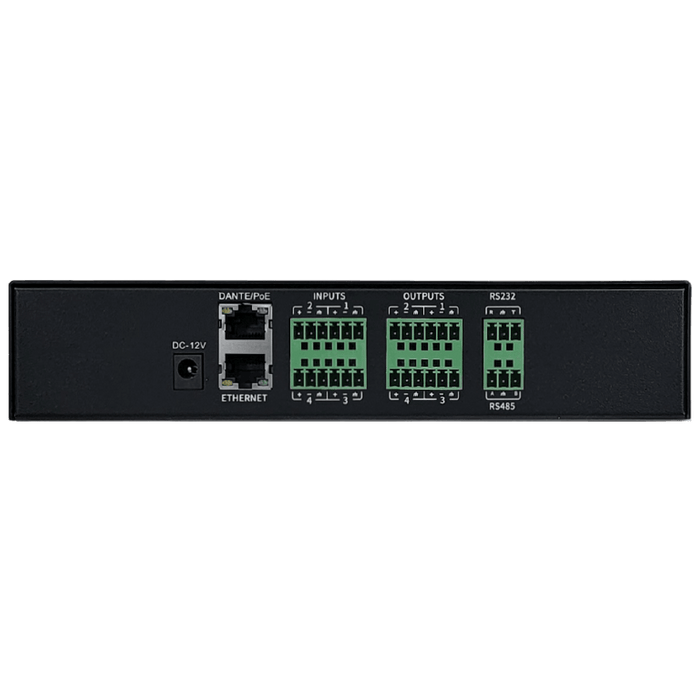

4 balanced microphone or line level inputs on Terminal Block connectors
4 balanced line level outputs on Terminal Block connectors
2 Dante audio interfaces on RJ-45 connectors
Dante audio channels up to 4×4
Definable GUI for managing and configurating multiple units
All Inputs and Outputs support a full suite of audio shaping tools including graphic and parametric EQ, dynamics, ducker, delay and more
16 preset slots to store all configuration data for easy recall
Built-in USB sound card for recording and playing digital audio
DASH software tool for managing all audio operations
Supports adaptive echo cancellation (AEC), adaptive feedback control (AFC), automatic gain control (AGC), automatic mixture control (AMC), automatic noise suppression (ANS)
Warrenty: 60 Months -
Feature Description ADSP ADI SHARC 21489 (×1) Audio Format 24 bits, 48 kHz (uncompressed) System Latency < 3 ms Analog I/O Channels 4x4 Dante I/O Channels 4x4 Analog Input Gain 0, 10, 20, 30, 40, 43 dB Analog Input Level +24 dBu Analog Output Level +24 dBu Frequency Response ±0.2 dB (20 Hz to 20 kHz) THD+N < 0.003% (1 kHz, +4 dBu) CMRR 103 dB @ 60Hz SNR 110 dB Analog Dynamic Range 113 dB Dante Dynamic Range 113 dB Analog Background Noise -89 dBu (A-weighted) Dante Background Noise -91 dBu (A-weighted) Channel Isolation 108 dB (1 kHz) Input Impedance 20k ohms (Balanced) Output Impedance 100 ohms (Balanced) Phantom Power 48 V Input Port 4 Analog Audio (Terminal Block) Output Port 4 Analog Audio (Terminal Block) Ethernet Port 2 Dante Audio (RJ-45), 1 LAN (RJ-45) USB Port 1 USB Audio (Type-A) Serial Port 1 RS-232, 1 RS-485 (Terminal Block) AC Power 110 to 240 VAC, 50/60 Hz AC Adapter 12 VDC or PoE Power Consumption 10 W Chassis Material Metal Chassis Color Black Dimensions (H×W×D) 45×241×130 mm Weight 1.5 kg Operating Temp. +32 to +104 °F (0 to +40 °C) Humidity 10% to 90% RH (non-condensing) Compliance FCC, CCC, CE, RoHS -
Description Downloads Aurora DTX-44D 4x4 Dante DSP with 4x4 Analog in and Out DataSheet Downloads
