Aurora Multimedia DXE-CAT-TX2-4K 4k HDMI HDbaset Extender 330/600ft
The DXE-CAT-TX2 is part of Aurora's expanding Digital Xtreme Series, and the first of the new HDBaseT CAT extenders. The DXE-CAT-TX2's powerful design provides usability and features not found anywhere else. Single-sided connections for LAN, HDMI, Control and Power provide a cleaner wiring and rack mounting solution. The Patents Pending design allows the system to be powered via POE or AC adapter from either side! With a single CAT 5e/6/7 cable, the DXE-CAT-TX2 can go up to 330ft 1080p 60Hz 48bit color depth with bi-directional RS-232, IR, & LAN (up to 600ft with CAT 6a shielded cable at 24bit color depth). Power Supply NOT included, please order separately.
Features
Transmit HDMI up to 1080p 60Hz 48bit 330ft over one CAT 5e/6/7 cable
Transmit HDMI up to 1080p 60Hz 24bit 500ft over one CAT 6 cable
Transmit HDMI up to 1080p 60Hz 24bit 600ft over one CAT 6a shielded cable
HDCP Compliant

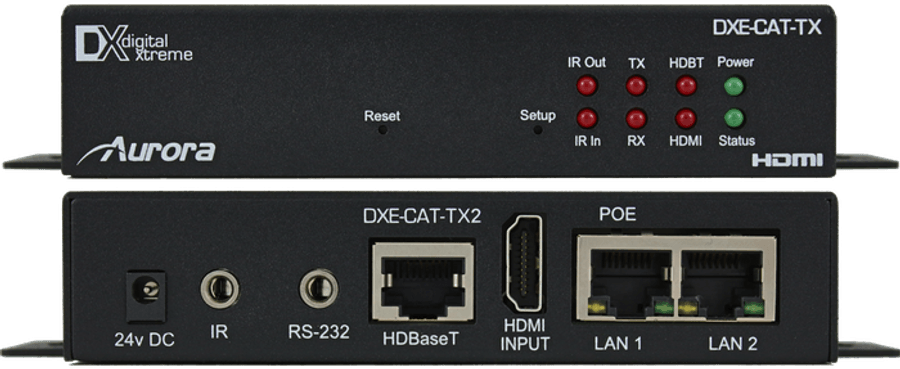

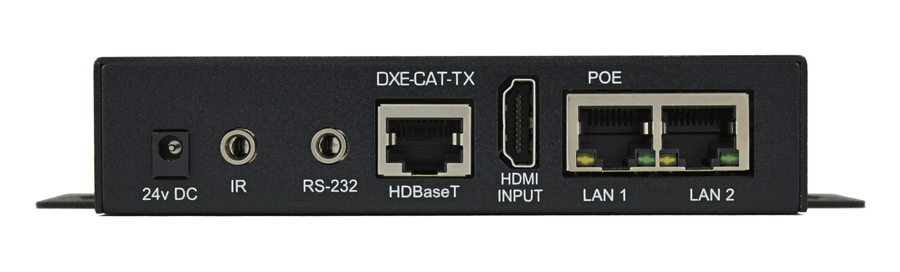

All connectors on one side for easier installation
Bi-directional RS-232 & IR & LAN
Power both units from TX or RX side with wall power supply (HDBaseT POE)
LAN POE (Power-Over-Ethernet) can power both TX & RX without wall supplies (Patents Pending)

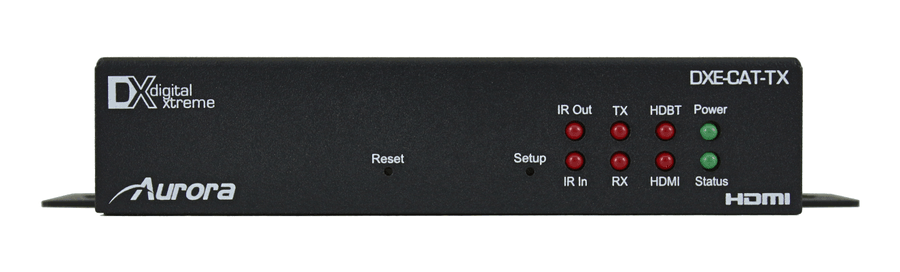

Status LED for all connections on front
Various mounting options
Comes in a variety of models for different features & cost savings
Warrenty : 60 Months -
Feature Description HDMI Compliance HDMI 3D HDCP Compliance Yes Transmission Distance Up to 600ft over CAT cables Max Resolution 4K 30Hz (340MHz) Color Depth 48bit TX Connectors HDMI in, 2x RJ-45, HDBaseT, RS-232, IR (3.5mm TRS) RX Connectors HDMI in, 2x RJ-45, HDBaseT, RS-232, IR (3.5mm TRS) Dimensions 120 x 77 x 28mm (4.7" x 3.03" x 1.1") Weight 0.87lbs [395g] Mounting Options Wall tabs and rack bracket included Power Supply 24V 0.65A DC, 5 Watts Operating Temp. 32~104°F [0~40°C] Storage Temp. -4~140°F [-20~60°C] Relative Humidity 20~90% RH (no condensation) -
Description Downloads Aurora Multimedia DXE-CAT-TX2-4K 4k HDMI HDbaset Extender 330/600ft SpecSheet Downloads Aurora Multimedia DXE-CAT-TX2-4K 4k HDMI HDbaset Extender 330/600ft User Guide Downloads
