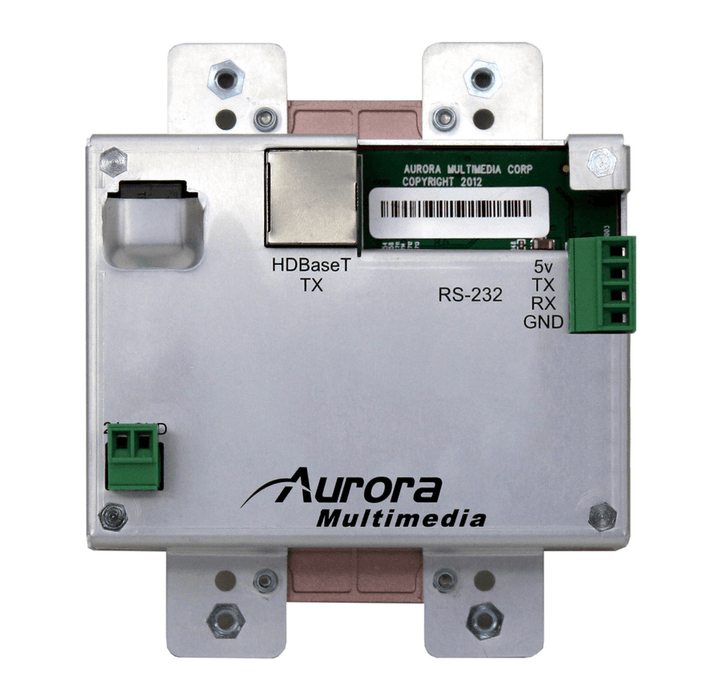

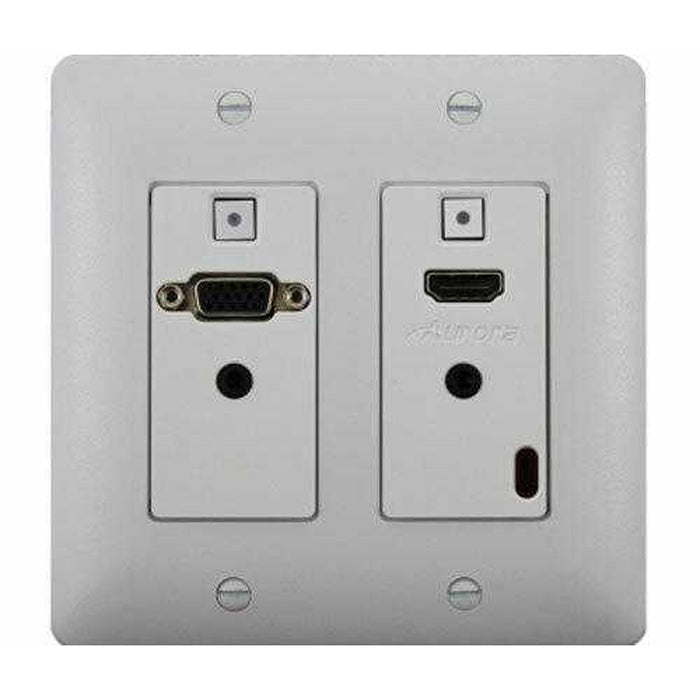

Aurora Multimedia DXW-2-W 2 Input HDBaseT Wall Plate (VGA & HDMI) White
SKU: DXW-2-W
£505.92 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Aurora Multimedia DXW-2-W 2 Input HDBaseT Wall Plate (VGA & HDMI) White
Aurora Multimedia DXW-2-W 2 Input HDBaseT Wall Plate (VGA & HDMI) - White is a 2 gang multi-input Decora™ style wall plate with HDBaseT CAT extension. Its ability to convert VGA (YPbPr, S-Video, Video) with audio to HDMI locally and transmit the signal up to 600ft sets this unit apart from the competition.
The sources are selectable with the buttons on the wall plate, DXB-8 1 gang 8 button panel, or remotely via RS-232 commands sent through the matching receiver device (DXE-CAT-RX, DXM Matrixes, etc).
Features
1 HDMI Input with Audio for DVI
1 VGA with Audio Converted to HDMI
VGA can Accept YPbPr, S-Video, & Video
Programmable Buttons for Control of Displays
HDBaseT 600ft Extension
1 IR Receiver (40ft Range)
Auto Sense, Buttons, RS-232 for Source Select
Buttons Backlight (Red, Green, Blue)
HDCP Compliant
Remotely or Locally Powered
Fits in Standard 2 Gang Outlet Box with Decora® style wall plate
Low depth for floor and table boxes
Warrenty : 60 Months -
Feature Description HDMI Compliance HDMI 3D HDCP Compliant Yes Distance 330ft (CAT 5e/6/7, 1080p 60Hz 48bit)
500ft (CAT 6, 1080p 60Hz 24bit)
600ft (CAT 6a, 1080p 60Hz 24bit)Max Resolution 4K × 2K Color Depth 48bit Digital Video Input (1) HDMI in with 3.5mm TRS audio for DVI Analog Video Input (1) VGA in with 3.5mm TRS audio
Supports YPbPr/S-Video/Composite via optional breakout cablesIR Control IR pass through for remote control Serial Control Remote control via compatible receiver Dimensions 2 Gang, 3.728" × 4.331" × 1.404"
Wall box depth: 1.04"Weight 0.5 lbs Power 24VDC & PoH -
Description Downloads Aurora Multimedia DXW-2-W 2 Input HDBaseT Wall Plate (VGA & HDMI) White SpecSheet Downloads Aurora Multimedia DXW-2-W 2 Input HDBaseT Wall Plate (VGA & HDMI) White User Guide Downloads
