INOGENI TOGGLE ROOMS XT 3-Host USB/HDMI Switcher with Extension for Large Meeting Spaces
SKU: TOGGLE-ROOMS-XT
£1,995.00 (Excl. VAT)
- Description
- Specifications
- Downloads
-
INOGENI TOGGLE ROOMS XT 3-Host USB/HDMI Switcher with Extension for Large Meeting Spaces
One cable to own the room! Any room!
ONE USB-C CABLE (100W) TO TAKE CONTROL OF YOUR LARGE ROOM
4K BYOD/BYOM FOR LARGE ROOMS: 3 host switcher for USB/HDMI devices with extensionSwitch 6 peripherals between 3 hosts: Redefine collaboration with Bring Your Own Device (BYOD) and Bring Your Own Meeting (BYOM) support, offering flexibility for various meeting scenarios via a push button or control pad.
Versatile technology (BYOD/BYOM)
• Automatic or manual switching between Room PC & laptops (3 hosts capable).
• Direct connection of 5x USB devices + 1 HDMI display.
• Flexible laptop connectivity: USB-C (100W) or USB-B + HDMI.

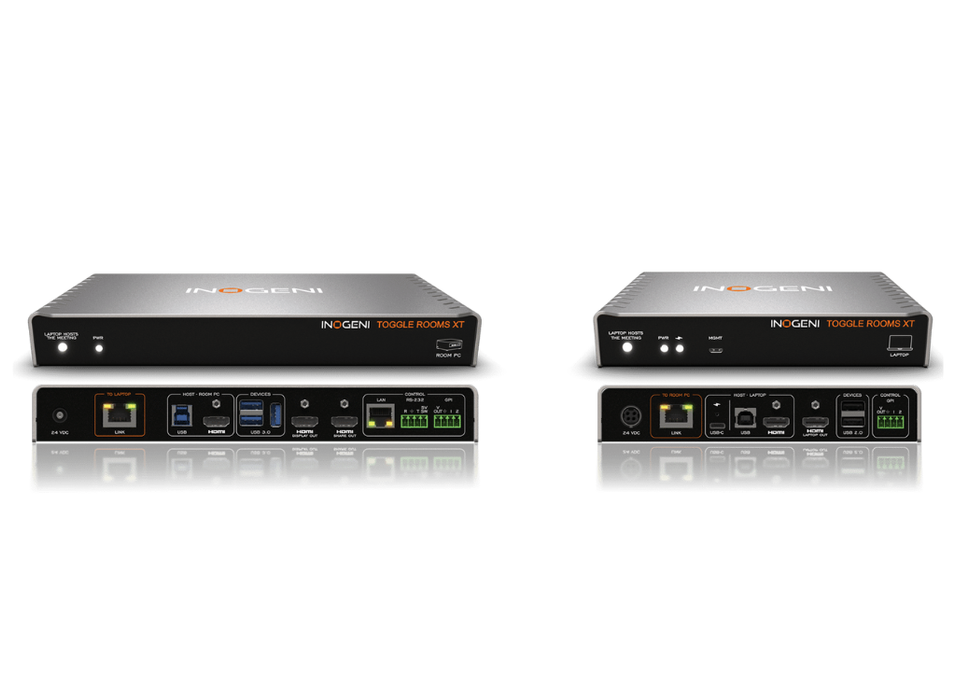

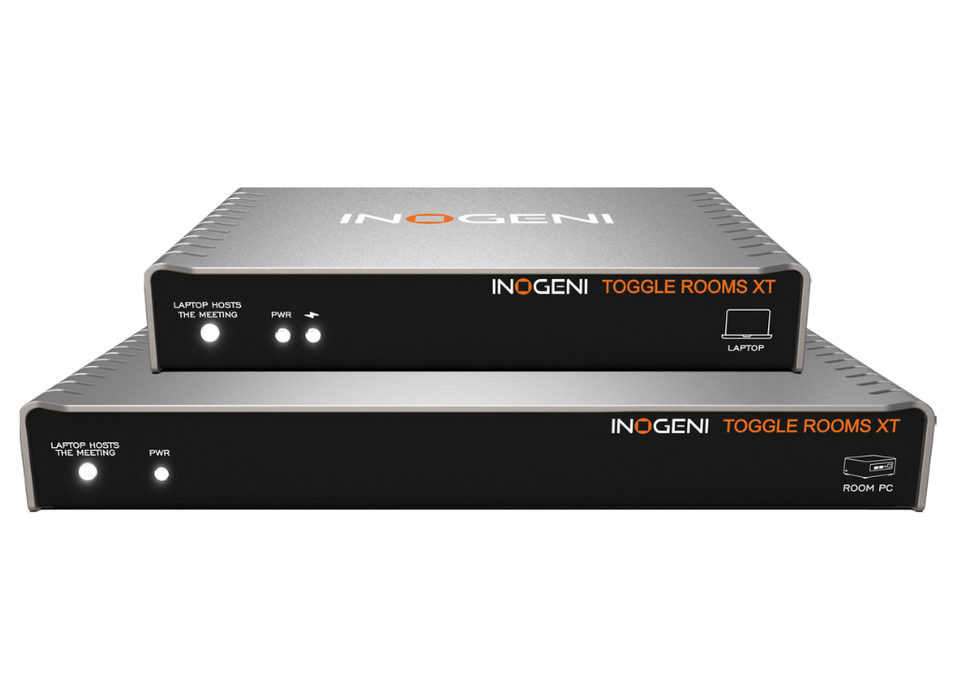

• 2 box system: At the display (Room PC hub) and at the table (laptop hub).
• Connected with a single CAT6A cable
• Uncompressed video signal via HDBaseT proven technology
• Reach: 40 m / 132 ft at 4K60 and 70 m / 230 ft at 1080p
• 1 display: 4K60 / 16:9 and 5K30 / 21:9 widescreen (HDMI).
• Tested and compatible by design with major UC systems and camera manufacturers, such as Crestron, Logitech, Lenovo, Poly, MAXHUB, Jabra, Teams, Zoom, etc.
• Flexibility
USB 3.2 Gen 1/USB 3.1 Gen 1, backward compatible with USB 3.0/2.0.
IP, RS-232 and GPI Control.
Optional host switch button: Table surface-mounted button for BYOM laptop selection.
Peace of mindMade in Canada and TAA-compliant.
Quality and reliability.
No driver required.
New Maestro device controller for easy configuration and update.
TOGGLE ROOMS XT facilitates videoconferencing management without any hassles. Users can switch seamlessly without waiting. -
Feature Details Product Name INOGENI TOGGLE ROOMS XT Technology HDBaseT 3.0 Range Up to 40 m (4K60), Up to 70 m (1080p60) Cable Type CAT6A U/FTP Laptop Host 1 USB-C (DisplayPort Alt Mode), Charging up to 100W Host 2 - USB USB 2.0 Type-B Host 2 - HDMI HDMI up to 4K60 HDMI Output Up to 4K60 USB Device Ports USB 2.0 Type-A (Laptop), USB 3.0 Type-A x3 (Room PC) Link Connector HDBaseT 3.0 interface GPI 4-POS terminal block, 2x Contact-closure control IP Control 10/100Mbps, Supports RESTAPI and Telnet RS-232 4-POS block, 9600–115200 baud, 8N1 HDMI Compliance HDMI 2.0b, HDMI 1.4, DVI 1.0, HDCP 2.3/2.2/1.4 compliant Chroma Subsampling YUV/RGB 4:4:4, 4:2:2 CEC Control Yes Audio Formats LPCM, Dolby Digital, DTS up to 192kHz Control Options Front Button, RS-232, GPI, LAN, USB OS Compatibility Windows 7+, macOS 10.10+, Linux (v2.6.38+) USB Tier Consumption 1 Tier Room PC Hub Dimensions 25.10 x 11.57 x 3.26 cm (9.88” x 4.56” x 1.28”) Laptop Hub Dimensions 18.4 x 11.57 x 3.26 cm (7.24” x 4.56” x 1.28”) Room PC Hub Power 36W (24V/1.5A DC) Laptop Hub Power 160W (24V/6.67A DC) Room PC Weight 760 g (1.68 lbs) Laptop Hub Weight 580 g (1.28 lbs) Operating Temperature 0°C to 45°C (32°F to 113°F) Storage Temperature -40°C to 105°C (-40°F to 221°F) Relative Humidity 0% to 90% non-condensing Mounting Options Under-table or wall mount UPC (US & CAN) 051497418717 UPC (INTL) 051497418724 Origin Canada Warranty 5 years (purchased after Aug 1, 2024) Certifications FCC, CE, UKCA, RoHS, IEC62368, SoV, UL, TUV, EMC TAA-Compliant Yes Package Contents Includes Laptop & Room PC devices, cables, power supplies, brackets, guide -
Description Downloads Datasheet Downloads
