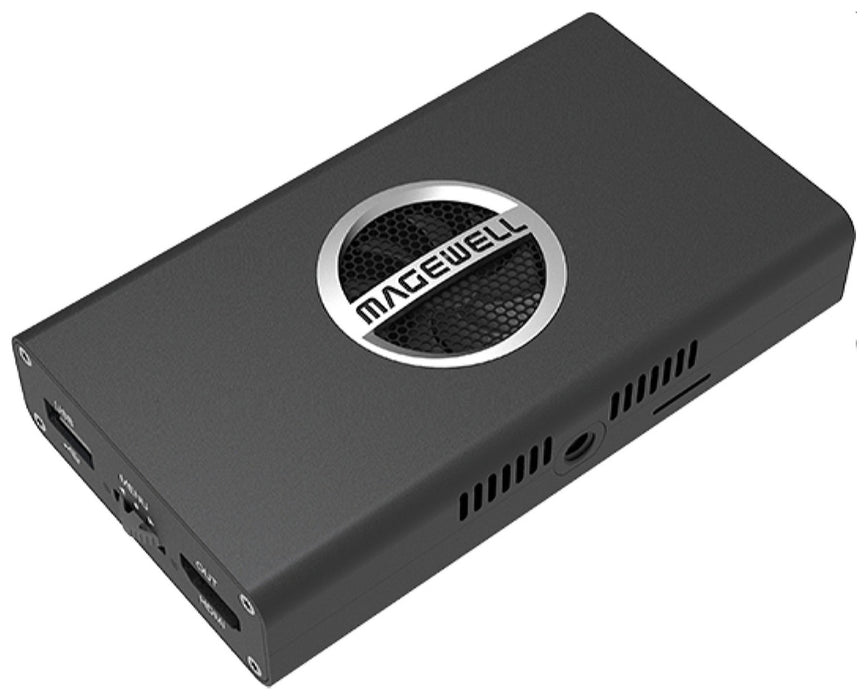

Magewell Pro Convert for NDI to HDMI 4K Decoder
SKU: 641100000
£839.95 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Magewell Pro Convert for NDI to HDMI 4K Decoder
Output Features
Support for up to 4096x2160 60fps HDMI output
Support for 96KHz, 16-bit 8-channel audio streams
Decoding Features
Support for decoding 4K 60fps NDI streams
Support for decoding full NDI® and NDI®|HX
Support for NDI 4.x
Discover NDI devices across network segments
Compatible with H.264/H.265 streams in additional protocols including RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP
Support for decoding alpha channel
Features & Advantages
Very low latency
Advanced configuration and device status through intuitive Web GUI, keyboard/mouse, or on-board controls
HTTP-based APIs for custom integration
Image flip for inverted projector installations and safe area controls
Automatic output optimization for target display with integrated up/down conversion -
Category Specifications Output Features - Max output: 4096x2160 60fps, 4:4:4, 8-bit color depth - HDMI Interface: HDMI 1.4/2.0 - EDID support for preferred video format output Supported Resolutions: - 4096x2160p/3840x2160p @ 23.98/24/25/29.97/30/50/59.94/60fps - 2560x1440p @ 60/100/120/144fps - 2560x1080p @ 23.98/24/25/29.97/30/50/59.94/60fps - 1920x1080p @ 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120fps - 1920x1080i @ 50/59.94/60fps - 1280x720p @ 23.98/24/25/29.97/30/50/59.94/60fps - 720x576p50, 720x576i50, 720x480p/i59.94/60fps - 48KHz, 8-channel audio output Decoding Features - Supports decoding up to 4Kp60 streams - Full NDI, NDI - RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP - Video Codecs: H.264, H.265 - Audio Codecs: AAC, MP3 Web UI Management - Real-time device and signal monitoring - OSD settings, deinterlacing, alpha blending, audio gain, sample rate control - Channel mapping and network configuration - Firmware updates - HTTP API, USB RNDIS/ECM support - Compatible with IE, Edge, Firefox, Chrome, Safari, Opera On-Board Control - MENU button for settings navigation - 16-Position Rotary DIP switch for board index control Network Interface - 10/100/1000 Mbps Ethernet - IEEE 802.3af PoE support USB Interfaces - USB 2.0 Type B (control and power) - USB 3.0 Type A (keyboard/mouse for control) - USB RNDIS/ECM LED Indicators - Power LED: On (powered), Off (no power) - Decode LED: On (decoding), Blinking (error), Off (no source) - Tally LED: Preview/Program Physical Design - Dimensions: 117.5mm (L) x 66.7mm (W) x 23.4mm (H) - ¼–20 threaded hole for mounting - L-bracket for mounting Power Consumption - Max current: 1.6A, Max power: 7.2W Working Environment - Operating temperature: 0 to 45°C - Storage temperature: -20 to 70°C - Relative humidity: 5% to 90% non-condensing Accessories - USB 2.0 A to B cable - 5V/2.1A power adapter - L-bracket for mounting -
Description Downloads Magewell Pro Convert for NDI to HDMI 4K Decoder User Manual Downloads
