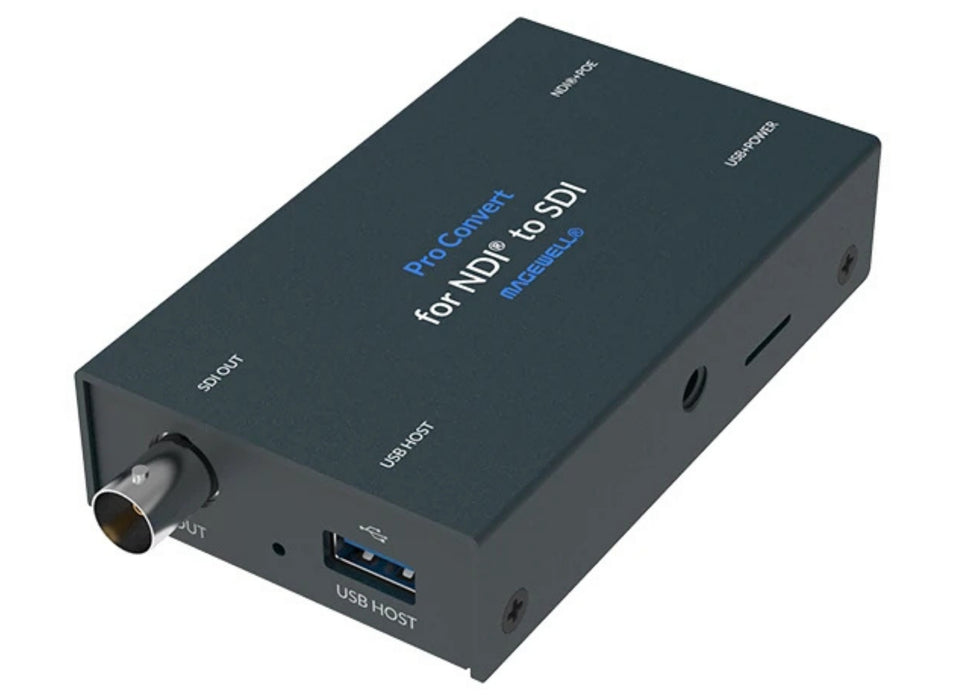

Magewell Pro Convert for NDI to SDI Decoder

SKU: 641500000
Magewell Pro Convert for NDI to SDI Decoder Decoder Magewell
Availability:
11 in stock
Save £126.55 Save £126.55

£372.45 (Excl. VAT)

- £446.94 (Inc. VAT)
£372.45 - £372.45
- - £446.94
Availability:
11 in stock
  • Visa
  • Mastercard
  • American Express
  • Apple Pay
  • Google Pay
  • Paypal
  • Shop Pay
  • Klarna
  • Bank Transfer (BACS)
Trade pricing for verified resellers, proforma issued on official company letterhead for PO processing.
Education & Public Sector Pricing available for schools, universities, NHS, and government organisations. Contact our Public Sector Team on 020 8191 9223 or email info@screenmoove.com.
  • Description
  • Specifications

  • Magewell Pro Convert for NDI to SDI Decoder

    641500000

    Output Features
    Support for up to 1920x1080 60fps SDI output
    Support for 48KHz, 16-bit 8-channel audio streams

    Decoding Features
    Support for decoding up to 2K 60fps NDI streams
    Support for decoding full NDI® and NDI®|HX
    Support for NDI 4.x
    Discover NDI devices across network segments
    Compatible with H.264/H.265 streams in additional protocols including RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP

    Features & Advantages
    Very low latency
    Advanced configuration and device status through intuitive Web GUI, keyboard/mouse, or on-board controls
    HTTP-based APIs for custom integration
    Image flip for inverted projector installations
    Safe area controls
    Output Features

  • Category Specifications
    Output Features - Max 1920x1080 60fps SDI output
    - 48KHz, 16-bit, 8-channel audio support
    - YUV BT.601, YUV BT.709 signals supported
    - SDI Standards: SD (ST 259), HD (ST 292), 3G-SDI (ST 425)
    - 3G-SDI transmission distance >100m (328ft)
    Decoding Features - Decoding up to 2K 60fps NDI, NDI
    - RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP
    - H.264/H.265 video decoding, AAC/MP3 audio decoding
    - Full NDI and NDI 4.x support
    Web UI Management - Real-time device and signal monitoring
    - OSD, deinterlacing, resolution, frame rate, audio gain, sample rate control
    - Audio channel mapping, aspect ratio conversion, firmware updates
    - HTTP APIs, USB RNDIS/ECM support
    - Compatible browsers: IE, Edge, Firefox, Chrome, Safari, Opera
    On-Board Controls - MENU button for settings navigation
    - SELECT button for confirming selections
    - 16-Position Rotary DIP switch for board indexing (0 to F)
    Network Interface - 10/100/1000 Mbps Ethernet
    - IEEE 802.3af PoE support
    USB Interfaces - USB 2.0 Type B (control & power)
    - USB 3.0 Type A (for keyboard/mouse control)
    - USB RNDIS/ECM support
    LED Indicators - Power LED (On: powered, Off: no power)
    - Decode LED (On: decoding, Blinking: error, Off: source unselected)
    Form Factor - Dimensions: 100.9mm (L) x 60.2mm (W) x 23.3mm (H)
    - ¼-20 threaded mounting hole
    - L-bracket included
    Accessories - USB 2.0 A to B cable
    - 5V/2.1A power adapter
    - L-bracket for mounting
    Power Consumption - Max current: 1.05A, Max power: 5.5W
    Working Environment - Operating Temp: 0 to 40°C
    - Storage Temp: -20 to 70°C
    - Humidity: 5% to 90% non-condensing
