Planet Industrial Renewable Power 5-Port Gigabit Managed Switch/Router with 4-Port 802.3at PoE+ | BSP-360

Renewable Power Industrial PoE+ Switch/Router with Solar MPPT and 4-Port PoE

Industry-leading Integration of PoE Technology and Renewable Power System
PLANET’s newly-launched Renewable Energy Industrial 802.3at PoE Managed Ethernet Switch, BSP-360, is designed for deploying a surveillance or wireless network and remotely monitoring and managing the IP-based devices. Based on its green technology, the BSP-360 can be charged by the inexhaustible and natural source of energy, such as solar, wind and hydroelectric power to conserve energy so as to economically power these remote IP cameras and wireless APs, especially used for such expansive applications as dams, forests, deserts, national parks, nature/animal protection areas and highways.

PLANET NMS-360 Network Management Controller can centrally manage up to 512 BSP-360 units and 2,048 PLANET IP cameras via MQTT and ONVIF Protocols. (Please regularly check PLANET website for the latest compatibility list of managed devices.)

MPPT (Maximum Power Point Tracking) Charge Controller
An MPPT (Maximum Power Point Tracker) is an electronic DC to DC converter that optimizes the match between the PV solar panels and the battery bank or utility grid. They convert a higher voltage DC output from solar panels (and a few wind generators) to the lower voltage needed to charge the battery effectively. It can support PV module input of up to 400W of power.

Zero-Carbon and Stable Power Supply
The 24V lithium or lead-acid battery gets recharged by way of the BSP-360 where solar power is sourced. Thus, the BSP-360 will keep powering PD devices without the need of any cabling. Its zero-carbon feature is made possible as the energy the unit gets is renewable. Most importantly, the operation of outdoor wireless IP-based surveillance can be continued into the night as the battery is charged during the day.

Smart Battery Management
The BSP-360 features the following special power management functions:

Current battery usage status by percentage
Low voltage cut-off protection
Fully-charged hold time protection

User-friendly and Secure Management
The administrator can remotely access the BSP-360 to know the power status of the battery and renewable energy, and the estimated time of power consumption.

For efficient management, the BSP-360 is equipped with web and SNMP management interfaces. With the built-in web-based management interface, the BSP-360 offers an easy-to-use, platform-independent management and configuration facility. By supporting the standard SNMP, the switch can be managed via any standard management software.

Low Voltage Cut-Off Protection
If the remaining energy is too low to power the network, the system will automatically power off the device to make sure the system works normally, and an alert is then sent to the administrator at the same time.

Smart PoE PD Management including PLANET ONVIF IP Carmera
As it is the managed PoE switch for surveillance, wireless and VoIP networks, the BSP-360 features the following special PoE management functions:

PD alive check
Scheduled power recycling
PoE schedule
PoE Usage Monitoring

ONVIF management functions:
Supports PLANET ONVIF IP camera discovery
A maximum of four PLANET ONVIF IP cameras can be powered by one BSP-360 switch.
Supports IP camera snapshot function in the LAN.

Intelligent Powered Device Alive Check
The BSP-360 can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responding, the BSP-360 will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.

Scheduled Power Recycling
The BSP-360 allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.

PoE Schedule for Energy Savings
Under the trend of energy savings worldwide and contributing to environmental protection, the BSP-360 can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours.

PoE Usage Monitoring and Intelligent LED Indicator for Real-time PoE Usage

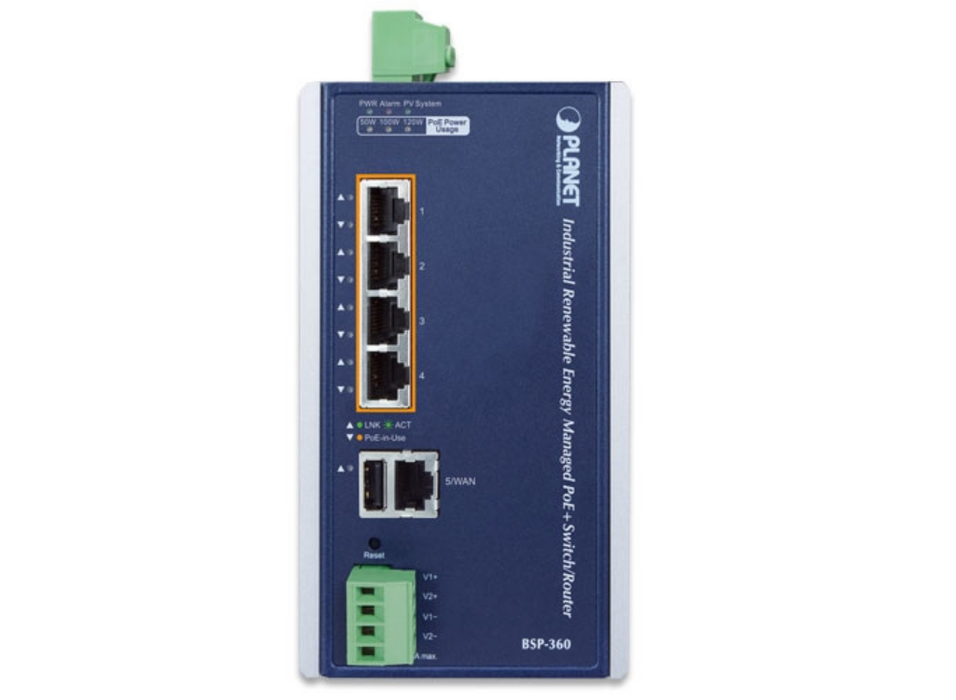

Via the power usage chart in the web management interface, the BSP-360 enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities. Moreover, the BSP-360 helps users to monitor the current status of PoE power usage easily and efficiently via its advanced LED indication. Called “PoE Power Usage”, the front panel of the BSP-360 has three LED indicators of different power usages.

Applications

Solar PoE Power Supply for Long Distance Wireless Surveillance Solution
The BSP-360 PoE Managed Switch can be deployed anywhere in the city where there is no direct AC electricity. With PoE over the Cat5 cable, wireless AP and SFP media converter, you can check the current energy consumption and battery status in your office within the configuration interface of the BSP-360.

SOHO/Home-use Gigabit Ethernet PoE Network Deployment
With its expanded home-use feature, the BSP-360 Renewable Energy PoE Switch helps SOHO/home users to create an integrated network where power is so easily utilized for transmission of data and video. It integrates IEEE 802.3at PoE technology and renewable power system. The wireless AP and PoE IP camera devices work perfectly with the BSP-360, which injects power through the Ethernet cables, thus helping SOHO/home users to build a cost-effective and reliable PoE network environment easily.

Economical Central Energy Management Solution for SMBs
PLANET NMS-360 Renewable Energy Management Controller allows users to remotely monitor the statuses of the BSP-360-powered devices in real time, including green power status, average power usage, instant PoE usage, and so on. Through the remote web management, the administrator at the headquarters is able to monitor and control those remote powered devices powered by the BSP-360. This allows the administrator to flexibly install APs in remote areas, without worrying about locating extra electric outlets.

When functioning with a pair of the wireless transmission units, the BSP-360 Renewable Energy PoE Switch/Router can be efficiently managed from a remote control center.

Extension of Network Deployment with Fiber Media Converter
With the 24VDC out interface, the BSP-360 enables you to supply power to other devices, such as PLANET IGT-905A fiber media converter where high-speed and stable data transmission can be made to a remote core network. It can extend the distance to a maximum of 120 kilometers between the BSP-360 and control center via fiber-optic link.

Key Features

Physical Port
5-port 10/100/1000BASE-T Gigabit RJ45 copper with 4-port IEEE 802.3at/af PoE injector function (Port 1 to Port 4)
RJ45 type interface for basic management and setup
USB type A female for setting file backup and restoration

Power over Ethernet
Complies with IEEE 802.3at Power over Ethernet Plus end-span PSE
Backward compatible with IEEE 802.3af Power over Ethernet
Up to 4 ports of IEEE 802.3af/802.3at devices powered
Supports PoE power up to 36 watts for each PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100 meters
PoE management
Total PoE power budget control
Per port PoE function enable/disable
PoE port power feeding priority
Per PoE port power limitation
PD alive check
PoE schedule

Battery Management
Battery type option: Lithium battery or lead-acid battery
Easy diagnostic of the system operating status via LED indicator
Current battery usage status
Low voltage cut-off protection: Send alert and cut off power when  the battery is low
MPPT (Maximum Power Point Tracking) Charge Controller
Reverse current protection to prevent the current circuits from flowing back to the PV panel
Over-current protection
Reverse polarity protection (for battery and charging electrodes)

Industrial Case and Installation
IP30 aluminum case
DIN-rail and wall-mounted designs
Supports -10 to 60 degrees C operating temperature
Supports ESD 6KV DC Ethernet protection
Redundant power supply
24V~45V DC wide power input

Switching
Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
Features Store-and-Forward mode with wire-speed filtering and forwarding rates
IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
8K MAC address table size
Automatic address learning and address aging

Router
Internet types: Dynamic IP, static IP, PPPoE, L2TP, PPTP
Static and dynamic (RIP1 and 2) routing
IP/MAC-based bandwidth control
Supports Port Forwarding, DMZ, UPnP and Dynamic DNS for various networking applications
802.1d STP and IGMP Proxy

Security
Port filtering allows which application can access the Internet.
MAC filtering allows you to include or exclude computers and devices based on their MAC address
URL filtering allows you to control access to Internet websites in an URL list
IP source guard prevents IP spoofing attacks
DoS attack prevention

Management
Switch Management Interface
IPv4 Web switch management
SNMP v1, v2c
Static and DHCP for IP address assignment
System Maintenance
Firmware upload/download via HTTP
Configuration upload/download through HTTP
Hardware-based reset button for system reboot or reset to factory default
Network Time Protocol
SNMP trap for  Link Up and Link Down notification
Event message logging to remote syslog server
Supports PLANET ONVIF IP camera and snapshot function
PLANET Smart Discovery Utility
Supports PLANET NMS-360 Network Management Controller
