Ubiquiti Basic Access Control Reader White | UA-SK-ELEVATOR
SKU: UA-SK-ELEVATOR
Availability:
Out of stock
Sold out
£767.76 (Excl. VAT)
Current price
- £921.31 (Inc. VAT)
£767.76
-
£767.76
Current price- - £921.31
Availability:
Out of stock
Education & Public Sector Pricing available for schools, universities, NHS, and government organisations.
Contact our Public Sector Team on 020 8191 9223 or email info@screenmoove.com.
Open a Trade or Organisation Account
OPEN AN ACCOUNT
Exclusive Pricing
Dedicated Manager
30-Day Terms
- Description
- Specifications
-
Ubiquiti Basic Access Control Reader White

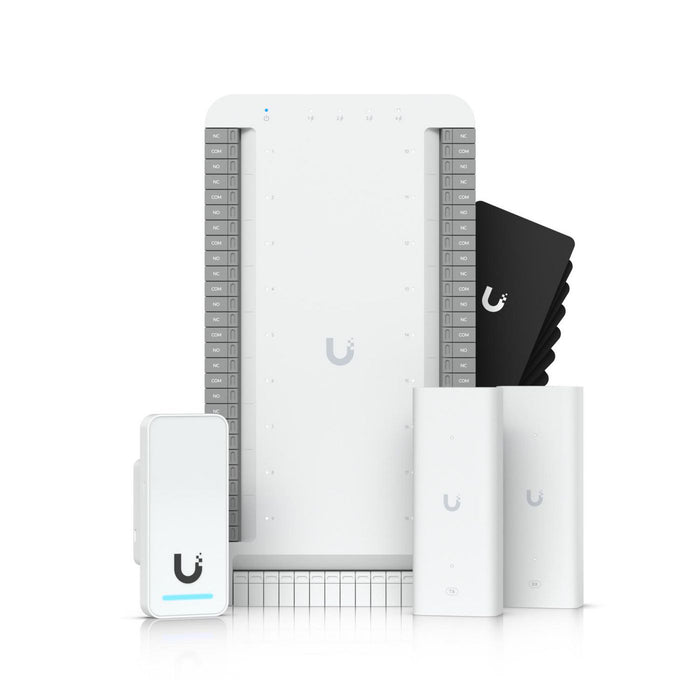

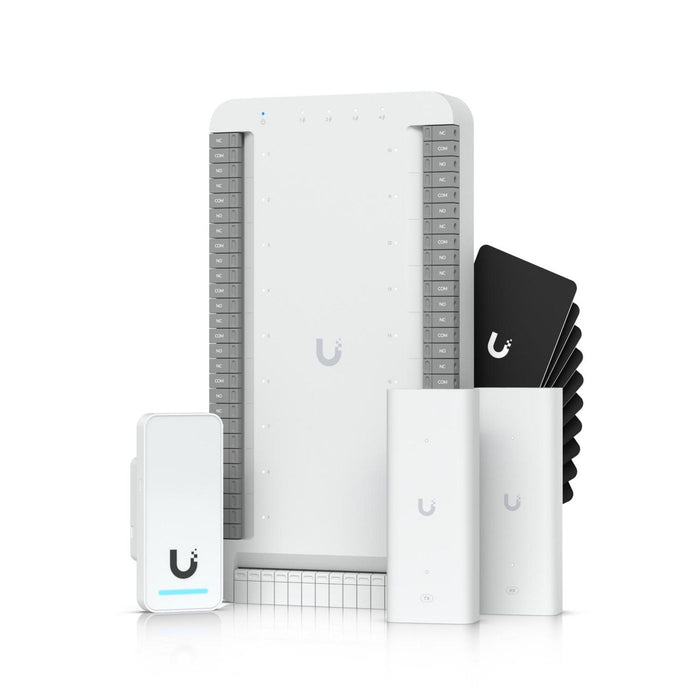

Ubiquiti Elevator Starter Kit (UA-SK-Elevator)
The Ubiquiti Elevator Starter Kit connects to in-elevator readers using PoE to authorize user's floor selection. Support for up to 18 floors and digital inputs for car status and emergency.Ubiquiti Elevator Starter Kit Includes

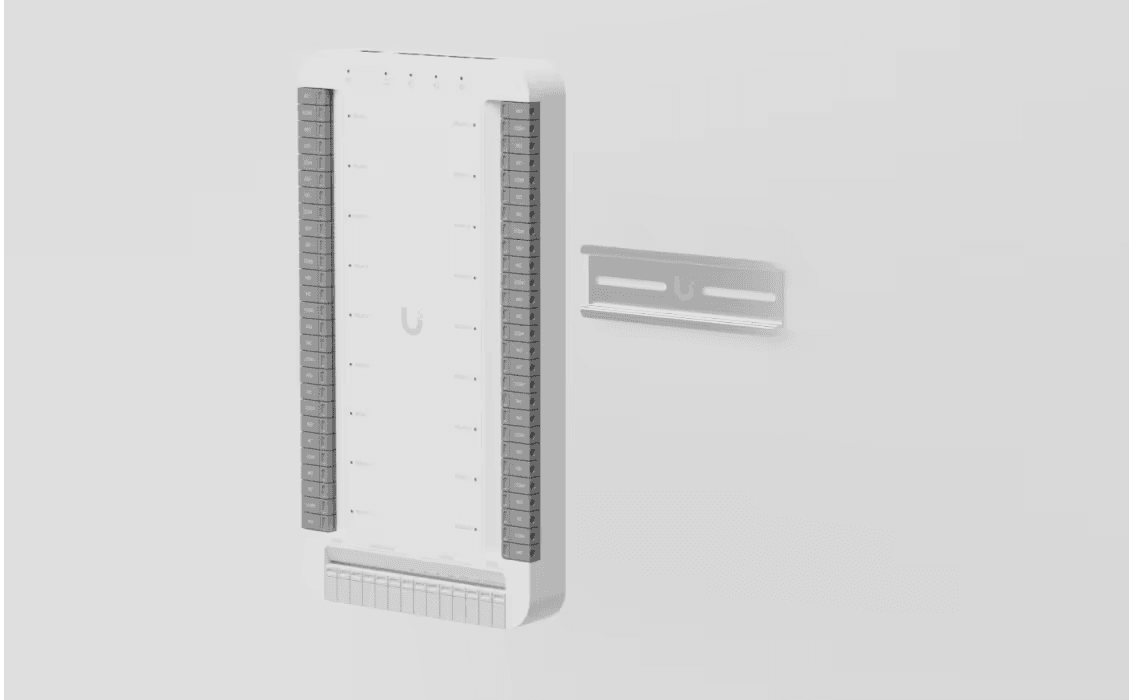

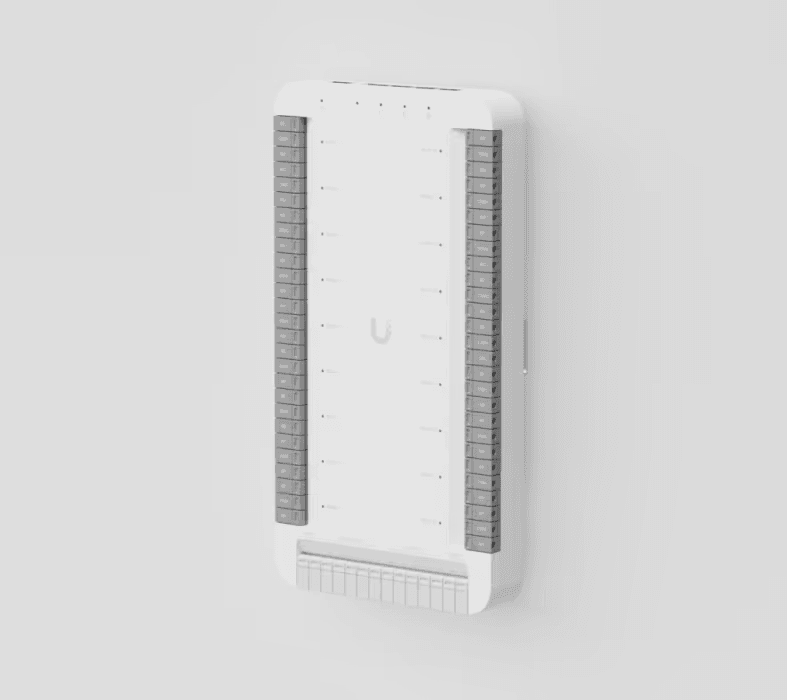

X1 Elevator Hub

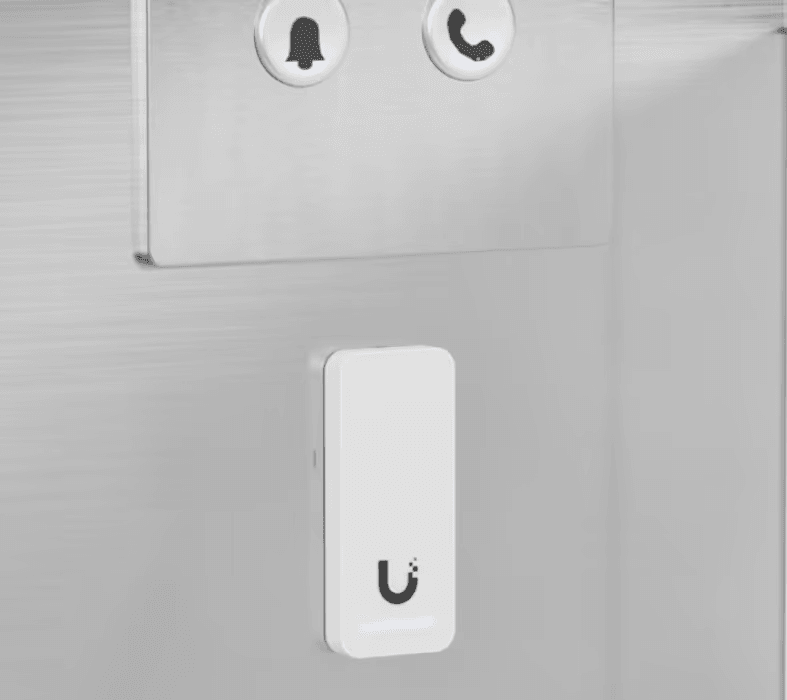

X1 G2 Reader

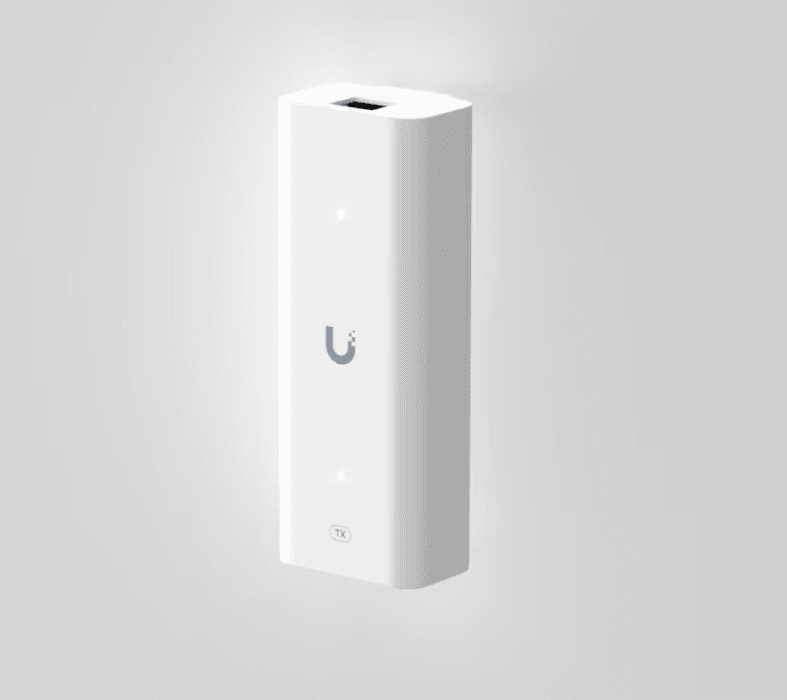

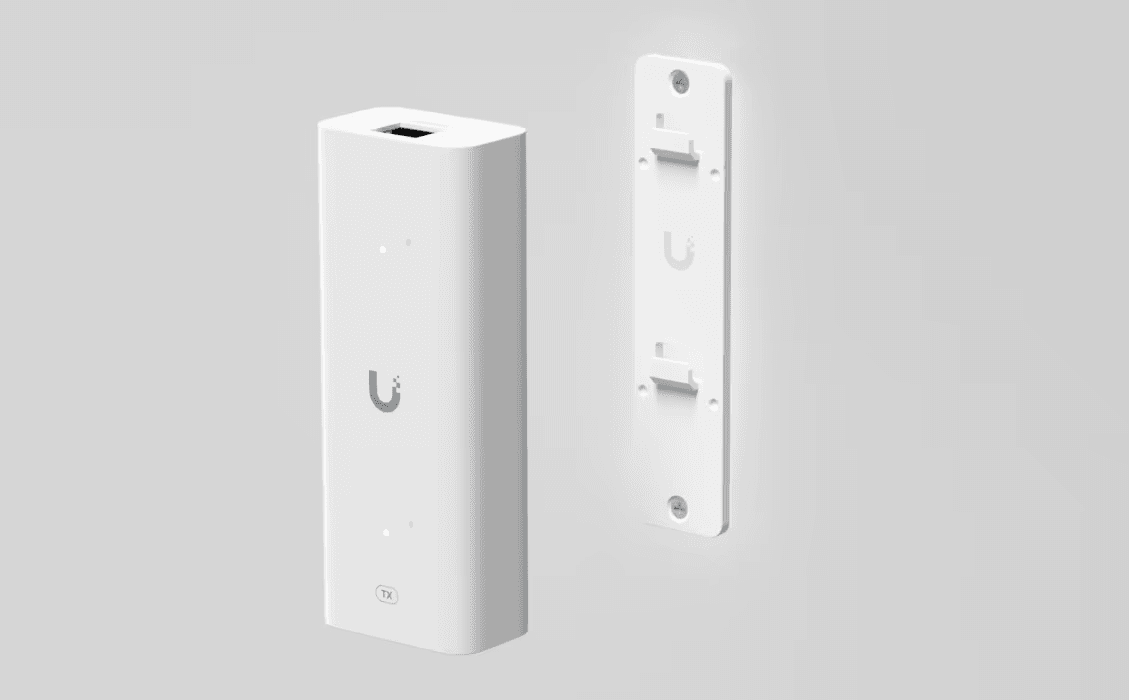

X2 2-wire PoE extenders
X10 Access Cards -
Feature UA-Hub-Elevator UACC-Extender-2Wire-Tx/Rx UA-G2 Mechanical Dimensions 129.3 x 244.7 x 33.6 mm (5.1 x 9.6 x 1.3") 40 x 105 x 25 mm (1.6 x 4.1 x 1") 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4") Weight 537 g (1.2 lb) PoE in: 77 g (2.7 oz), PoE out: 79 g (2.8 oz) 82 g (2.9 oz) Enclosure material Polycarbonate Polycarbonate Polycarbonate, glass Mounting material Polycarbonate Polycarbonate In wall, gang box Weatherproofing - - IP55 Hardware Networking interface (4) 10/100/1000 Base-T (1) 10/100 MbE, (1) Homeplug AV (1) 10/100 MbE RJ45 port Management interface (1) 10/100/1000 Base-T (1) 10/100 MbE BLE 4.1 Power method PoE++ PoE++ PoE Max. power consumption 7W (Without PoE output) 3W (Without PoE output) 5W PoE input (1) PoE++, 50V DC, 1.2A (1) PoE++, 50V DC, Max. 1.2A 48V DC PoE output PoE passthrough, (4) PoE, 50V DC, total 42W (1) PoE+, 48V DC, 0.72A - ESD/EMP protection Air: ±8kV, contact: ±4kV Air: ±8kV, contact: ±4kV Air: ±15kV, contact: ±8kV Digital input (5) Car position, (6) Car status; Up/down/stop/full/door open/door close, (1) Emergency - Proximity sensor Outputs (18) Relays, Rating 30V DC/2A - (1) 8 ohm, 0.7W speaker LEDs System: white/blue/red, Output relays: white White R/G/B/W Buttons (1) Factory-reset - (1) Factory-reset Terminal blocks Yes - - Ambient operating temperature -10 to 40° C (14 to 104° F) -10 to 40° C (14 to 104° F) -30 to 45° C (-22 to 113° F) Ambient operating humidity 5 to 95% noncondensing 5 to 95% noncondensing 5 to 90% noncondensing Certifications CE, FCC, IC CE, FCC, IC CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 Sensors - - Proximity sensor Speaker - - (1) 8 ohm, 0.7W speaker LEDs System: white/blue/red, Output relays: white White R/G/B/W Button (1) Factory-reset - (1) Factory-reset NFC frequency - - 13.56 MHz NFC read range - - < 30 mm NFC standards - - ISO 14443A, 14443B, 15693 NFC technology - - NFC Tag 1,2,3,4,5, MIFARE Classic, MIFAREPlus, MIFARE Ultralight, MIFARE DESFire Operating environment - - Outdoor use Software information - - The software version of a product can be checked at https://unifi.ui.com UL 294 level - - Destructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I UL 294 statement - - Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. - - Yes PoE cabling requirements - - Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm2) for patch cords; 24 AWG (0.21 mm2) for horizontal or riser cable. - - Yes CAN/ULC-60839-11-1 Grade - - Grade assignment: I Certifications CE, FCC, IC CE, FCC, IC CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 Document number, and issue date and/or revision level UA-G2/UA-G2-Black, V02 - Yes LED - White System: Steady blue: Adopted/device is ready, Steady white: Pending adoption, Blinking white/blue: Upgrading firmware, Strobing red: Emergency lockdown UA-Card - - - Mechanical - - - Dimensions - - 85.6 x 54 x 0.8 mm (3.4 x 2.1 x 0.03") Weight - - 5 g (0.18 oz) Format - - ISO 7810 ID-1 NFC frequency - - 13.56 MHz NFC technology - - ISO/IEC 14443 Type A, MIFARE DESFire, UniFi Access Proprietary Security Protocol
