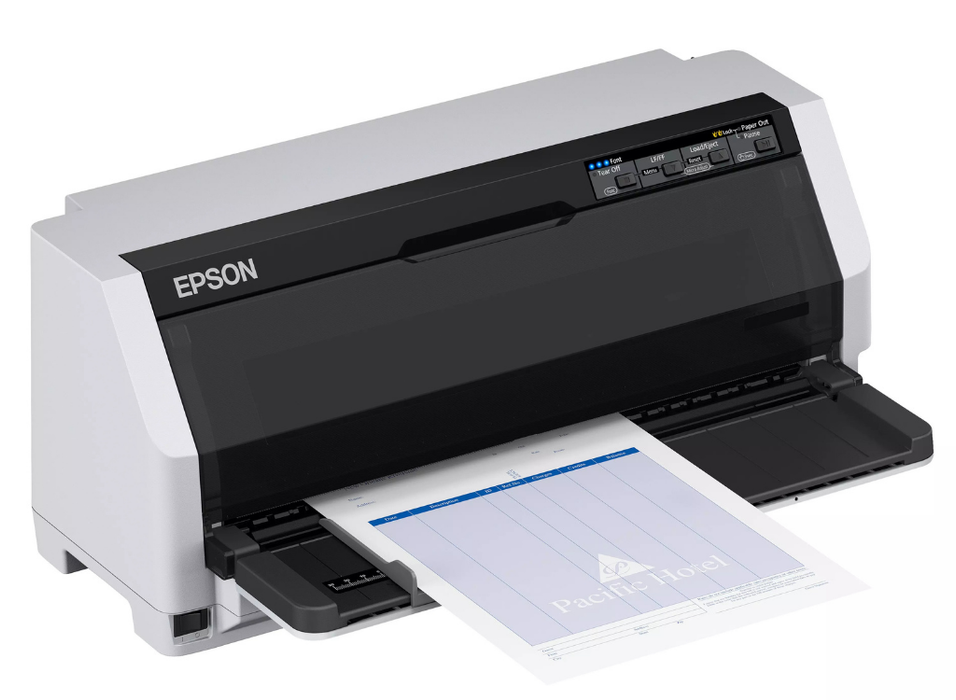

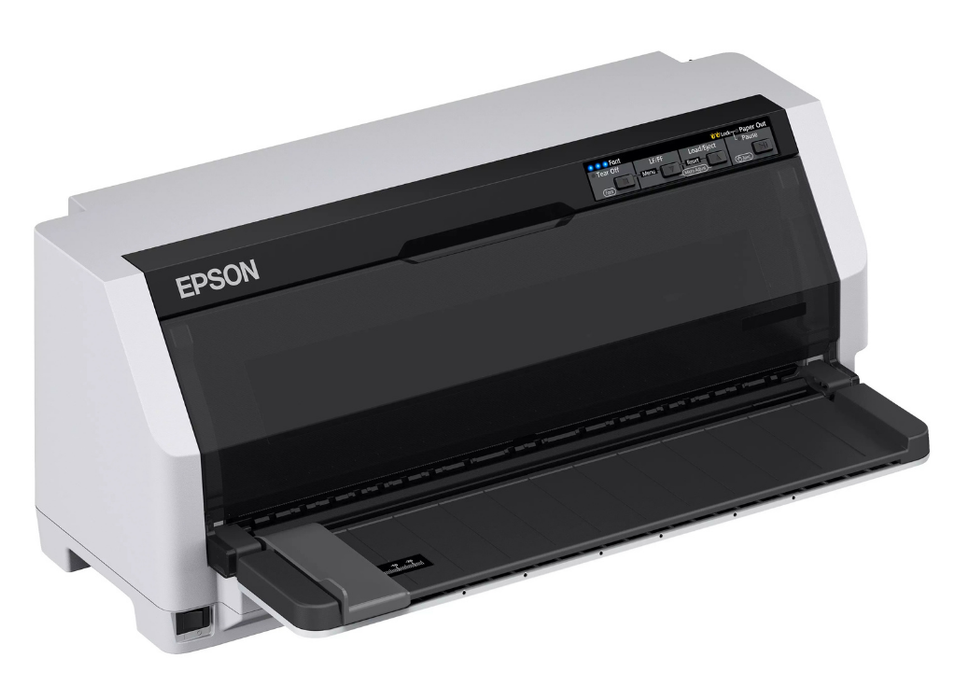

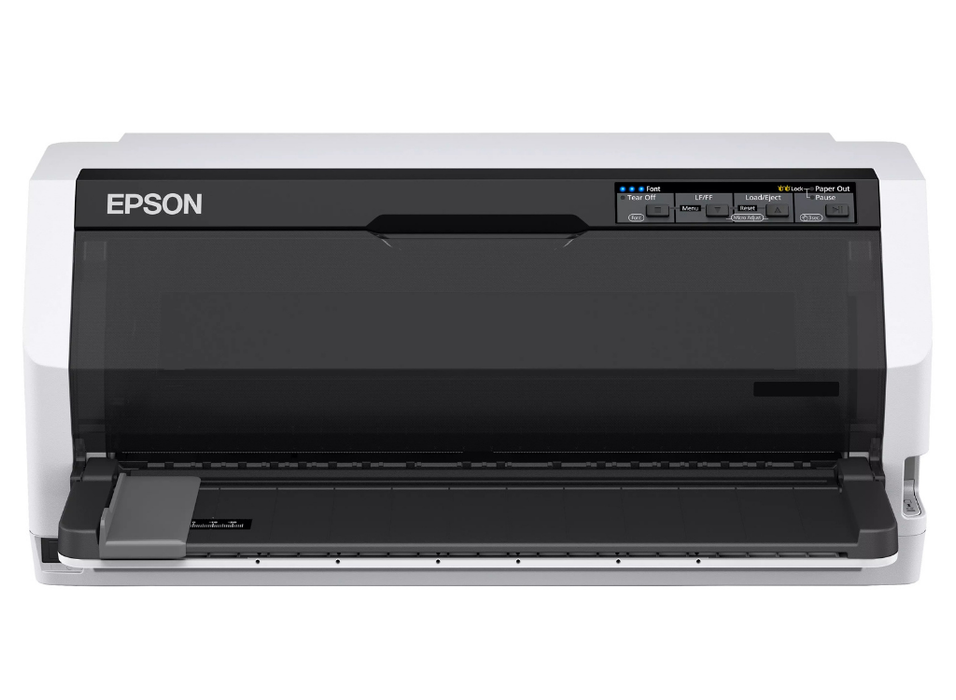

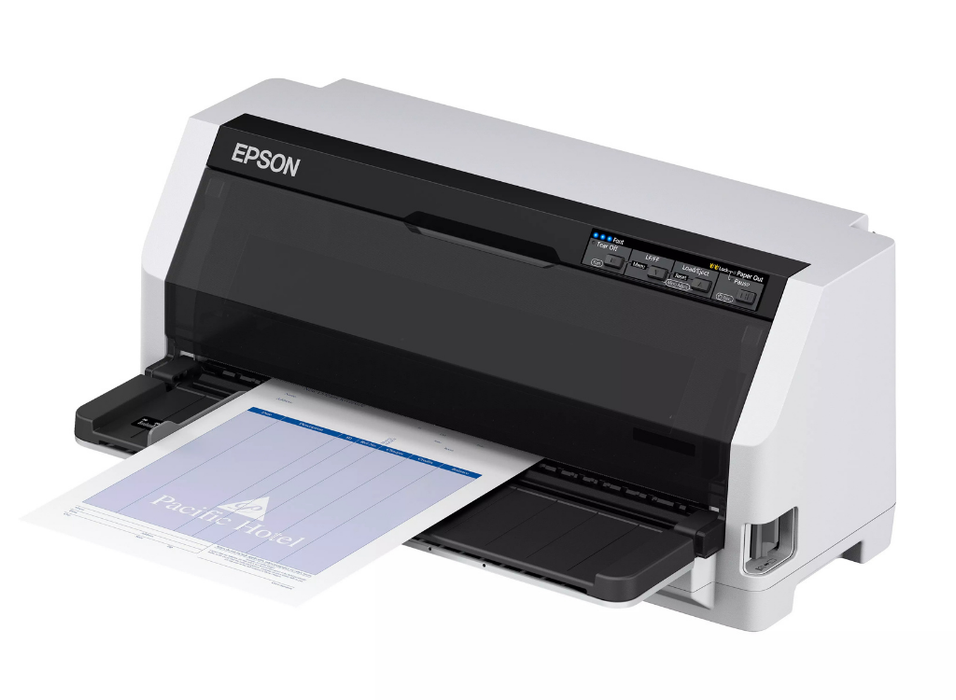

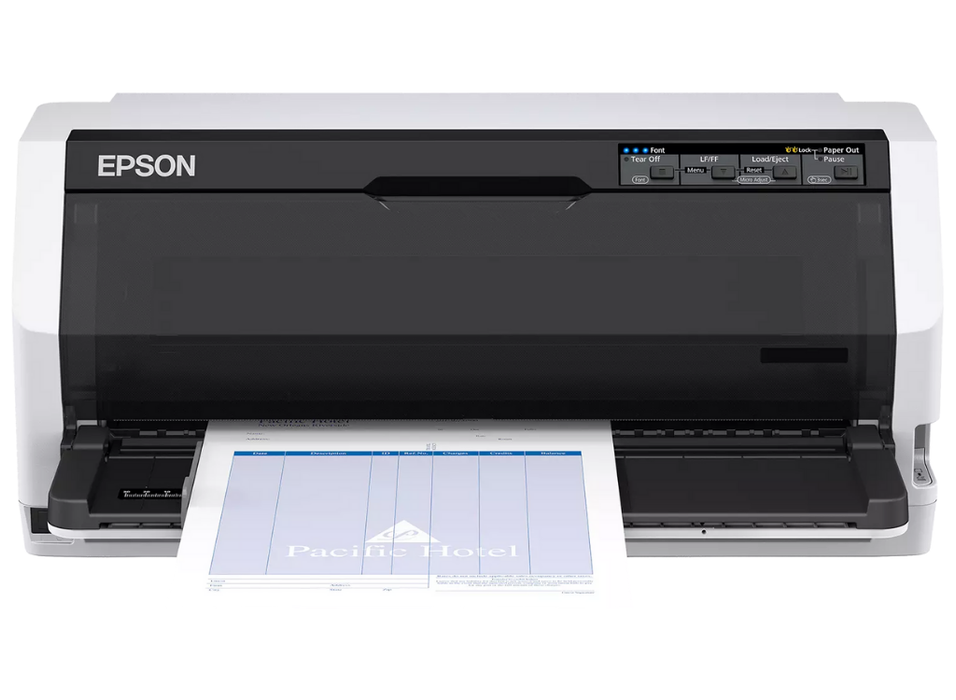

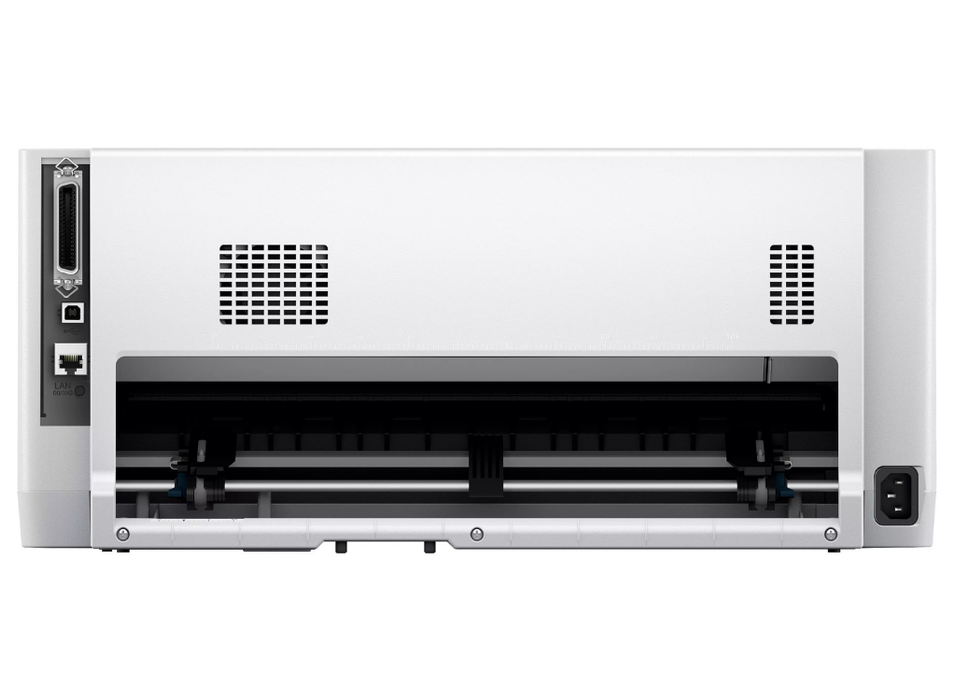

Epson LQ-690II 24-Pin Dot Matrix Printer | C11CJ82403
SKU: C11CJ82403
£770.34 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Epson LQ-690II 24-Pin Dot Matrix Printer | C11CJ82403
Designed with productivity in mind, the LQ-690II is an ultra-reliable dot matrix printer that offers an impressive ribbon yield. It is fast and compact with a robust build. Its modern design allows effortless integration into any work environment, be it an office or a warehouse.
Fast printing:
Print faster and more productively. The LQ-690II prints the original + six copies, and is capable of printing an impressive 487 cps (10 cpi) when using printer resident fonts.High ribbon yield:
In a demanding and fast-moving work environment a high ribbon yield is essential, and with 10 million characters per ribbon, this marks the LQ-690II as a leading force in the flatbed market. It is also cost-effective, with long ribbon replacement cycles, low running costs and total cost of ownership. In addition, the ribbon is transferrable, which means that you can use ribbons from your current printer in the new printer, resulting in less cost and waste.
Dependable:
Durable and built to last, users will be assured by the MTBF (mean time between failures) of 20,000 power on hours. The robust casing can stand up to high humid and heat conditions, which makes the LQ-690II ideal for any work environment. This results in greater productivity and less maintenance from down time – essential when producing large amounts of documents and data.Smart design:
This compact hard-working printer is designed to fit on your desk. With its modern, black and white casing, it blends in seamlessly in both office and warehouse environments.What is in the box?
Epson LQ-690II whats in the box
Driver and utilities
Main unit
Power cable
Ribbon
Setup guide
Software (CD)
User manual (CD)
Warranty document -
Printing Method Impact dot matrix Number of Pins 24 pins Number of Columns 106 columns Pins 24 Needles Printing Speed 487 cps (10 cpi) Resolution 360 x 180 DPI Barcodes CODABAR, Code 39, EAN-13, etc. Carbon Copies 6 plus one original Character Tables PC437, ISO-8859-15, Roman 8, etc. Interfaces USB 2.0, Parallel Document Feed Front/Rear Input, Front Output Paper Formats Sheet, Roll, Envelopes, etc. Thickness (Cont. Paper) 0.065 - 0.49 mm Thickness (Labels) 0.16 - 0.19 mm Thickness (Multi-Part) 0.12 - 0.49 mm Thickness (Single) 0.065 - 0.15 mm Power Consumption 38 W (3 W standby) Dimensions (W x D x H) 480 x 301 x 211 mm Weight 6.8 kg Operating Temp 5°C - 35°C Operating Humidity 10% - 80% Compatible OS Windows 98 to Windows 11 Included Software Epson Status Monitor MTBF 20,000 hours Print Head Life 400 Million Strokes/Wire Noise Level 59 dB (operating) Fonts Bitmap & Scalable EPSON Memory 128 kB Ribbon Yield 10 million characters Emulations ESC/P2, IBM PPDS -
