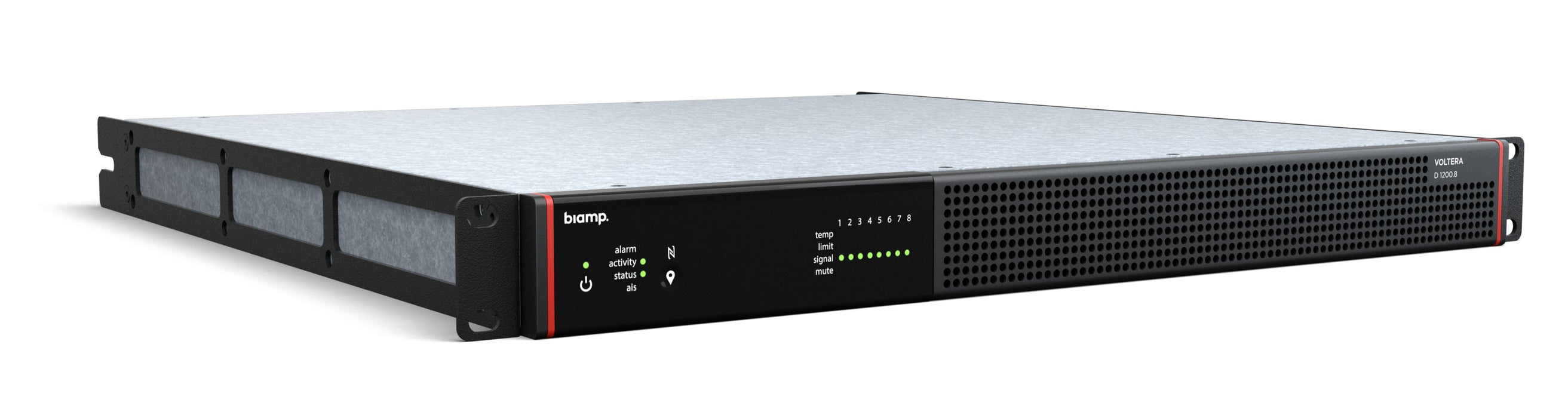

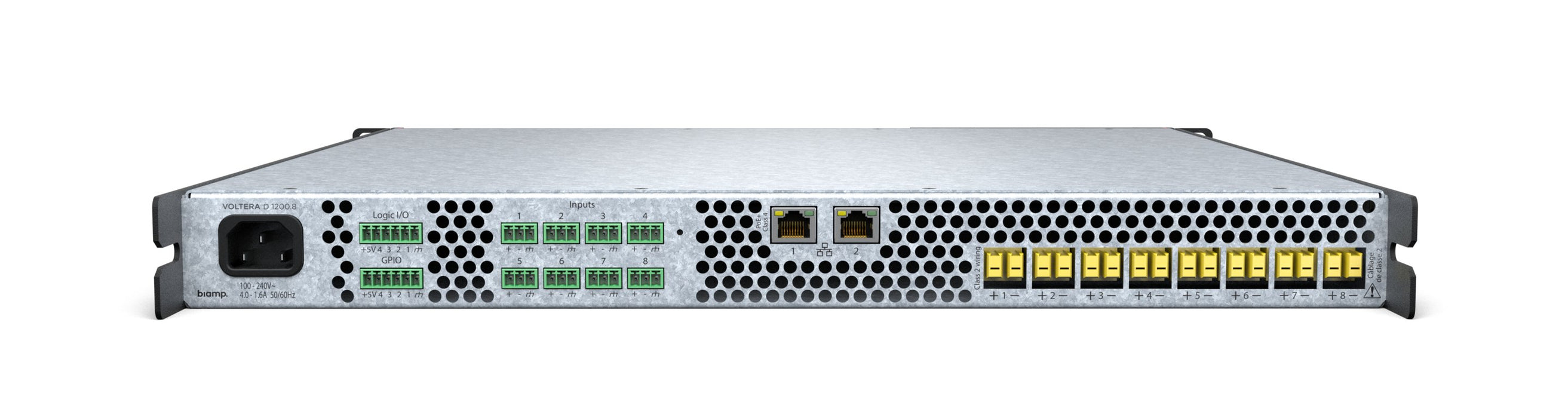

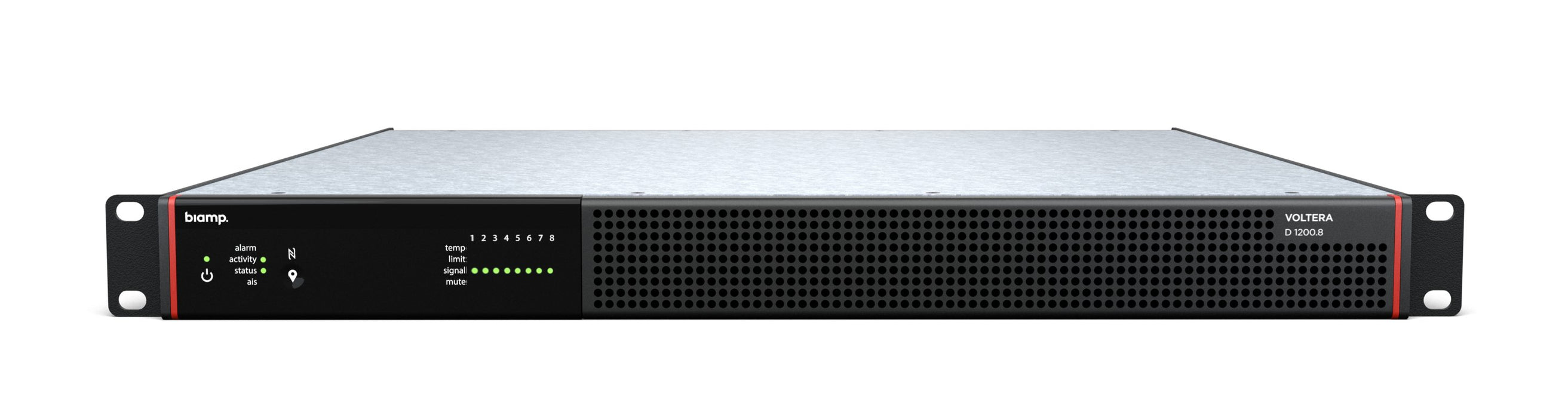

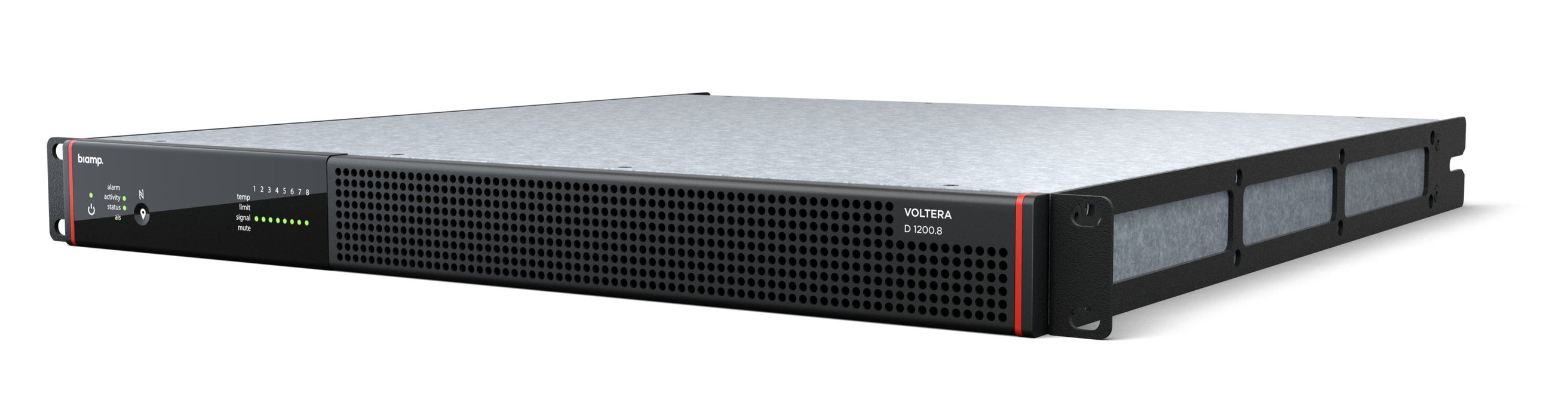

Biamp Voltera D 1200.8 8-Channel Amplified Loudspeaker Controller | 913.1956.900
SKU: 913.1956.900
£3,282.30 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Biamp Voltera D 1200.8 | 8-Channel Amplified Loudspeaker Controller with DSP, Dante & AVB
Voltera D Series seamlessly integrates amplification into a powerful loudspeaker controller that includes sophisticated tools for tuning rooms, resulting in a single, cost-effective networked solution.
A host of one-of-a-kind features drive flexibility, reliability and extraordinary audio performance. The combination of integrated DSP, high power and channel density, high efficiency and low idle power — along with support for power sharing and networked audio — delivers significant space and cost savings. There is a Voltera D Series model for venues of any size, from restaurants to stadiums.
100% software configurable by Tesira or VenueTune software. VenueTune provides a phased workflow to guide system designers and installers, in-depth control through an intuitive graphical interface, and support for importing 2d backgrounds such as floorplans.
The ALAMOS loudspeaker profile library, with nearly 700 unique profiles covering over 200 Biamp models, streamlines commissioning when using Tesira or VenueTune software.
Key Features
Audio DSP and amplified loudspeaker controller plus some headroom for Tesira custom processing and hosting of expanders
4 class D channels sharing 1200 watts
Power sharing provides up to 50% of total power or 1200 W through any single channel
High peak voltage output capability: 145 Vpk
Each channel can drive low impedance (2.7, 4, 8, and 16 ohm), 70V, or 100V
Each model supports AVB, Dante, and AES67
Accurate raised cosine EQ below 160 Hz
Group-controlled raised cosine EQ making it attractive for tuning large systems
Comprehensive amplifier limiter scheme avoids protective mutes and shutdowns
Processor can be sustained through POE – no main power required and no reboots
Support for failover-to-analog from networked audio input operation
5-year warranty
Compliant with the US Trade Agreement Act (TAA)
Biamp Workplace Ready -
Feature Description Height 1.7 in (44 mm) rack rail to rear panel Width 17.5 in (444 mm) rack rail to rear panel Depth 16.9 in (430 mm) rack rail to rear panel Weight 18.1 lbs (8.2 kg) Included Accessories Rear support kit for 19" 1 RU mount Operating Temperature 32–104°F (0–40°C) Humidity 0–95% non-condensing, altitude 0–2000 m (0–6562 ft) Power per Channel (All Driven) Hi-Z (70/100V), 16Ω, 8Ω, 4Ω, 2.7Ω: 150W Max Power per Channel (Power Sharing) Hi-Z (70/100V): 600W; 16Ω: 600W; 8Ω: 600W; 4Ω: 600W; 2.7Ω: 430W Power Consumption 100–240 VAC, 50/60 Hz Power Output Total output all channels: 1200W; Max voltage: 145 Vpk; Max current: 24 Apk Cooling Variable speed fans, front to back airflow Network Connections 2 × 1000Base-T ports; Formats: Dante, AES67, AVB; Modes: Converged, Split, Redundant PoE+ Support UPS with PoE+ prevents reboot if mains lost Network Latency AVB: 2 ms; Dante: 1–2 ms Sample Rates Supported 96 kHz, 48 kHz Remote Interfaces Tesira, VenueTune; Third-party: TTP Front Panel Indicators System, device, and channel status indicators Amplifier Channels 8 Class D channels Signal Processing 29 dB gain, 2.5 ms latency, FIR filters, EQ, delay, polarity, mute, loudspeaker profiles, peak/thermal limiters Audio Performance THD+N <0.05%, FR ±0.5 dB (20–20kHz), Dynamic Range 117 dB, Crosstalk >70 dB Compliance TAA Compliant Back Panel Interfaces Mute/Health/Sleep I/O, 4 GPIO pins, 3-pin analog input, 2-pin outputs, IEC C14 mains Front Panel Interfaces Tamper-proof, NFC status reading, Locate functionality -
Description Downloads Biamp Voltera D 1200.8 8-Channel Amplified Loudspeaker Controller | 913.1956.900 DataSheet Download
