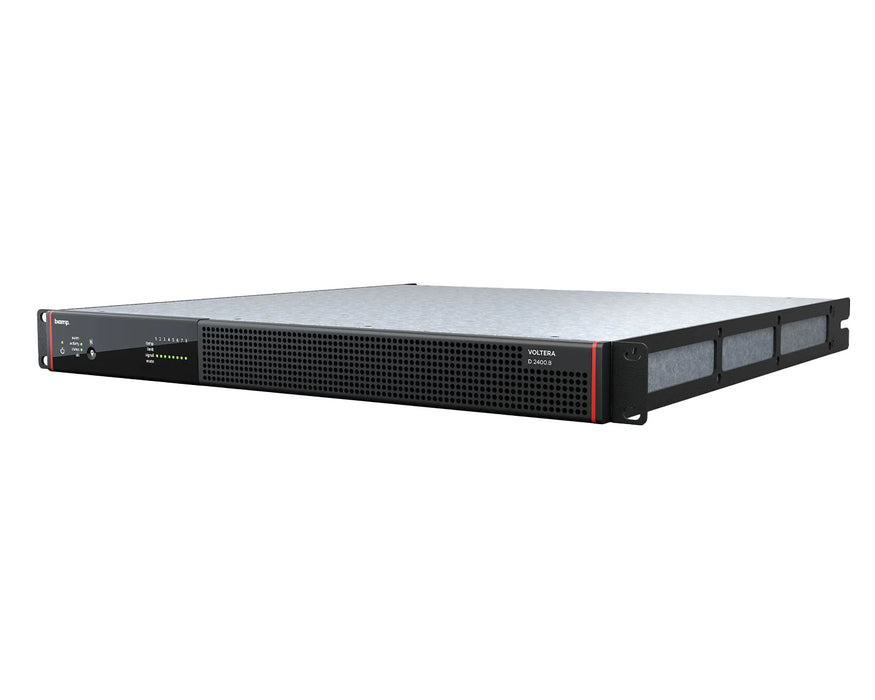

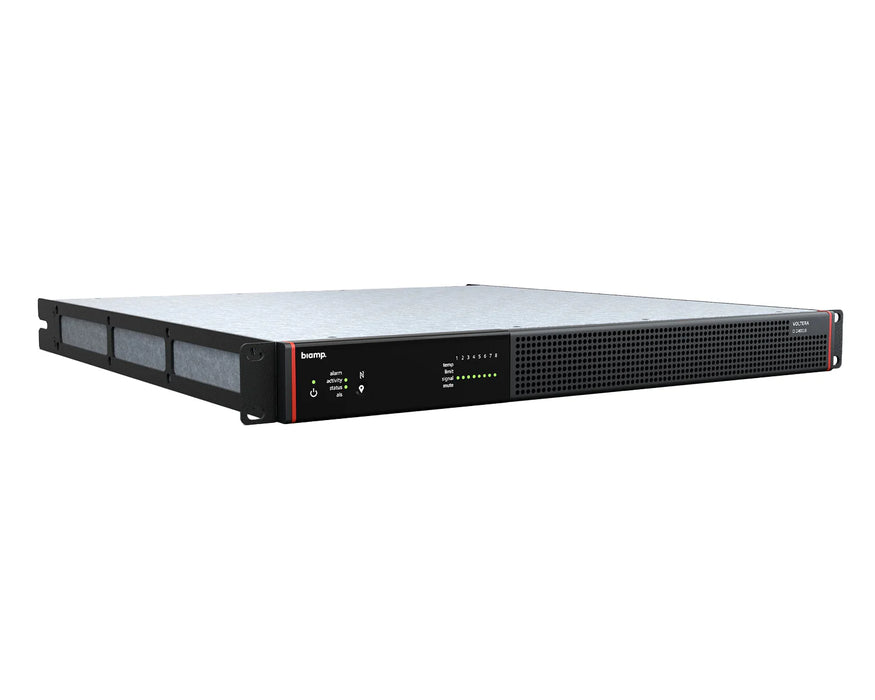

Biamp Voltera D 2400.8 Power Amplifier with 8-Channel 300W 1U | 913.1957.900
SKU: 913.1957.900
£4,200.53 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Biamp Voltera D 2400.8 Power Amplifier | 8-Channel 300W | 2400W Total | DSP | Dante AVB AES67 | 1U Rack
Voltera D series amplified loudspeaker controllers are available in 1200W 4-channel, 1200W 8-channel, 2400W 4-channel, and 2400W 8-channel configurations. They feature support of audio via AVB, Dante, and AES67. Dante can be dual redundant.
All models of the Voltera D provide high power and channel density while maintaining high efficiency and low idle power. They are capable of high peak voltage output and can deliver up to 75% of the total power on any channel using power sharing. They also offer both Lo-Z or Hi-Z per channel to support hybrid systems.
Configured by either the Tesira or VenueTune software, the Voltera D series is ideal for a wide variety of applications, from houses of worship to transportation.
Features
Powerful onboard DSP
Redundant media interface (AVB, Dante, and AES67)
Lo-Z or Hi-Z per channel to support hybrid systems
Configurable with Tesira or VenueTune software
Wide dynamic range
Low power consumption during use, idle, and standby
Limiting for maximum reliability and zero clipping
High peak voltage output capability (up to 160Vpk)
High power and channel density
5-year warranty -
Category Specification Height 1.7 in (44 mm) rack rail to rear panel Width 17.5 in (444 mm) Depth 16.9 in (430 mm) Weight 18.3 lbs (8.3 kg) Accessories Rear support kit for 19" 1 RU mount Operating Temp 32–104°F (0–40°C) Humidity 0–95% non-condensing, altitude 0–2000 m Power per Channel (all driven) 300 W (Hi-Z 70/100V, 16Ω, 8Ω, 4Ω, 2.7Ω) Max Power per Channel (Power Sharing) Hi-Z (70/100 V): 1200 W
16Ω: 650 W
8Ω: 1200 W
4Ω: 1200 W
2.7Ω: 810 WTotal Output 2400 W (all channels driven) Max Output Voltage 145 Vpk Max Output Current 33 Apk Power Supply 100–240 VAC, 50/60 Hz Cooling Variable speed fans, front to back airflow Network Ports 2 × 1000Base-T Supported Formats Dante, AES67, AVB Network Modes Converged, Split, or Redundant PoE+ Support Yes – prevents reboot when mains power lost Network Latency AVB: 2 ms, Dante: 1/2 ms Sample Rates 48 kHz, 96 kHz Remote Interface Tesira, VenueTune 3rd Party Interface TTP System Indicators System, device, channel (mute, signal, limit, temp) Amplifier 8 Channels Latency 2.5 ms (analog in to out) Default Gain 32 dB Input Processing Redundancy & failover, EQ, gain, delay ≤2 s, polarity, mute Output Processing 2048 tap FIR, 24 biquads, Dynamic EQ, limiters Startup Time (PoE+) <1 s THD+N <0.05% (1 kHz, 1 dB below max)
<0.05% (20–20kHz, 1 W)Frequency Response ±0.5 dB (20–20kHz, 8Ω, unweighted) Dynamic Range 117 dB Crosstalk >70 dB Certified Solutions TAA Compliant Back Panel IO Mute, Health, Sleep mode

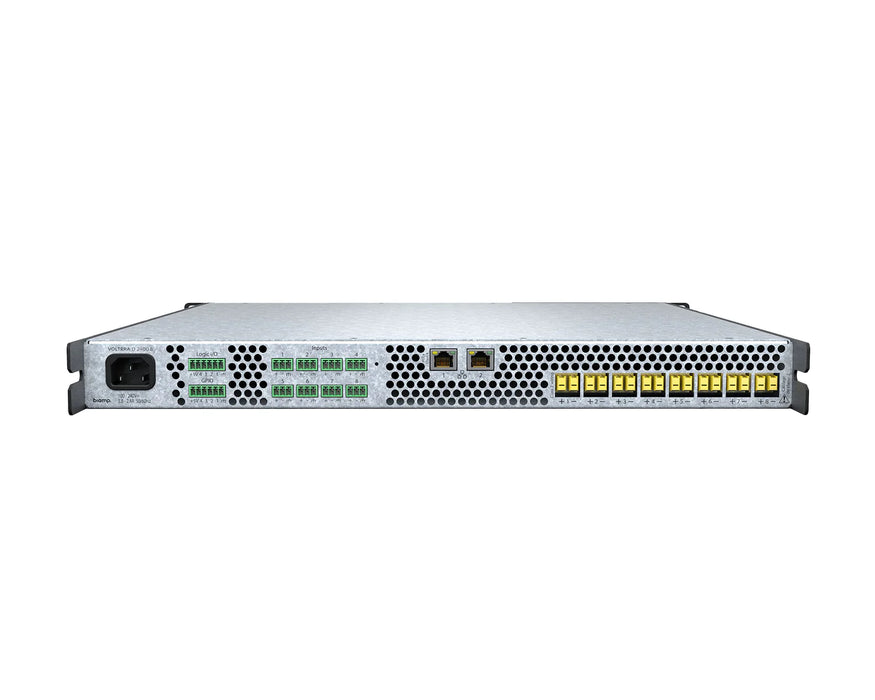

GPIO: 4 logic/voltage pins
Analog inputs: 3-pin terminal block
Outputs: 2-pin terminal block (41 Arms)

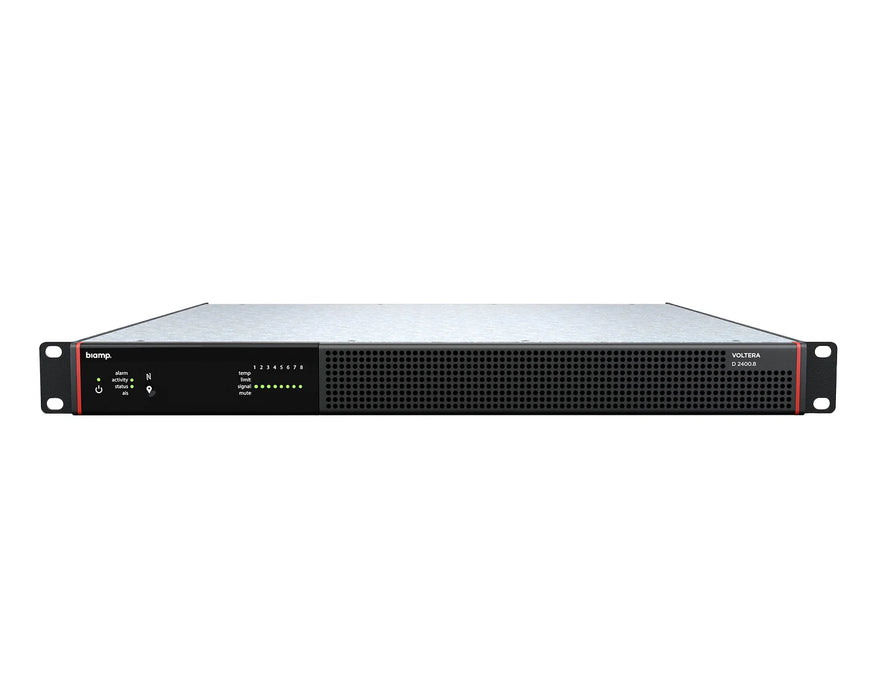

Detachable IEC C14 mains connectorFront Panel Tamper-proof design
NFC: Status & network info
Locate: Bi-directional functionality -
Description Downloads Biamp Voltera D 2400.8 Power Amplifier with DSP 8x300W 1U | 913.1957.900 DataSheet Download
