JBL AWC62 All-Weather Compact 2-Way Coaxial Loudspeaker with 6.5" LF
SKU: AWC62
£304.52 (Excl. VAT)
- Description
- Specifications
- Downloads
-
JBL AWC62 | All-Weather 6.5" 2-Way Coaxial Loudspeaker with 175W Power & IP56 Rating
All-Weather Compact 2-Way Coaxial Loudspeaker with 6.5" LF
The AWC62 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music-fill in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.
Features
Highly weather-resistant IP56 rating.
Consistent 110° x 110° broadband pattern control.
Components:
• 165 mm (6.5 in) woofer with Kevlar-reinforced cone and 38 mm (1.5 in) voice coil.
• 25 mm (1 in) exit compression driver
Extraordinary clarity for speech, with extended frequency response for music.
Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
175 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
High-power passive crossover network.
Overload protection.
70 Hz – 18 kHz frequency response.

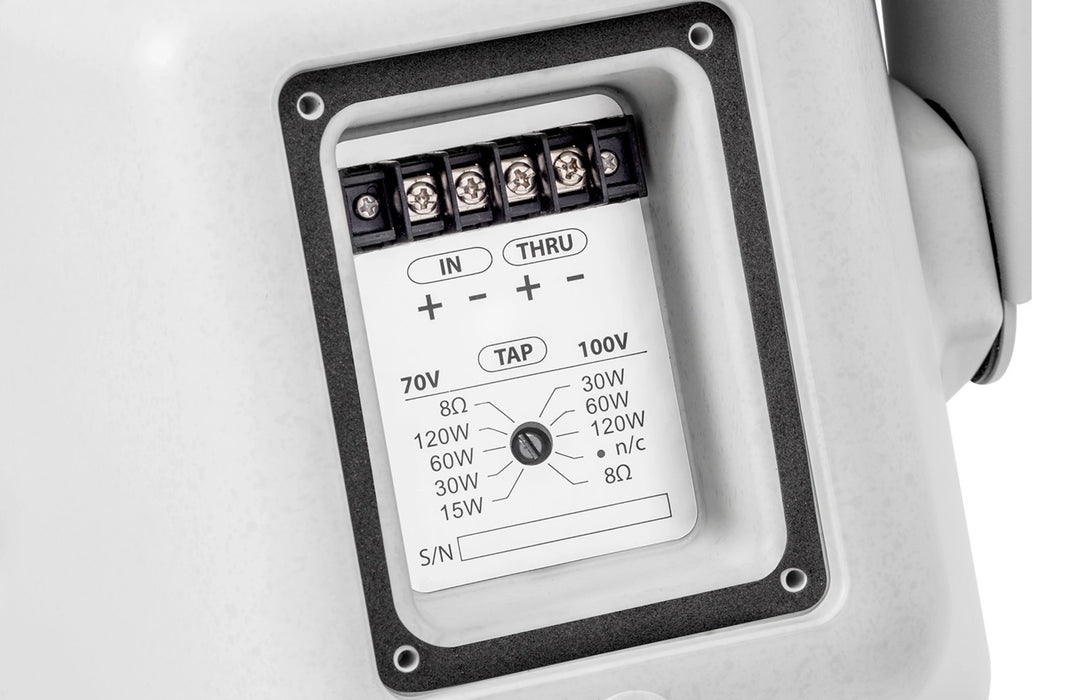

120 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance. -
Frequency Range (-10dB) 70 Hz – 18 kHz Frequency Response (±3 dB) 100 Hz – 16 kHz Coverage Pattern 110º x 110º Directivity Factor (Q) 7.2 (1 k – 16 kHz) Directivity Index (DI) 7.9 dB (1 k – 16 kHz) System Power Rating 175 W 2 hrs, 120 W 100 hrs (IEC rated) Sensitivity (2.83V @ 1m) 92 dB (Ave. 100 Hz – 18 kHz) Maximum SPL (1m) Direct 8Ω: 114 dB (peaks 120 dB), 120 W Tap: 112 dB Crossover Network 1.8 kHz, 3rd order (18 dB/oct) high-pass & low-pass Nominal Impedance 8 ohms Transformer Taps 70V: 120W, 60W, 30W, 15W / 100V: 120W, 60W, 30W LF Driver Kevlar cone, weather-treated, 38 mm (1.5 in) voice coil HF Driver 25 mm (1 in) diaphragm & voice coil HF Driver Protection SonicGuard™ HF overload protection Enclosure ABS with glass enclosure Attachment Two M10 points, M6 safety attachment Grille Zinc-rich, powder-coated steel, 3-layer with mesh Input Connection CE barrier strip terminals, 12 AWG compatible Environmental IP56, meets Mil Spec 810 & ASTM G85 (336 hrs) Dimensions 259×259×255 mm; 288 mm incl. gland; 309 mm incl. bracket Colors Gray (Pantone 420C) or Black (-BK) Net Weight (each) 6.8 kg (15 lb); 7.7 kg (17 lb) with U-bracket Shipping Weight 8.8 kg (19.5 lb) Included Accessories U-bracket, color-matched, zinc-rich coated steel Crossover Modes Passive System Sensitivity (1W @ 1m) 92 dB (Ave. 100 Hz – 18 kHz) Suspension Attachment Two M10 points + M6 safety point -
Description Downloads JBL AWC62 All-Weather Compact 2-Way Coaxial Loudspeaker with 6.5" LF DataSheet Download
