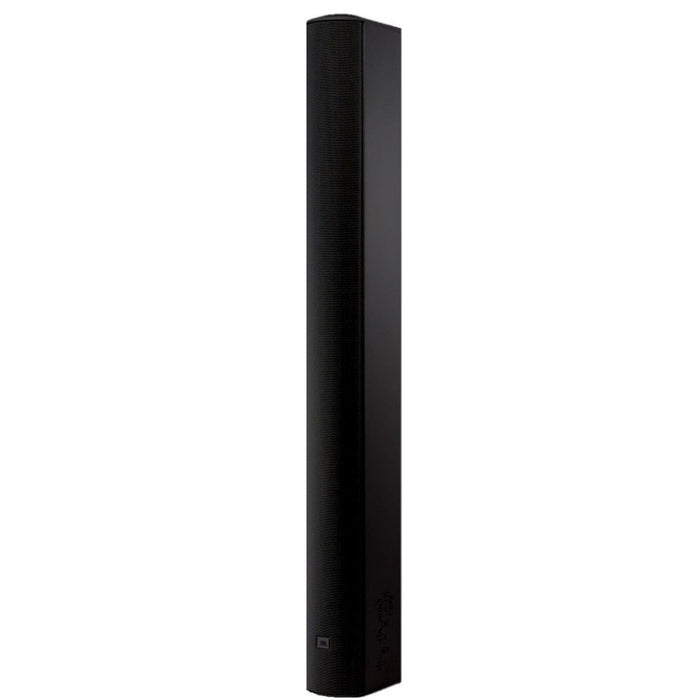

JBL CBT 100LA-1 Constant Beamwidth Technology™ Line Array Column Loudspeaker
SKU: CBT100LA-1
£956.20 (Excl. VAT)
- Description
- Specifications
- Downloads
-
JBL CBT 100LA-1 | Line Array Column Loudspeaker with 16 Drivers, 325W Power & IP55 Protection

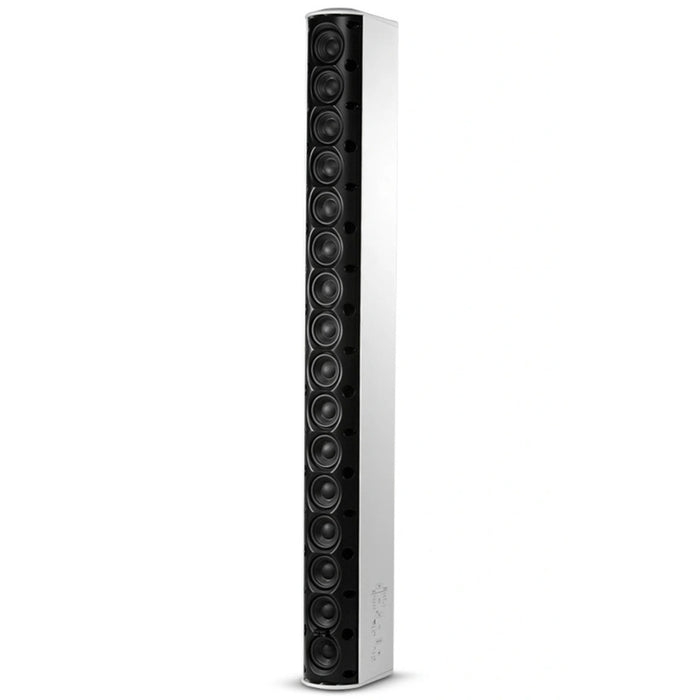

Constant Beamwidth Technology™ Line Array Column Loudspeaker with Sixteen 50 mm (2 in) Drivers. With improved mounting bracket for enhanced aiming flexibility.
The CBT 100LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.
Features
Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
Vertical pattern coverage switchable between 40° for medium-throw coverage and 15° for
long-throw applications.
Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
Dynamic SonicGuard™ overload protection
Swivel (pan)/tilt wall bracket included.
Built-in 70V/100V transformer, plus 8 ohm direct capability. -
Drivers Sixteen 50 mm (2 in) Full-Range Frequency Range (-10dB) 80 Hz – 20 kHz Coverage Angle Vertical: 15° (Narrow) / 40° (Broad) ±10°
Horizontal: 150° ±20°Sensitivity Narrow: 96 dB (speech) / 93 dB (music)
Broad: 93 dB (speech) / 90 dB (music)Impedance 8Ω (Thru mode) Power Rating 325W (1300W peak, 2 hrs)
200W (800W peak, 100 hrs)Maximum SPL (1m) Narrow: 121 dB (cont) / 127 dB (peak)

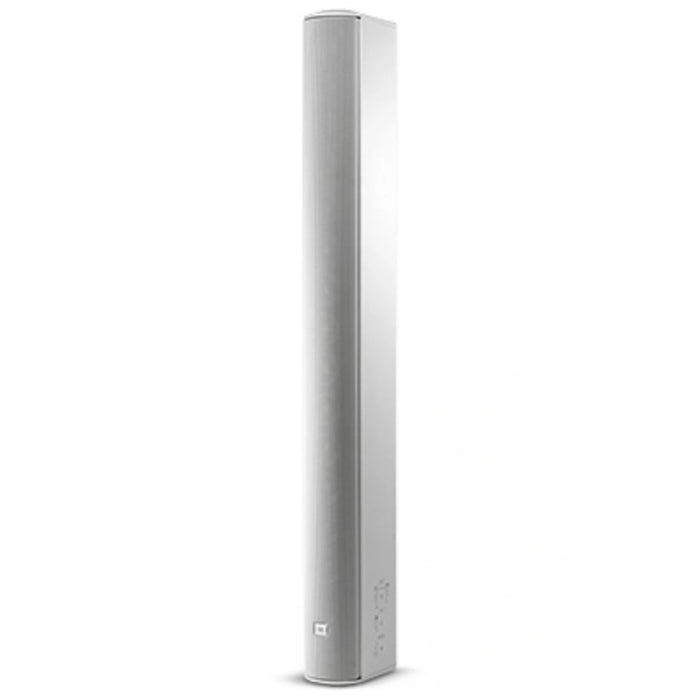

Broad: 118 dB (cont) / 124 dB (peak)Transformer Taps 120W, 60W, 30W (15W @ 70V), and 8Ω thru (switchable) Enclosure Fiberglass reinforced ABS cabinet, painted aluminum grille Outdoor Capability IP55 (IEC529), UV, moisture & 200-hr ASTM G85 resistant Color Black or White (-WH) Insert Points 18 x M6 threaded inserts on back panel Mounting Swivel/tilt wall bracket included; continuous ±80° swivel, ±15° tilt Dimensions (H x W x D) 1000 x 98.5 x 153 mm (39.4 x 3.8 x 6.0 in) Net Weight 7.2 kg (15.8 lb) Included Accessories Swivel (pan)/tilt wall bracket Optional Accessories MTC-PC2 terminal panel cover, MTC-CBT-FM1 flush-mount bracket, MTC-CBT-SMB1 stand-mount bracket (35 mm) -
Description Downloads JBL CBT 100LA-1 Constant Beamwidth Technology™ Line Array Column Loudspeaker DataSheet Download
