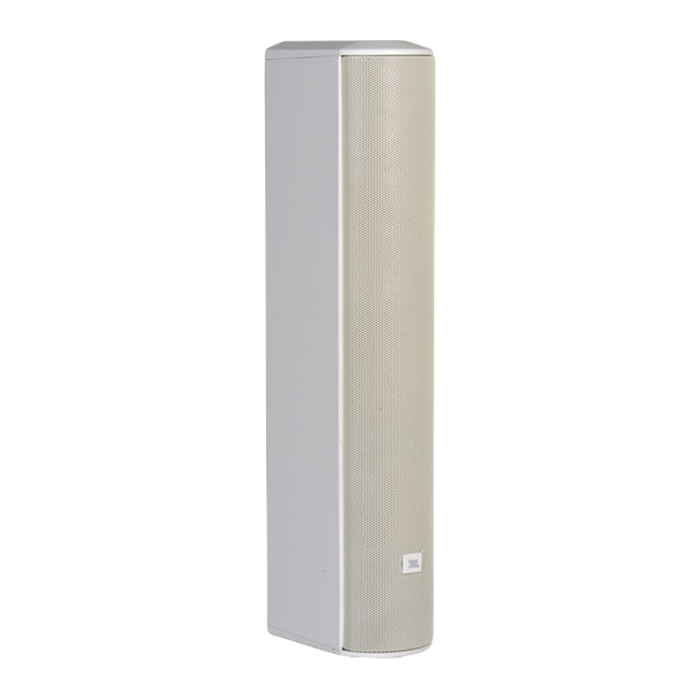

JBL CBT 50LA-LS 2" x 8 Line Array Column Loudspeaker, EN54-24, IP55
SKU: CBT50LA-LS-WH
£561.66 (Excl. VAT)
- Description
- Specifications
- Downloads
-
JBL CBT 50LA-LS | Line Array Column Speaker, 150W, EN54-24 Certified, IP55 Rated
Line Array Column Loudspeaker with EN54:24 Certification
The CBT 50LA-LS, with Constant Beamwidth Technology™, represents a breakthrough in pattern control, utilizing analog delay beamforming and amplitude tapering to accomplish consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor passive column speakers. The slim, compact design fits well into virtually any architectural decor. The combination of superb sound quality, excellent pattern control, and compact design makes CBT 50LA-LS ideal for a wide variety of applications, such as retail stores, concourses, transit spaces, fill applications, conference rooms, architectural spaces, audio for video, lecture halls, and other applications where such a combination is desired. The voicing can be set to match the application through the Music/Speech switch, conveniently located on the side of the cabinet. The Music setting provides flat frequency response, while the Speech setting produces a mid-range presence boost to provide clear, intelligible speech even at the longest throw distances. The drivers feature dual neodymium magnets for light weight. Copper-capped pole pieces lower both the driver inductance and the flux modulation. This increases high frequency extension and reduces distortion at high drive levels. Butyl rubber surrounds provide long life even in high humidity environments. The drivers are shielded. Dynamic SonicGuard™ minimizes distortion at high drive levels by limiting low frequency excursion dynamically. This maximizes clarity at high drive levels while protecting the drivers from damage due to overpowering. A swivel (pan) / tilt wall-mount bracket is included and ten M6 inserts on the back panel fit the spacing of common mounting brackets, or can be utilized to suspend the speaker using M6 forged shoulder steel eyebolts, providing versatility of installation. CBT 50LA-LS can be installed either indoors or outdoors. The drivers are weathertreated, the fiberglass reinforced ABS cabinet with UV resistant paint is excellent for outdoor applications, external screws are stainless steel, and the painted aluminum grille resists rusting in the harshest conditions. -
Components Eight 50 mm (2 in) Full-Range Frequency Range (-10 dB) 120 Hz – 20 kHz Coverage Pattern Vertical 20° ; Horizontal 150° Sensitivity (2.83V @ 1m) 93 dB (speech mode), 89 dB (music mode) Nominal Impedance 8 ohms Power Capacity 150W (600W peak), 100W (400W peak) Max SPL (Speech mode) 115 dB continuous, 121 dB peak Max SPL (Music mode) 111 dB continuous, 117 dB peak 70V/100V Transformer Taps 60W, 30W, 15W (7.5W at 70V only), 8Ω thru Outdoor Capability IP55 rated (with MTC-PC2), UV, moisture, and corrosion resistant Insert Points Ten M6 insert points on back panel Mounting Swivel/tilt wall bracket with ±80° swivel, ±15° tilt, and OmniMount® compatibility Safety Agency Rating EN54-24:2008 certified, IEC60849/EN60849 compliant Included Accessories Swivel/tilt wall bracket, MTC-PC2 terminal panel cover Optional Accessories MTC-CBT-FM1 flush-mount bracket, MTC-CBT-SMB1 stand-mount bracket Dimensions (H x W x D) 528 x 99 x 153 mm (20.8 x 3.9 x 6.0 in) Net Weight 4.1 kg (9.0 lb) Enclosure Fiberglass reinforced ABS cabinet, painted aluminum grille What's in The Box? 1 x CBT 50LA-LS
1 x Swivel (pan)/tilt wall bracket
1 x MTC-PC2 terminal panel cover -
Description Downloads JBL CBT 50LA-LS 2" x 8 Line Array Column Loudspeaker, EN54-24, IP55 DataSheet Download JBL CBT 50LA-LS 2" x 8 Line Array Column Loudspeaker, EN54-24, IP55 User Manual Download JBL CBT 50LA-LS 2" x 8 Line Array Column Loudspeaker, EN54-24, IP55 Quick Start Guide Download
