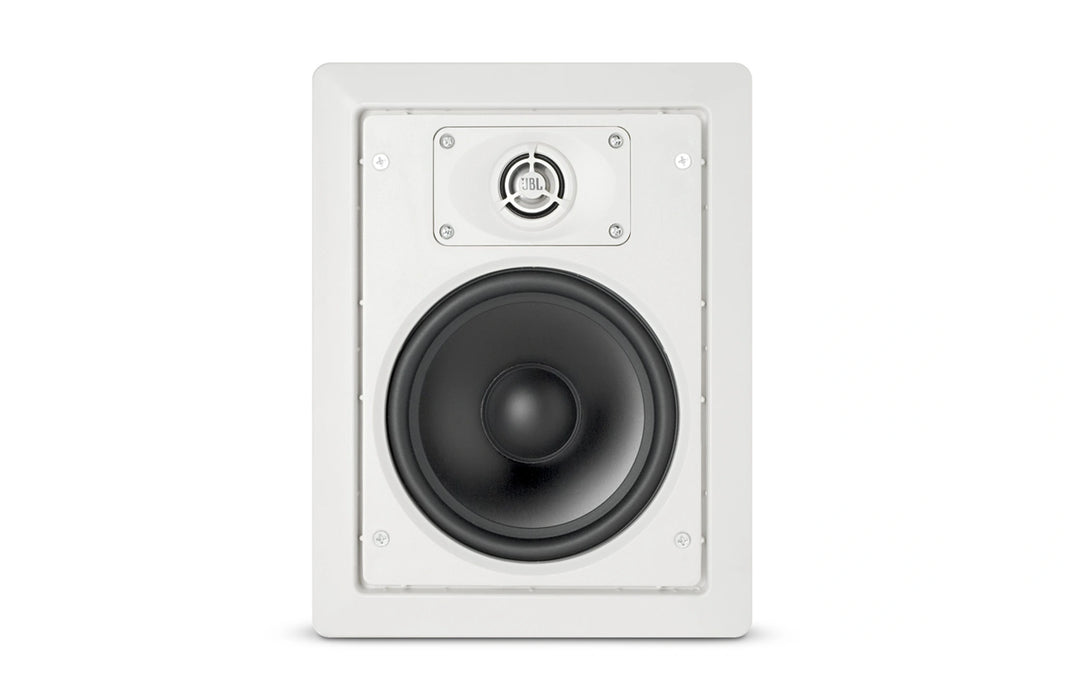

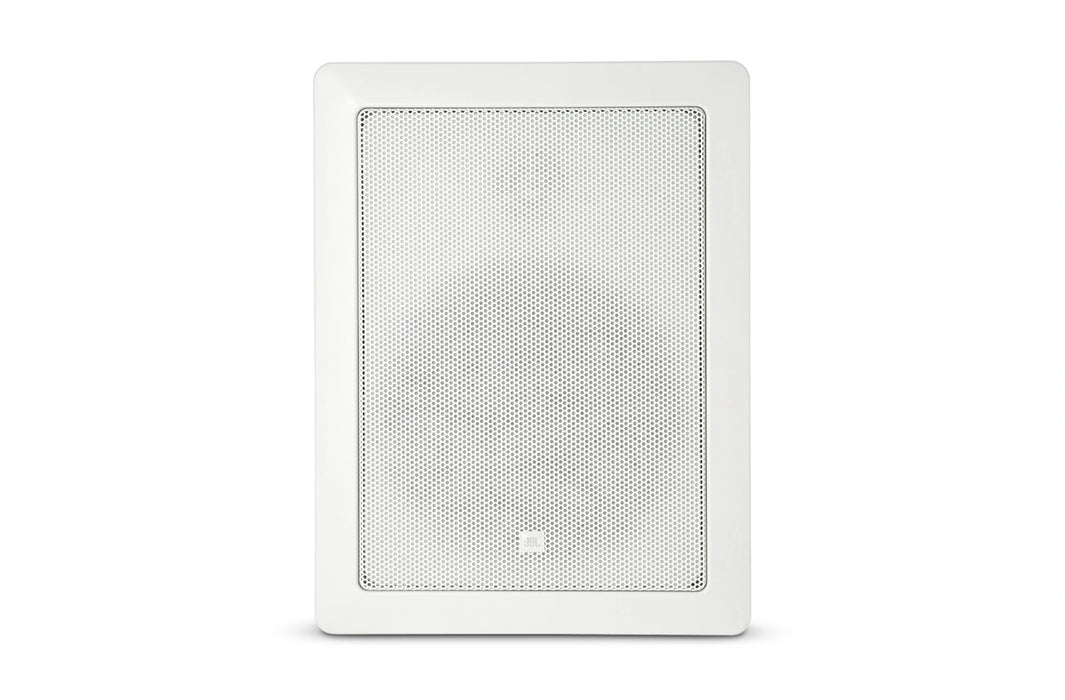

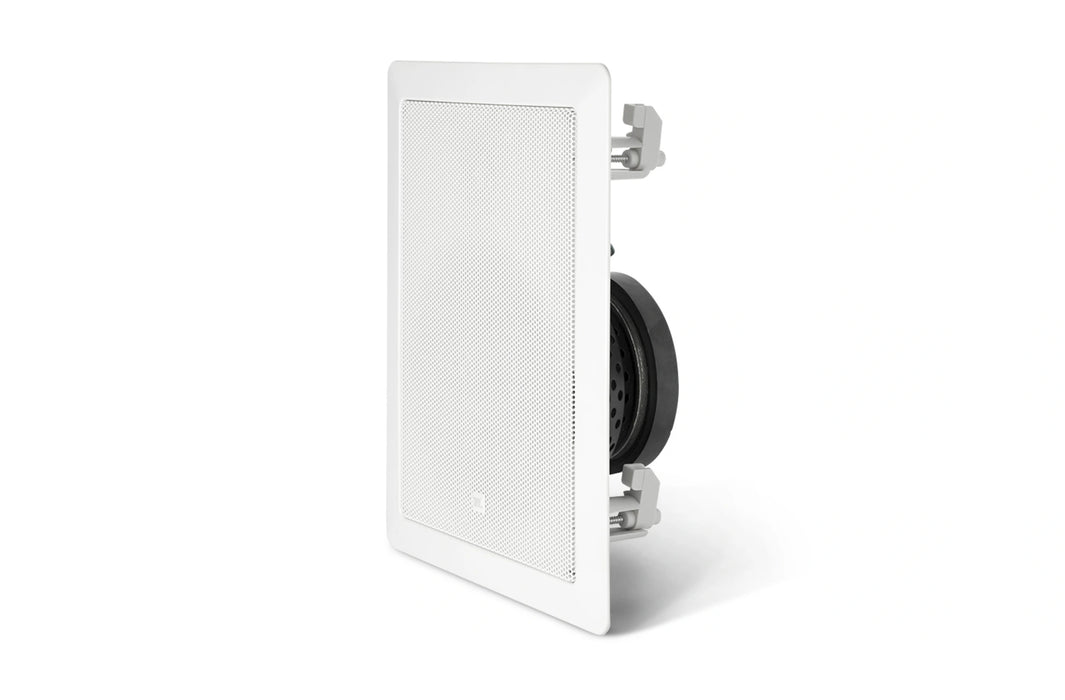

JBL Control126W Premium In-Wall Loudspeaker
SKU: CONTROL126W
£369.60 (Excl. VAT)
- Description
- Specifications
- Downloads
-
JBL Control 126W | 6.5" Premium In-Wall Loudspeaker with Titanium Tweeter & 50W Power
Premium In-Wall Loudspeaker
The Control 126W is a premium in-wall speaker within the JBL Professional Control® Contractor line designed for applications such as foreground music, boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, surround locations, or any critical listening application where top performance from a loudspeaker with minimal visual impact is required.
Features
Components:
165 mm (6.5 in) polymer-coated aluminum-cone woofer with pure butyl rubber surround. :
25 mm (1 in) pure-titanium dome low diffraction swivel aimable titanium tweeter.
High-slope crossover for natural midrange sound.
Extended bandwidth performance of 38 Hz – 20 kHz.
50 W continuous (100 W program, 200 W peak) power handling (126 W). -
Frequency Range 38 Hz - 20 kHz (-10 dB) Power Rating 200 W Peak, 100 W Program, 50 W Pink Noise Sensitivity 88 dB SPL Coverage Angle 180°H x 160°V Impedance 8 ohms Drivers LF: 165 mm polymer-coated aluminum cone
HF: 25 mm titanium dome, swivel mount (-10°)Input Connectors Screw-down Euroblock connector (max 14 AWG / 1.5 mm²) Crossover Network 3rd order (18 dB/oct) LP & HP filters Optimum Air Cavity 20–40 liters (0.7–1.4 cu ft) Outside Dimensions (H x W x D) 280 × 215 × 105 mm (11 × 8.5 × 4.1 in) Front to Back Depth 99 mm (3.8 in) Maximum Wall Thickness 32 mm (1.25 in) Cutout Size (H x W) 246 × 181 mm (9.7 × 7.2 in) Net Weight (each) 2.1 kg (4.5 lbs) Shipping Weight (ea) 4.8 kg (10.5 lbs) Included Accessories Cutout template & paint shield Optional Accessories WB6 Rough-In Frame for new construction -
Description Downloads JBL Control126W Premium In-Wall Loudspeaker DataSheet Download
