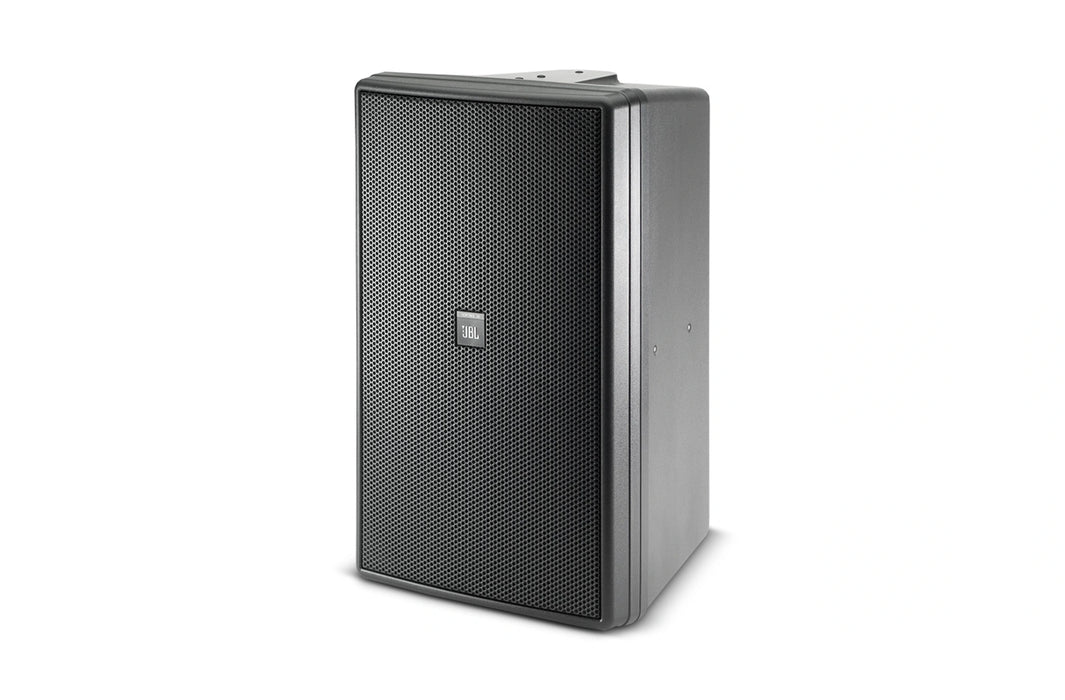

JBL CONTROL30 Three-Way High Output Indoor / Outdoor Monitor Speaker
SKU: CONTROL30
£793.65 (Excl. VAT)
- Description
- Specifications
- Downloads
-
JBL Control 30 | 10" 3-Way High Output Indoor/Outdoor Monitor Speaker
Three-Way High Output Indoor / Outdoor Monitor Speaker
The Control 30 utilizes high power components, computer optimized horn and coaxial component design, patent-pending cabinet manufacturing techniques, and a complex network to achieve smooth high fidelity performance, extended bandwidth and well-controlled, defined coverage from a compact loudspeaker.
Features
Extended bandwidth, extremely smooth frequency response.
Fully outdoor-capable design, featuring WeatherMax™.
120° x 110° HF coverage.
150 W transformer for 70 V or 100 V lines, with 8 thru.
SonicGuard® overload protection.
250 mm (10 in) fiberglass / Kevlar® cone LF woofer, with neodymium magnet coaxial 125 mm (5 in) anodized aluminum cone MR, and 25 mm (1 in) titanium diaphragm compression driver.
Includes InvisiBall® mounting hardware, plus ten 6 mm attachment points for suspension and optional U-bracket.
Sealed input panel cover and screw-down input terminals. -
Frequency Range (-10dB) 38 Hz – 17 kHz Frequency Response (±3 dB) 40 Hz – 16 kHz Power Capacity 500 W Continuous Program; 250 W Continuous Pink Noise Transformer Taps 70V: 150W, 75W, 38W, 19W
100V: 150W, 75W, 38W
Thru: 4Ω nominalMaximum SPL (1m) Short-Term: 123 dB; Long-Term: 117 dB Sensitivity 93 dB, 1W @ 1m (3.3 ft) Coverage Angle 120°H x 110°V Directivity Factor (Q) 5.2 dB (avg. 500 Hz–10 kHz) Directivity Index (DI) 7.1 dB (avg. 500 Hz–10 kHz) Impedance 4Ω Crossover Network 3rd order LF, 2nd order MF, 3rd order HF with conjugate shaping circuitry Drivers LF: 250 mm (10”) Kevlar® cone
MF: 125 mm (5”) aluminum cone
HF: 25 mm (1”) titanium diaphragmEnclosure HIPS with 10% glass fill + foamed polyurethane mold Grille Thermoset composite coated steel, WeatherMax foam Overload Protection SonicGuard™ full range power limiting Outdoor Capability IEC 529 IP-X5, Mil Spec 810 compliant Input Connectors Screw-down terminal strip, nickel-plated screws Safety Agency Transformer listed per UL1876 Colors Black or White (-WH) Dimensions (H x W x D) 593 x 372 x 345 mm (23.3 x 14.6 x 13.5 in) Net Weight (each) 18.9 kg (42 lb) Shipping Weight (each) 20.3 kg (45 lb) Included Accessories MTC-PC2 input cover, InvisiBall base, 305 mm Hex wrench Optional Accessories MTC-30CM (-WH) ceiling mount, MTC-30UB (-WH) U-Bracket Mounting Hardware InvisiBall™ aimable wall-mounting system included; optional U-bracket -
Description Downloads JBL CONTROL30 Three-Way High Output Indoor / Outdoor Monitor Speaker DataSheet Download
