JBL Control85M Two-Way 5.25" Coaxial Mushroom Landscape Speaker
SKU: CONTROL85M
£244.53 (Excl. VAT)
- Description
- Specifications
- Downloads
-

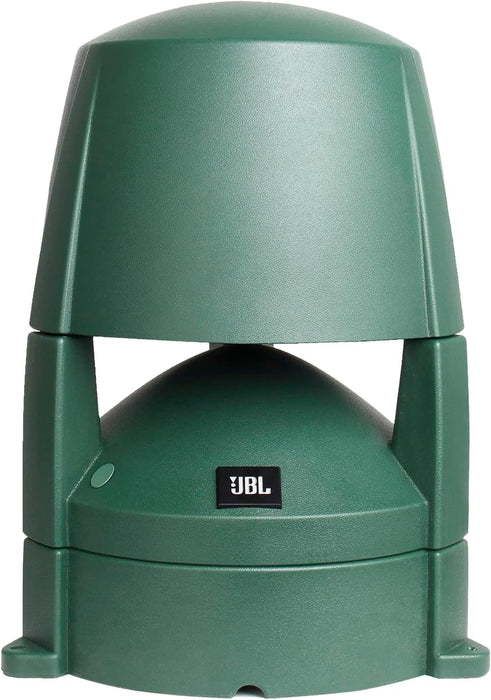

JBL Control 85M | Two-Way 5.25" Coaxial Mushroom Landscape Speaker with 160W Power, 360° Coverage & IP56 Rating
Two-Way 5.25 inch (135mm) Coaxial Mushroom Landscape Speaker

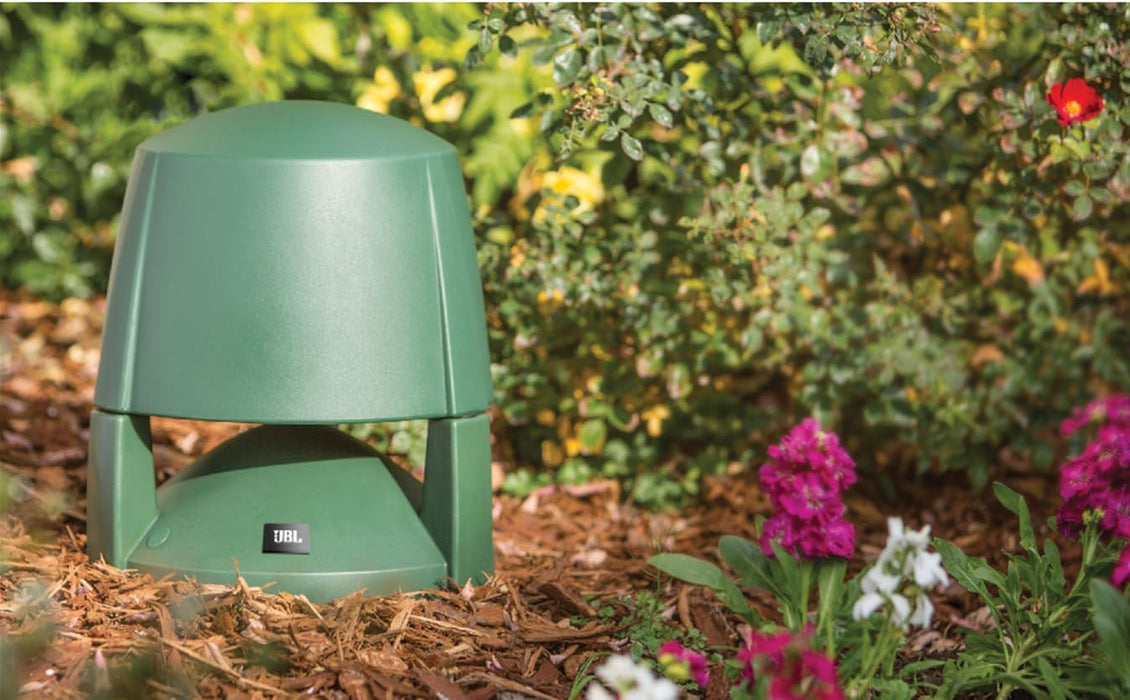

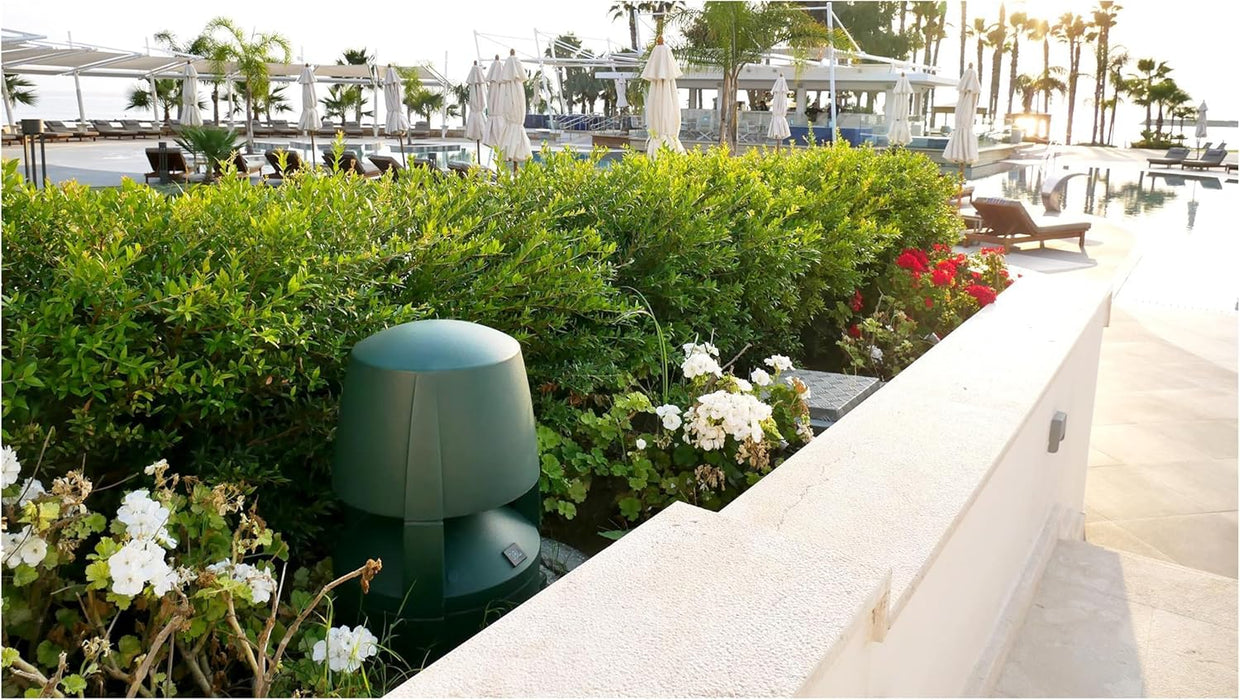

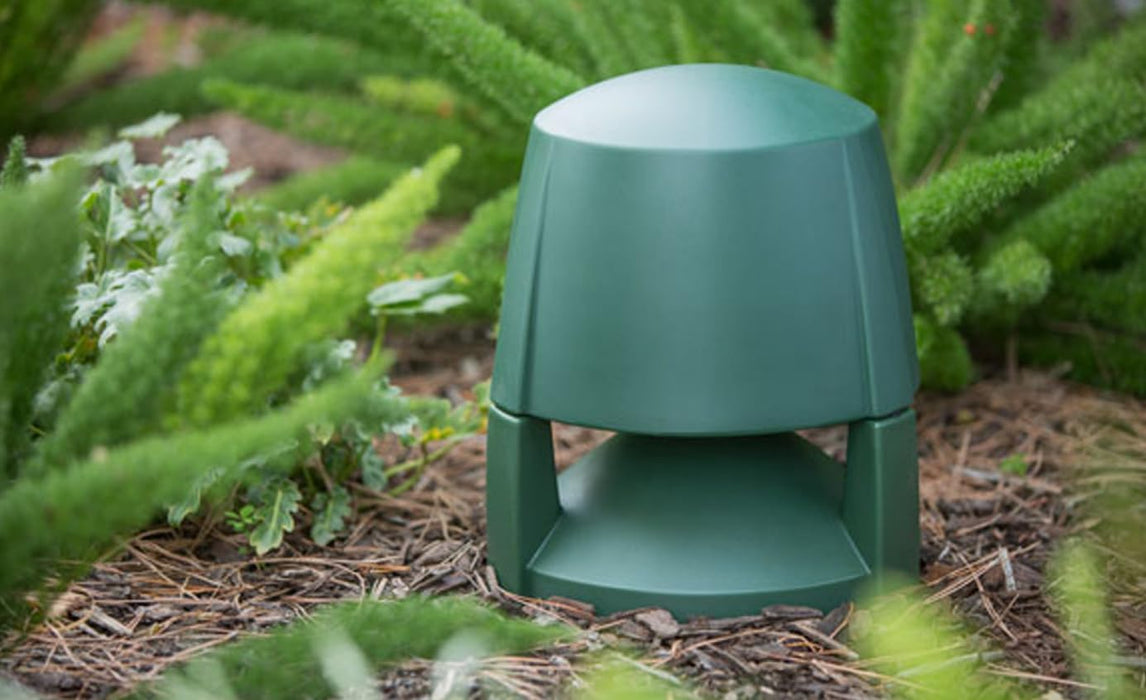

Designed for outdoor applications, the highly weather resistant Control 80 Series Landscape speakers provide excellent full-range sound quality and 360 degree coverage. Designed to be mounted on or in the ground, Control 80 Series Landscape speakers can be used in a wide variety of applications including shopping malls, theme parks, sports venues, hotels, casinos, resorts, restaurants, hospitality and leisure venues, entrance ways, and anywhere a high quality music and/or paging speaker landscape speaker is required. Compact in design, the speaker is unobtrusive and easily blends in with its surroundings. A tough polyethylene enclosure resists abuse from lawn care equipment and the elements, and the enclosure color extends throughout the material so the speaker will maintain color even when scraped or scratched.
Features
Components:
• 5¼” highly weather-resistant driver
• ¾” soft-dome highly weather-resistant tweeter
80W Pink Noise Power Handling (160W program) in direct 8Ώ setting, plus built-in 30W 70V/100V multi-tap transformer
Tough polyethylene highly weather resistant enclosure

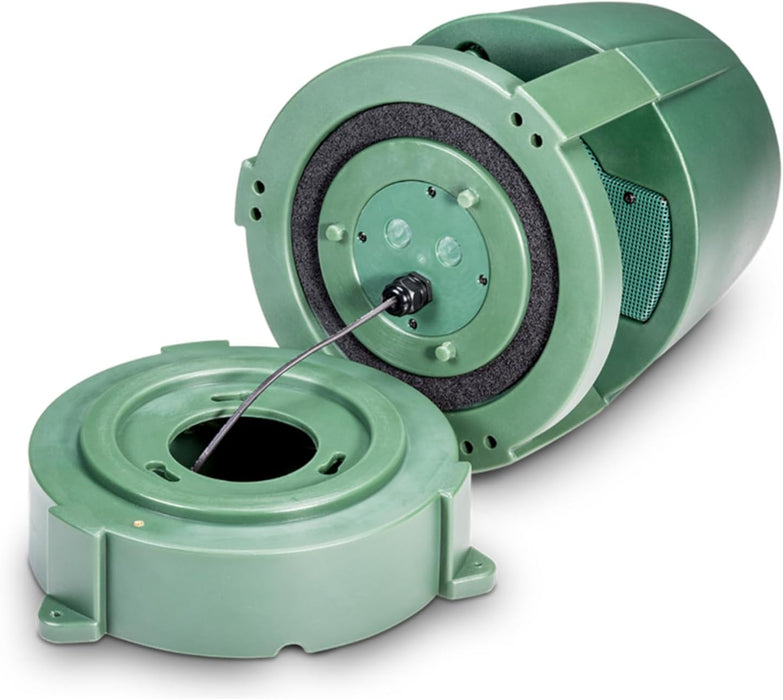

Fully isolated center chamber for wiring protection
High fidelity sound character with broad frequency range of 55Hz - 18kHz -
Frequency Range (-10dB) 55 Hz – 18 kHz Frequency Response (±3 dB) 65 Hz – 16 kHz Power Rating 160W Program (2 hrs), 80W/45W Pink Noise (2–100 hrs) Transformer Taps 70V: 30W, 15W, 7.5W, 3.8W
100V: 30W, 15W, 7.5WMaximum Input Voltage 23.3 V Sensitivity 86 dB (1W @ 1m, avg. 80Hz–16kHz) Coverage Pattern 360° H, 160° V (10°–50° up from ground) Directivity Factor (Q) 2.2 Directivity Index (DI) 3.4 dB Maximum SPL (1m) 105 dB Impedance 8Ω (at 8Ω setting) Insertion Loss <1.0 dB at any tap setting Thru Setting 8Ω nominal Crossover Type 2nd Order LPF on LF / 2nd Order HPF on HF Recommended High-Pass 65 Hz (8Ω), 60 Hz (30W tap), 50 Hz (15W–3.7W taps) LF Driver 135 mm (5.25") LF, Kapton former, polypropylene cone HF Driver 19 mm (0.75") PEI dome Enclosure LDPE Polyethylene, 6 mm thick, UL94V-0 rated Grille Powder-coated stainless steel Outdoor Capability IP56, exceeds MilSpec 810 & Mil-Std-202F Safety Agency UL1480, Transformer UL Recognized per UL1876, ROHS compliant Input Connectors Bare wire with dielectric-gel-filled wire nuts Wiring Dual-stage gland nuts, supports 4–9 mm round-jacketed cable Colors Hunter Green (RAL6018) Dimensions (H x W x D) 432 × 291 × 291 mm (17 × 11.5 × 11.5 in) Net Weight (each) 5.5 kg (12 lbs) Shipping Weight 7.3 kg (16 lbs) Included Accessories (2) Wire nuts, (2) Gland nuts, (1) Right-angle screwdriver Installer Tools Required 22 mm (7/8") drill bit for gland nut installation Optional Accessories 22 mm (7/8") twist-type drill bit for gland nut installation -
Description Downloads JBL Control85M Two-Way 5.25" Coaxial Mushroom Landscape Speaker DataSheet Download
