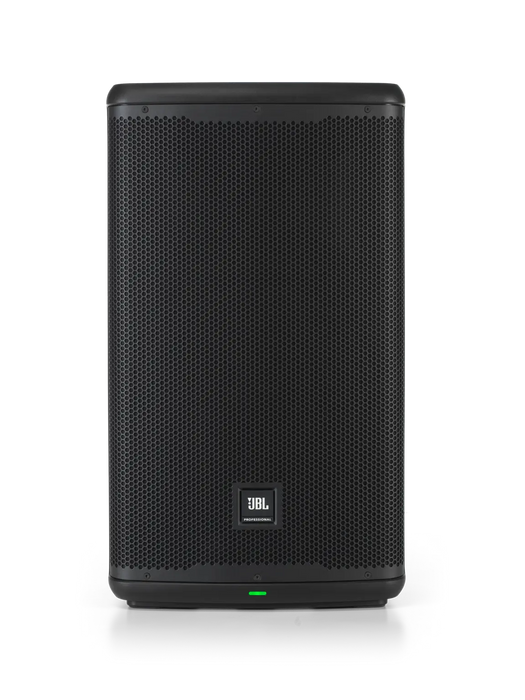

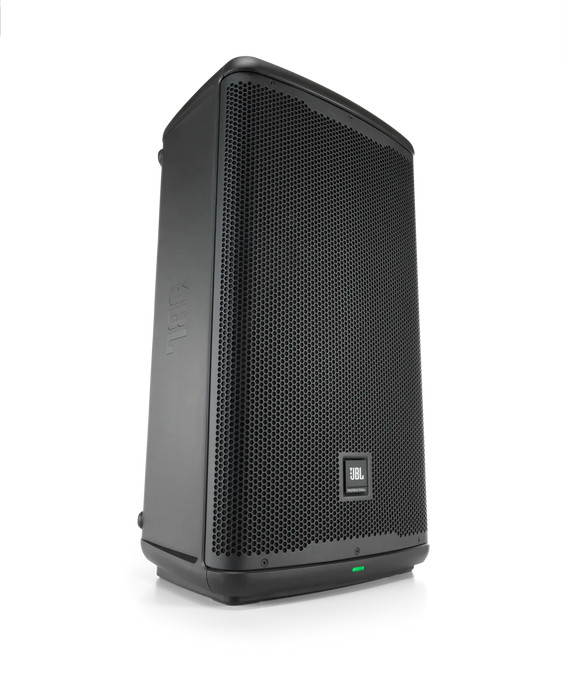

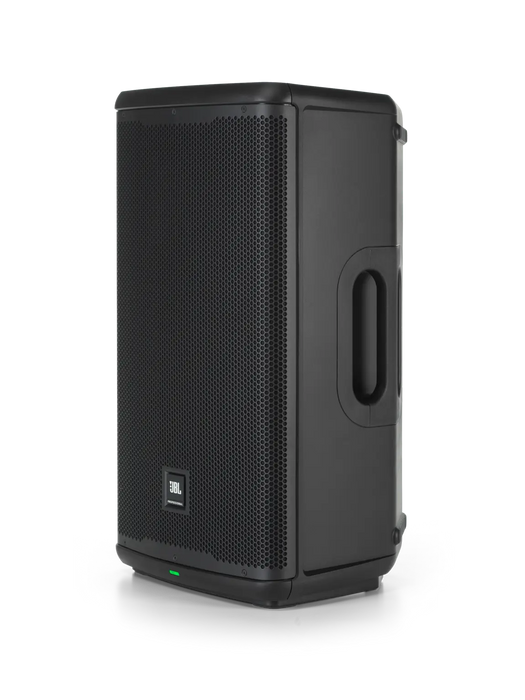

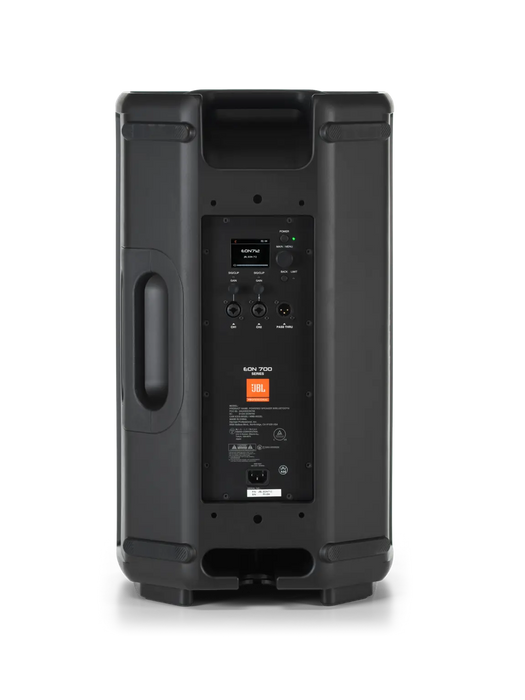

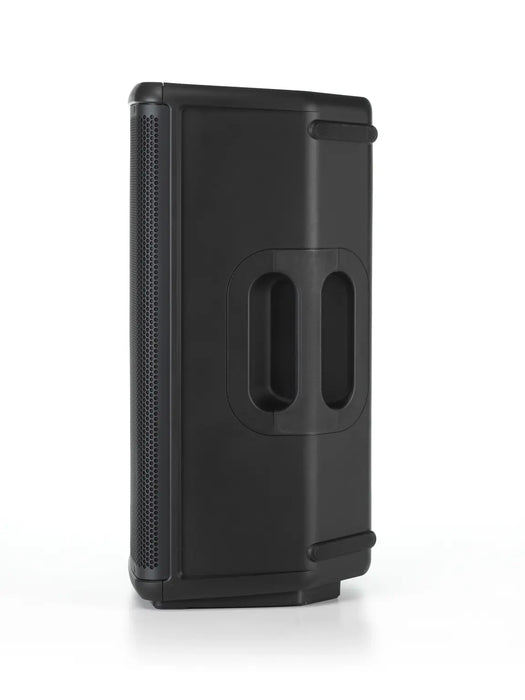

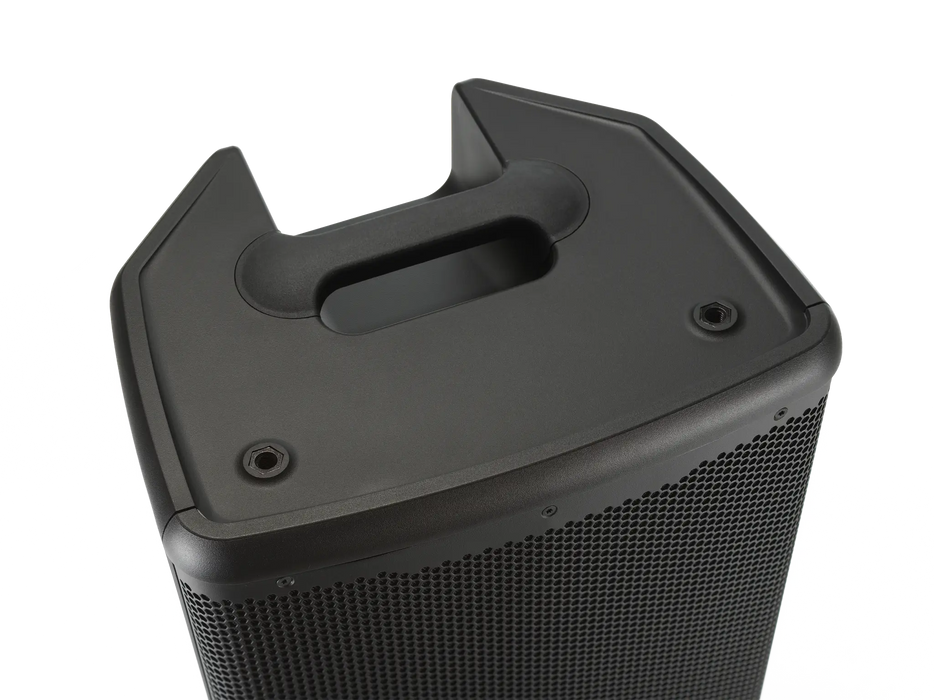

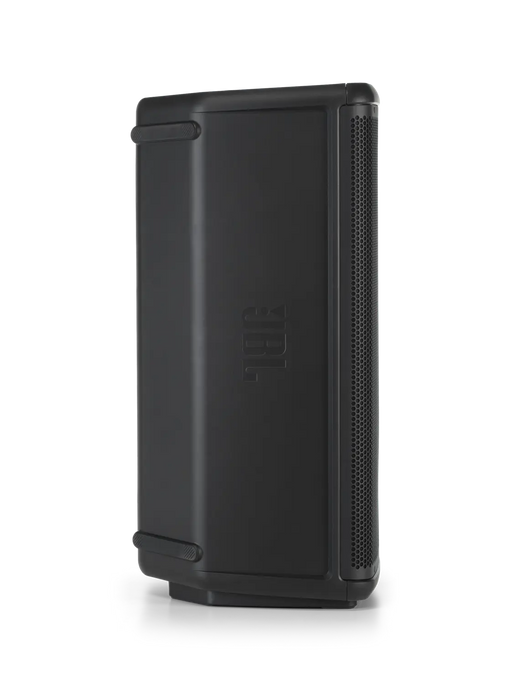

JBL EON712 12" Powered PA Speaker with Bluetooth | JBL-EON712-EK
SKU: JBL-EON712-EK
£454.29 (Excl. VAT)
- Description
- Specifications
- Downloads
-
JBL EON712 | 12-Inch Powered PA Speaker with Bluetooth, DSP Mixer & 1300W Peak Power
12-inch Powered PA Speaker with Bluetooth
Launched in 1995, JBL’s best-selling EON family of PAs set the benchmark for how great a powered loudspeaker system can be.
The JBL EON712 12-inch loudspeaker is part of JBL’s new EON700 Series of powered PAs, which represents a major step forward in innovation and technology: JBL engineers used exclusive, state-of-the-art design and measurement techniques to deliver the best-performing loudspeakers in their category, regardless of application.
The EON700 Series leverages the latest acoustic science, transducer designs, cabinet materials and advanced DSP and control technologies to deliver extraordinary performance in a fully professional, highly flexible, easy to use, portable system.
With four models available, including the 10-inch EON710, the 12-inch EON712 and the 15-inch EON715 powered PA speakers and the 18-inch EON718S subwoofer, EON700 systems cover the needs of today’s working musicians and sound providers.
Features
Custom-designed 12-inch woofer
2414H-1 compression driver
Redesigned high-frequency horn
Power: 1,300W Peak / 650W RMS
Frequency response: 50 Hz–20 kHz (-10 dB); 60 Hz–20 kHz (-3 dB)
Max SPL: 127 dB
Dispersion: 100° H x 60° V
Audio I/Os: 2 XLR Combo, 1 XLR passthrough
Advanced dbx DSP: Automatic Feedback Suppression, ducking, 100ms speaker delay, parametric EQ
Built-in 3-channel digital mixer
Backlit color LCD screen provides easy access to functions
Universal JBL Pro Connect app control
Bluetooth 5.0 streaming and control
Durable polypropylene cabinet and metal grille
Two ergonomic handles simplify transport
Built-in pole mount and optional EON700 Universal Yoke Mount expand system configuration options
Stackable cabinets allow easy storage
Dimensions: 26.3 x 15 x 12.75 in (669 x 382 x 324 mm) (HxWxD)
Weight: 32 pounds (14.5 kg)
Shipping dimensions: 27.8 x 19.64 x 17.28 in (706 x 499 x 439 mm) (HxWxD)
Shipping weight: 40.1 pounds (18.2 kg) -
System Type 12IN Powered Loudspeaker Woofer Model 712G Woofer Size 12" Woofer Magnet Ferrite Woofer Voice Coil 2" Tweeter Model 2414H Compression Driver Tweeter Size 1" Tweeter Magnet Neodymium Transducer Impedance LF 4Ω rated, HF 8Ω rated Max SPL 127 dB @1m/4Pi Frequency Range (-10dB) 50 Hz - 20 kHz Frequency Range (-3dB) 60 Hz - 20 kHz Horizontal Dispersion 100° Vertical Dispersion 60° Power Rating 1300W Peak / 650W RMS AC Power Input 100V–120V or 220V–240V Cooling Passive LED Indicators 1 Power, 1 Limit, 1 Front, 2 Signal/SSM LEDs Input Impedance 50k / 100k unbalanced / balanced Input Gain -∞ to +36 dB Crossover Frequency 2 kHz Inputs/Outputs 2 XLR Combo / BT Inputs, 1 XLR M Thru Cabinet PP + 10% Talc Grille 16GA perforated steel with black acoustic cloth backing Suspension / Mounting 4 M10 Suspension Points, 36mm Pole Socket, Yoke Bracket Holes Handles 2, cable channel on bottom Net Weight 14.6 kg (32.19 lbs) Gross Weight 18.4 kg (40.57 lbs) Product Dimensions (H x W x L) 670 x 381 x 328 mm (26.38 x 15.0 x 12.91 in) Shipping Dimensions (H x W x L) 684 x 490 x 430 mm (26.93 x 19.29 x 16.93 in) -
Description Downloads JBL EON712 12" Powered PA Speaker with Bluetooth | JBL-EON712-EK DataSheet Download
