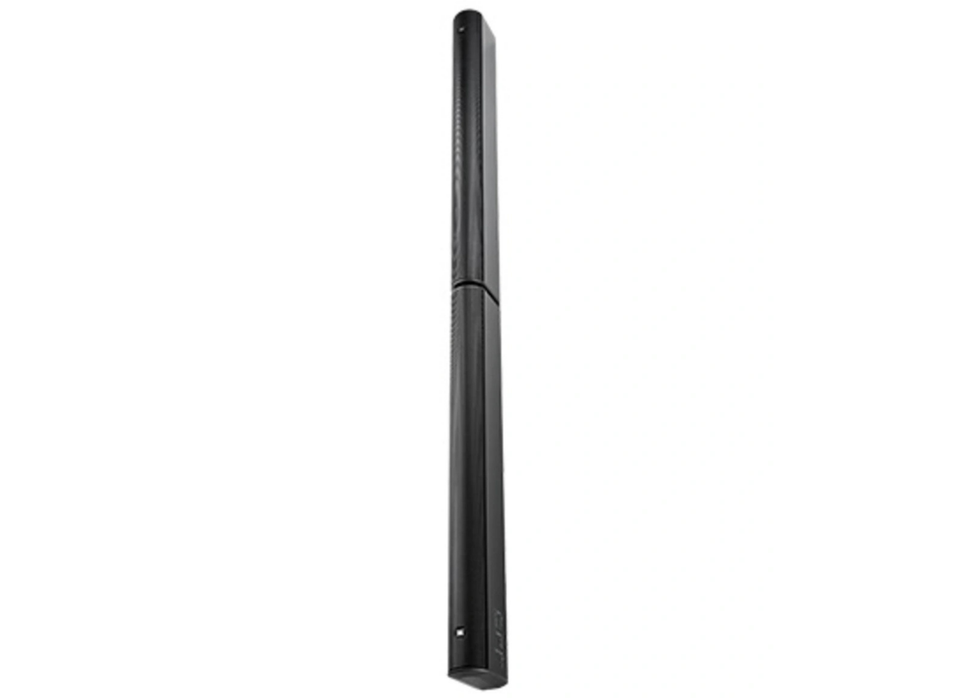

JBL PRO CBT 200LA-1 200cm Tall Constant BeamwidthTechnology™ Line Array Column Speaker
SKU: CBT200LA-1
£2,209.68 (Excl. VAT)
- Description
- Specifications
- Downloads
-
IP-55 Rated Enclosure for Outdoor Installations

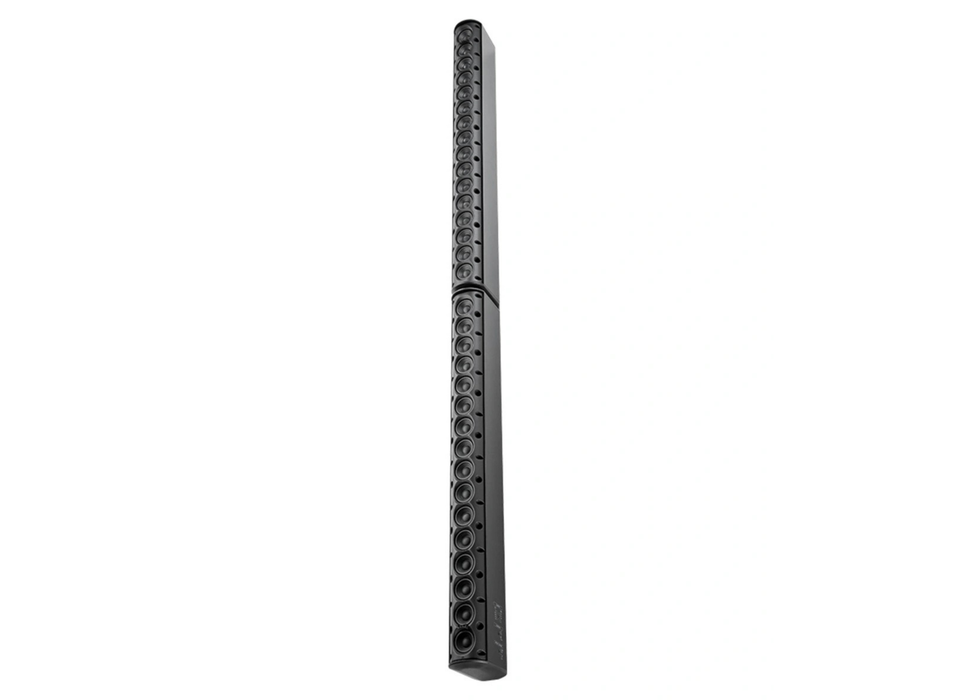

200 cm Tall Constant Beamwidth Technology™ Line Array Column Speaker with Thirty-Two 50 mm (2 in) Drivers
The CBT 200LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency and coverage options, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent coverage without the inconsistent vertical beaming, uneven coverage, and out-of-coverage lobing that are typical of both powered and nonpowered column speakers.Features
Patented Constant Beamwidth Technology™ provides true wide-band constant directivity coverage up to the highest frequencies and reduces out-of-coverage lobing.
200 cm (6.6 ft) height extends pattern control to include lower frequencies.
Vertical pattern coverage switchable between 30° and 15° for medium or long-throw coverage.
Asymmetrical Progressive-Gradient vertical coverage setting directs more sound toward the far area of the listening space, making front to back sound levels more consistent. Progressive-Gradient extent is adjustable.
Narrow width of 98.5 mm (3.8 in) fits visually into a wide variety of applications.
Dynamic Sonic-Guard™ low-audibility overload protection.

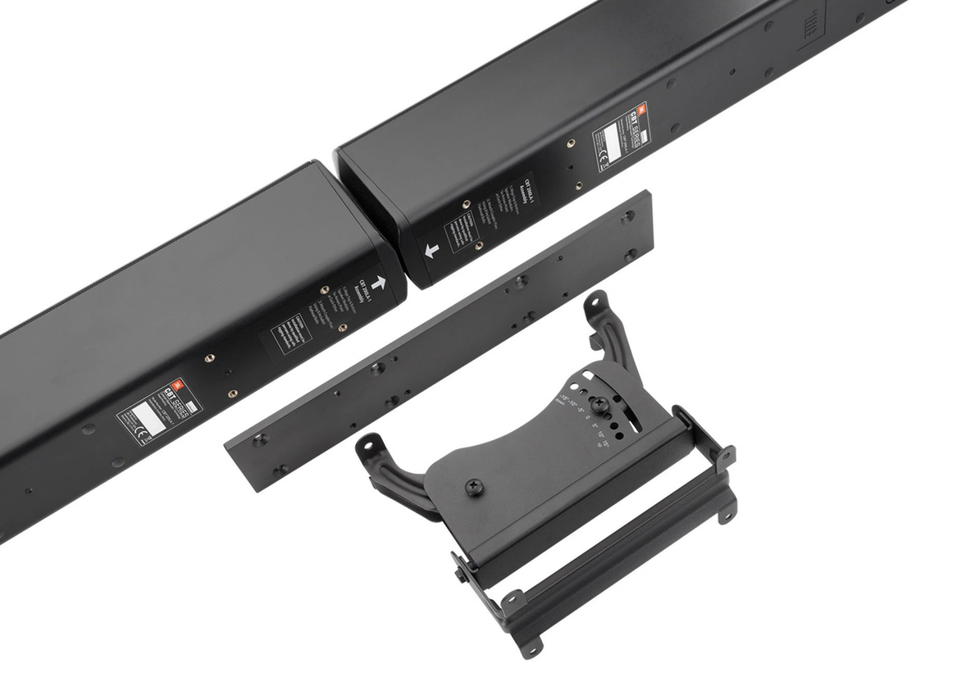

Swivel (pan)/tilt wall bracket included
Built-in 70V/100V transformers, plus direct capability. -
Drivers Thirty-two 50 mm (2 in) Full-Range Drivers Frequency Range (-10dB) 80 Hz – 20 kHz Frequency Response (±3 dB) 130 Hz – 18 kHz (narrow coverage, music mode) Coverage Angle Vertical: Switchable 15°, 30°, Asymmetrical 22° Sensitivity - Narrow Speech: 95 dB, Music: 92 dB Sensitivity - Broad Speech: 93 dB, Music: 90 dB Sensitivity - Asymmetrical Mode Speech: 94 dB, Music: 91 dB Impedance 8Ω per half, 4Ω total, Min-Z 2.9Ω Hookup Ensure identical polarity, parallel hookup recommended Power Rating 650W (2600W peak) 2 hrs, 400W (1600W peak) 100 hrs Max SPL - Narrow Speech: 123 dB (129 dB peak), Music: 120 dB (126 dB peak) Max SPL - Broad Speech: 121 dB (127 dB peak), Music: 118 dB (124 dB peak) Max SPL - Asymmetrical Speech: 122 dB (128 dB peak), Music: 119 dB (125 dB peak) 70V/100V Transformer 120W, 60W, 30W, 15W (70V only), Direct 8Ω/4Ω Enclosure Fiberglass reinforced ABS, painted aluminum grille Connectors Two screw-down terminal strips, accepts lugs/bare wire Outdoor Capability IP-55 rated, UV/moisture/acid-air/salt-spray resistant Color Black or White (-WH) Configuration Two pieces, 100 cm each, connected with Coupler Plate Insert Points 28 M6 insert points, 36 total with Coupler Plate Mounting Swivel/tilt wall bracket, suspension, OmniMount compatible Dimensions (H x W x D) 2000 x 98.5 x 153 mm (78.8 x 3.8 x 6.0 in) Net Weight 14.6 kg (33 lb) Included Accessories Swivel/tilt wall bracket, Coupler plate Optional Accessories MTC-PC2 terminal panel cover, MTC-CBT-FM1 flush-mount bracket, MTC-CBT-SMB1 stand-mount bracket -
Description Downloads Datasheet Download
