Inogeni TOGGLE-ROOMS 4K USB/HDMI 3-Host Switcher for Seamless BYOD/BYOM Collaboration
SKU: TOGGLE-ROOMS
£1,095.00 (Excl. VAT)
- Description
- Specifications
- Downloads
-

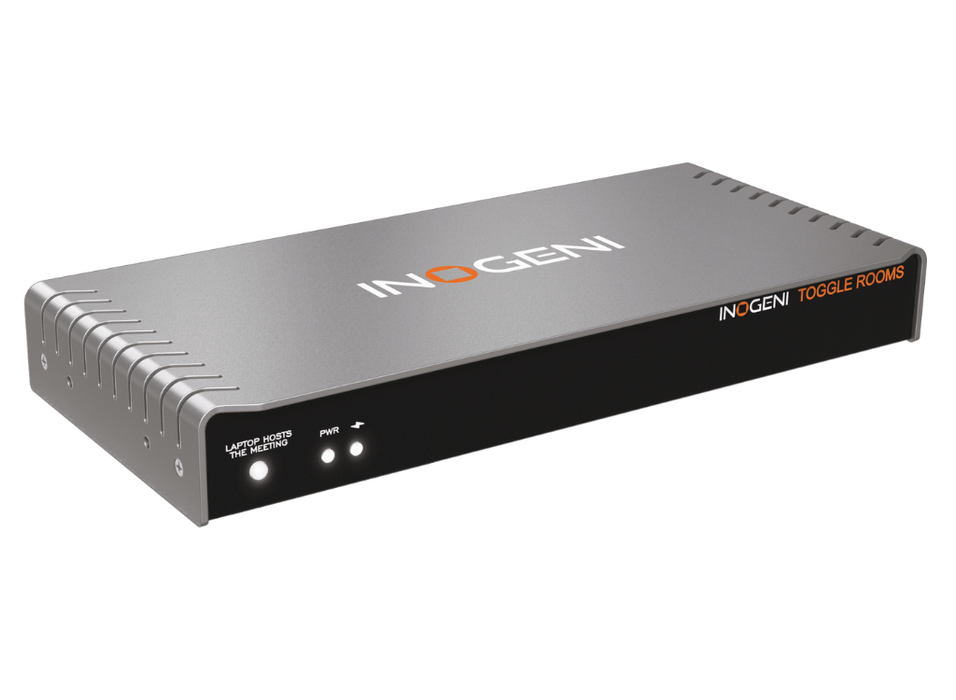

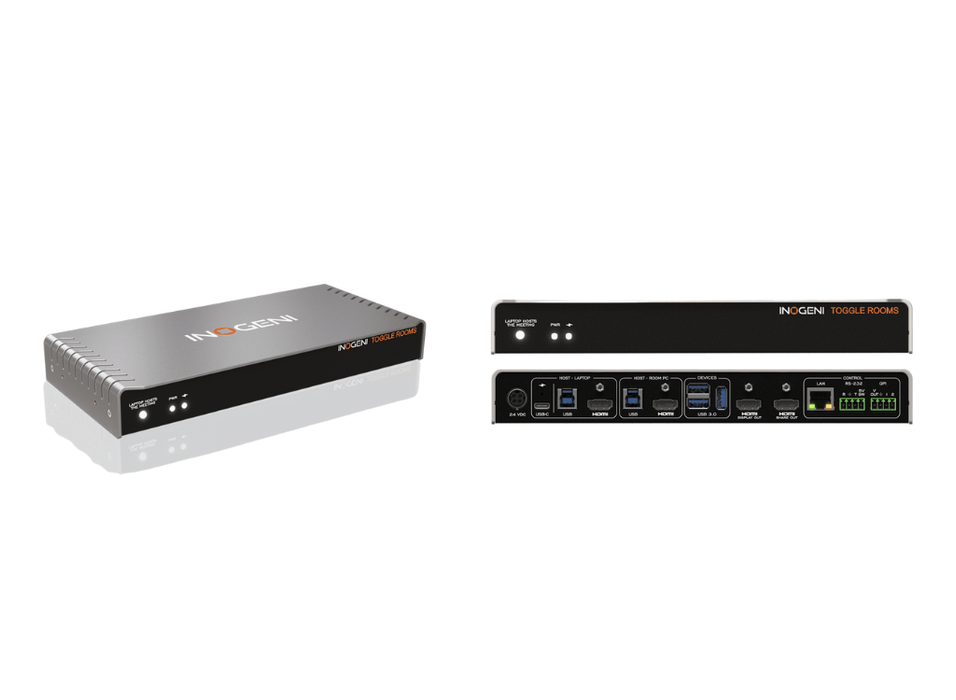

Inogeni TOGGLE-ROOMS 4K USB/HDMI 3-Host Switcher for Seamless BYOD/BYOM Collaboration
TOGGLE ROOMS provides a 4Kp60 pro-AV and unified communication system enabling users to seamlessly switch from a Room PC to laptop host, ensuring a user-friendly and efficient meeting experience.
The TOGGLE ROOMS 4Kp60 USB/HDMI switcher effortlessly connects to three USB 3.0 devices and an HDMI display. Seamlessly switching between two hosts, it automatically transitions to a connected laptop, providing convenient charging capabilities of up to 100W via USB-C. Additionally, this versatile solution allows for remote control through RS-232 or GPI, ensuring a seamless and user-friendly experience in any videoconference setting.
One cable to own the room!
Plug & Go with the INOGENI’s TOGGLE ROOMS!
This user-friendly switcher requires no drivers, allowing smooth transitions between 3x USB 3.0 devices and 1x HDMI display. Effortlessly switch between your Room PC and laptop for a seamless and dynamic collaboration experience. It is compatible with leading MTR, Zoom Rooms, and pro-AV systems. Elevate your meetings with INOGENI’s reliable and robust technology.
Compatible with all USB cameras, videobars and pro-AV audio devices
Unlock ultimate versatility with INOGENI’s TOGGLE ROOMS! It is fully compatible with all USB cameras, videobars and pro-AV audio speakerphones, microphones, or speakers, including Vaddio, Huddly, HuddleCamHD, AVer, Jabra, Logitech, Marshall cameras, and web cameras.In The Box
- 1x TOGGLE ROOMS
- 1x USB-C to USB-C cable – 6 ft.
- 1x USB 3.0 cable (USB-A to USB-B) – 3 ft.
- 2x terminal block 4-POS
- 2x mounting brackets
- 4x M2.5 mounting screws for brackets on product
- 4x screws for Toggle Rooms table/wall mount
- 1x 24V/160W PSU
- 1x power supply: 85-264VAC 50/60Hz to 24V/6.67A DC
- International adapters included in the box (USA/CA or EU/UK/AU/BIS)
- 1x PSU mounting bracket
- 4x screws for PSU table/wall mount
- 4x rubber feet -
Feature Details Product Name INOGENI TOGGLE ROOMS Laptop Host Ports USB-C (DP Alt Mode, 100W), USB-B, HDMI Room PC Ports USB 3.0 Type-B, HDMI HDMI Display Output Up to 3840x2160p60 / 4096x2160p60 / 5Kp30 (21:9) HDMI Share Output Up to 3840x2160p60 / 4096x2160p60 / 5Kp30 (21:9) USB Device Ports 3x USB 3.0 Type-A (1.8A shared) HDMI Compliance HDMI 2.0b, HDMI 1.4, DVI 1.0 HDCP Compliance HDCP 2.3, 2.2, 1.4 Sampling Frequency 600 MHz Video Scaling Downscaling from 4K to 1080p Chroma Subsampling YUV/RGB 4:4:4, 4:2:2 CEC Support Yes Audio Formats LPCM, Dolby Digital, DTS (up to 192kHz) Control Options Front Button, RS232, GPI, LAN, USB IP Interface 10/100 Mbps, DHCP or Static IP, RESTAPI, Telnet RS-232 Interface 9600–115200 baud, 4-POS terminal block GPI Interface 2x Contact-closure, 0–12V input, LED power output supported OS Compatibility Windows 10+, macOS 10.10+, Linux (v2.6.38+) USB Tier Consumption 1 Tier Dimensions (W x L x H) 25.1 x 11.57 x 3.26 cm (9.88” x 4.56” x 1.28”) Weight 790 g (1.74 lb) Power Supply 160W (85–264VAC 50/60Hz to 24V/6.67A DC) Operating Temperature 0°C to 45°C (32°F to 113°F) Storage Temperature -40°C to 105°C (-40°F to 221°F) Relative Humidity 0% to 90% non-condensing Mounting Options Under-table or wall mount UPC Code (US & CAN) 051497418694 UPC Code (INTL) 051497418700 Origin Canada Warranty 5 years (purchased after Aug 1, 2024) / 2 years (before) Certifications FCC, CE, UKCA, RoHS, IEC62368, RCM, SoV, NOM TAA-Compliant Yes Package Contents Device, USB cables, power supply, adapters, brackets, screws, feet -
Description Downloads Datasheet Downloads
