Planet Compact Industrial 8-Port 10/100/1000T Gigabit Ethernet Switch

Compact Size for More Practicability and Convenience

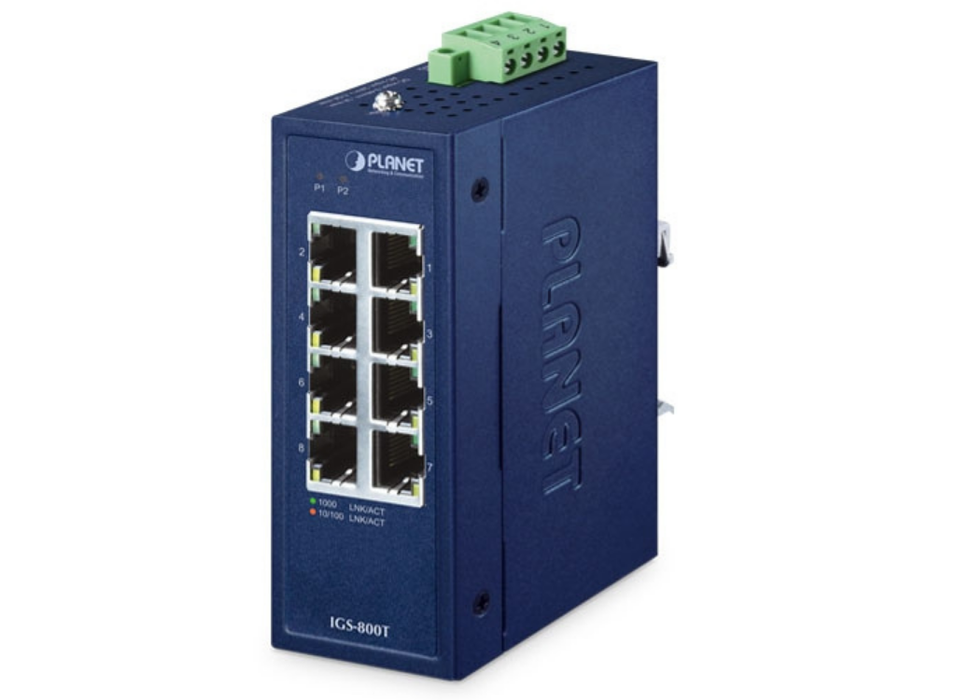

PLANET IGS-800T Compact Industrial 8-Port 10/100/1000T Gigabit Ethernet Switch, suitable for industrial use, features 8 1000Mbps auto-negotiation ports, IP30-rated rugged but compact case and a wide-ranging redundant power system (9~48V DC or 24V AC). The IGS-800T is able to operate in any harsh environment with operating temperature ranging from -40 to 75 degrees C.

As the trend for an IIoT (Industrial Internet of Things) infrastructure continues to grow, the IGS-800T is designed to simplify industrial network deployment with its Plug and Play feature. Beyond offering stable and reliable fast data and power transmission, it also aligns with the AIoT (Artificial Intelligence of Things) vision by enabling seamless integration of intelligent systems. This allows the collection and analysis of valuable data, empowering real-time decision-making and enhancing operational efficiency across various industrial applications.

Low Power Consumption for ESG Principles
The IGS-800T adopts the advanced green networking technology that meets the Environmental, Social, and Governance (ESG) principles, providing link-on cable length power-saving and link-down power-saving features. These characteristics enable the IGS-800T to maintain extremely low power consumption even under full-load operation, effectively conserving energy while delivering outstanding performance. Compared to the IGS-801T, using the IGS-800T can save over 50% of energy consumption.With Auto Power Savings and the IEEE 802.3az Energy Efficient Ethernet (EEE) protocol, the IGS-800T can automatically detect cable link status and network traffic, adjusting its power consumption accordingly. When the device activity is lower, the switch consumes less power, achieving higher energy efficiency.

Dual Power Input for High Availability Network System
The IGS-800T features a strong dual power input system with wide-ranging voltages (9V~48V DC or 24V AC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the IGS-800T via power supply 2 alternatively without any loss of operation.

High Switch Performance
The IGS-800T offers high-performance switch architecture. With the 8 10/100/1000Mbps Gigabit Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 16Gbps and the 4K MAC address table, the IGS-800T can perform wire-speed packet transfer without the risk of packet loss. The flow control function enables the IGS-800T to provide fast and reliable data transfer.

Plug and Play
All of the RJ45 copper interfaces in the IGS-800T support 10/100/1000Mbps auto negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.

Flexible and Easy Installation with Limited Space
The compact sized IGS-800T is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexible and easier in any space-limited location.

Applications

Designed for Heavy Industries
The IGS-800T’s IP30-rated metal case is particularly designed for heavy industries, such as factories, harbors, warehouses, and more. When installed at these establishments, it can enhance the work performance of these establishments by speedily transferring incoming and outgoing data.

Key Features

Physical Port

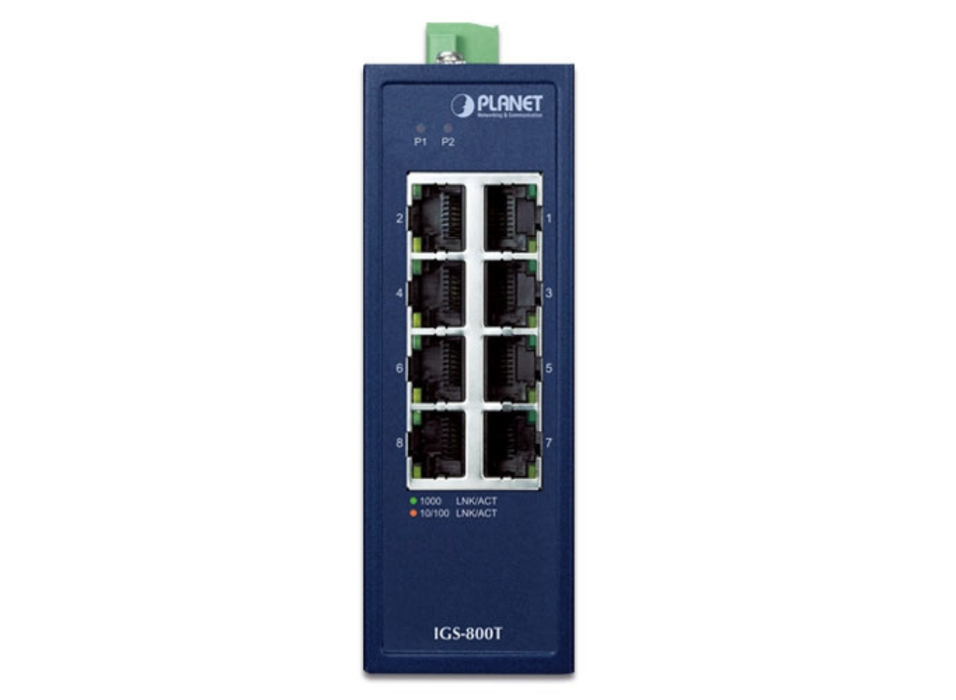

8-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function

Layer 2 Features
Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standard
Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
High-performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth
Backplane (switching fabric): 16Gbps
Integrated address look-up engine, supporting 4K absolute MAC addresses
9K jumbo packet size
Automatic address learning and address aging
CSMA/CD Protocol
PROFINET Traffic Pass-through with QoS

Industrial Case and Installation
IP30 metal case
DIN-rail and wall-mount designs

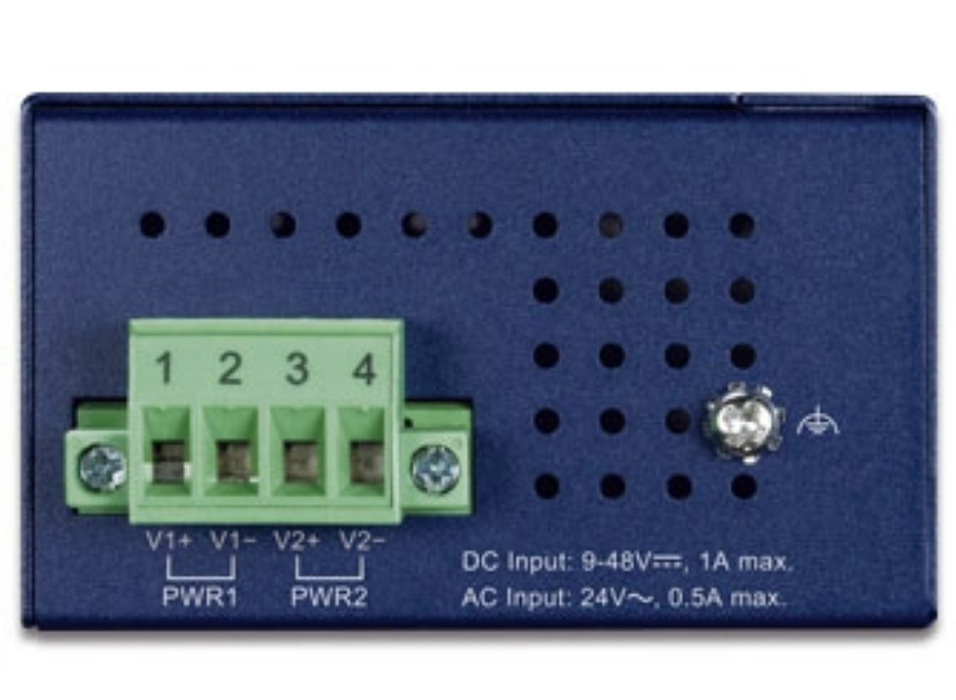

9 to 48V DC, redundant power with reverse polarity protection, and connective, removable terminal block for master and slave power; 24V AC power support
Supports 6000 VDC Ethernet ESD protection
-40 to 75 degrees C operating temperature
Free fall, shock-proof and vibration-proof for industries
