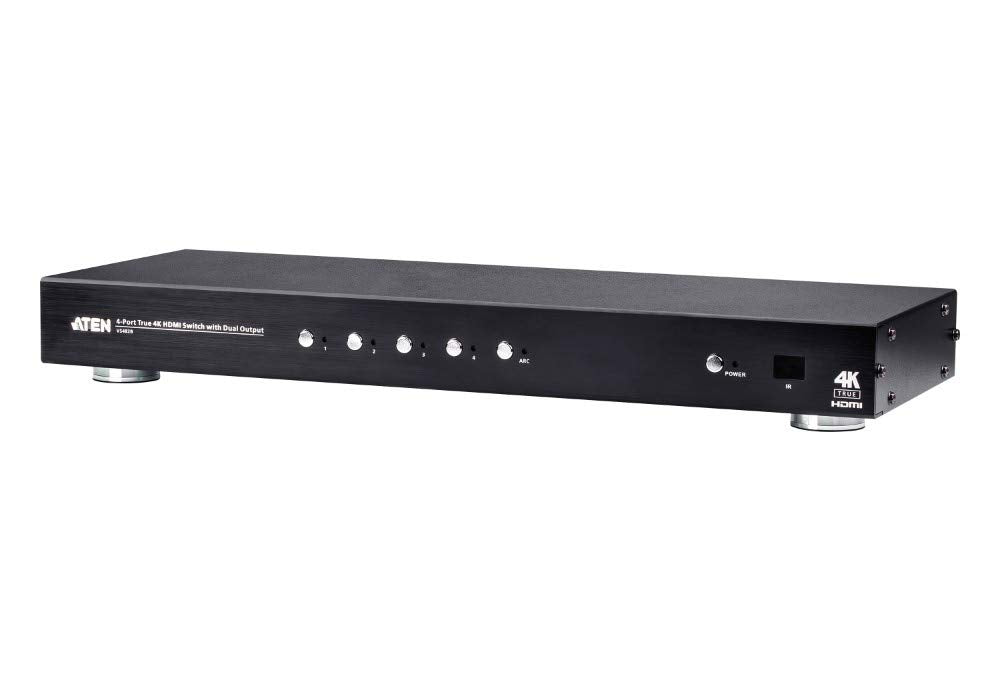

ATEN 4-Port True 4K HDMI Switch with Dual Output | VS482B
The ATEN VS482B Switch is an ideal solution for application requiring superior video resolution of True 4K when connecting 4 HDMI A/V sources to 2 HDMI displays. Complying with HDMI standards, the switch’s Audio Return Channel (ARC) function allows users to send audio without having to attach a separate audio cable.
Furthermore, the VS482B offers switching methods between HDMI sources by front panel pushbuttons, IR remote control and RS-232 commands, enabling users to effortlessly select desired input. Equipped with EDID Expert™, the VS482B benefits users with optimum EDID settings for smooth power-up and highest-quality display across different screens. Featuring above functionalities provides you a practical solution for auditorium, home theater, meeting rooms, trade shows, shopping centers, and more.
Features

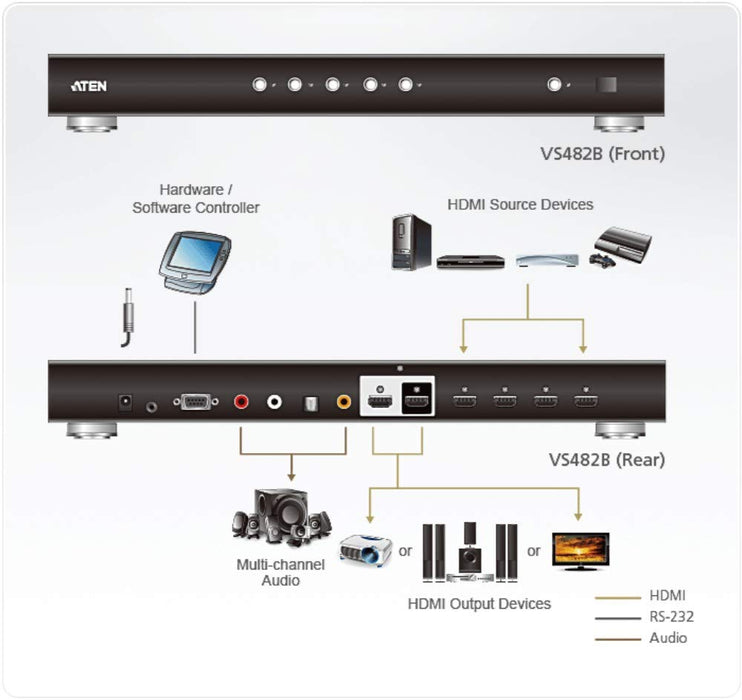

Allows up to 4 HDMI A/V sources to be connected to 2 HDMI displays
Superior video quality – up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4); HDR supported
HDMI (3D, Audio Return Channel, Deep Color); HDCP 2.2 compliant
Supports Auto Switch – the VS482B automatically switches to a newly plugged-in source
Audio Return Channel (ARC) function – connects an HDMI cable to the ARC port to send audio from your source device to your audio/video receiver
OSD for system configuration settings and information display
Switching between HDMI input sources via front panel pushbuttons, IR remote control and RS-232 commands
EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
Built-in bi-directional RS-232 serial control port for high-end system control
HDMI audio can be extracted to stereo audio and digital audio (optical/coaxial) outputs
Supports 5.1 channel audio output
Supports Consumer Electronic Control (CEC)
Rack mountablePackage Contents
1x VS482B 4-Port True 4K HDMI Switch with Dual Output
1x Power Adapter
1x IR Remote Control Unit
1x Mounting Kit
1x User Instructions -
Category Details LED Indicators 4x HDMI In, 1x ARC, 1x Power (Green/Orange) Switches 4x HDMI Select, 1x ARC, 1x Power (Push Buttons) Video Inputs 4 x HDMI Type A Female (Black), 100 Ω Input Max Distance 5m @ 4K60Hz (4:4:4) Video Outputs 2 x HDMI Type A Female (Black), 100 Ω Output Max Distance 5m @ 4K60Hz (4:4:4) Max Data Rate 18 Gbps (6 Gbps/lane), 600 MHz Pixel Clock Video Compliance HDMI 2.0, HDCP 2.2, ARC, Deep Color, CEC Max Resolution 4096x2160 / 3840x2160 @ 60Hz (4:4:4) Audio Inputs 4 x HDMI Audio Outputs 2x RCA, 2x HDMI, 1x Toslink, 1x RCA Coaxial RS-232 Control DB-9 (Port switch & FW upgrade, 19200 baud) IR Control Mini Jack + IR Receiver EDID Modes Default 4K@60Hz / Port-1 / Remix Power Connector DC Jack, Power: 5V / 3.29W / 15BTU/h Operating Temp 0–40°C Storage Temp -20–60°C Humidity 0–80% RH (Non-condensing) Housing Metal Dimensions (L×W×H) 43.72 × 15.88 × 4.40 cm (17.21 × 6.25 × 1.73 in) Weight 2.16 kg (4.76 lb) Carton Lot 3 pcs -
Description Downloads ATEN 4-Port True 4K HDMI Switch with Dual Output | VS482B DataSheet Downloads ATEN 4-Port True 4K HDMI Switch with Dual Output | VS482B User Manual Downloads ATEN 4-Port True 4K HDMI Switch with Dual Output | VS482B Quick Start Guide Downloads
