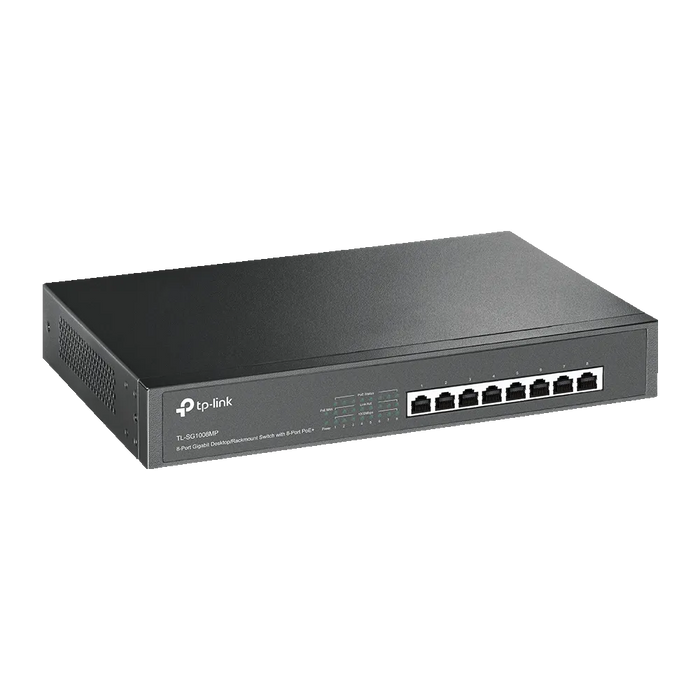

TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+
What This Product Does
The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 153W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP can save the power consumption, making it an eco-friendly solution for your business network.
How This Product Works
All 8 ports of TL-SG1008MP support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are no electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.
Overload Arrangement
TL-SG1008MP has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices’ power consumption is greater than or equal to 153W, a priority will be arranged among the 8 PoE+ ports, at which point the system will cut off the power of the lowest-priority port.
Port Priority Function
Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4, 5 and 7 are using 30W (maximum power per port is 30W, the system power is 153W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power of Port 7 in response to the power exceeding the 153W limit., This means Port 1, 2, 4 and 5 will use 30W, and Port 3 will use 25W, with no power will be supplied to Port 7 as it has the lowest designated priority among the ports in use.
Easy To Use
TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE+ is a great choice for expanding your home or office network.
-
| HARDWARE FEATURES |
|
| Interface |
8 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m) |
|
100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m) |
|
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity |
1 |
| Physical Security Lock |
No |
| Power Supply |
100-240VAC, 50/60Hz |
| Packet Forwarding Rate |
11.904 Mpps |
| PoE+ Ports(RJ45) |
Standard: 802.3af/at compliant, PoE+ Ports: 8 Ports, Power Supply: 153W |
| Mac Address Table |
4K |
| Buffer Size |
1.5Mbits |
| Jumbo Frame |
16 KB |
| Switching Capacity |
16Gbps |
| Dimensions (W x D x H) |
11.67.11.7 in. (29418044 mm) |
| Mounting |
Desktop/Rack Mountable |
| Max Power Consumption |
8.57W(220V/50Hz. no PD connected), 173.65W(110V/60Hz. with 153W PD connected) |
| Max Heat Dissipation |
29.22BTU/h(no PD connected), 592.15BTU/h(with 153W PD connected) |
| SOFTWARE FEATURES |
|
| Advanced Features |
Compatible With IEEE 802.3af/at Compliant PDs, Priority Function, Mac Address Auto-Learning And Auto-Aging, IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
| Transfer Method |
Store-And-Forward |
| OTHERS |
|
| Certification |
FCC, CE, RoHS |
| Package Contents |
TL-SG1008MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet |
| Environment |
Operating Temperature: 0℃50℃ (32℉122℉), Storage Temperature: -40℃70℃ (-40℉158℉), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing |
-
