Aten 2-Port USB HDMI KVM Switch with Audio - CS692-AT

SKU: CS692-AT
Aten 2-Port USB HDMI KVM Switch with Audio - CS692-AT Aten KVM Switches Aten
Availability:
13 in stock
🚚 Order before 3PM, get it by tomorrow.
Save £42.13 Save £42.13

£72.54 (Excl. VAT)

- £87.05 (Inc. VAT)
£72.54 - £72.54
- - £87.05
Availability:
13 in stock
payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads

  • Aten 2-Port USB HDMI KVM Switch with Audio - CS692-AT

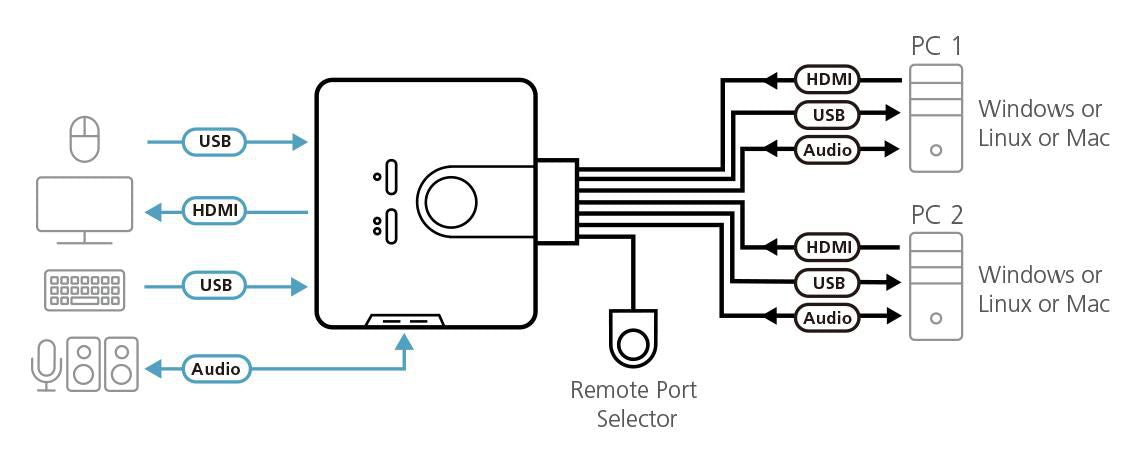

    The CS692 2-Port USB HDMI/Audio Cable KVM Switch links two HDMI-enabled PCs or devices to a single USB keyboard, USB mouse, and HD display console. The CS692 Switch takes a giant step forward from prior cable KVM models in the Petite series, by offering full HDMI functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), and a firmware upgrade function that allows you to keep up with latest available versions.

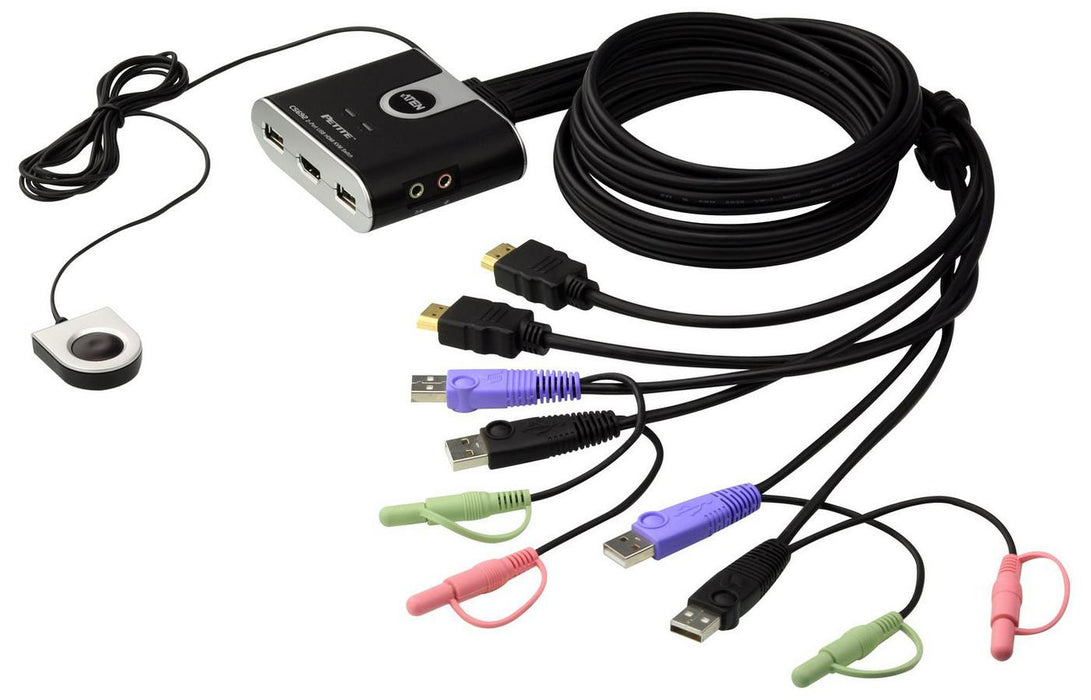

    1x CS692 2-Port USB HDMI/Audio Cable KVM Switch with Remote Port Selector

    1x User Instructions

    2x Hotkey Stickers

    Superior video quality - up to 1920 x 1200 and 1080p

    Computer selection via a remote port selector, hotkeys, and USB mouse

    Independent switching of the KVM and Audio focus - one computer has the KVM focus and the other the Audio focus

    Built-in all-in-one cables (2 x 1.2 m) and bus-powered design

  • Feature Details
    Design
    Hot keys Yes
    Housing material Plastic
    LED indicators Yes
    Product colour Black
    Push button Yes
    Rack mounting No
    Display
    Built-in display No
    Legal Information
    EU ECCN Code N/A
    UNSPSC Code 43211601
    US ECCN Code 5A992
    Logistics data
    Harmonized System (HS) code 85176200
    Master (outer) case gross weight 6.13 kg
    Master (outer) case height 18.2 cm
    Master (outer) case length 40.5 cm
    Master (outer) case net weight 4.09 kg
    Master (outer) case width 39.5 cm
    Products per master (outer) case 10 pc(s)
    Operational conditions
    Operating relative humidity (H-H) 0 - 80 %
    Operating temperature (T-T) 0 - 50 °C
    Storage relative humidity (H-H) 0 - 80 %
    Storage temperature (T-T) -20 - 60 °C
    Package dimensions (verified)
    Depth Verified 16.7 cm
    Gross Weight Verified 0.526 kg
    Height Verified 7.7 cm
    Width Verified 23.3 cm
    Packaging content
    Manual Yes
    Quick installation guide Yes
    Performance
    HD type WUXGA
    Maximum resolution 1920 x 1200 Pixels
    Scan interval 10/20/3/5 Second
    Video bandwidth 60 Hz
    Ports & interfaces
    Audio connections Yes
    Console ports 3.5mm headphone/3.5mm mic/HDMI/USB A
    Console USB ports quantity 2
    HDMI ports quantity 2
    Headphone outputs 3
    Keyboard port type USB
    Mouse port type USB
    Number of computers controlled 2
    Number of microphone inputs 3
    USB 2.0 Type-A hub ports quantity 4
    USB connector type USB Type-A
    Video port type HDMI
    Power
    DC input voltage 5 V
    Power consumption (typical) 0.72 Watt
    Power source DC
    Product dimensions
    Net Weight (Product, kg) 0.41 kg
    Product Depth 16.3 cm
    Product Height 23.5 cm
    Product Width 7 cm
  • Description Downloads
    Datasheet Download
