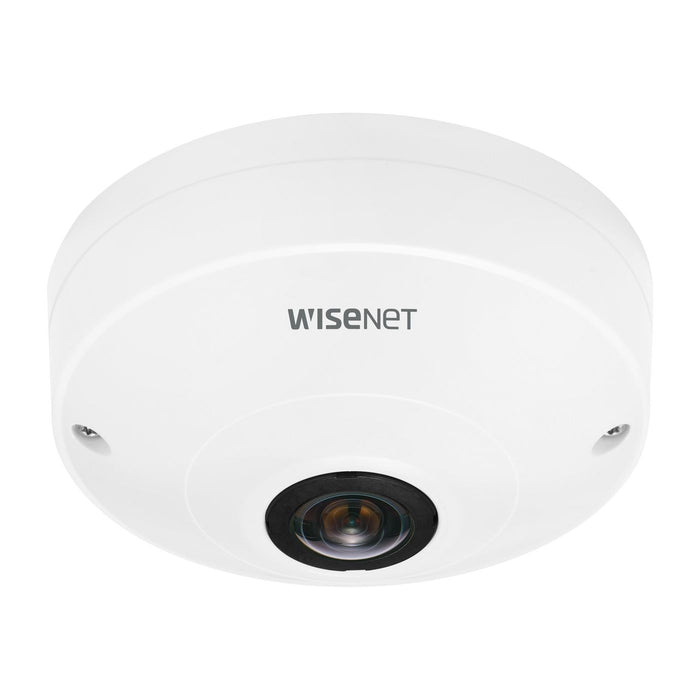

Hanwha 12MP Network Fisheye Camera | QNF-9010
SKU: QNF-9010
£442.96 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Hanwha 12MP Network Fisheye Camera
QNF-9010, 1/2.3" CMOS, 12MP, 3008 x 3008, 1.08 mm, F2.2, BLC, HLC, WDR, SSDR, RJ-45, Micro SD/SDHC/SDXC, IP42, PoE, ⌀99 x 49 mm, 370 g
Wisenet Q network indoor fisheye, 12MP CMOS sensor, 3008x3008 @ 30fps, 1.08mm fixed lens (187°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, Defocus, Motion detection, Tampering, People counting, Heatmap, Micro SD/SDHC/SDXC slot, HLC, PoE, IP42 -
Category Feature Details Battery Battery Type UN3091 - Lithium METAL inside equipment Camera Pan Control No Tilt Control No Shutter Speed 2 - 1/12000 Sec Shutter Type Electronic Diagonal Viewing Angle 187° Horizontal Viewing Angle 187° Vertical Viewing Angle 187° Minimum Illumination 0.39 lx White Balance ATW/AWC/Indoor/Manual/Outdoor Design Form Factor Dome Housing Material Plastic IP Rating IP42 Mounting Type Ceiling Product Colour White Image Sensor Number of Sensors 1 Optical Sensor Size 1/2.3" Sensor Type CMOS Lens System Closest Focusing Distance 0.5 m Fixed Focal Length 1.08 mm Maximum Aperture 2.2 Zoom Capability Yes Network Bluetooth No Ethernet Interface Fast Ethernet Ethernet LAN Yes Networking Standards IEEE 802.1x / IEEE 802.3af QoS Support Yes Streaming Method Multicast / Unicast Supported Protocols IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP, ARP, DNS, DDNS, UPnP, Bonjour Wi-Fi No Night Vision Night Vision No Operational Conditions Operating Temp. -10 to 40°C Operating Humidity 0 - 90% Storage Temperature -50 to 60°C Storage Humidity 0 - 90% Package Dimensions Depth 14.3 cm Gross Weight 0.53 kg Height 11.8 cm Width 14.3 cm Packaging Content Number of Cameras 1 Performance Connectivity Wired Day/Night Mode Yes Placement Supported Indoor & Outdoor PTZ Control Yes PTZ Modes Digital PTZ Type IP Security Camera Wide Dynamic Range Yes Ports & Interfaces Composite Video Out 1 Ethernet Ports 1 (RJ-45) Power PoE Power Consumption 7.7 W Typical Power Consumption 6.4 W Power Source PoE Product Dimensions Net Weight 0.37 kg Depth 14.3 cm Height 11.8 cm Width 14.3 cm Security Anti-Flicker Yes IP Address Filtering Yes Security Algorithms EAP-LEAP / EAP-TLS Video Motion Detection Yes Storage Built-in HDD No Card Reader Yes Compatible Memory Cards MicroSD, MicroSDHC, MicroSDXC Flash Memory 256 MB Internal Memory 2048 MB Max Memory Card Size 256 GB Vendor Information Brand Name Hanwha Warranty 1 Year Video Back Light Compensation Yes Bit Rate Control Constant (CBR) / Variable (VBR) Flip & Mirror Yes Frame Rate 30 fps Max Resolution 3008 x 3008 Pixels Privacy Masking Yes Supported Resolutions 1024x768, 1280x960, 1920x1440, 2560x1920 Total Megapixels 12 MP Video Compression H.264 / H.265 Video Intelligence Yes Weight & Dimensions Diameter 9.9 cm Length 4.9 cm Categories Main Category Surveillance & Security Subcategory 1 Alarm Systems Subcategory 2 Accessories Subcategory 3 Alarm & Detector Accessories -
Description Downloads Hanwha 12MP Network Fisheye Camera | QNF-9010 DataSheet Downloads Hanwha 12MP Network Fisheye Camera | QNF-9010 User Manual Downloads
