Processor |
Intel® Core™ i5-1335U, 10C (2P + 8E) / 12T, P-core 1.3 / 4.6GHz, E-core 0.9 / 3.4GHz, 12MB |
Graphics |
Integrated Intel® Iris® Xe Graphics |
Chipset |
Intel® SoC Platform |
Memory |
8GB Soldered DDR4-3200 + 8GB SO-DIMM DDR4-3200 |
Memory Slots |
One memory soldered to systemboard, one DDR4 SO-DIMM slot, dual-channel capable |
Max Memory |
Up to 40GB (8GB soldered + 32GB SO-DIMM) DDR4-3200 |
Storage |
512GB SSD M.2 2242 PCIe® 4.0x4 NVMe® Opal 2.0 |
Storage Support |
Up to two drives, 2x M.2 SSD |
Storage Slot |
Two M.2 slots |
|
• One M.2 2242 PCIe® 3.0 x4 slot |
|
• One M.2 2242 PCIe 4.0 x4 slot |
Card Reader |
No card reader |
Optical |
None |
Audio Chip |
High Definition (HD) Audio, Synaptic® CX11880 codec |
Speakers |
Stereo speakers, 2W x2, Dolby® Atmos® |
Camera |
FHD 1080p + IR Hybrid with Privacy Shutter |
Microphone |
2x, Array |
Battery |
Integrated 57Wh |
Power Adapter |
65W USB-C® (3-pin) |
DESIGN |
|
Display |
14" WUXGA (1920x1200) IPS 300nits Anti-glare, 45% NTSC |
Touchscreen |
None |
Keyboard |
Backlit, English (UK) |
Case Color |
Graphite Black |
Case Material |
Aluminium (Top), Aluminium (Bottom) |
Dimensions (WxDxH) |
Starting at 313 x 219.3 x 17.99 mm (12.32 x 8.63 x 0.71 inches) |
Weight |
Starting at 1.43 kg (3.15 lbs) |
SOFTWARE |
|
Operating System |
Windows® 11 Pro, English |
Bundled Software |
None |
CONNECTIVITY |
|
Ethernet |
100/1000M (RJ-45) |
WLAN + Bluetooth |
Wi-Fi® 6, 11ax 2x2 + BT5.1 |
WWAN |
None |
SIM Card |
None |
NFC |
None |

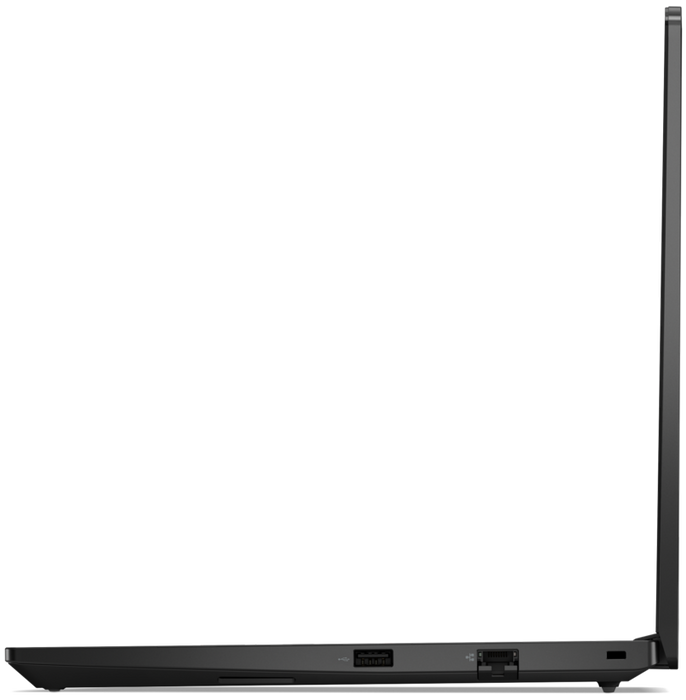

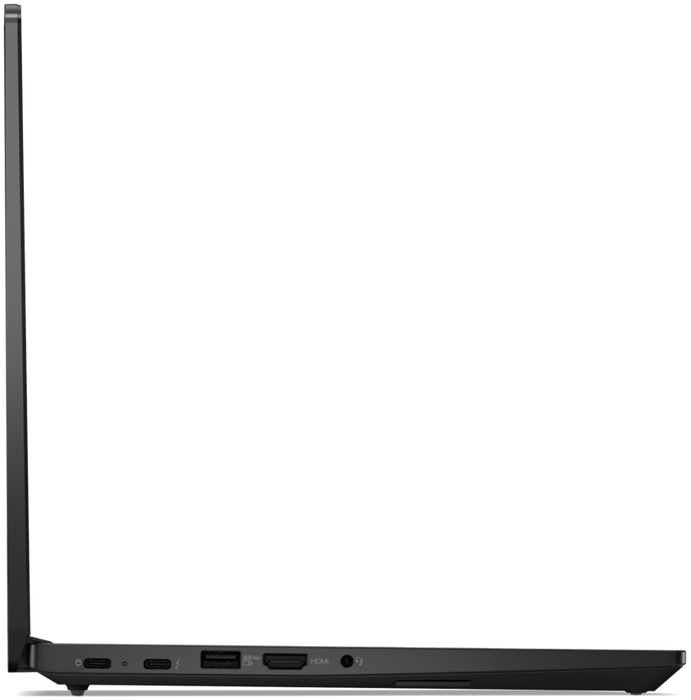

Standard Ports |
1x USB 2.0 |
|
1x USB 3.2 Gen 1 (Always On) |
|
1x USB-C® 3.2 Gen 2 (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4) |
|
1x Thunderbolt™ 4 / USB4® 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4) |
|
1x HDMI® 2.1, up to 4K/60Hz |
|
1x Headphone / microphone combo jack (3.5mm) |
|
1x Ethernet (RJ-45) |
Docking |
Various docking solutions supported via Thunderbolt™ or USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad® E14 Gen 5 (Intel®) |
Monitor Cable |
None |
SECURITY & PRIVACY |
|
Smart Card Reader |
None |
Security Chip |
Discrete TPM 2.0 Enabled |
Fingerprint Reader |
Touch Style, Integrated in Power Button |
Physical Locks |
Kensington® Nano Security Slot™, 2.5 x 6 mm |
Other Security |
Camera privacy shutter |
|
IR camera for Windows® Hello |
MANAGEABILITY |
|
System Management |
Non-vPro® |
SERVICE |
|
Base Warranty |
1-year, Courier or Carry-in |
Included Upgrade |
1Y Premier WHB (CPN) |
ACCESSORIES |
|
Bundled Accessories |
None |
CERTIFICATIONS |
|
Green Certifications |
ENERGY STAR® 8.0 |
|
EPEAT™ Gold Registered |
|
ErP Lot 6 |
|
ErP Lot 26 |
|
FSC certified package |
|
RoHS compliant |
|
TCO Certified 9.0 |
Other Certifications |
TÜV Rheinland® Low Blue Light (Software Solution) |
Mil-Spec Test |
MIL-STD-810H military test passed |
