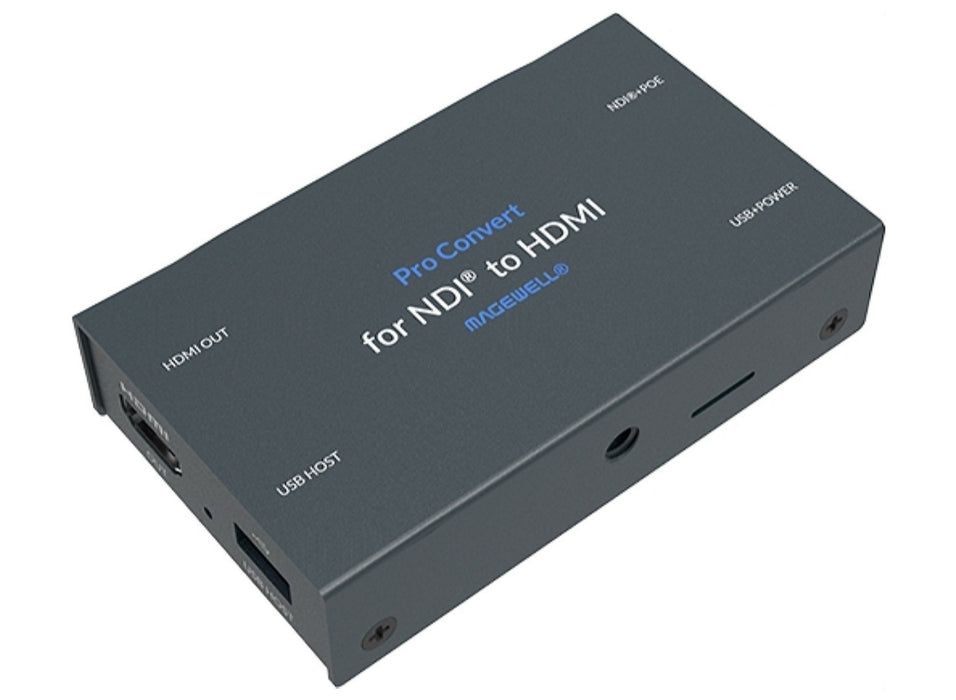

Magewell Pro Convert for NDI to HDMI Decoder

SKU: 641000000
Magewell Pro Convert for NDI to HDMI Decoder Decoder Magewell
Availability:
Out of stock
🚚 Order before 3PM, get it by tomorrow.
🎓 Request Educational Pricing
Sold out

£359.95 (Excl. VAT)

- £431.94 (Inc. VAT)
£359.95 - £359.95
- - £431.94
Availability:
Out of stock
payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads

  • Magewell Pro Convert for NDI to HDMI Decoder

    641000000

    Output Features
    Support for up to 4096x2160 60fps HDMI output (integrated up-conversion from HD sources)
    Support for 96KHz, 16-bit 8-channel audio streams

    Decoding Features
    Support for decoding up to 2K 60fps NDI streams
    Support for decoding full NDI® and NDI®|HX
    Support for NDI 4.x
    Discover NDI devices across network segments
    Compatible with H.264/H.265 streams in additional protocols including RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP

    Features & Advantages
    Very low latency
    Advanced configuration and device status through intuitive Web GUI, keyboard/mouse, or on-board controls
    HTTP-based APIs for custom integration
    Image flip for inverted projector installations and safe area controls
    Automatic output optimization for target display with integrated up/down conversion

  • Category Details
    Decoding Features - Supports up to 2K 60fps NDI streams
    - Full NDI®, NDI®
    - RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP
    - H.264/H.265 video decoders, AAC/MP3 audio decoders

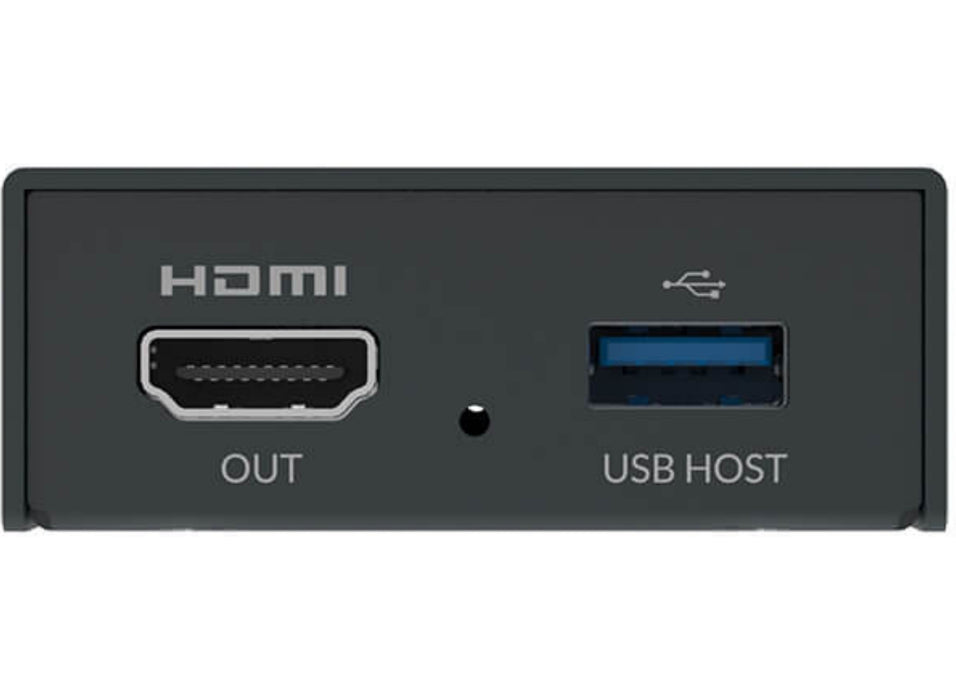

    Video Output - Max output: 4096x2160 60fps 4:4:4 8-bit color depth
    - HDMI 1.4/2.0
    - Auto optimization with EDID support
    - Supported Resolutions:
    - 4K: 4096x2160p/3840x2160p @ 23.98/24/25/29.97/30/50/59.94/60fps
    - 2560x1440p @ 60/100fps
    - 2560x1080p @ 23.98/24/25/29.97/30/50/59.94/60fps
    - 1920x1080p @ 23.98 to 120fps
    - 1920x1080i @ 50/59.94/60fps
    - 1280x720p @ 23.98 to 60fps
    - 720x576p50, 720x576i50, 720x480p/i @ 59.94/60fps
    - 48KHz 8-channel audio output
    Control & Configuration - Web GUI for advanced configuration and device monitoring
    - On-board controls: MENU, SELECT, Rotary DIP switch (16 positions)
    - Web UI supports OSD settings, deinterlacing, resolution control
    - HTTP-based API for integration

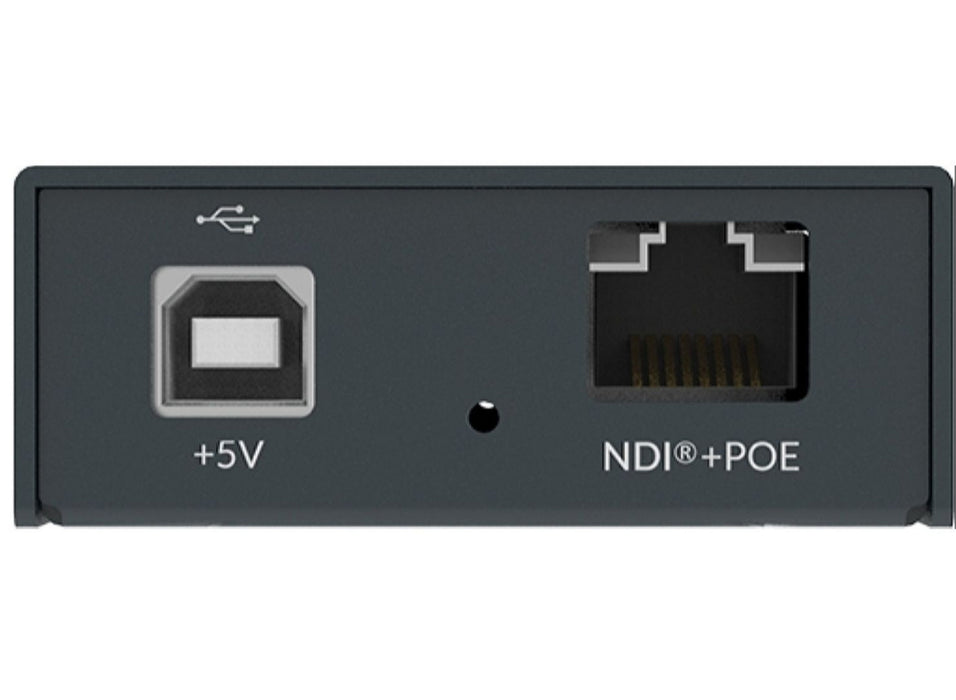

    Network Interface - 10/100/1000 Mbps Ethernet port
    - IEEE 802.3af PoE support
    USB Ports - USB2.0 Type B (for control and firmware updates)
    - USB3.0 Type A (for peripherals like keyboard and mouse)
    - USB RNDIS/ECM support
    Indicators & LEDs - Power LED: On (powered), Off (not powered)
    - Decode LED: On (decoding), Blinking (error), Off (source unselected)
    Physical Design - Dimensions: 100.9mm (L) x 60.2mm (W) x 23.3mm (H)
    - L-bracket for mounting
    - ¼–20 threaded screw mounting hole
    Power & Consumption - Power Supply: 5V/2.1A adapter included
    - Max Current: ~1.1A, Max Power: ~5W
    Working Environment - Operating Temp: 0 to 40°C
    - Storage Temp: -20 to 70°C
    - Humidity: 5% to 90% non-condensing
    Accessories - USB 2.0 A to B cable
    - 5V/2.1A power adapter
    - L-bracket for mounting
