Novastar VX1000 All-In-One Video Processor

SKU: VX1000
Novastar VX1000 All-In-One Video Processor
Availability:
Out of stock

Novastar VX1000 All-In-One Video Processor

SKU: VX1000
Part Number: VX1000
Condition: Brand New
Purchase Orders Accepted
Sold out

£1,558.30 (Excl. VAT)

- £1,869.96 (Inc. VAT)
£1,558.30 - £1,558.30
- - £1,869.96
Availability:
Out of stock
payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications

  • Novastar VX1000 All-In-One Video Processor

    VX1000

    The VX1000 is a powerful video processor that offers an all-in-one solution for driving your big LED screen(s). As the bigger brother to the VX4S-N, it can drive much higher resolutions and more LED screens. It drives up to 6,500,000 pixels in total, at up to 10,240 pixels wide or up to 8,192 pixels high, which is ideal for ultra-wide and ultra-high LED screen applications.

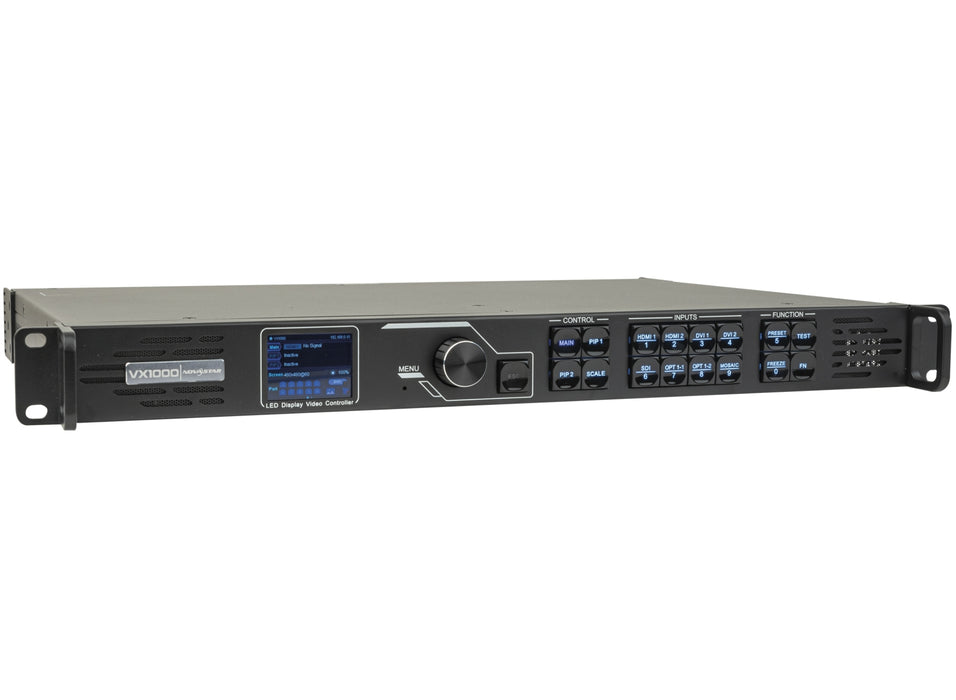

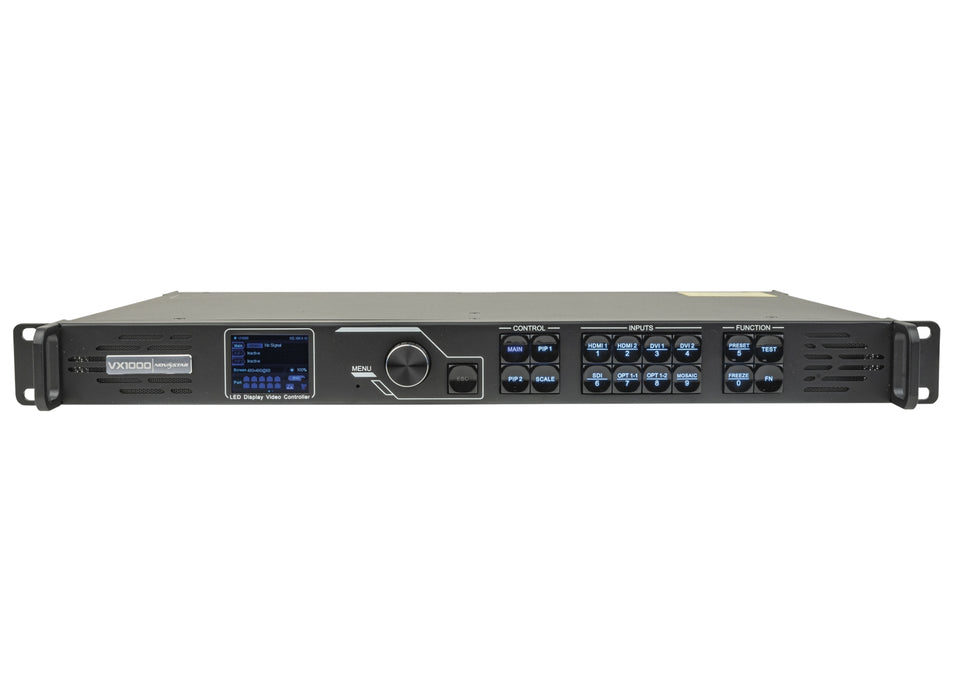

    It features powerful front-end processing and eliminates the need of an external scaler. The Image Mosaic function enables you to combine up to four units to drive large LED screens with great ease. The VX1000 allows you to switch seamlessly between several input sources and it is capable of displaying two PIP windows (location and size can be adjusted), offers colour correction, and accepts the most commonly used image interfaces. The input can be selected easily with the direct access buttons on the front and the bright LCD display allows you to navigate through the intuitive menus.
    Besides the built-in sending card with 10 Ethernet ports, it offers the option to install an SFP module (order code 101623). With these you can cover bigger distances than the 100-metre limit of Ethernet cables and drive another VX1000, which then drives your LED screens. The second fibre output serves as a backup and is automatically used in case something happens to the main output (“Output 1”).

  • Category Specifications

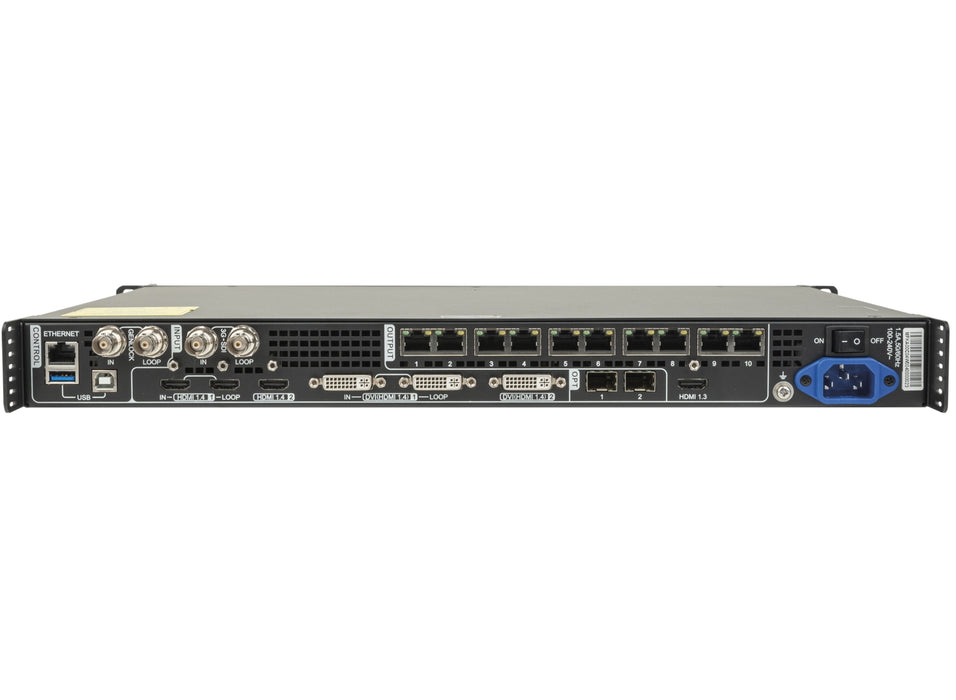

    Inputs HDMI 1.4a: 2 Ports
    Dual Link DVI: 2 Ports
    3G-SDI: 1 Port
    Outputs Main Outputs: 10
    HDMI 1.3 (MVR): 1 Port
    HDMI 1.4a (Loop): 1 Port
    Dual Link DVI (Loop): 1 Port
    3G-SDI (Loop): 1 Port
    Optical SFP Slot Type: 10G
    SFP Slot Quantity: 2
    Software Specifications Control Software: NovaStar LCT, Smart LCT, Vcan
    Scaling Function: Yes
    Image Mosaic: Yes
    PIP: Yes
    Layers: 3
    GenLock: In & Out
    Control & Programming Display: LCD
    Max Loading Capacity: 6.5 Mpx
    Max Input Resolution: 3840 x 1080
    Control Options: Ethernet, USB
    Electrical Specs Power Supply: 100-240 V AC, 50/60 Hz
    Power Consumption: 28W
    Power Connector: IEC
    Data Connections Data In: RJ45, USB
    Data Out: RJ45, USB
    Mechanical Specs Width (w/ handles): 483 mm (19.016")
    Width (w/o handles): 440 mm (17.323")
    Height (w/o handles): 50 mm (1.969")
    Depth (w/ handles): 351 mm (13.819")
    Depth (w/o handles): 321 mm (12.638")
    Weight: 4.05 kg (8.929 lb)
    Rack Units: 1U
    IP Rating IP20 (Indoor use only)
    Color Black
    Cooling Active Cooling
    Thermal Specifications Max Temp: 60°C (140°F)
    Min Temp: -10°C (14°F)
    Humidity: 20-90% RH

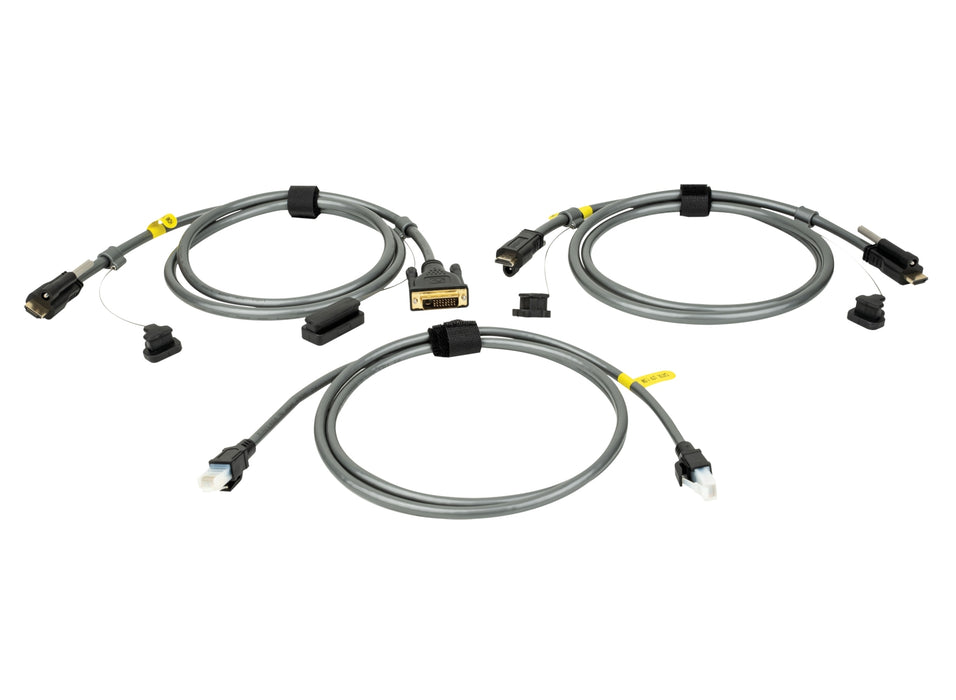

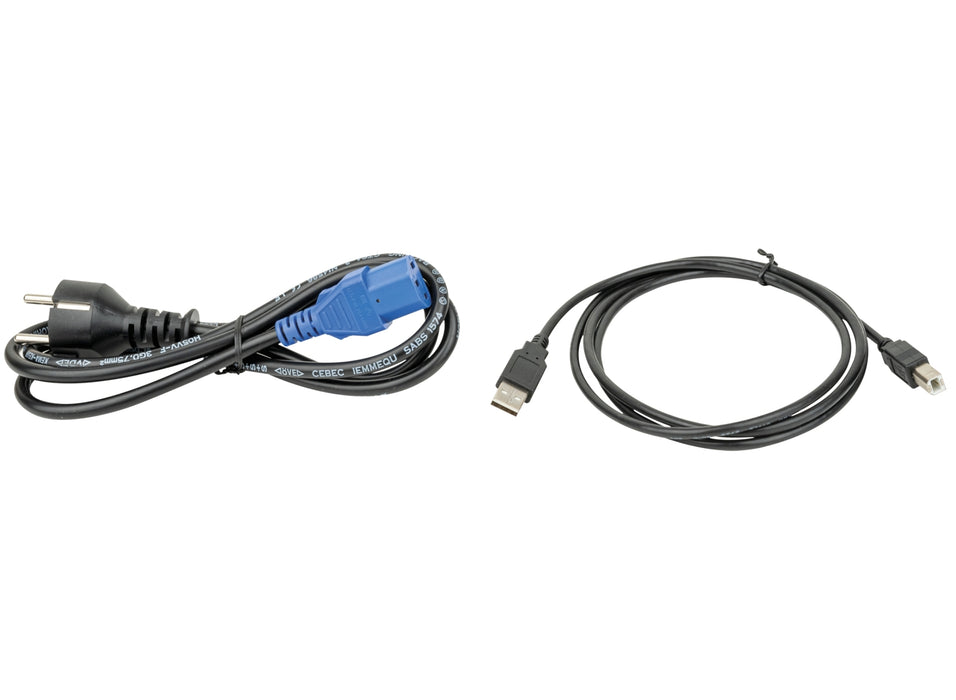

    Included Items CAT-5 Cable, DVI-HDMI Cable, HDMI-HDMI Cable, IEC Cable, USB-A to USB-B Cable
