NovaStar VX600 All-In-One Video Processor

SKU: VX600
Part Number: VX600
Condition: Brand New
Purchase Orders Accepted
Sold out

£1,634.00 (Excl. VAT)

Current price - £1,960.80 (Inc. VAT)
£1,634.00 - £1,634.00
Current price- - £1,960.80
Availability:
Out of stock
payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads

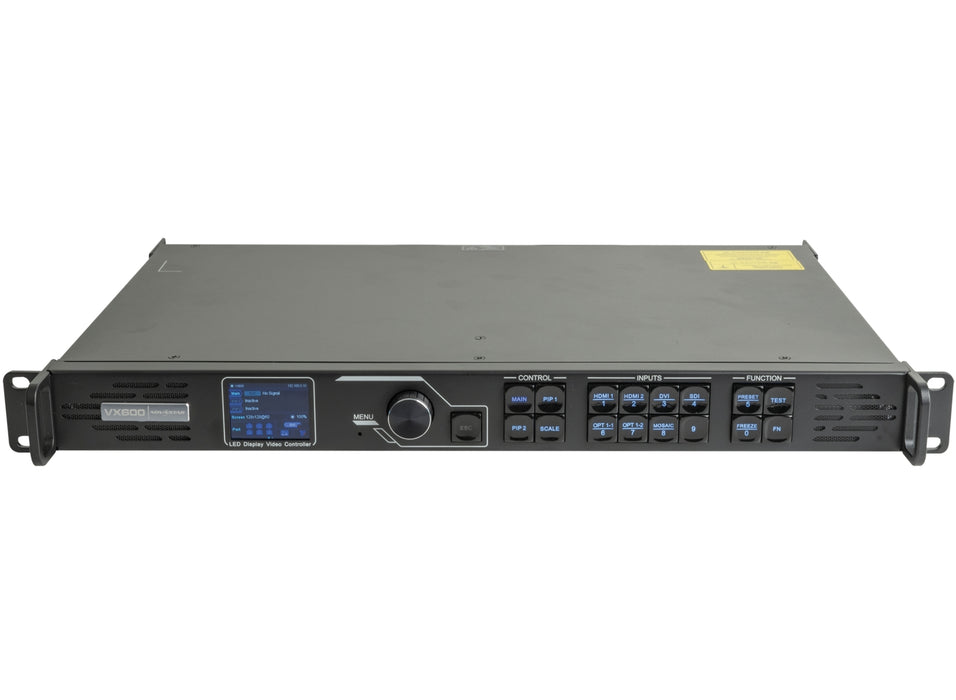

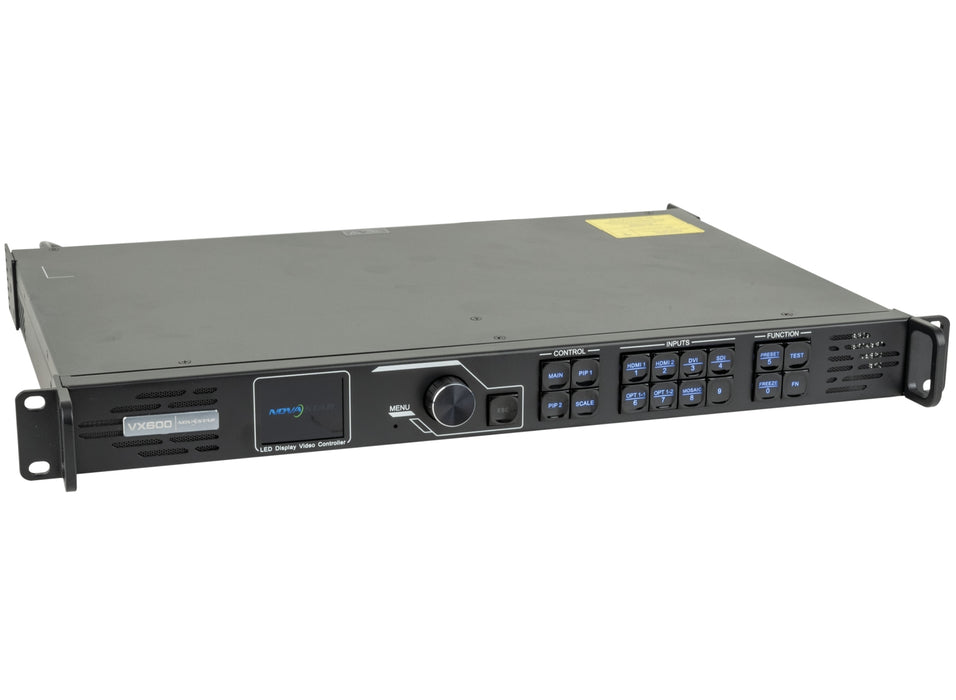

  • NovaStar VX600 All-In-One Video Processor

    VX600

    The Novastar VX-600 is an all-in-one video processor suitable for small to medium size LED screen installations. It can drive up to 3,900,000 pixels in total, at up to 10,240 pixels wide or up to 8,192 pixels in height, which is ideal for ultra-wide and ultra-high LED screen applications.

    The VX-600 offers a variety of video inputs and it allows you to switch seamlessly between several input sources. Furthermore, it supports up to three layers (1x main / 2x PIP), scaling function, low latency and Gen-Lock function.

    Besides the built-in sending card with 6 Ethernet ports, the VX-600 also offers the option to install an SFP module. With this module you can cover bigger distances than the 100 metre limit of Ethernet cables and drive another VX-600 (fibre mode) or CVT10 fibre connector, which then drives your LED screens. The second fibre output serves as a backup and will automatically take over in case something happens to the main output ("Output 1").

    For controlling even bigger LED screen installations, Image Mosaic function is available. This enables you to combine up to four VX-600 units.

    Screen configuration can be done by USB and Ethernet connection. The modern 1U box fits nicely in a 19" rack or case, making it most suitable for rental companies and fixed installations.

  • Category Specifications

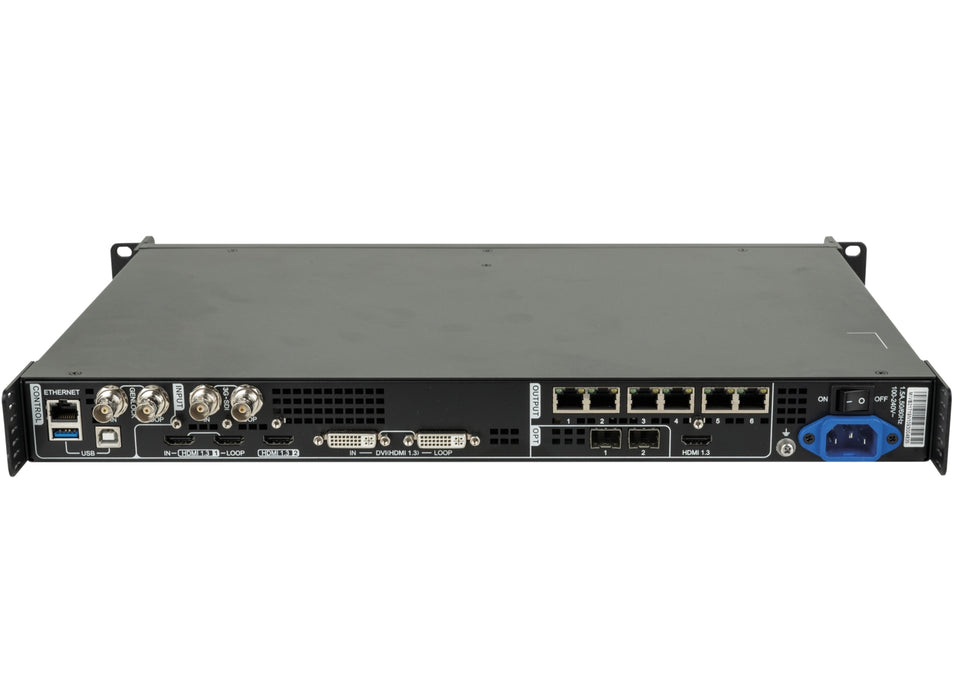

    Inputs HDMI 1.3: 2 ports
    Single Link DVI: 1 port
    3G-SDI: 1 port
    Outputs Main Outputs: 6
    HDMI 1.3 (Loop): 1 port
    HDMI (PVW/MVR): 1 port
    Single Link DVI (Loop): 1 port
    3G-SDI (Loop): 1 port
    Optical Outputs SFP Slot Type: 10G
    SFP Slot Quantity: 2
    Software Specifications Control Software: NovaStar LCT, Smart LCT, Vcan
    Scaling Function: Yes
    Image Mosaic: Yes
    PIP (Picture in Picture): Yes
    Layers: 3
    GenLock: In & Out
    Control and Programming Display: LCD
    Maximum Loading Capacity: 3.9 Mpx
    Max Input Resolution: 1920 x 1200, user-defined
    Control Options: Ethernet, USB
    Electrical Specifications Power Supply: 100-240 V AC, 50/60 Hz
    Power Consumption: 28 W
    Power Connector: IEC
    Data Connections Data Connector In: RJ45, USB
    Data Connector Out: RJ45, USB
    Mechanical Specifications Width (w/ handles): 484 mm (19.055″)
    Width (w/o handles): 440 mm (17.323″)
    Height (w/ handles): 45 mm (1.772″)
    Depth (w/ handles): 351 mm (13.819″)
    Depth (w/o handles): 321 mm (12.638″)
    Weight: 4 kg (8.818 lb)
    Rack Units: 1U
    IP Rating: IP20 (Indoor use only)
    Colour: Black
    Product Properties Cooling: Active Cooling
    Thermal Specifications Max Ambient Temperature: 60°C (140°F)
    Min Ambient Temperature: -10°C (14°F)
    Operating Humidity: 20-90% rH
    Included Items CAT-5 Cable, DVI-HDMI Cable, HDMI-HDMI Cable, IEC Cable, USB-A to USB-B Cable
  • Description Downloads
    NovaStar VX600 All-In-One Video Processor User Manual Downloads
