Planet 10/100/1000BASE-T to 100/1000BASE-X Media Converter | GT-805A-UK

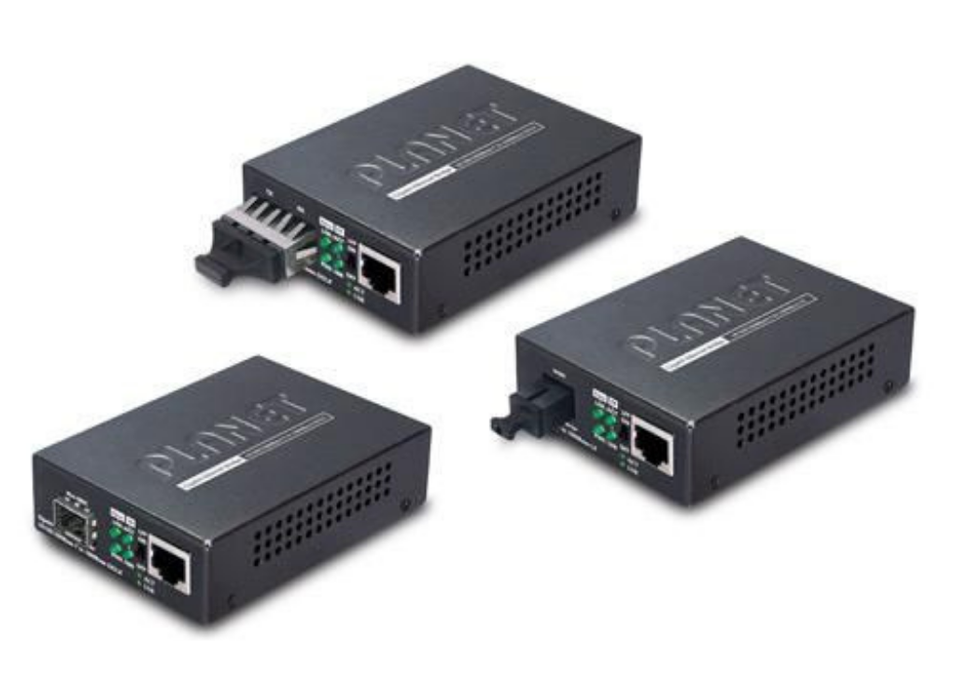

Providing the flexibility of 10/100/1000Mbps Ethernet Media via RJ45 port and highly stable Gigabit fiber performance, PLANET GT-802, GT-802S, GT-802S40, GT-806S60, GT-805A and GT-806A/B media converters support conversion between 10/100/1000BASE-T and 1000BASE-SX/LX networks. There are SC/SFP/WDM connectors with single-mode or multi-mode media as required. The Ethernet signal allows three types of segments to connect easily, efficiently and inexpensively.
Distance Extension with High Performance and Steady Network Communications
PLANET GT-80x gigabit media converter series extends communication distance with highly Gigabit performance via fiber optic cable. The GT-80x series provides media conversion between 10/100/1000BASE-T and 1000BASE-SX/LX interfaces for various fiber optic applications. The available fiber interfaces are shown below:
Enhanced Smart Management Features
The GT-80x series provides auto MDI/MDI-X on its TP port and the DIP switch to configure the Link Fault Passthrough function (LFP). The LFP function includes the Link Loss Carry Forward (LLCF)/Link Loss Return (LLR). LLCF/LLR can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the network. The DIP switch can disable or enable the LFP function.
- LLCF means when a device connected to the converter and the TP line loses the link, the converter’s fiber will disconnect the link of transmission.
- LLR (Link Loss Return) means when a device connected to the converter and the fiber line loses the link, the converter’s fiber will disconnect the link of transmission.
Both can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the network.
Easy Installation
The GT-80x series allows two types of the segment to connect easily. The GT-80x series can be used as a standalone unit when powered by its DC adapter or used as a slide-in module to PLANET 19-inch 7-/15-slot media converter chassis (MC-700/MC-1500/ MC-1500R/MC-1500R48). These media chassis can assist in producing the power for the GT-80x to maintain the fiber-optic network at one location. As the Gigabit Media Converter fully complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T and IEEE 802.3z 1000BASE-LX/SX, the Gigabit media conversion installation is quite quick and easy with its Plug and Play feature. The GT-80x also supports flow control and back pressure in half-duplex mode to eliminate packet loss.
-
| Category |
Specification |
| Design |
|
| Certification |
FCC Class A, CE Class A |
| DIN rail mounting |
Yes |
| Internal |
No |
| LED indicators |
Yes |
| Product colour |
Black |
| Legal Information |
|
| EU ECCN Code |
N/A |
| UNSPSC Code (Icecat) |
43201553 |
| US ECCN Code |
5A992 |
| Network |
|
| Auto MDI/MDI-X |
Yes |
| Converter input interface |
1000Base-T/100Base-T/10Base-T |
| Converter output interface |
1000Base-LX/1000Base-SX |
| Duplex system |
Full/Half |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10/100/1000 Mbit/s |
| Maximum data transfer rate |
1000 Mbit/s |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Operational conditions |
|
| Operating relative humidity (H-H) |
5 - 95 % |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage relative humidity (H-H) |
5 - 95 % |
| Storage temperature (T-T) |
-10 - 70 °C |
| Package dimensions |
|
| Depth (package, cm) |
58 cm |
| Gross Weight (Package, kg) |
0.52 kg |
| Height (package, cm) |
31 cm |
| Width (package, cm) |
37 cm |
| Performance |
|
| Fiber cable diameters supported (core/cladding) |
50/125/62.5/125/9/125 µm |
| Fiber mode structure |
Multi-mode |
| Maximum transfer distance |
100 m |
| Ports & interfaces |
|
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
2 |
| Fiber optic connector |
SFP |
| Power |
|
| Input current |
2 A |
| Input voltage |
5 V |
| Power consumption (typical) |
5.6 Watt |
| Product dimensions |
|
| Net Weight (Product, kg) |
0.19 kg |
| Product Depth |
2.6 cm |
| Product Height |
9.4 cm |
| Product Width |
7 cm |
| Vendor information |
|
| Brand Name |
Planet |
| Warranty |
3 Year(s) |
-
