Planet 17" 8-Port Combo VGA LCD IP KVM Switch | IKVM-210-08M
Control All Your PCs via IP-based KVM

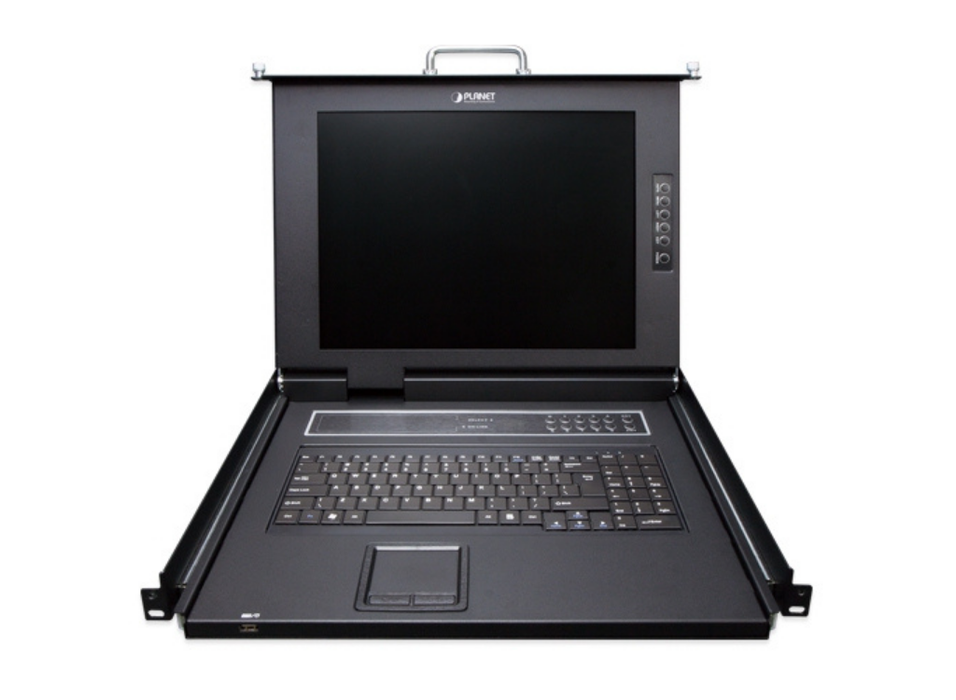

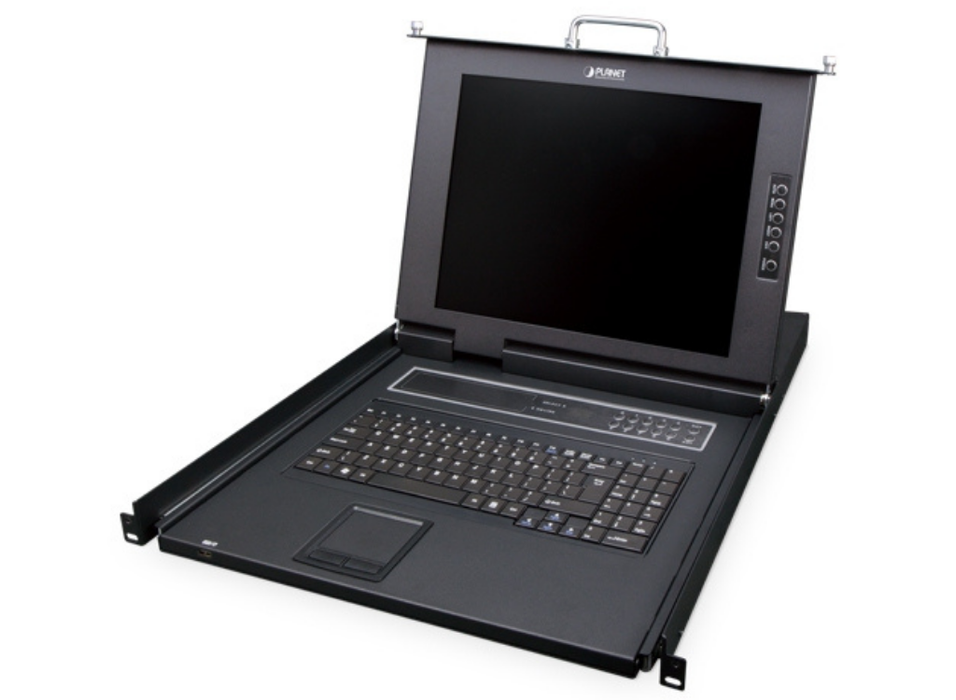

PLANET IKVM-210-08M Combo VGA LCD IP KVM Switch comes with a rack-mountable keyboard, 17" LCD and touchpad in a single console that occupies only 1U of rack space. From across the room, down the street or halfway around the globe, the IKVM-210-08M can be accessed from any computer on the LAN, WAN or Internet. Easy to install and use, it’s the optimal solution for controlling up to 8 computers/servers.
Easy to Install
With the uniquely separate rail design, it helps to install the IKVM console easily. Moreover, when there is a need to maintain the console, the administrator can easily uninstall the device without affecting the server above or below.
Multiple Operating Systems Supported
The IKVM-210-08M is the most cost-effective and simple solution for controlling a group of PCs in the network. Multiple computers can be managed via only one single set of monitor, keyboard and mouse directly. No software drivers or system configuration are required. iMac, Power Mac and Sun systems are also supported.
Remote Key Combination
You could set the multiple key combinations with IKVM Series. When you open IKVM software at remote client, you could use these key combinations to control these local PCs with a different OS via the internet.
Computer Switching
There are three convenient methods to access any computer connected to the installation:
Port select button
Hotkeys on keyboard
OSD (on screen display)
Security Protection
The two-level password security only authorizes up to one user and an administrator with a separate profile for each user. Data encryption options include AES, DES and 3DES, and they can be selected for keyboard, mouse and video signals.
Powerful Mouse/Keyboard Support
In the present computer applications, a mouse has become an indispensable device. The IKVM-210-08M fully supports all models of PS/2 mice on the market. The IKVM also supports the PS/2 keyboard port of code set 1/2/3 and further allows you to use the IKVM for all kinds of servers, computers or their combination.
Applications
Remote Management via Network
With PLANET IKVM-210-08M, network administrators can control a server room locally or remotely through Internet. No additional software or license fee is needed; multiple users can securely access remote server by using a standard web browser to create an HTTP connection.
Cascade Operation
Easy to install, each IKVM-210-08M can control up to 8 computers/servers. Moreover, a maximum of eight KVM switches can be cascaded to enable to control up to 64 servers.
Key Features
Hardware
Integrated 17” LCD monitor and keyboard/touchpad module within 1U chassis

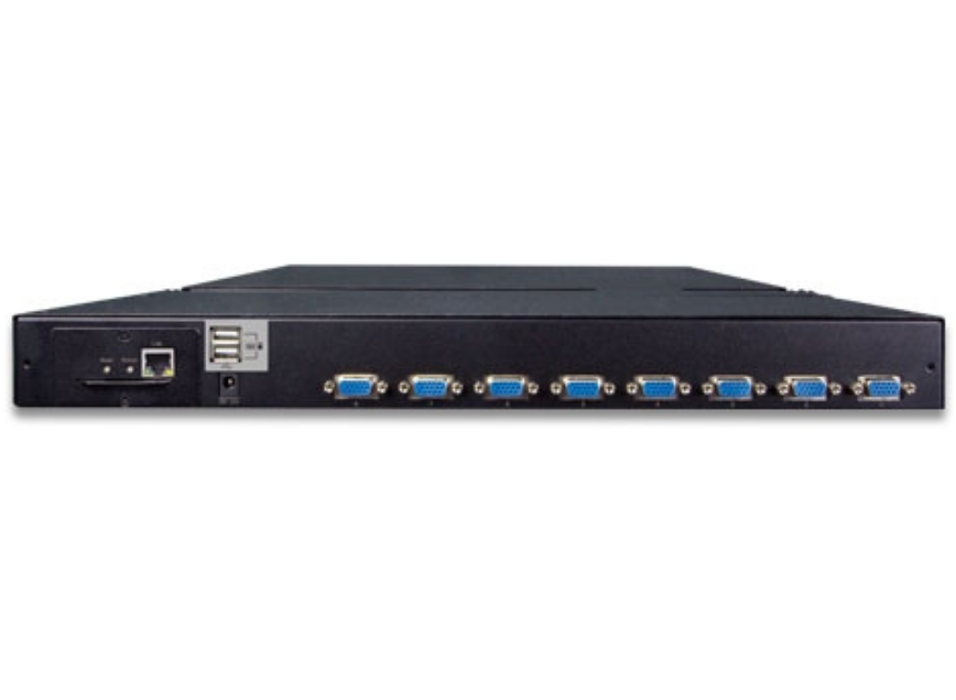

Standalone machine controls up to 8 sets of computers
Up to 2 levels can be cascaded and up to 64 computers can be controlled.
Port Select Panel status LEDs give a clear indication of the active computers

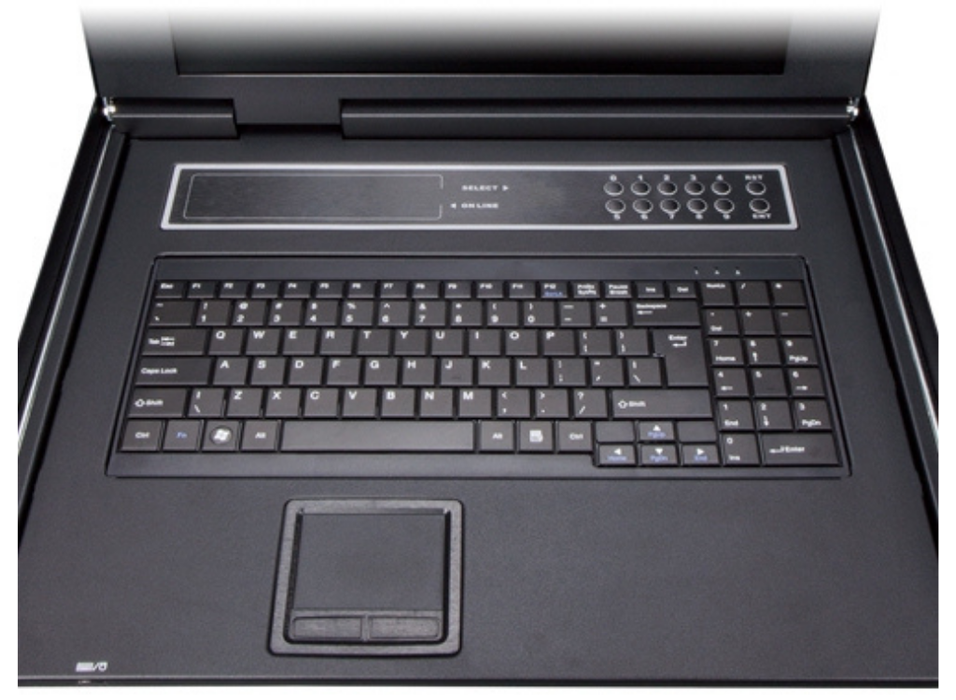

Mouse touch board with two function buttons
Full-size 100-key keyboard with integrated number pad
Front panel with lock to prevent damage by accident
Security
Two-layer password security protection
DES, AES and 3DES for data encryption
Management
Auto scan mode for monitoring computers
Requires no additional software or hardware
Computer selection via Port Select Button, Hotkey and On Screen Display (OSD)
Hot pluggable: Add or remove computers without having to power down the switch
QVS (Quick View Setting): Quickly select your computer by naming or SN number
Remote Access
Remotely control PC via TCP/IP and a built-in 10/100/1000Mbps Ethernet port
High Video Quality: Resolution up to 1280 x 1024 (local side) or 1920 x 1080 (remote side)
Sends the key combinations to a remote computer
Administrator and multiple users with password protection
Use of the absolute synchronistical technology of mouse to ensure the accuracy of the Windows operating system
Expedient bandwidth control
Compatibility
Multiplatform support -- Windows, Linux and Sun
Multibrowser support (IE, Chrome, Firefox)
Supports Microsoft Intellimouse, Logitech Net Mouse and all other third party’s PS/2 mice
