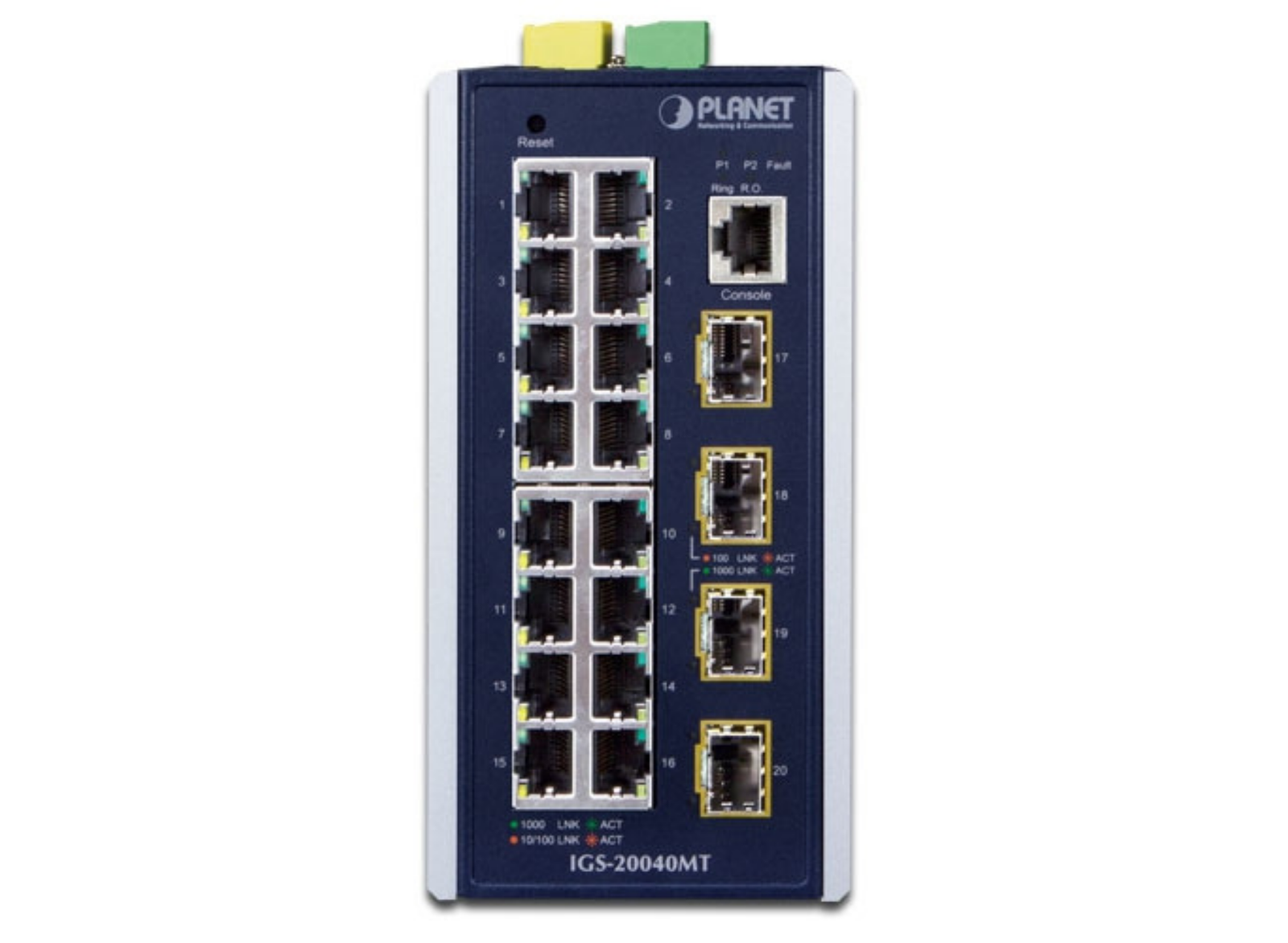

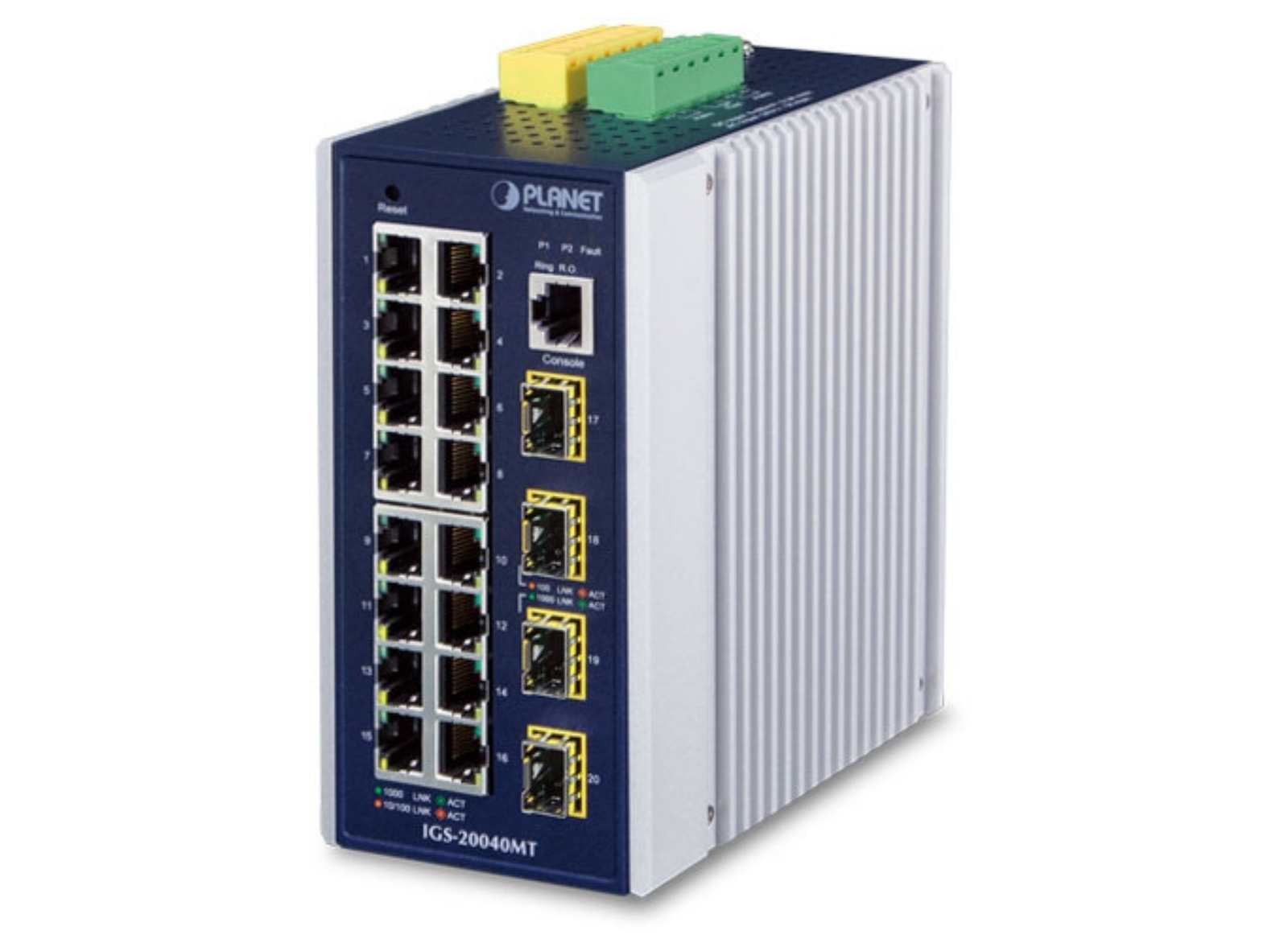

Planet Industrial L2+ 16-Port 10/100/1000T + 4-Port 100/1000X SFP Managed Switch | IGS-20040MT

PLANET IGS-20040MT is a fully-managed Gigabit fiber switch usually designed for the industrial network. It features 16 10/100/1000BASE-T copper ports, 4 100/1000BASE-X SFP ports and redundant power system in an IP30 rugged but compact-sized case that can be installed in any difficult environment without space limitation. It provides user-friendly yet advanced IPv6/IPv4 management interfaces, abundant L2/L4 switching functions and Layer 3 static routing capability. The IGS-20040MT can operate stably under the temperature range from -40 to 75 degrees C and allows either DIN-rail or wall mounting for efficient use of cabinet space. With 4 dual-speed SFP fiber slots, it can be flexibly applied to extend the connection distance.

Network with Cybersecurity Helps Minimize Security Risks
The IGS-20040MT comes with enhanced cybersecurity to fend off cyberthreats and cyberattacks. It supports SSHv2, TLS and SSL protocols to provide strong protection against advanced threats. Served as a key point to transmit data to customer's critical equipment in a business network, the cybersecurity feature of the IGS-20040MT protects the switch management and enhances the security of the mission-critical network without any extra deployment cost and effort.

Redundant Ring, Fast Recovery for Surveillance System
The IGS-20040MT supports redundant ring technology and features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In certain simple Ring network, the recovery time of data link can be as fast as 10ms.

Modbus TCP Provides Flexible Network Connectivity for Factory Automation
With the supported Modbus TCP/IP protocol, the IGS-20040MT can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information, communication status, and DI and DO status, thus easily achieving enhanced monitoring and maintenance of the entire factory.

1588 Time Protocol for Industrial Computing Networks
The IGS-20040MT is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.

SMTP/SNMP Trap Event Alert
The IGS-20040MT provides SMTP/SNMP event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response.

Effective Alarm Alert for Better Protection
The IGS-20040MT supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource.

Digital Input and Digital Output for External Alarm
The IGS-20040MT supports Digital Input and Digital Output on its upper panel. The external alarm enables users to use Digital Input to detect external device’s status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-20040MT port is link-down, link-up or power-dead.

Layer 3 IPv4 and IPv6 Software VLAN Routing for Secure and Flexible Management
To help customers stay on top of their businesses, the IGS-20040MT not only provides high transmission performance and excellent Layer 2 technologies, but also IPv4/IPv6 software VLAN routing feature which allows to cross over different VLANs and different IP addresses for the purpose of having a highly-secure, flexible management and simpler networking application.

Robust Layer 2 Features
The IGS-20040MT can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Rapid Spanning Tree Protocol, Layer 2 to Layer 4 QoS, bandwidth control and IGMP snooping. The IGS-20040MT provides 802.1Q tagged VLAN, and the VLAN groups allowed will be maximally up to 255. Via aggregation of supporting ports, the IGS-20040MT allows the operation of a high-speed trunk combining multiple ports. It enables a maximum of up to 10 trunk groups with 8 ports per trunk group, and supports fail-over as well.

Efficient Management
For efficient management, the IGS-20040MT is equipped with console, Web and SNMP management interfaces.

With the built-in Web-based management interface, the IGS-20040MT offers an easy-to-use, platform-independent management and configuration facility.
For text-based management, it can be accessed via Telnet and the console port.
For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.

Powerful Security from Layer 2 to Layer 4
The IGS-20040MT offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.

Advanced IP Network Protection
The IGS-20040MT also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

Flexibility and Extension Solution
The additional four mini-GBIC slots built in the IGS-20040MT support dual speed, 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to not only the transmission distance but also the transmission speed required. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and up to above 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

Intelligent SFP Diagnosis Mechanism
The IGS-20040MT supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Environmentally Hardened Design
With IP30 aluminum industrial case protection, the IGS-20040MT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. It also possesses an integrated power supply source with wide range of voltages (9 to 48V DC or 24V AC) for worldwide high availability applications requiring dual or backup power inputs. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-20040MT can be placed in almost any difficult environment.

Specification	Details
Copper Ports	16 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports
SFP Slots	4 1000BASE-SX/LX/BX SFP interfaces (Port-17 to Port-20)
	Compatible with 100BASE-FX SFP
Console	1 x RJ45 serial port (115200, 8, N, 1)
Switch Architecture	Store-and-Forward
Switch Fabric	40Gbps/non-blocking
Throughput (packet per second)	29.7Mpps@64Bytes
Address Table	8K entries, automatic source address learning and ageing
Shared Data Buffer	4Mbits
Flow Control	IEEE 802.3x pause frame for full duplex
	Back pressure for half duplex
Jumbo Frame	9Kbytes
SDRAM	512Mbytes
Flash Memory	64Mbytes
Reset Button	< 5 sec: System reboot
	> 5 sec: Factory Default

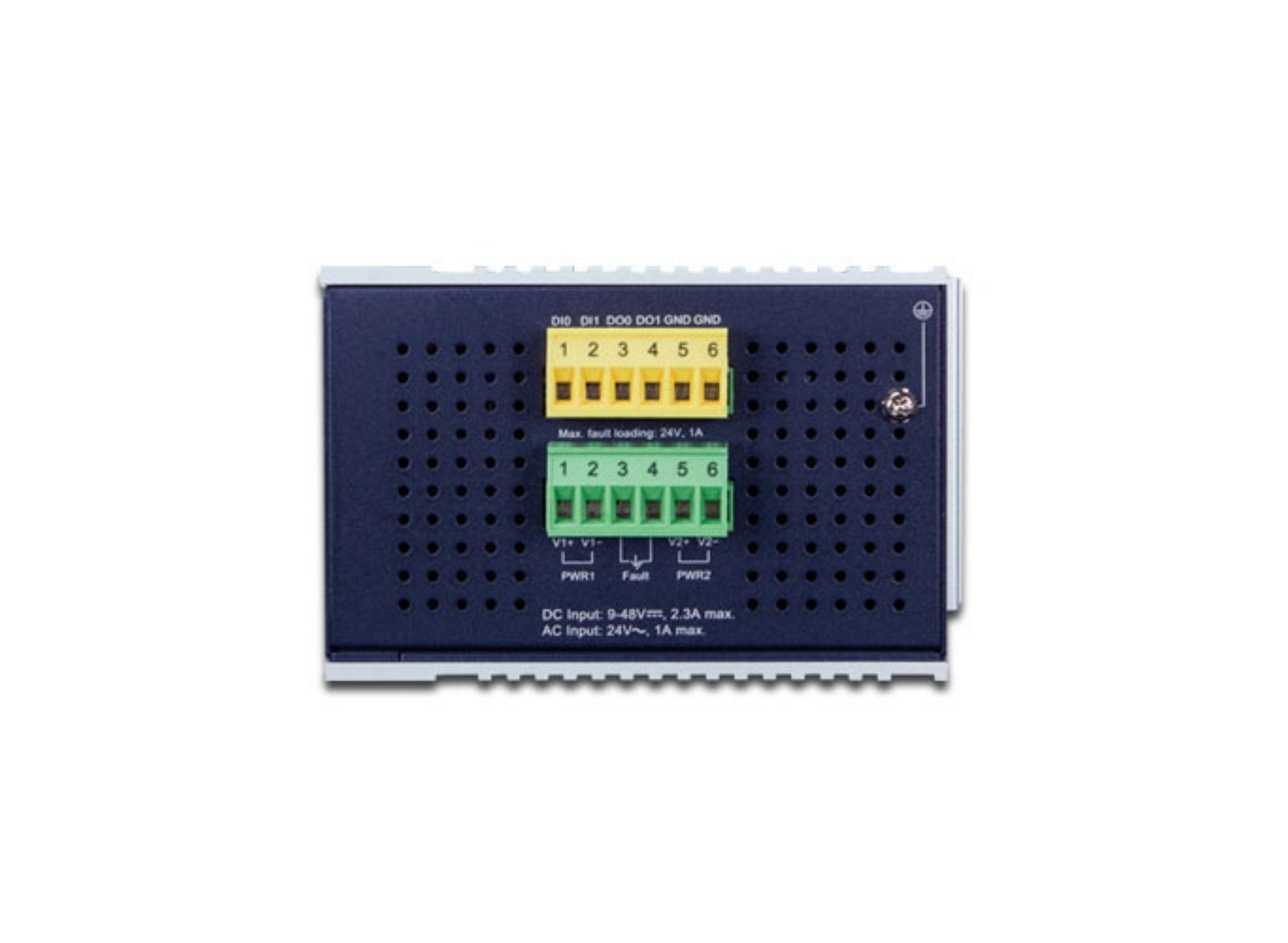

Connector	Removable 6-pin terminal block for power input
	Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
	Removable 6-pin terminal block for DI/DO interface
	Pin 1/2 for DI 0 & DI 1; Pin 3/4 for DO 0 & DO 1; Pin 5/6 for GND
Alarm	One relay output for power failure. Alarm Relay current carry ability: 1A @ 24V AC
Digital Input (DI)	2 Digital Input (DI):
	Level 0: -24V~2.1V (±0.1V)
	Level 1: 2.1V~24V (±0.1V)
	Input Load to 24V DC, 10mA max.
Digital Output (DO)	2 digital output:
	Open collector to 24VDC, 100mA
Enclosure	IP30 aluminum case
Installation	DIN-rail kit and wall-mount kit
Dimensions (W x D x H)	76.8 x 107.3 x 152 mm
Weight	1,043g
Power Requirements	DC 9V to 48V
	AC 24V
Power Consumption	8 watts/27BTU (System on)
	17 watts/58BTU (Full loading)
ESD Protection	6KV DC
LED Indicator	System:
	Power 1 (Green)
	Power 2 (Green)
	Fault Alarm (Green)
	Ring (Green)
	R.O. (Green)
	Per 10/100/1000T RJ45 Port:
	1000 LNK/ACT (Green)
	10/100 LNK/ACT (Orange)
	Per SFP Interface:
	1000 LNK/ACT (Green)
	100 LNK/ACT (Orange)
Layer 2 Management Functions	Port Configuration: Port disable/enable, Auto-negotiation 10/100/1000Mbps full and half duplex mode selection, Flow Control disable/enable, Power saving mode control
	Port Status: Display each port’s speed duplex mode, link status, flow control status, auto negotiation status and trunk status
	Port Mirroring: TX/RX/Both, Many to 1 monitor
	VLAN: 802.1Q tag-based VLAN, up to 255 VLAN groups, Q-in-Q tunneling, Private VLAN Edge (PVE), MAC-based VLAN, Protocol-based VLAN, Voice VLAN, MVR (Multicast VLAN Registration), Up to 255 VLAN groups, out of 4095 VLAN IDs
	Link Aggregation: IEEE 802.3ad LACP/Static Trunk, Support 10 groups of 8-port trunk support
	Spanning Tree Protocol: IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol
	IGMP Snooping: IPv4 IGMP (v1/v2/v3) Snooping, IPv4 IGMP Querier mode support, Up to 255 multicast Groups
	MLD Snooping: IPv6 MLD (v1/v2) Snooping, IPv6 MLD Querier mode support, Up to 255 multicast Groups
	Access Control List: IP-based ACL/MAC-based ACL, ACL based on: MAC Address, IP Address, Ethertype, Protocol Type, VLAN ID, DSCP, 802.1p Priority, Up to 256 entries
	Bandwidth Control: Per port bandwidth control, Ingress: 500Mbps ~1000Mbps, Egress: 500Mbps ~1000Mbps
	QoS: Traffic classification based, strict priority and WRR, 8-level priority for switching, Port Number, 802.1p priority, 802.1Q VLAN tag, DSCP/TOS field in IP Packet
	Synchronization: IEEE 1588v2 PTP(Precision Time Protocol), Peer-to-peer transparent clock, End-to-end transparent clock
Layer 3 Functions	IP Interfaces: Max. 8 VLAN interfaces, Routing Table: Max. 32 routing entries, Routing Protocols: IPv4 software static routing, IPv6 software static routing
Switch Management	Basic Management Interfaces: Console; Telnet; Web browser; SNMP v1, v2c, Secure Management Interfaces: SSHv2, TLS v1.2, SNMPv3
	System Management: Firmware upgrade by HTTP protocol through Ethernet network, Configuration upload/download through HTTP, Remote Syslog, System log, LLDP protocol, NTP, PLANET Smart Discovery Utility
SNMP MIBs	RFC-1213 MIB-II, IF-MIB, RFC 1493 Bridge MIB, RFC 1643 Ethernet MIB, RFC 2863 Interface MIB, RFC 2665 Ether-Like MIB, RFC 2819 RMON MIB (Group 1, 2, 3 and 9), RFC 2737 Entity MIB, RFC 2618 RADIUS Client MIB, RFC 2933 IGMP-STD-MIB, RFC 3411 SNMP-Frameworks-MIB, IEEE 802.1X PAE, LLDP, MAU-MIB
Standards Conformance	Regulatory Compliance: FCC Part 15 Class A, CE
	Stability Testing: IEC 60068-2-32 (free fall), IEC 60068-2-27 (shock), IEC 60068-2-6 (vibration)
	Standards Compliance: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX/100BASE-FX, IEEE 802.3z Gigabit SX/LX, IEEE 802.3ab Gigabit 1000T, IEEE 802.3x flow control and back pressure, IEEE 802.3ad port trunk with LACP, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol, IEEE 802.1p Class of Service, IEEE 802.1Q VLAN tagging, IEEE 802.1ad Q-in-Q VLAN stacking, IEEE 802.1X Port Authentication Network Control, IEEE 802.1ab LLDP, IEEE 802.3ah OAM, IEEE 802.1ag Connectivity Fault Management (CFM), IEEE 1588 PTPv2
	RFC 768 UDP, RFC 793 TFTP, RFC 791 IP, RFC 792 ICMP, RFC 2068 HTTP, RFC 1112 IGMP v1, RFC 2236 IGMP v2, RFC 3376 IGMP version 3, RFC 2710 MLD version 1, RFC 3810 MLD version 2
	ITU-T G.8032 ERPS Ring, ITU-T Y.1731 Performance Monitoring
Environment	Operating: Temperature: -40 ~ 75 degrees C, Relative Humidity: 5 ~ 95% (non-condensing)
	Storage: Temperature: -40 ~ 85 degrees C, Relative Humidity: 5 ~ 95% (non-condensing)
