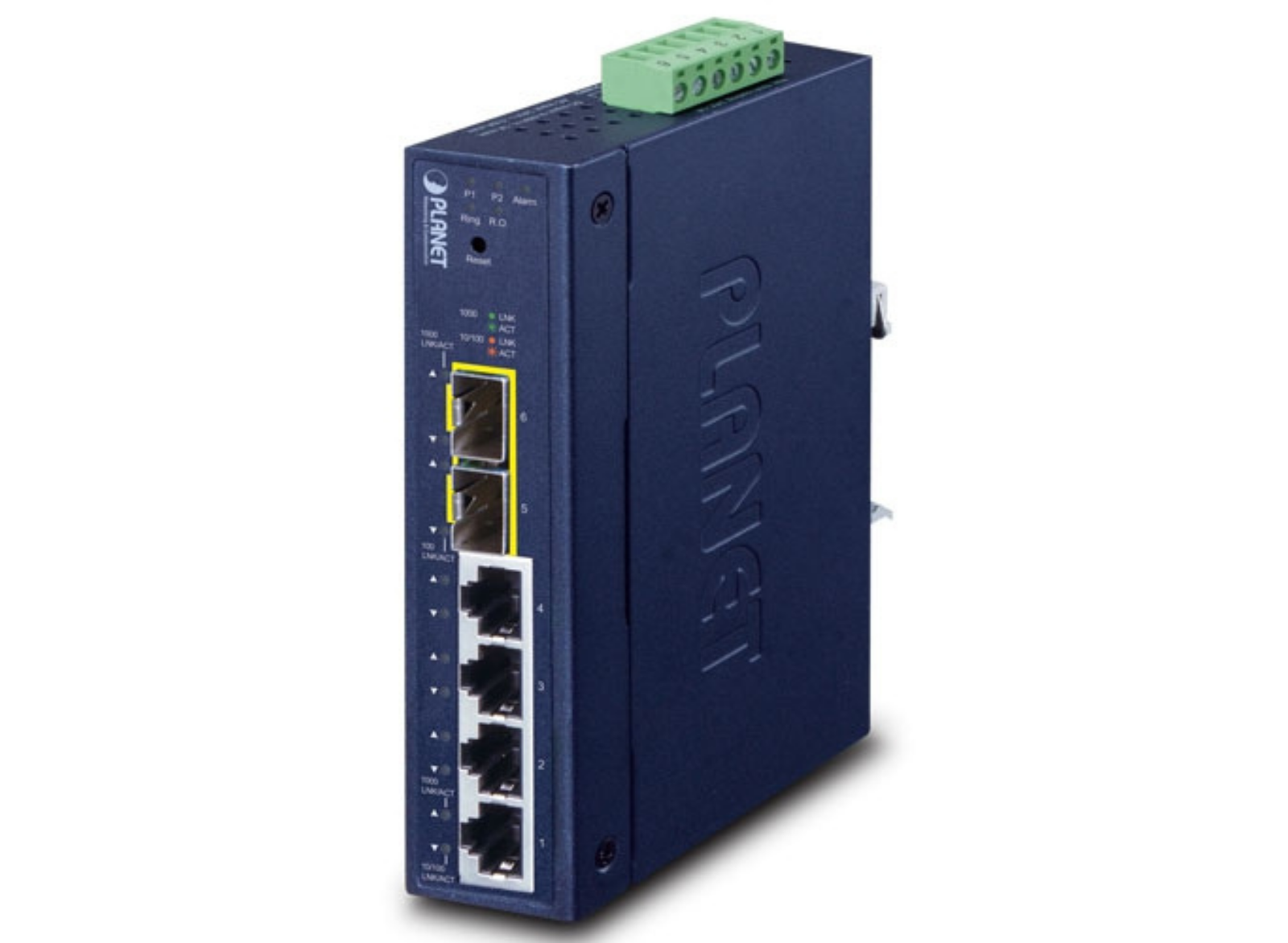

Planet Industrial L2/L4 4-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch | IGS-4215-4T2S

Robustly Designed for Critical Business Applications
Designed to be installed in heavy industrial demanding environments, the IGS-4215-4T2S is the new member of PLANET Industrial-grade, DIN-rail type L2/L4 Managed Gigabit Switch family to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 4 10/100/1000BASE-T ports, and 2 extra 100/1000BASE-X SFP fiber ports for data and video uplink. The IGS-4215-4T2S is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes with operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing.

Robust Protection
The IGS-4215-4T2S provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

Redundant Ring, Fast Recovery for Surveillance System
The IGS-4215-4T2S supports redundant ring technology and features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In certain simple Ring network, the recovery time of data link can be as fast as <450ms.

Robust Layer 2 Features
The IGS-4215-4T2S can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the IGS-4215-4T2S allows the operation of a high-speed trunk to combine with multiple ports such as an 8Gbps fat pipe, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.

IPv6/IPv4 Dual Stack Management
Supporting both IPv6 and IPv4 protocols, the IGS-4215-4T2S helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.

Remotely Manage Solution
PLANET's Universal Network Management System (UNI-NMS) and CloudViewer App support IT staff to remotely manage all network devices and monitor the PDs' operation statuses. Thus, they're designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS or CloudViewer App, all kinds of businesses can now be speedily and efficiently managed from one platform.

Efficient Traffic Control
The IGS-4215-4T2S is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast/unicast storm control, per port bandwidth control, 802.1p/CoS/IP DSCP QoS priority and remarking. It guarantees the best performance in VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.

User-friendly and Secure Management
For efficient management, the IGS-4215-4T2S is equipped with console, Web and SNMP management interfaces. With the built-in Web-based management interface, it offers an easy-to-use, platform-independent management and configuration facility. For text-based management, the IGS-4215-4T2S can be accessed via Telnet and the console port. Moreover, it also offers secure remote management via any standard-based management software by supporting SNMPv3 connection which encrypts the packet content at each session.

Powerful Security from Layer 2 to Layer 4
PLANET IGS-4215-4T2S offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the Protected Port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, Port Security function allows limiting the number of network devices on a given port.

Advanced Network Security
The IGS-4215-4T2S also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

Flexibility and Long-distance Extension Solution
The two additional SFP slots built in the IGS-4215-4T2S support 100BASE-FX /1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceivers to uplink to backbone switch in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and up to 120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

Intelligent SFP Diagnosis Mechanism
The IGS-4215-4T2S supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for the network administrator, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Hardware Specifications	Details
Copper Ports	4 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
Gigabit SFP Slots	2 100/1000BASE-SX/LX/BX SFP interfaces
Reset Button	< 5 sec: System reboot<br>> 5 sec: Factory default

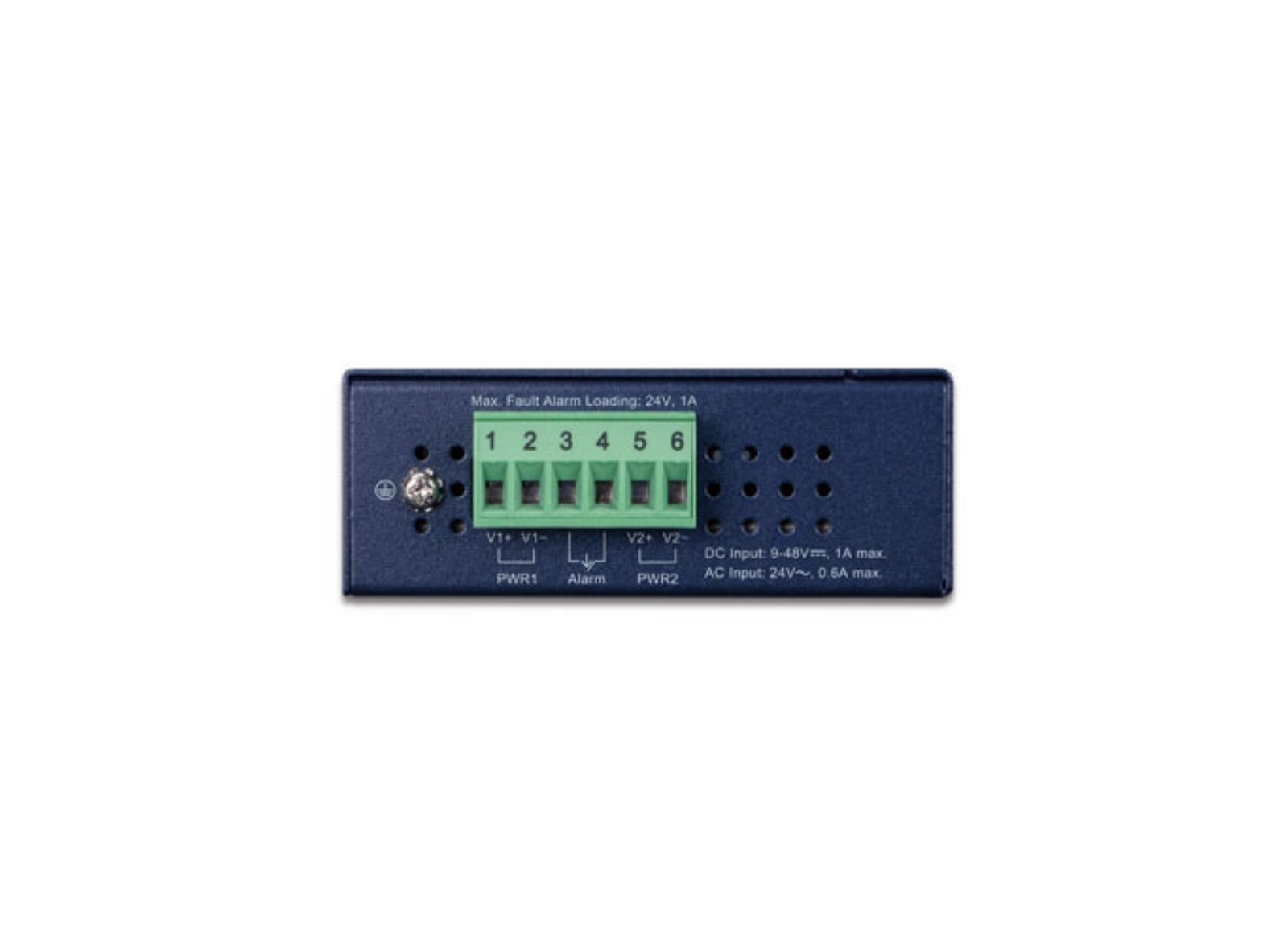

Connector	Removable 6-pin terminal block for power input:<br>Pin 1/2 for Power 1<br>Pin 3/4 for fault alarm<br>Pin 5/6 for Power 2
Alarm	One relay output for power failure.<br>Alarm relay current carry ability: 1A @ 24V DC
Power Requirements	Dual 9~48V DC<br>24V AC
Power Consumption	DC input:<br>Max. 1.92 watts/6.5BTU (System on)<br>Max. 4.68 watts/15.9BTU (Full loading)<br>AC input:<br>Max. 1.6 watts/5.4BTU (System on)<br>Max. 4.3 watts/14.6BTU (Full loading)
Enclosure	IP30 metal case
Dimensions (W x D x H)	32 x 87.8 x 135 mm
Weight	400g
Installation	DIN-rail kit and wall-mount ear
ESD Protection	6KV DC

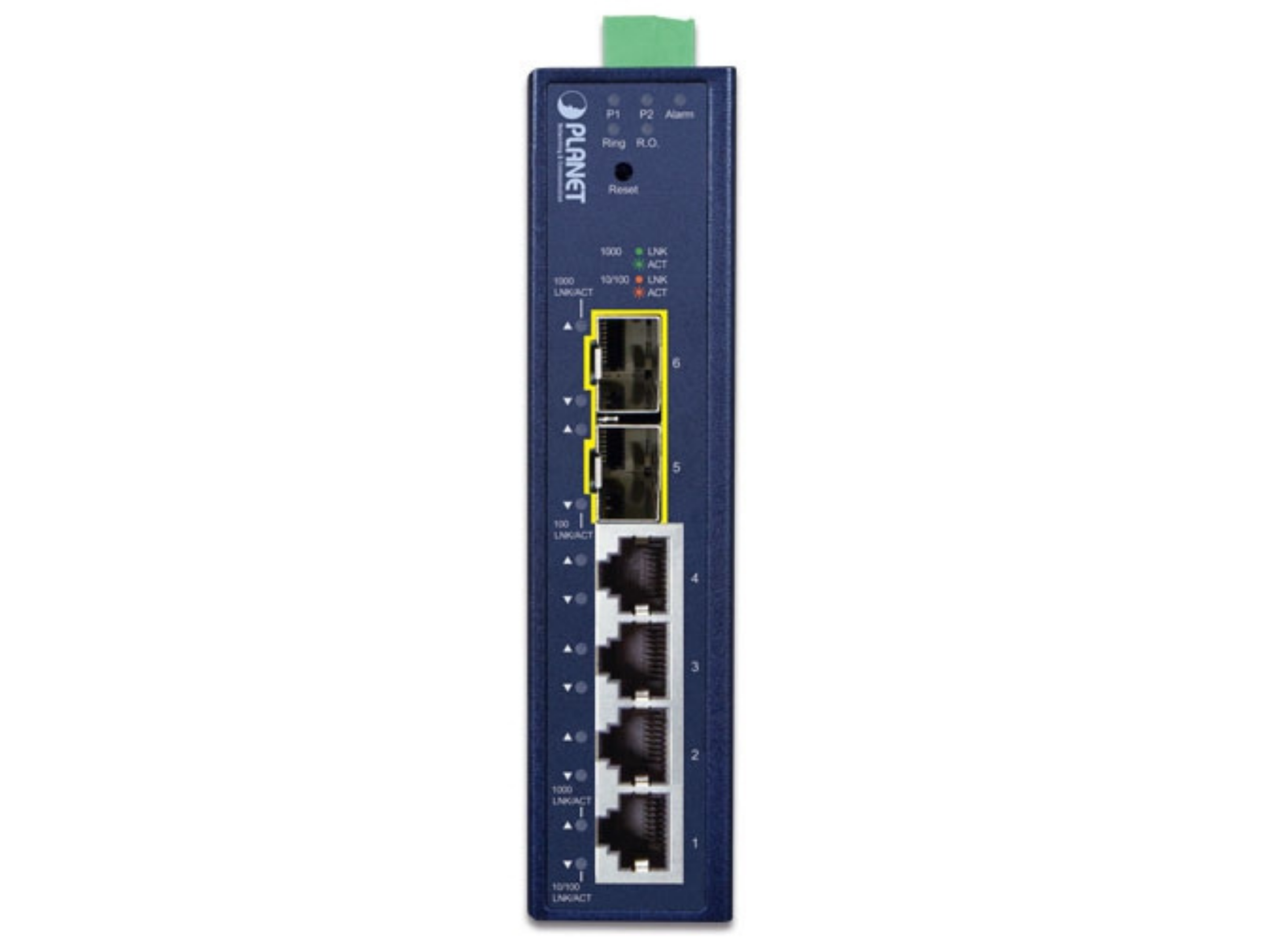

LED Indicators	System:<br>Green: Power 1<br>Green: Power 2<br>Red: Alarm<br>Green: Ring<br>Green: R.O.<br>Per 10/100/1000T RJ45 Ports:<br>Green: 1000 LNK/ACT<br>Amber: 10/100 LNK/ACT<br>Per 100/1000X SFP Ports:<br>Green: 1000 LNK/ACT<br>Amber: 100 LNK/ACT
Switch Architecture	Store-and-Forward
Switch Fabric	12Gbps (non-blocking)
Switch Throughput@64 bytes	8.9Mpps@ 64 bytes
MAC Address Table	8K entries
Shared Data Buffer	4.1Mbits
Flow Control	IEEE 802.3x pause frame for full duplex<br>Back pressure for half duplex
Jumbo Frame	9K
Layer 2 Functions	Port Mirroring:<br>TX/RX/Both<br>Many-to-1 monitor<br>Up to 4 sessions<br>VLAN:<br>802.1Q tag-based VLAN<br>802.1ad Q-in-Q tunneling (VLAN stacking)<br>Voice VLAN<br>Protocol VLAN<br>Private VLAN (Protected port)<br>GVRP<br>Up to 256 VLAN groups, out of 4096 VLAN IDs<br>Link Aggregation:<br>IEEE 802.3ad LACP and static trunk<br>Cisco ether-channel (Static Trunk)<br>Up to 3 trunk groups<br>Up to 6 ports per trunk group with 12Gbps bandwidth<br>Spanning Tree Protocol:<br>IEEE 802.1D Spanning Tree Protocol (STP)<br>IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)<br>IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)<br>STP BPDU Guard, BPDU Filtering and BPDU Forwarding<br>IGMP Snooping:<br>IPv4 IGMP snooping v1, v2, v3<br>IGMP querier<br>IGMP Snooping port filtering<br>Up to 256 multicast groups<br>MLD Snooping:<br>IPv6 MLD snooping v1, v2<br>Up to 256 multicast groups<br>QoS:<br>Ingress/Egress Rate Limit per port bandwidth control<br>8-level priority for switching<br>Port number<br>802.1p priority<br>DSCP/IP precedence of IPv4/IPv6 packets<br>Typical network application<br>DSCP remarking
Security Functions	Access Control List:<br>IPv4/IPv6 IP-based ACL/MAC-based ACL<br>IPv4/IPv6 IP-based ACE/MAC-based ACE<br>Security:<br>IP-MAC port binding<br>MAC filtering<br>Static MAC address<br>DHCP Relay and DHCP Option 82<br>STP BPDU guard, BPDU filtering and BPDU forwarding<br>DoS attack prevention<br>ARP inspection<br>IP source guard<br>Storm control support: Broadcast / Multicast / Unicast<br>AAA:<br>Built-in RADIUS client to cooperate with RADIUS server<br>Network Access Control:<br>IEEE 802.1X port-based authentication<br>RADIUS/TACACS+ user access authentication
Management Functions	Basic Management Interfaces:<br>Telnet<br>Web browser<br>SNMP v1, v2c<br>Secure Management Interfaces:<br>SSHv2, TLS v1.1/v1.2, SNMPv3<br>System Management:<br>Firmware upgrade by HTTP protocol through Ethernet network<br>Configuration upload/download through HTTP<br>LLDP protocol<br>SNTP<br>PLANET Smart Discovery Utility<br>PLANET UNI-NMS (Universal Network Management)<br>PLANET CloudViewer app<br>Event Management:<br>Remote Syslog<br>System log<br>SNMP MIBs:<br>RFC 1213 MIB-II<br>RFC 1493 Bridge MIB<br>RFC 1643 Ethernet MIB<br>RFC 2863 Interface MIB<br>RFC 2665 Ether-Like MIB<br>RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)<br>RFC 2737 Entity MIB<br>RFC 2618 RADIUS Client MIB<br>RFC 2863 IF-MIB<br>RFC 2933 IGMP-STD-MIB<br>RFC 3411 SNMP-Frameworks-MIB<br>RFC 4292 IP Forward MIB<br>RFC 4293 IP MIB<br>RFC 4836 MAU-MIB<br>IEEE 802.1X PAE<br>LLDP<br>MAU-MIB
Standards Conformance	Regulatory Compliance:<br>FCC Part 15 Class A, CE<br>Stability Testing:<br>IEC 60068-2-32 (free fall)<br>IEC 60068-2-27 (shock)<br>IEC 60068-2-6 (vibration)<br>Standards Compliance:<br>IEEE 802.3 10BASE-T<br>IEEE 802.3u 100BASE-TX/100BASE-FX<br>IEEE 802.3z Gigabit SX/LX<br>IEEE 802.3ab Gigabit 1000T<br>IEEE 802.3x flow control and back pressure<br>IEEE 802.3ad port trunk with LACP<br>IEEE 802.1D Spanning Tree Protocol<br>IEEE 802.1w Rapid Spanning Tree Protocol<br>IEEE 802.1s Multiple Spanning Tree Protocol<br>IEEE 802.1p Class of Service<br>IEEE 802.1Q VLAN tagging<br>IEEE 802.1ad Q-in-Q VLAN stacking<br>IEEE 802.1x Port Authentication Network Control<br>IEEE 802.1ab LLDP<br>IEEE 802.3az for Energy-Efficient Ethernet<br>RFC 768 UDP<br>RFC 793 TFTP<br>RFC 791 IP<br>RFC 792 ICMP<br>RFC 2068 HTTP<br>RFC 1112 IGMP v1<br>RFC 2236 IGMP v2<br>RFC 3376 IGMP v3<br>RFC 2710 MLD v1<br>FRC 3810 MLD v2<br>ITU-T G.8032 ERPS Ring
Environment	Operating:<br>Temperature: -40 ~ 75 degrees C<br>Storage:<br>Temperature: -40 ~ 85 degrees C<br>Humidity:<br>5 ~ 95% (non-condensing)
