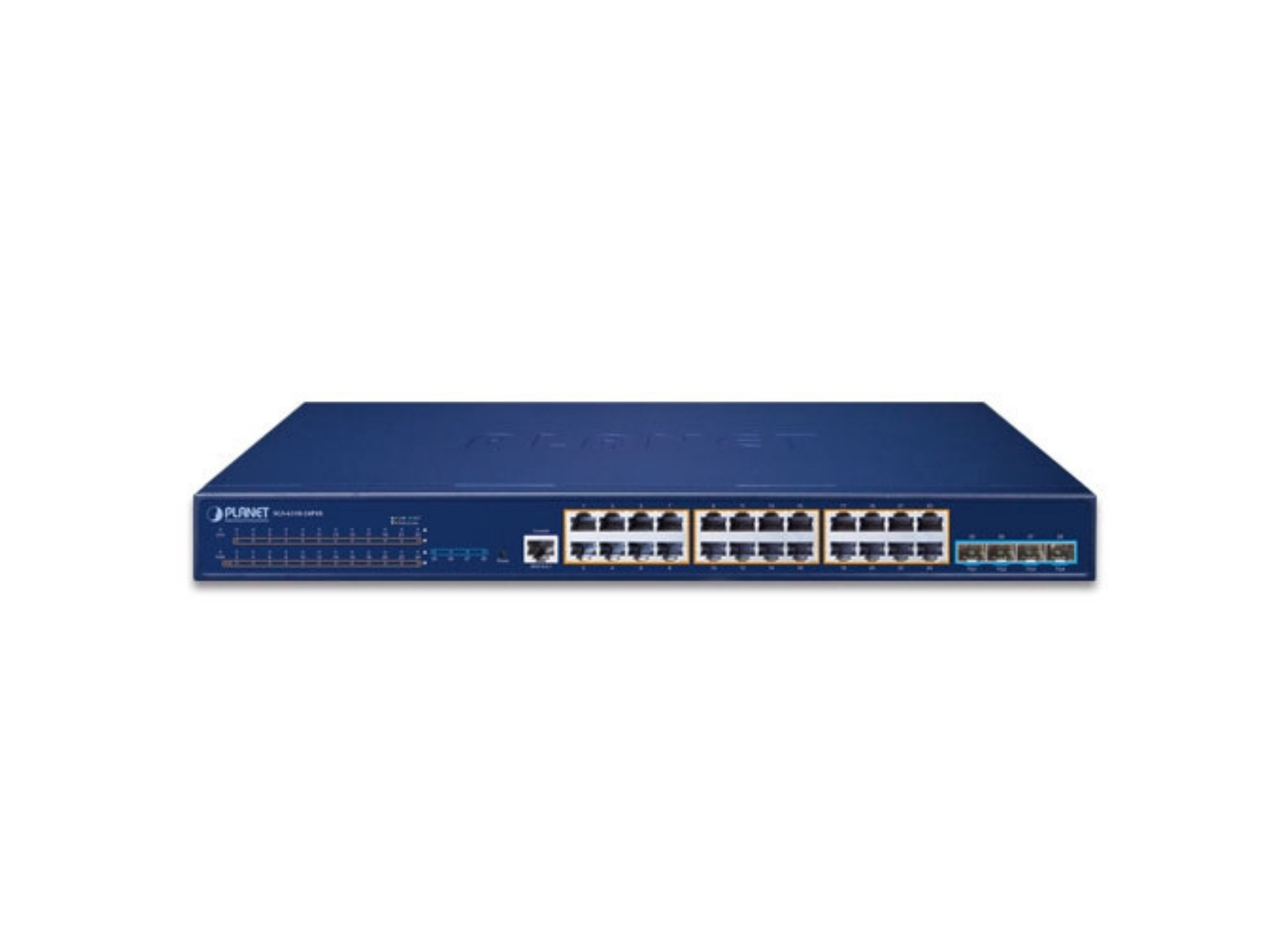

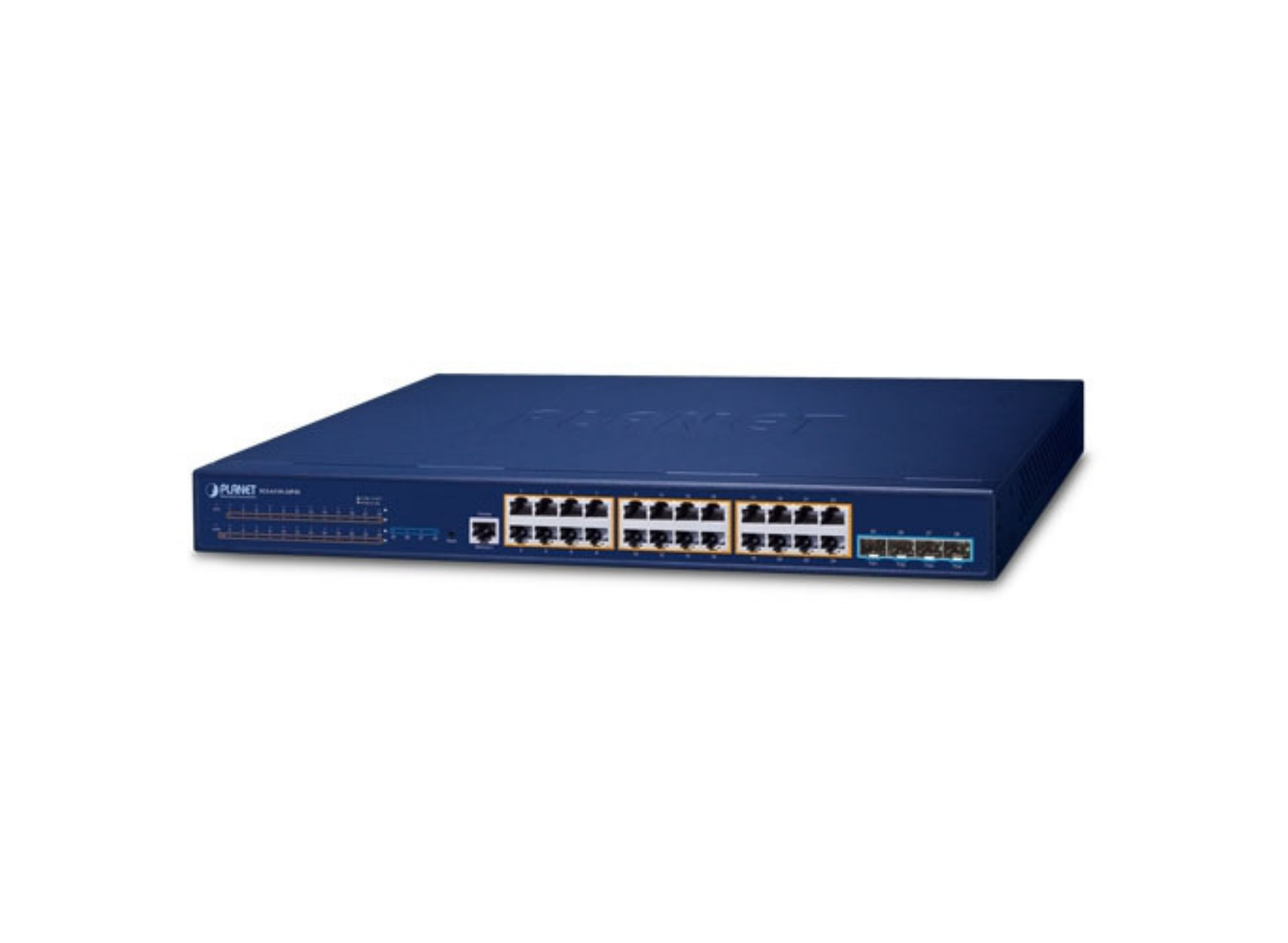

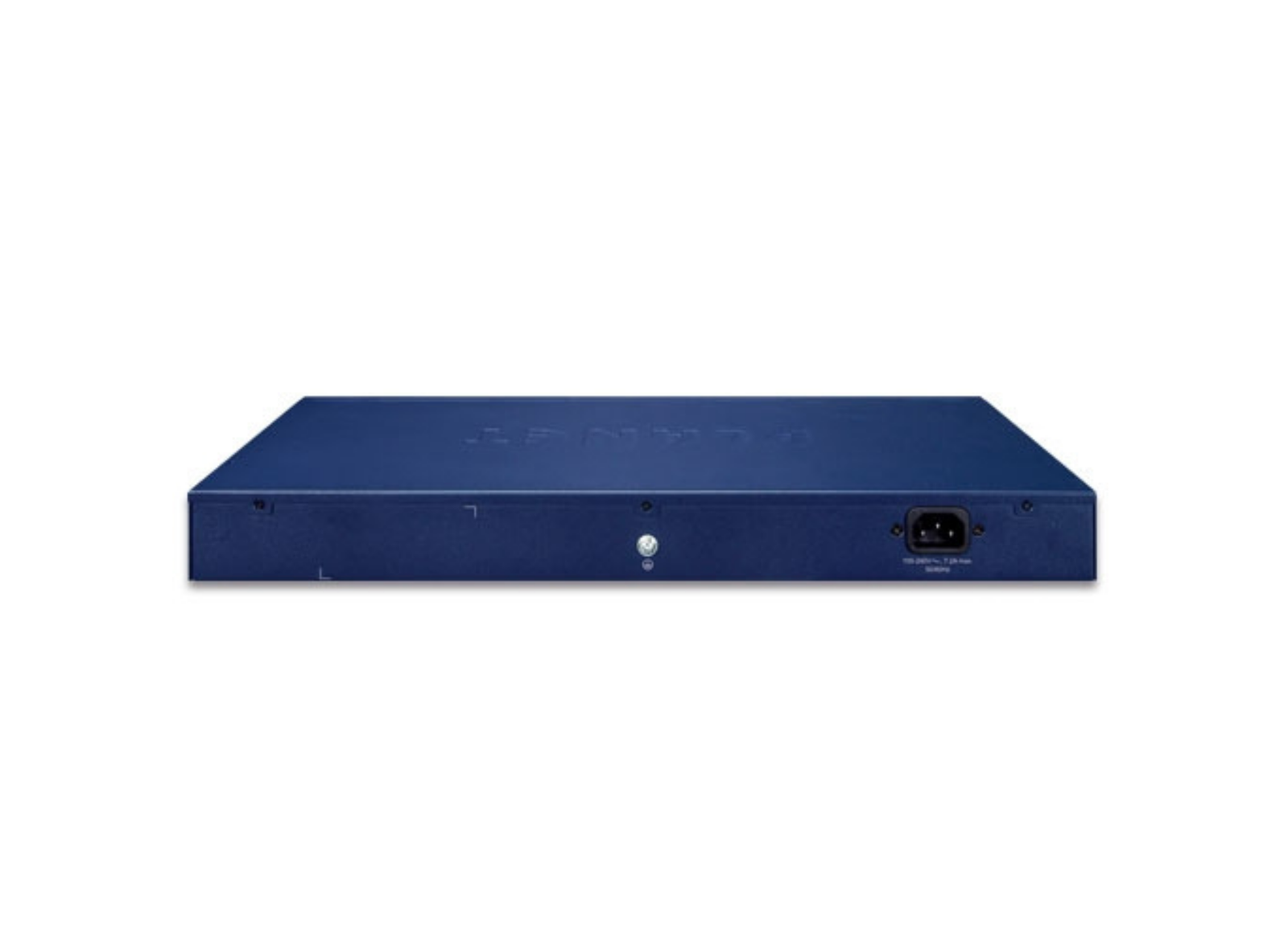

Planet L3 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Stackable Managed Switch | SGS-6310-24P4X

SKU: SGS-6310-24P4X
Part Number: SGS-6310-24P4X
Condition: Brand New
Purchase Orders Accepted
Save £246.84 Save £246.84

£322.88 (Excl. VAT)

Current price - £387.46 (Inc. VAT)
£322.88 - £322.88
Current price- - £387.46
Availability:
Only 3 left at this price!

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads
  • Planet L3 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Stackable Managed Switch | SGS-6310-24P4X

    Resilient PoE, 10Gbps and Layer 3 Routing Solution for Enterprise Networking
    PLANET SGS-6310 series is a brand-new Layer 3 Stackable Managed Gigabit Switch with 10Gbps uplink capability for various kinds of network applications and flexible deployment. The SGS-6310-24P4X features 24 10/100/1000BASE-T RJ45 802.3at PoE+ ports with PoE budget up to 370 watts and 4 1G/10GBASE-X SFP+ ports with 128Gbps switch fabric delivered in a 1U rugged case.


    The SGS-6310 series provides high-density performance, Layer 3 IPv4/IPv6 static routing, RIP and OSPF dynamic routing capability, ERPS ring, abundant L2/L4 switching engine, and virtual switch stacking technology to fulfill the need of heavy transmission of all applications. It gives the enterprises, service providers and campuses flexible control over port density, uplinks and switch stack performance at an affordable price.


    High Performance 10Gbps Ethernet Capacity

    The four SFP+ ports built in the SGS-6310 series boasts a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as up to 80Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Each of the SFP+ ports supports Dual-Speed, 10GBASE-SR/LR or 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.

    Centralized Hardware Stacking Management
    Two of the 10G SFP+ ports can be configured to connect several SGS-6310 series for building a virtually logical facility. The stackable SGS-6310 series, suitable for enterprises, service providers and telecoms, provides high port density, large uplink bandwidth and high switch stack performance, thus giving great flexibility for different application requirements. The SGS-6310 series can connect as a ring for redundancy and ensures that data integrity is retained even if one switch in the stack fails. You can even hot-swap switches without disrupting the network, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.


    Centralized Power Management for Gigabit Ethernet PoE Networking

    To fulfill the needs of higher power required PoE network applications with Gigabit speed transmission, the SGS-6310-24P4X features high-performance Gigabit IEEE 802.3at PoE+ (up to 30 watts) on all ports. It perfectly meets the power requirements of PoE VoIP phone and all kinds of PoE IP cameras such as IR, PTZ, speed dome cameras or even box type IP cameras with built-in fan and heater.

    The SGS-6310-24P4X’s PoE capabilities also help to reduce deployment costs for network devices as a result of freeing from the restrictions of power outlet locations. Power and data switching are integrated into one unit, delivered over a single cable and managed centrally. It thus eliminates the cost for additional AC wiring and reduces installation time.

    PoE Schedule for Energy Savings
    Besides being used for IP surveillance, the SGS-6310-24P4X is certainly applicable to build any PoE network including VoIP and wireless LAN. Under the trend of energy savings worldwide and contributing to the environmental protection on the Earth, the SGS-6310-24P4X can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save energy and budget.


    Redundant Ring, Fast Recovery for Critical Network Applications

    The SGS-6310 series supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in harsh environments. In a certain simple ring network, the recovery time could be less than 10ms to quickly bring the network back to normal operation.


    Layer 3 Routing Support

    The SGS-6310 series enables the administrator to conveniently boost network efficiency by configuring Layer 3 static routing manually, the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically.

    The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination.
    The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.

    Strong Multicast
    The SGS-6310 series supports abundant multicast features. In Layer 2, it features IPv4 IGMPv1/v2/v3 snooping and IPv6 MLD v1 snooping. With Multicast VLAN Register (MVR), multicast receiver/sender control and illegal multicast source detect functions which make the SGS-6310 series great for any robust networking.

    Full IPv6 Support
    The SGS-6310 series supports IPv4-to-IPv6 technologies including IPv4 manual/automatic tunnel, IPv6-to-IPv4 tunnel, and Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunnel. It comprehensively supports IPv6 Neighbor Discovery, DHCPv6, Path MTU Discovery, IPv6-based Telnet, SSH and ACL, meeting the need of IPv6 network device management and service control.

    Robust Layer 2 Features
    The SGS-6310 series can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Multiple Spanning Tree Protocol, bandwidth control and IGMP snooping. This switch provides 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol functions. By supporting port aggregation, the SGS-6310 series allows the operation of a high-speed trunk combined with multiple ports.  It enables up to 64 groups for trunking with a maximum of 8 ports for each group.


    Excellent Layer 2 to Layer 4 Traffic Control

    The SGS-6310 series is loaded with powerful traffic management and WRR features to enhance services offered by telecoms. The WRR functionalities include wire-speed Layer 4 traffic classifiers and bandwidth limitation which are particularly useful for multi-tenant unit, multi-business unit, Telco, or network service applications. It also empowers the enterprises to take full advantage of the limited network resources and guarantees the best in VoIP and video conferencing transmission.

    Powerful Network Security
    The SGS-6310 series offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentications, which can be deployed with RADIUS, to ensure the port level security and block illegal users.

    Advanced IP Network Protection
    The SGS-6310 series also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

    Efficient and Secure Management
    For efficient management, the SGS-6310 series is equipped with console, Web and SNMP management interfaces.

    With the built-in Web-based management interface, the SGS-6310 series offers an easy-to-use, platform-independent management and configuration facility.
    For text-based management, it can be accessed via Telnet and the console port. For reducing product learning time, the SGS-6310 series offers Cisco-like command and customer doesn’t need to learn new command from these switches
    For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.
    Moreover, the SGS-6310 series offers secure remote management by supporting SSHv1/v2 and SSLv3 connection which encrypts the packet content at each session.


    Intelligent SFP Diagnosis Mechanism

    The SGS-6310 series supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

  • Specification Details
    Copper Ports 24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (ports 1 to 24)
    10G SFP+ Ports 4 10GBASE-SR/LR SFP+ ports (ports 25 to 28)
    Backward compatible with 1000BASE-SX/LX/BX SFP transceiver
    Console Port 1 RJ45-to-RS232 serial port (9600, 8, N, 1)
    DRAM 256Mbytes
    Flash Memory 16Mbytes
    Dimensions (W x D x H) 440 x 210 x 44mm
    Weight 3000g
    Power Consumption System: 25 watts / 85.25 BTU
    System+PoE: 408 watts / 1392.49 BTU
    Power Requirements - AC AC 100~240V, 50/60Hz
    Fan 2
    LED Indicators System: SYS, PWR (Green)
    Per 10/100/1000BASE-T RJ45 Interfaces (Port 1 to Port 24): 1000Mbps LNK/ACT (Green), 10/100Mbps LNK/ACT (Amber), 802.3at/af PoE-in-Use (Amber)
    Per 1G/10G Mbps SFP Interfaces (Port 25 to Port 28): 1G LNK/ACT (Amber), 10G LNK/ACT (Green)
    Switching Specifications Switch Architecture: Store-and-forward
    Switch Fabric: 128Gbps/non-blocking
    Switch Throughput: 95.23Mpps
    Address Table: 16K MAC address table with auto learning function
    ARP Table: 2K
    Routing Table: 2040
    VLAN Interface: 64
    IP Interface: 64
    ACL Table: 1024
    Shared Data Buffer: 1.5MB
    Jumbo Frame: 9KBytes
    Flow Control: Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
    Power over Ethernet Specifications PoE Standard: IEEE 802.3at PoE+ PSE
    Backward compatible with 802.3af PoE
    PoE Power Supply Type: End-span
    PoE Power Output: Per port 54V DC, 30 watts (max.)
    Power Pin Assignment: 1/2(+), 3/6(-)
    PoE Power Budget: 370 watts (max.)
    IPv4 Layer 3 Functions IP Routing Protocol: Static route, RIPv1/v2, OSPFv2, Policy-based routing (PBR), Hardware-based Layer 3 routing
    Layer 3 Protocol: VRRP v1/v3, ARP, ARP Proxy, IGMP Proxy
    IPv6 Layer 3 Functions IP Routing Protocol: RIPng, OSPFv3, IPv6 LPM Routing, IPv6 Policy-based Routing (PBR), IPv6 VRRPv3, IPv6 RA (Router Advertisement), Hardware-based Layer 3 routing
    Routing Features: Configured Tunnels, GRE Tunnel, ISATAP Tunnel, 6 to 4 tunnels, Manual tunnel
    Other: ICMPv6, IPv6 ND
    Layer 2 Functions Port Configuration: Port disable/enable, Auto-negotiation 10/100/1000Mbps full and half duplex mode selection, Flow control disable/enable, Bandwidth control on each port, Port loopback detect
    Port Status: Display each port’s speed duplex mode, link status, flow control status and auto negotiation status
    VLAN: 802.1Q tagged VLAN, up to 4K VLAN groups, 802.1ad Q-in-Q (VLAN stacking), GVRP for VLAN management, Private VLAN Edge (PVE) supported, Protocol-based VLAN, MAC-based VLAN, IP subnet-based VLAN
    Spanning Tree Protocol: STP, IEEE 802.1D (Classic Spanning Tree Protocol), RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol), MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN), Supports BPDU and root guard
    Multicast: IPv4 IGMP v1/v2/v3 snooping, Querier mode support, IPv6 MLD v1 snooping, Multicast VLAN Register (MVR), Up to 1024 multicast groups (IPv4 + IPv6)
    Link Aggregation: IEEE 802.3ad LACP/static trunk, Supports 64 groups with 8 ports per trunk group
    Bandwidth Control: TX/RX/Both, At least 64Kbps step
    QoS: 8 priority queues on all switch ports, Supports strict priority and Weighted Round Robin (WRR) CoS policies, Traffic classification: CAR, HQoS, MAC/IP/TCP/UDP, IEEE 802.1p CoS/ToS, IPv4/IPv6 DSCP, Port-based WRR, Tail-Drop, WRED, flow monitoring and traffic shaping
    Ring: Supports ITU-G G.8032 ERPS, Recovery time < 10ms @ 3units, Recovery time < 50ms @ 16units
    Security Functions Access Control List: Supports Standard and Expanded ACL, IP-based ACL/MAC-based ACL, Time-based ACL, Up to 1024 entries
    Security: Port isolation, Port security, “IP+ MAC+ port” binding, MAC sticky DAI & IP source guard, PPPoE+, L2/L3/L4 ACL flow identification, Filtration Anti-attack from DDoS, TCP’s SYN Flood, UDP Flood, Broadcast / multicast / unknown unicast storm-control, Supports MD5, SHA-256, RSA-1024, AES256
    AAA Authentication: TACACS+ and IPv4/IPv6 over RADIUS
    Network Access Control: IEEE 802.1x port-based network access control, MAC-based authentication, RADIUS/TACACS authentication
    Switch Management Functions System Configuration: Console and Telnet, Web browser, SNMP v1, v2c
    Secure Management Interfaces: SSHv1/v2, TLSv1.2 and SNMPv3
    System Management: Supports both IPv4 and Ipv6 addressing, Supports the user IP security inspection for Ipv4/Ipv6 SNMP, Supports MIB and TRAP, Supports RMON 1, 2, 3, 9 (four groups), Supports IPv4/IPv6 FTP/TFTP, Supports IPv4/IPv6 NTP, Supports the RADIUS authentication for IPv4/IPv6 Telnet user name and password, The right configuration for users to adopt RADIUS server’s shell management, Supports Security IP safety net management function: avoid unlawful landing at non-restrictive area, Supports IPv4 and IPv6 DHCP server
    Event Management Supports Syslog server for IPv4 and IPv6
    Hardware Stacking 8 members max., 2 10G SFP+ slots are functioned as Stacking Up and Down interfaces
    Hardware Stacking Compatibility List SGS-6310-24T4X, SGS-6310-24P4X, SGS-6310-16S8C4XR
    SNMP MIBs RFC 1213 MIB-II, RFC 1215 Internet Engineering Task Force, RFC 1271 RMON, RFC 1354 IP-Forwarding MIB, RFC 1493 Bridge MIB, RFC 1643 Ether-like MIB, RFC 1907 SNMP v2, RFC 2011 IP/ICMP MIB, RFC 2012 TCP MIB, RFC 2013 UDP MIB, RFC 2096 IP forward MIB, RFC 2233 if MIB, RFC 2452 TCP6 MIB, RFC 2454 UDP6 MIB, RFC 2465 IPv6 MIB, RFC 2466 ICMP6 MIB, RFC 2573 SNMP v3 notify, RFC 2574 SNMP v3 vacm, RFC 2674 Bridge MIB Extensions (IEEE 802.1Q MIB), RFC 2674 Bridge MIB Extensions (IEEE 802.1P MIB)
    Standard Conformance Regulatory Compliance: FCC Part 15 Class A, CE
    Standards Compliance: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3z Gigabit 1000BASE-SX/LX, IEEE 802.3ab Gigabit 1000BASE-T, IEEE 802.3ae 10Gb/s Ethernet, IEEE 802.3at Power over Ethernet plus, IEEE 802.3x flow control and back pressure, IEEE 802.3ad port trunk with LACP, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol, IEEE 802.1p Class of Service, IEEE 802.1Q VLAN tagging, IEEE 802.1ad Q-in-Q VLAN stacking/tunneling, IEEE 802.1x port authentication network control, IEEE 802.1ab LLDP, RFC 768 UDP, RFC 783 TFTP, RFC 791 IP, RFC 792 ICMP, RFC 2068 HTTP, RFC 1112 IGMP v1, RFC 2236 IGMP v2, RFC 3376 IGMP v3, RFC 2710 MLD v1, RFC 2328 OSPF v2, RFC 1058 RIP v1, RFC 2453 RIP v2, ITU-T G.8032 ERPS Ring
    Environment Operating:
    Temperature: 0 ~ 50 degrees C
    Relative Humidity: 10 ~ 90% (non-condensing)
    Storage:
    Temperature: -20 ~ 70 degrees C
    Relative Humidity: 5 ~ 95% (non-condensing)
