Planet POE-173S Single-Port 10/100/1000Mbps 802.3bt PoE++ Splitter

SKU: POE-173S
Part Number: POE-173S
Condition: Brand New
Purchase Orders Accepted
đźšš Order before 3PM, get it by tomorrow.
Sold out

ÂŁ112.32 (Excl. VAT)

Current price - ÂŁ134.78 (Inc. VAT)
ÂŁ112.32 - ÂŁ112.32
Current price- - ÂŁ134.78
Availability:
Out of stock
payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads
  • Planet POE-173S Single-Port 10/100/1000Mbps 802.3bt PoE++ Splitter

    Quick and Easy Gigabit 802.3bt PoE++ Network Deployment
    PLANET POE-173S Gigabit 802.3bt Power over Ethernet splitter, which delivers the Ethernet digital data and PoE power from an 802.3bt type-4 PoE++ PSE (power source equipment) over an UTP cable, comes with a selectable 12V, 19V or 24V DC DIP switch, enabling to deliver a maximum of 60-watt power output to a non-PoE powered Ethernet device. It supports passive 10/100/1000Mbps Ethernet connection and distance up to 100 meters.


    The POE-173S, when working with PLANET 802.3bt type-4 PoE++ switches or injectors, offers more network applications to client devices, such as:

    PTZ speed dome camera
    Thin client
    AIO (All-in-One) touch PC
    Remote digital signage display
    Non-PoE network devices that need higher power to work normally


    The POE-173S frees the network device deployment from restrictions of power outlet locations, thus eliminating the costs for additional AC wiring and reducing the installation time.

    Innovative, Selectable DC Power Output Voltage

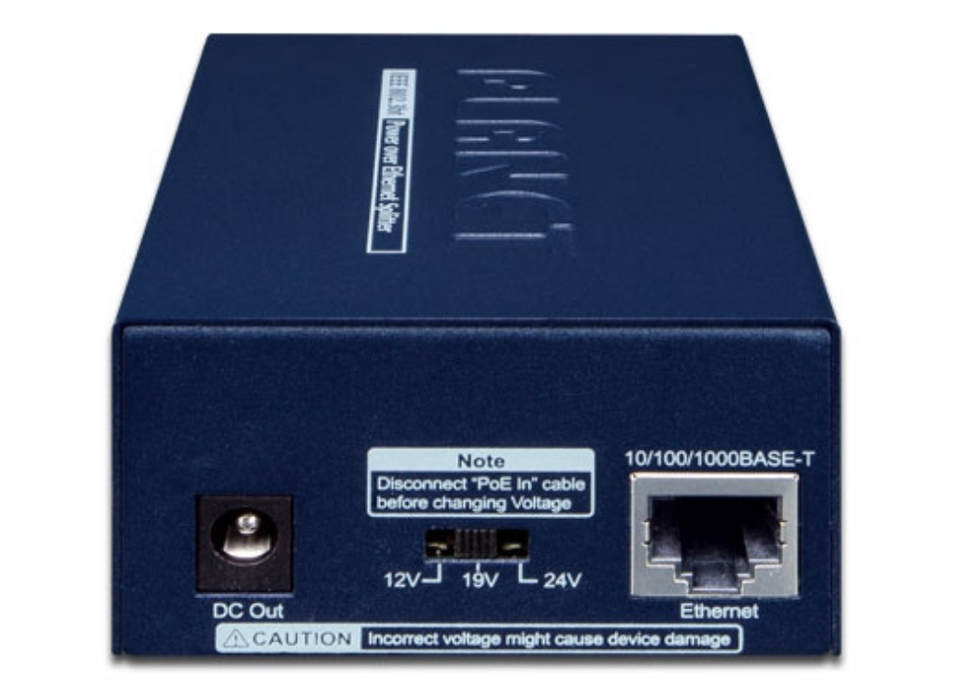

    Via the innovative 12V/19V/24V DIP switch on the front panel, the POE-173S can supply either 24V DC power to industrial equipment or 12V/19V DC output to the common network devices. It highly increases the flexibility of the product applications.

    802.3bt PoE++ Power over 4-pair UTP Cable
    The POE-173S and 802.3bt type-4 PoE++ switches use cables that meet the IEEE 802.3bt standard. Instead of delivering power over 2-pair twisted UTP cable – be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), they are able to transmit ultra PoE power and data by using all the four pairs of standard Cat. 5e/6 Ethernet cabling.


    Environment-friendly Structure

    The POE-173S comes with a compact-sized metal housing, making the placement of the unit convenient. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Moreover, the POE-173S is able to operate reliably and stably without affecting its performance. The deployment of non-PoE equipment with constant power feeding can be easily and quickly done.

    Intelligent LED Indicator for Power Budget

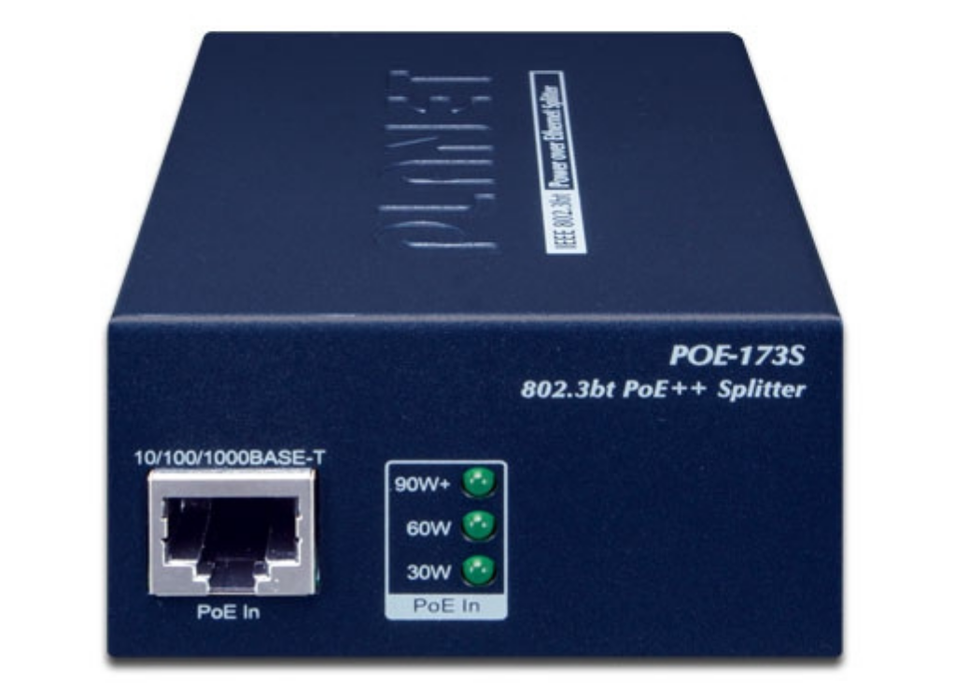

    The POE-173S helps users to know the current status of PoE power input from remote PSE easily by its advanced LED indication. The POE-173S has three LEDs indicating 30, 60 and 90 watts of PoE power input. With these LED indications, you can efficiently control how much PoE power is getting from PSE and how much output power of the POE-173S is going to a non-PoE device.

    Applications

    802.3bt PoE++ Splitter and Injector Installation
    For a place which is hard to find the power inlet, the POE-173S and PLANET 802.3bt PoE++ switches or injectors operate as a pair to provide the easiest way to power your Ethernet devices which need high power input. The POE-173S separates digital data and power into three optional outputs (12V/19V/24V DC) to non-PoE devices such as laptops, PTZ speed dome cameras, color touch-screen IP phones, multi-channel wireless LAN access points and other network devices at distance up to 100 meters.


    Key Features

    Interface
    2 RJ45 interfaces
    1-port data + power input
    1-port data output
    1-port DC plug-in
    1 12V/19V/24V DC DIP switch

    Power over Ethernet
    Complies with 802.3bt Power over Ethernet end-span / mid-span PSE
    Compatible with IEEE 802.3bt PoE++
    Backward compatible with 802.3at PoE+ with up to 30-watt power output
    Splits the PoE power over RJ45 Ethernet cable into 12V/19V/24V DC output
    Distance up to 100 meters

    Hardware
    Metal case
    All-in-one compact size design
    LED indicator for PoE in
    Three-mode (12V/19V/24V) DC output DIP switch
    Supports high Surge/ESD protection
    Desktop, wall-mount or DIN-rail (optional) design

  • Category Specification
    Interface 1 x 10/100/1000BASE-T RJ45 (Ethernet data output port)
    PoE In 1 x 10/100/1000BASE-T RJ45 (PoE power input port)
    Power Socket 1 x DC plug-in
    DIP Switch 12V/19V/24V DC output
    DC Socket DC receptacle 2.5mm
    LED Indicators PoE in: 30W (Green), 60W (Green), 90W+ (Green)
    Data Rate 10/100/1000Mbps
    Dimensions (W x D x H) 94 x 70.3 x 39.2 mm
    Weight 265g
    Installation Desktop/wall mountable/DIN-rail (optional)
    ESD Protection 4KV
    EFT Protection 4KV
    Enclosure Metal case
    Power Requirements 48~56V DC PoE
    Unit Output Current (at 56VDC Input) With 802.3bt Type 3 PoE++ input: 4.5A@12V DC, 2.8A@19V DC, 2.2A@24V DC
    With 802.3bt Type 4 PoE++ input: 5A@12V DC, 3.15A@19V DC, 2.5A@24V DC
    Power Consumption System on: 6 watts
    Ethernet full loading without DC output: 6.5 watts
    Ethernet full loading with maximum 12V DC, 5A output: 70 watts
    Network Cable 803.bt PoE (60W+): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft)
    802.3at PoE (30W): 2-pair UTP Cat. 5, 5e, 6 up to 100m (328ft)
    PoE Standard 802.3bt Type 3/4 Power over Ethernet
    4-pair 802.3at PoE+
    Compliant with voltage within 48-56V DC
    Power Output DC 12V/19V/24V by DIP switch control
    PoE Power Supply Type End-span + Mid-span
    End-span
    Mid-span
    Power Pin Assignment 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) or 1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-)
    Standards Compliance IEEE 802.3 10BASE-T Ethernet
    IEEE 802.3u 100BASE-TX Fast Ethernet
    IEEE 802.3ab 1000BASE-T Gigabit Ethernet
    IEEE 802.3at Power over Ethernet Plus
    IEEE 802.3bt 4-pair Power over Ethernet Type 4
    Regulatory Compliance FCC, CE
    Operating Temperature 0~50°C
    Storage Temperature -10~70°C
    Humidity 5 ~ 95% (non-condensing)
    Standard Accessories POE-173S x 1
    User’s manual x 1
    15cm UTP straight network cable x 1
    External female plug cables x 2: 5.5/2.5mm to 5.5/2.5mm, 5.5/2.5mm to 5.5/2.1mm
