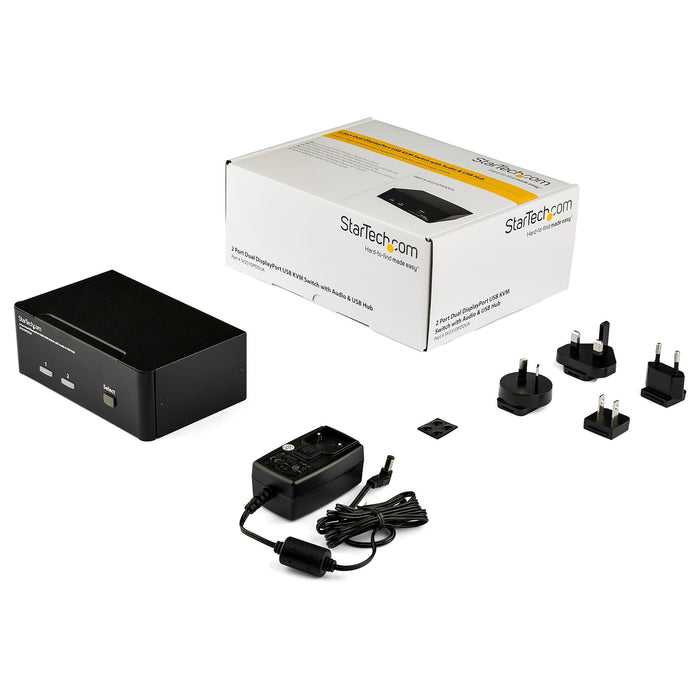

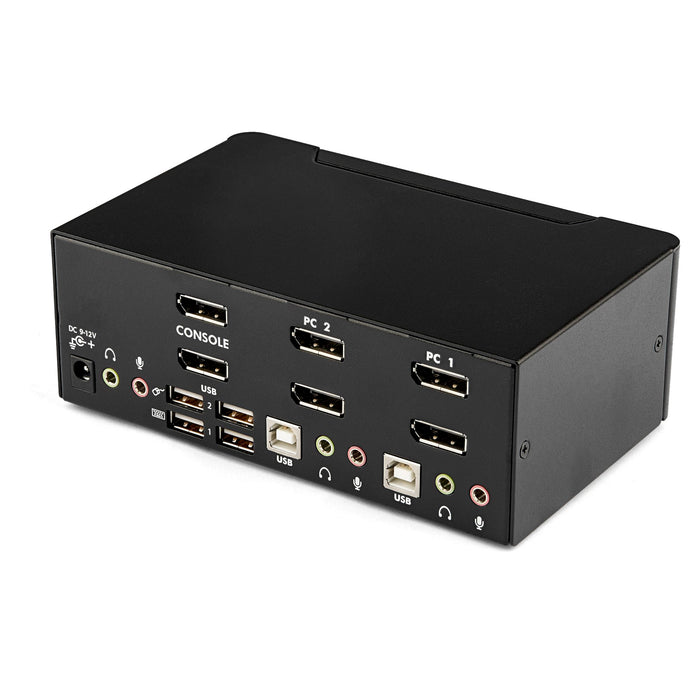

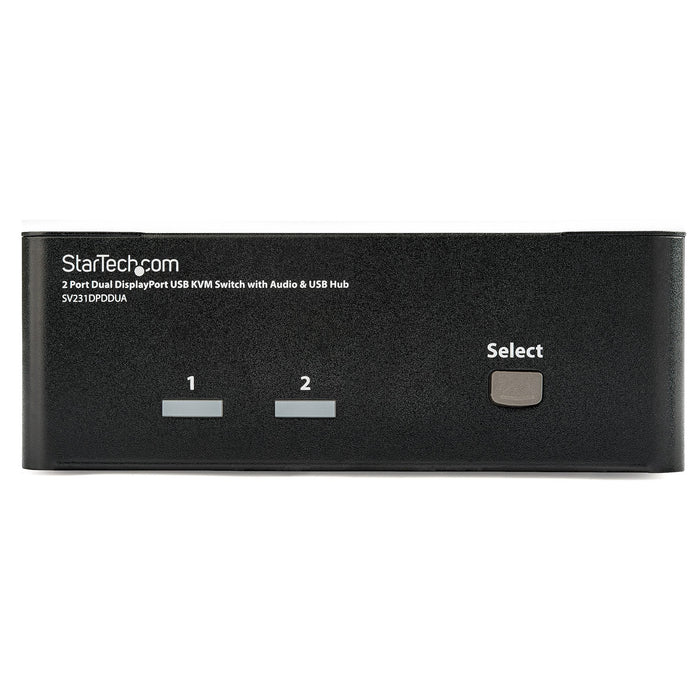

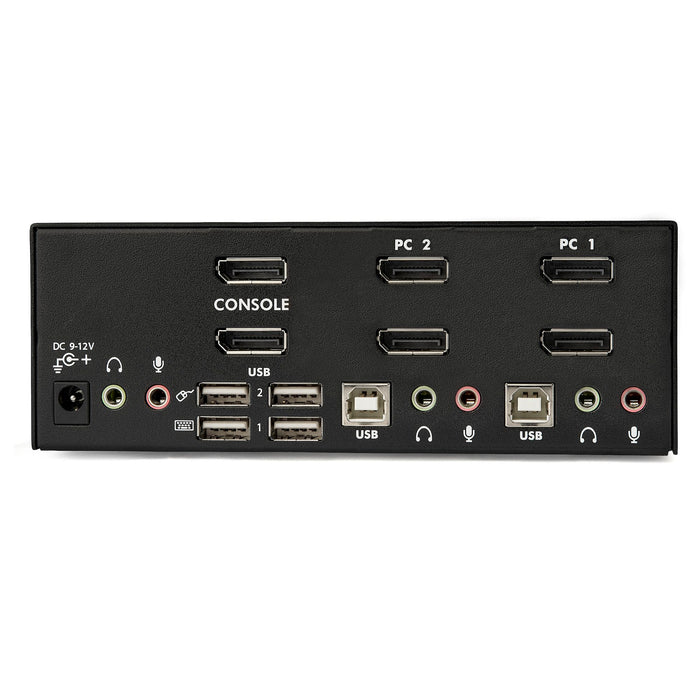

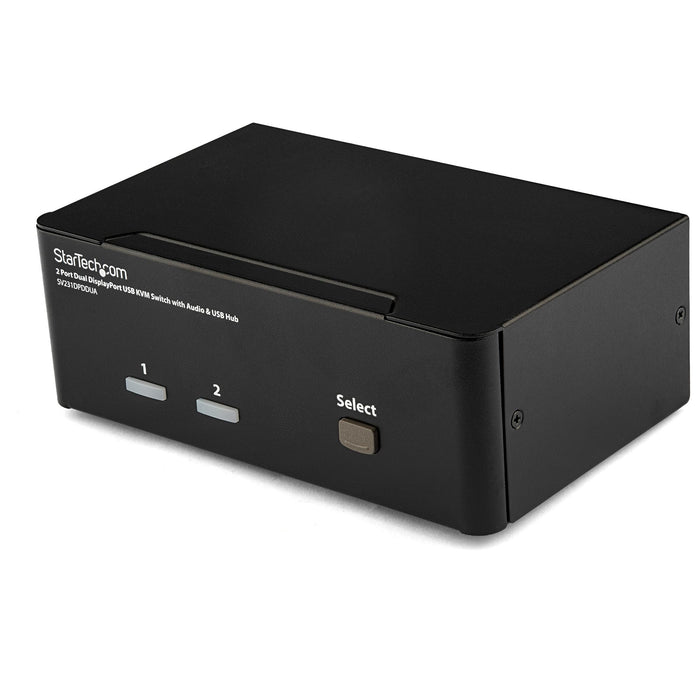

StarTech 2 Port Dual DisplayPort USB KVM Switch with Audio & USB 2.0 Hub | SV231DPDDUA
The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.
Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
Applications
Multimedia design, multimedia post-production and video editing using Mac or PC computersHigh resolution medical imaging and Health care display, such as MRI and Xray display
Stock trading stations with dual displays
Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
Dual system control for a single workstation increasing productivity in the office
Leverage DisplayPort’s high resolution capabilities for Satellite Topography equipment
Perfect for high-res Digital Signage server control, simplifying access to multiple systems
-
Category Detail Warranty Information 3 Years Connector(s) Console Interface(s) 2 - 3.5 mm Mini-Jack (3 Position) 2 - DisplayPort (20 pin) 4 - USB 2.0 Type-A (4 pin, 480Mbps) Host Connectors 4 - 3.5 mm Mini-Jack (3 Position) 4 - DisplayPort (20 pin) 2 - USB B (4 pin) Environmental Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -20°C to 50°C (-4°F to 140°F) Humidity 0~80% RH Hardware Audio Yes KVM Ports 2 PC Interface USB PC Video Type DisplayPort Number of Monitors Supported 2 Rack-Mountable No Cables Included No Daisy-Chain No Indicators LED Indicators 2 - Green (On-Line) 2 - Red (Selected PC) Packaging Information Package Height 4.0 in [10.2 cm] Package Length 9.8 in [24.8 cm] Shipping (Package) Weight 2.6 lb [1.2 kg] Package Width 7.4 in [18.8 cm] Package Quantity 1 Performance On-Screen Display No IP Control No Hot-Key Selection Yes Maximum Digital Resolutions WQXGA - 2560 x 1600 Wide Screen Supported Yes Maximum Number of Users 1 Port Selection Support Push Button and Hotkeys MTBF 138,000 hours Physical Characteristics Weight of Product 25.9 oz [734 g] Color Black Material Steel Product Width 6.3 in [16.1 cm] Product Height 2.3 in [5.8 cm] Product Depth 3.9 in [100 mm] Power Power Source AC Adapter Included Input Voltage 100 - 240 AC Input Current 0.8A Output Voltage 12V DC Output Current 1.5A Center Tip Polarity Positive Plug Type M Power Consumption (In Watts) 18W Software OS Compatibility OS independent; No software or drivers required What's in the Box Included in Package 1 - 2-port dual display DisplayPort KVM 1 - Universal power adapter (NA/EU/UK/AU) 1 - Instruction manual -
Description Downloads Datasheet Downloads User Manual Downloads
