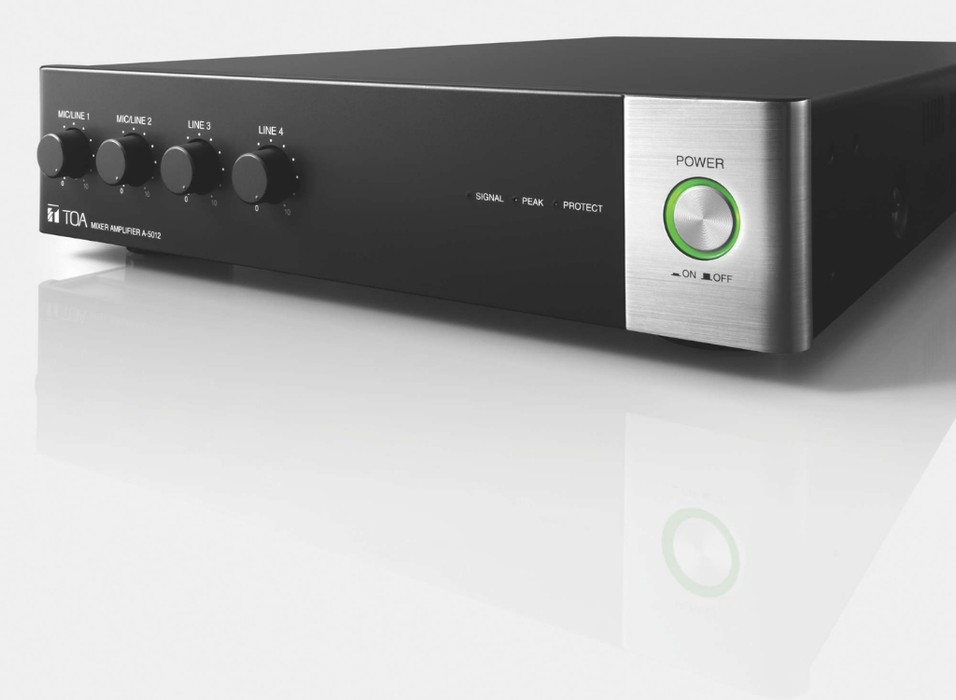

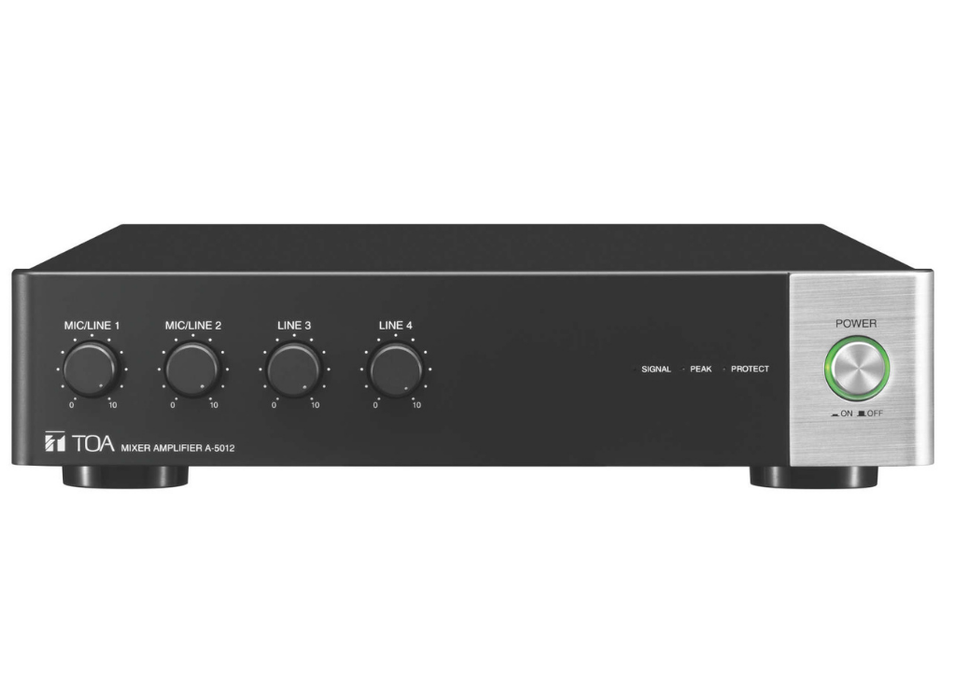

TOA A-5012 Half-Rack 1-Unit Size 120 W Desktop Mixer Power Amplifier
SKU: A-5012
£334.45 (Excl. VAT)
- Description
- Specifications
- Downloads
-
TOA A-5012 Half-Rack 1-Unit Size 120 W Desktop Mixer Power Amplifier
Digital Mixer Amplifiers
The A-5012 is a half-rack 1-unit size 120 W desktop mixer power amplifier. Inputs 1 and 2 can be set for either MIC or LINE sound sources, and its output is compatible with both high-impedance (100 V and 70 V lines) and low-impedance (4 ) speaker connections.
Functions can be set with a PC using the dedicated setting software. The A-5012 is ideal for use as a power amplifier in small commercial facilities and conference rooms. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (1 unit size).
120 W
2 x mic/line inputs with mute function
5-band Parametric Equalizer for each input and output (DSP)
Remote Master Volume Control
Mute (Mic 1 priority: Manual mute)
Compressor for both input 1 and 2Application examples for this product:
Restaurants
Bars
Hotels
Retail stores
Auditoriums -

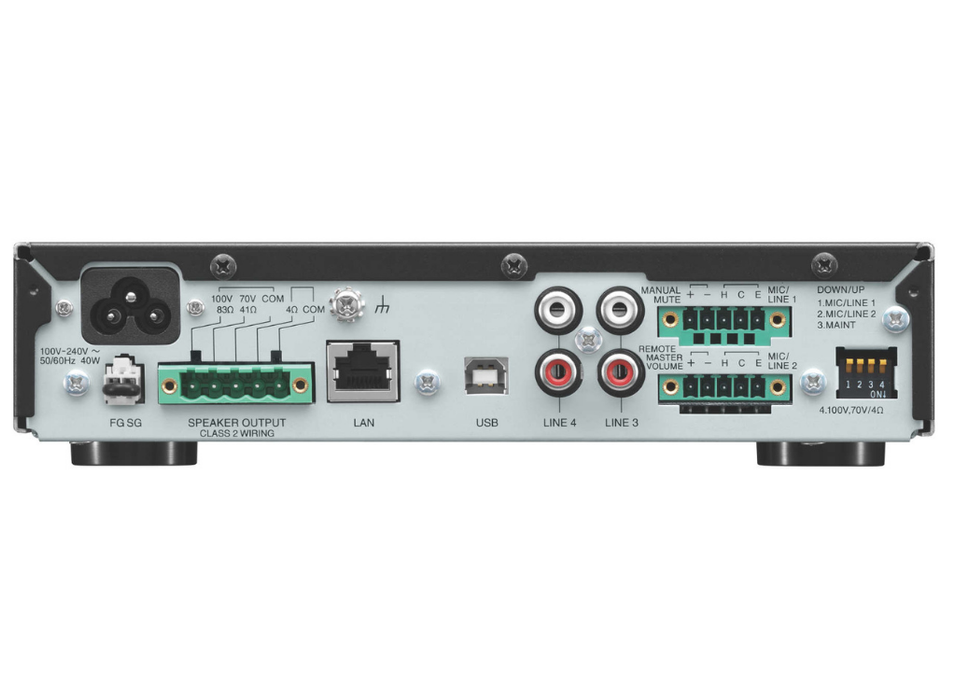

Specification A-5012 Power / Current Consumption 207 W (at rated output) Frequency Response 50 Hz - 20 kHz Rated Output 120 W Data I/F 100BASE-TX Speaker Output 4 Ω, 70 V (42 Ω), 100 V (83 Ω), removable terminal block (5 pins) Control Input Mute control, Remote master volume control, Ground lift Controls Power ON/OFF switch, Volume: MIC/Line1, MIC/Line 2, LINE 3, LINE 4 Finish Polystyrene resin, Steel plate, black Weight 3.9 kg Distortion < 1 % (at 1 kHz, rated power) S/N Ratio LINE 1 – 4: 70 dB(A) or more, MIC 1, 2: 50 dB(A) or more Number of Channels 1 Connectable Microphones 2 Inputs INPUT 1, 2: MIC -60 dBV, LINE -20 dBV, MIC/LINE selectable, 2.2k Ωs, electronically-balanced, removable terminal block (5 pins), INPUT 3, 4: LINE -20 dBV, 10k Ωs, unbalanced, RCA pin jack Outputs Speaker: 4 Ω, 70 V (42 Ω), 100 V (83 Ω), removable terminal block (5 pins) -
Description Downloads Datasheet Downloads
