TP-Link Dual-Band Wi-Fi Router | ARCHER C24
Apartment Wi-Fi.
Palm-Sized.
AC750 Dual-Band Wi-Fi Router


Dual-Band WiFi

AC750 WiFi Speed

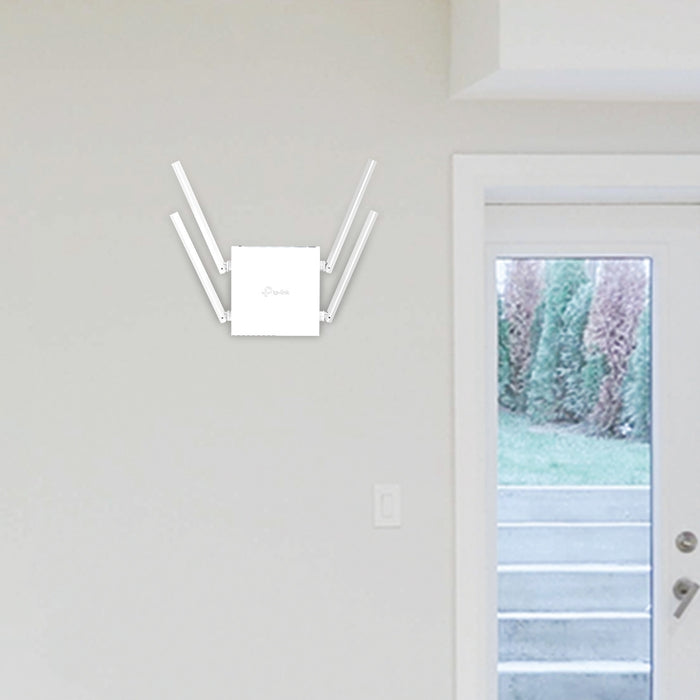

Compact and Mountable

Parental Controls
Doubling Bandwidth with Dual Band
AC Dual-band WiFi allows you to connect your demanding devices to the faster and clearer 5 GHz band, while a tradition 2.4 GHz band provides a far-reaching, stable connection to the rest of your devices.

Stable and Far-Reaching
Featuring 4× diagonally-distributed antennas, Archer C24 cover more direction and expand the WiFi coverage, supporting buffer-free surfing and stalling-free downloading.

Multi-Mode 3 in 1

Router Mode (Default)
Plug in an Ethernet cable to instantly create a private wireless network and share internet access with all your Wi-Fi devices.

Access Point Mode
Transform your existing wired network into a wireless one.

Range Extender Mode
Boost the existing wireless coverage in your house.

High Integration, Compact Size
Archer C24's system structure focuses on creating optimal WiFi. The advanced semiconductor technology helps integrate units including CPU, memory, and a 3-stream processing unit onto a single chip to achieve high compatibility, bringing you the same power with a compact design.

As Stable as a Larger One
Archer C24 goes through rigorous repeated testing to ensure a final product reliable under several strenuous environments. The final result: 8 randomly selected Archer C24 routers collectively tested for 1,936 hours.

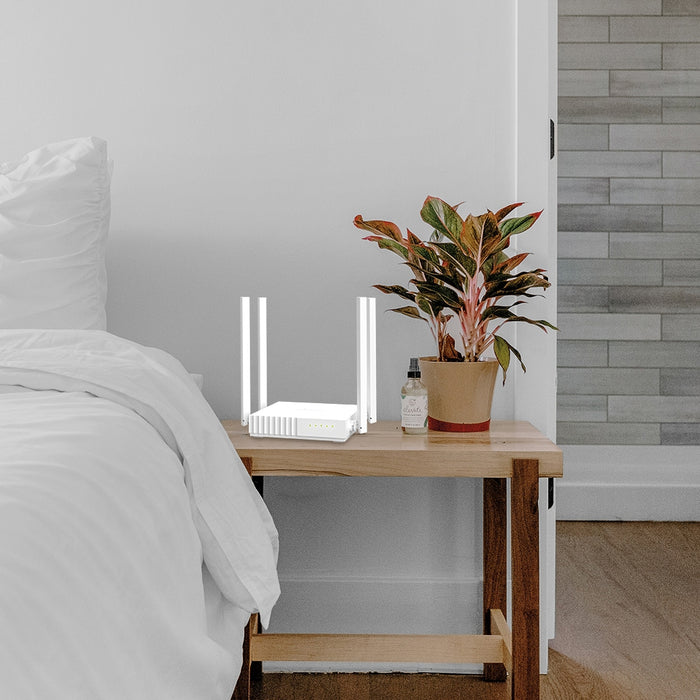

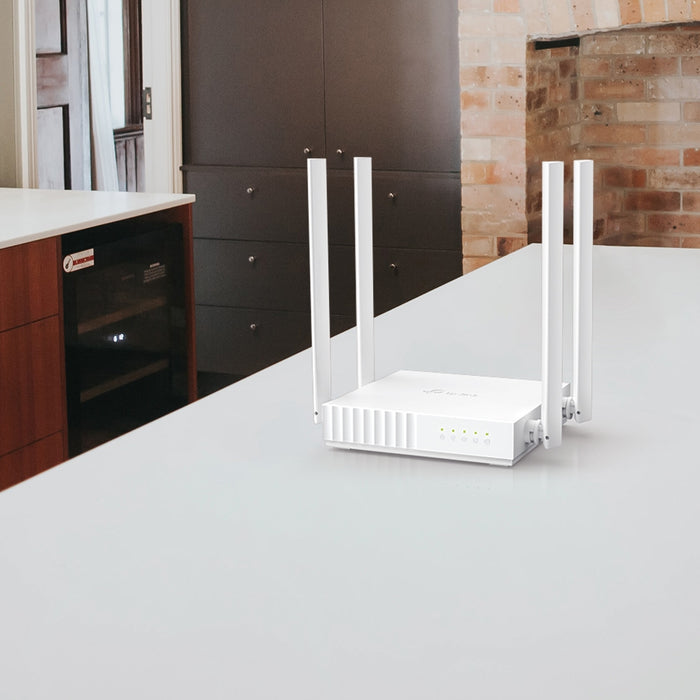

Place it Anywhere


Easy Setup
at Your Fingertips
Set up Archer C24 in minutes via its intuitive web interface or the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device.
-
Category |
Details |
Wireless |
Standards: Wi-Fi 5 (IEEE 802.11ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz) WiFi Speeds: AC750 (5 GHz: 433 Mbps, 2.4 GHz: 300 Mbps) WiFi Range: 2-bedroom houses, 4 fixed antennas Capacity: Medium, Dual-Band Working Modes: Router, Access Point, Range Extender |
Security |
Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway Guest Network: 1× 5 GHz, 1× 2.4 GHz WiFi Encryption: WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x) |
Hardware |

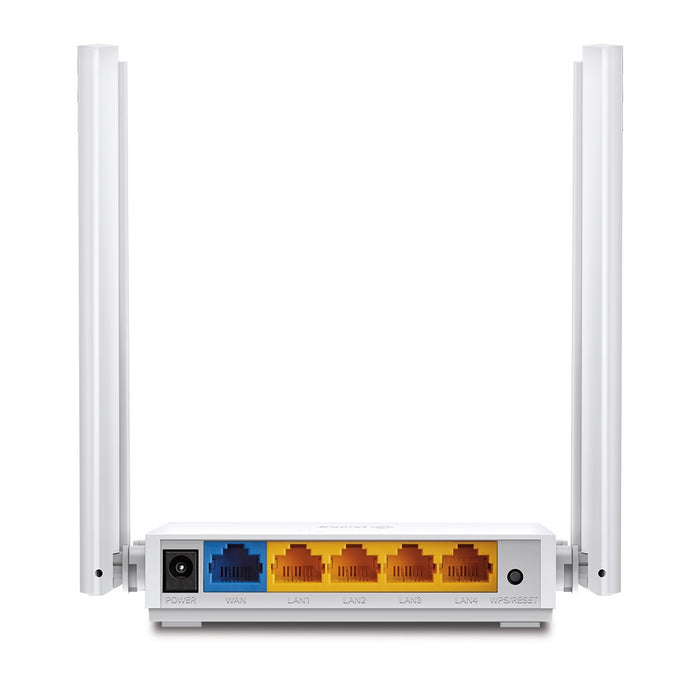

Processor: Single-Core CPU Ethernet Ports: 1× 10/100 Mbps WAN, 4× 10/100 Mbps LAN Buttons: WPS/Reset Button Power: 9 V ⎓ 0.6 A |
Software |
Protocols: IPv4, IPv6 Parental Controls: URL Filtering, Time Controls WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP QoS: By Device NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN DHCP: Address Reservation, Client List, Server DDNS: NO-IP, DynDNS Management: Tether App, Webpage |
Other |
System Requirements: JavaScript-enabled browser, Cable/DSL Modem, ISP Subscription Certifications: FCC, CE, RoHS Environment: Operating: 0℃~40℃, Storage: -40℃~60℃, Humidity: 10%-90% non-condensing |
Test Data |
WiFi Transmission Power: CE: <20dBm(2.4GHz), <23dBm(5GHz) WiFi Reception Sensitivity: 5GHz: 11ac VHT80 MCS9: -62dBm; 2.4GHz: 11n HT40 MCS7: -71dBm |
Physical |

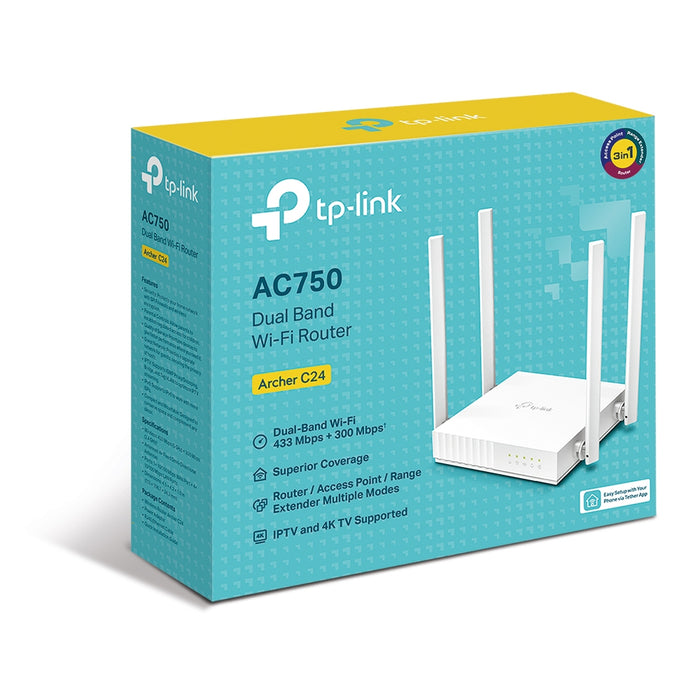

Dimensions: 4.5 × 4.2 × 1.0 in (115 × 106.7 × 24.3 mm) Package Contents: Wi-Fi Router Archer C24, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide |
-
