Ubiquiti UniFi Pro Max 48 PoE Network Switch - USW-Pro-Max-48-POE
SKU: USW-PRO-MAX-48-POE
£960.94 (Excl. VAT)
- Description
- Specifications
-

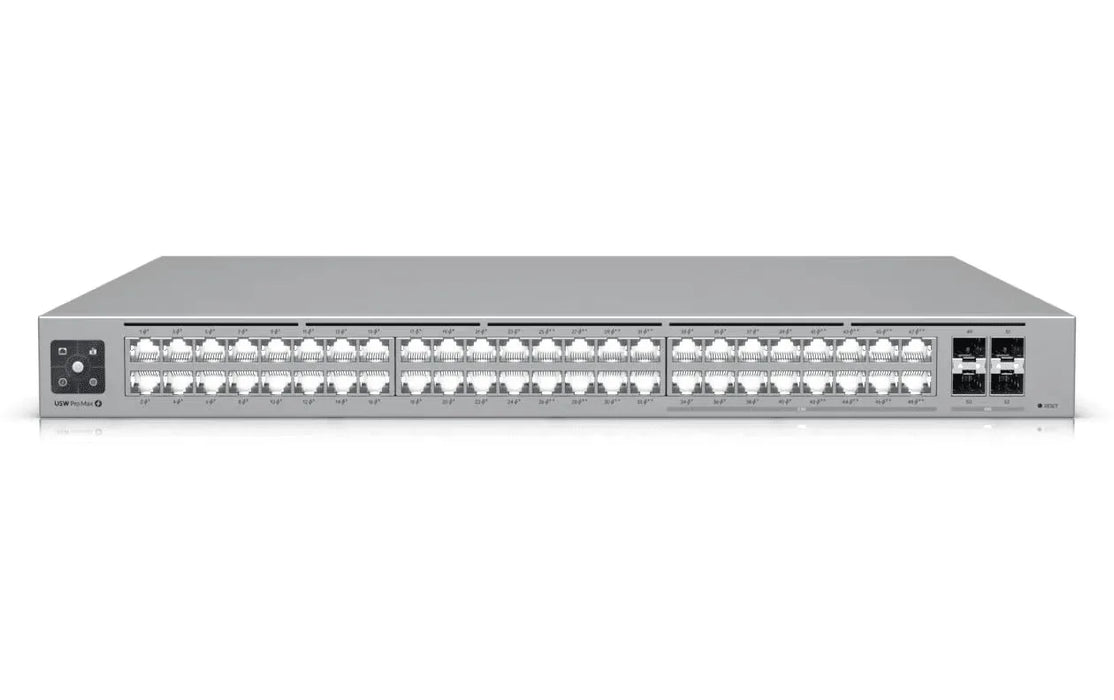

Ubiquiti UniFi Pro Max 48 PoE Network Switch
Features
48-port switch
16 x 2.5 GbE ports including (8) PoE+ and (8) PoE++
32 x GbE ports including (24) PoE+ and (8) PoE++
4 x 10G SFP+ ports
Layer 3
Etherlighting ports that illuminate
DC power backup ready
720W total PoE availability
The USW-Pro-Max-48-PoE is a powerful 48-port Layer 3 Etherlighting switch, designed for high-power PoE++ output. This switch is an ideal choice for networks requiring extensive power delivery and high-speed connectivity.

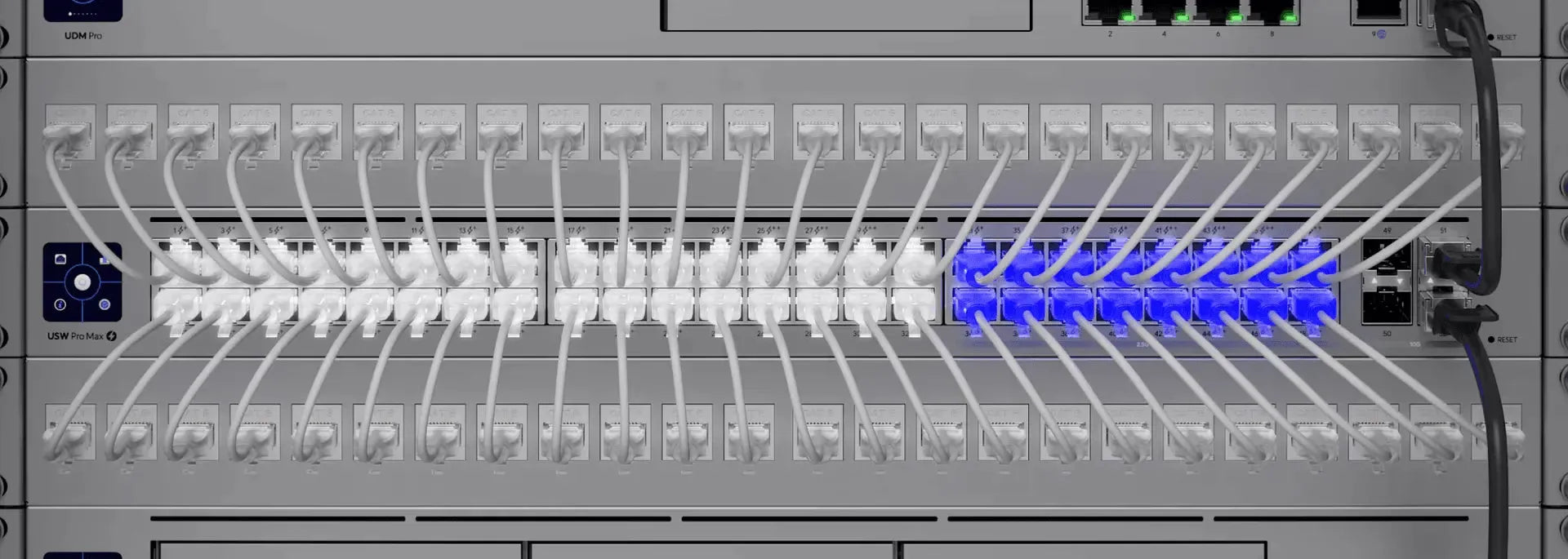

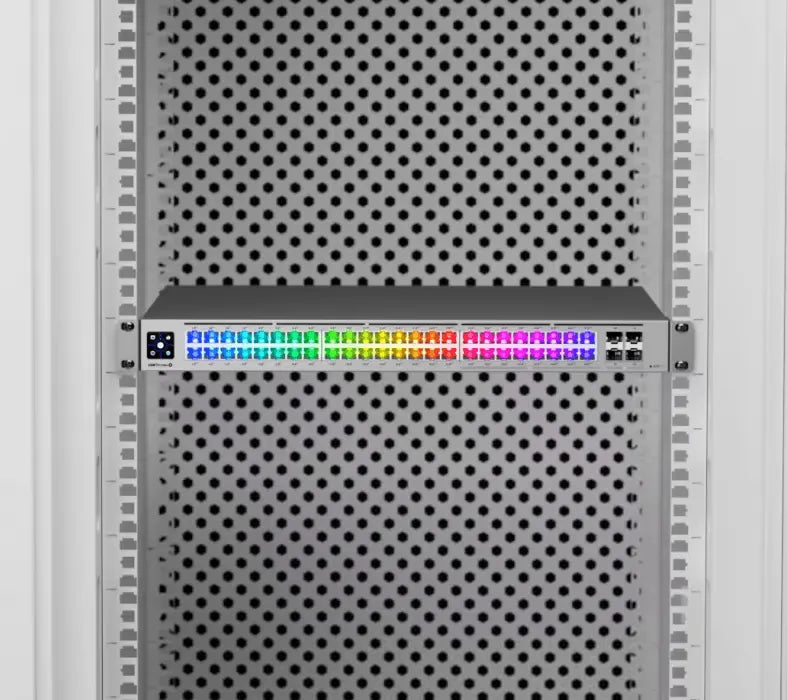

USW-Pro-Max-48-PoE includes Etherlighting ports that illuminate for easy identification of port location, speed/link, and native VLAN/network. This feature, especially when used with UniFi Etherlighting Patch Cables, enhances visibility for easier network management.
The USW-Pro-Max-48-PoE switch has 16 x 2.5 GbE ports, including 8 x PoE+ and 8 x PoE++, and 32 x GbE ports, with 24 x PoE+ and 8 x PoE++, offering versatile options for powering devices. Also includes 4 x 10G SFP+ ports, ensuring high-speed uplink capabilities for data-intensive operations.
USW-Pro-Max-48-PoE has a total non-blocking throughput of 112 Gbps and a switching capacity of 224 Gbps. -
Feature Specification Mechanical Dimensions 442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7") Weight Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb) Enclosure material SGCC steel Hardware Management interface Ethernet In-Band Networking interface (32) GbE RJ45 ports (16) 1/2.5 GbE RJ45 ports (4) 10G SFP+ ports PoE interface (32) PoE/PoE+ (Pins 1, 2+; 3, 6-) (16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) Total non-blocking throughput 112 Gbps Switching capacity 224 Gbps Power method (1) Universal input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input Power supply AC/DC, internal, 820W Supported voltage range 100—240V AC Max. power consumption 100W (Excluding PoE output) Total available PoE 720W Max. PoE wattage per port by PSE PoE: 15.4W PoE+: 30W PoE++: 60W Voltage range PoE mode PoE: 44—57V PoE+: 50—57V LCM display (1) 1.3" touchscreen Button Factory reset Ambient operating temperature -5 to 40° C (23 to 104° F) Ambient operating humidity 10 to 90% noncondensing Certifications CE, FCC, IC Switching Features Layer 2 features IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs Layer 3 features DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs Etherlighting™ Ethernet Locating Speed/link Native VLAN/network SFP+ Locating Speed/link Native VLAN/network LEDs System Status RPS Status Application Requirements UniFi Network Version 8.0.24 and later
