OVERVIEW

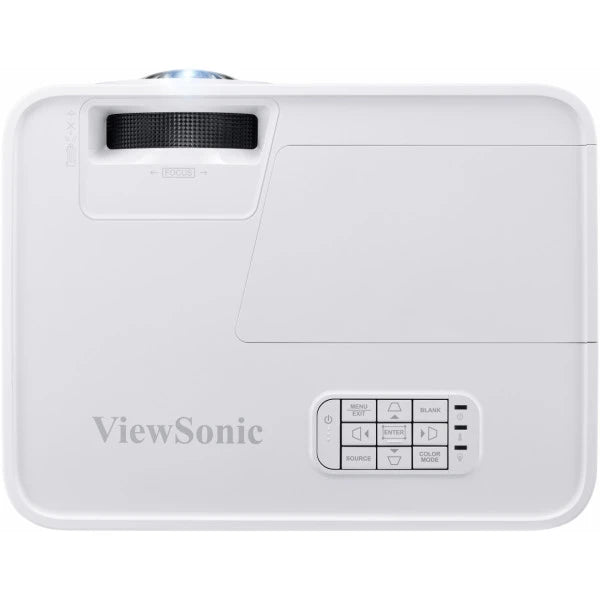

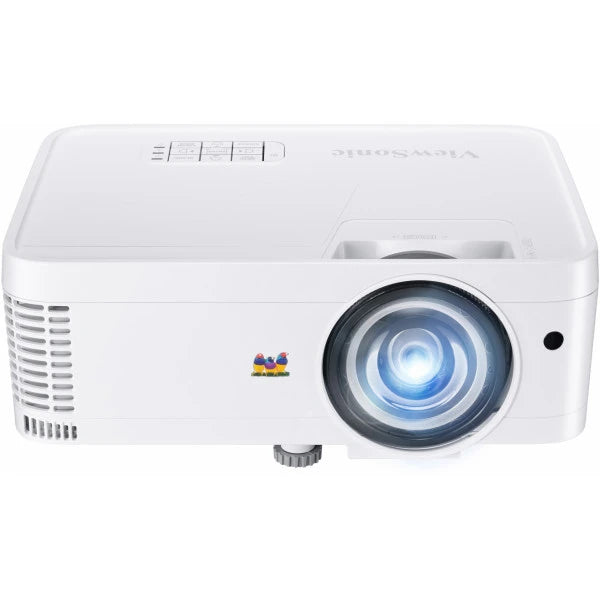

The PS600X is a high brightness XGA short throw projector for education. With the ability to project 100” images from a distance of 124cm from the projection surface, PS600X is flexible enough to fit any classroom design while keeping the presenter clear of the projection beam. A brightness of 3700 ANSI Lumens allows the projector to project clear, detailed images with the lights kept on so students can more easily take notes and maintain focus. The energy-saving SuperEco mode reduces power consumption and extends lamp life to a lengthy 15,000 hours. PS600X is compatible with PJ-vTouch-10S, the optional interactive module that turns class into an engaging interactive teaching environment. In addition, users can easily control and manage PS600X remotely via the LAN network solution for maximum efficiency.
Effortless Installation
Fit For Classrooms of All Sizes
0.61 short throw projection gives you room to work with when positioning the projector. With the flexibility to be placed within inches of a screen, users will be able to project big images in any space, while also keeping presenters clear of the projection beam and avoid image shadows.
Easy Central Management
The projector is Creston, AMX and PJ Link certified and Extron and vContorller compatible can be easily controlled and monitored remotely from a PC. IT personnel can manage up to 256 projectors at one time and control operations including scheduling through a LAN IP with an advanced, real-time alert system that sends status updates about power, lamp life, and unit location for simplified maintenance.
More Connectivity
Equipped with dual HDMI inputs, PS600W allows multiple users to connect laptops or mobile devices for a high-definition experience without taking time to take turns.
Dual HDMI
Inputs
Integrated Power Source
A built in USB power output (5V/1A) can be used to supply power to HDMI dongles, eliminating the need for separate power adapters for connected dongles.
USB 5V/1A
Interactive module compatible
With the optional interactive package, (PJ-vTouch-10S), this projector becomes an interactive tool that transforms any surface into an interactive whiteboard. With the multi-touch capability, users can simultaneously annotate, write, or draw on the projected image to interact with the content and share ideas.
Easy Image Adjustment
Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.
Advanced
Image Correction
Instant Activation Upon Signal Detection
Get your projector up and running with ease two simple settings.
Signal Power On: The projector will power on automatically upon detection of a VGA cable connection and HDMI cable.
Direct Power On: Simply connect the power cord and begin; the projector will power itself on automatically.
Instant Activate
Immersive Visual Performance
Bright Images in Any Environment
Packed with 3,700 ANSI lumens of brightness and a 22,000:1 high contrast ratio, this projector is guaranteed to produce bright images in any setting, even in spaces with high ambient lighting.
3,700 ANSI Lumens
SuperColor™: Best in Class Color Accuracy
ViewSonic’s proprietary SuperColor™ Technology offers a wider color range, ensuring users enjoy true-to-life color projection in both bright and dark environments.
SuperColor™
Technology
Fantastic 3D Viewing
The HDMI port allows users to display 3D imagery directly from 3D Blu-Ray players and connect to HDMI-enabled devices such as laptops, tablets, and media players.
3D Blu-ray
Low Total Cost of Ownership
Extended Lifespan
When the Power Saving setting is turned on and no signal input is detected, the projector will automatically switch into Eco Mode and SuperEco Mode.
Eco Mode: The projector will automatically switch from Normal to Eco Mode whenever it has been left idle for 5 minutes.
SuperEco Mode: When the projector has not received an input signal for 20 minutes, projected images are dimmed to 30%, extending the lamp’s lifespan to 15,000 hours on average.
15,000 hours
Lifespan
Reminder for Time Management
The Presenter Timer is an embedded on-screen timer and a great time management tool for helping presentations run on schedule.
Presenter Timer
Sleep Timer
The sleep timer allows the projector to automatically power down after no signal has been detected. An easy way to save energy and extend the projector’s lifespan.
Sleep Timer
Reduced Energy Consumption
When no signal has been detected, the projector will automatically power off to conserve energy and lamp life.
Auto Power Off
Exterior & Rear I/O Connectors
-
| Specification |
Value |
| Projection System |
0.55" XGA |
| Native Resolution |
1024x768 |
| DC Type |
DC3 |
| Brightness |
3700 ANSI Lumens |
| Contrast Ratio (SuperEco mode) |
22000:1 |
| Display Color |
1.07 Billion Colors |
| Light Source |
Lamp |
| Light Source Life (Nor/SuperEco) |
5000/15000 hours |
| Lamp Watt |
190W |
| Lens |
F=2.6, f=6.9mm |
| Projection Offset |
130%+/-5% |
| Throw Ratio |
0.61 |
| Image Size |
60" - 300" |
| Throw Distance |
0.74m-3.72m (100" @ 1.06m) |
| Keystone |
HV |
| Optical Zoom |
Fixed |
| Audible Noise (Eco) |
27dB |
| Resolution Support |
VGA(640 x 480) to FullHD(1920 x 1080) |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| Horizontal Frequency |
15K~102KHz |
| Vertical Scan Rate |
23~120Hz |
| Input |
|
| Computer in (D-SUB 15 pin) |
2 |
| Composite |
1 |
| Audio-in (3.5mm) |
1 |
| HDMI/HDCP |
2 (HDMI 1.4/ HDCP 1.4) |
| Output |
|
| Monitor out (D-SUB 15 pin) |
1 |
| Audio out (3.5mm) |
1 |
| Speaker |
10W |
| USB type A (Power) |
1 (5V/1A) |
| Control |
|
| RS232 |
1 |
| RJ45 |
1 |
| USB type mini B (Services) |
1 |
| Others |
|
| Power Supply Voltage |
100-240V+/- 10%, 50/60Hz AC |
| Power Consumption |
Normal: 260W |
| Standby |
<0.5W |
| Operating Temperature |
0~40℃ |
| Carton |
Brown |
| Net Weight |
2.6kg |
| Dimensions (WxDxH) w/adjustment foot |
292x236x115mm |
| Language |
English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese |
| Standard Accessory |
|
| Power Cord |
1 |
| VGA Cable |
1 |
| Remote Control (w/Laser pointer) |
1 |
| QSG (Quick Start Guide) |
1 |
| Lens Cover |
1 |
| Optional Accessory |
|
| Lamp/Light Source |
RLC-108 |
-
