How to Install Digital Menu Board Screens

A digital menu board that sits slightly off-level, catches glare from the front windows or loses power mid-service stops being an upgrade very quickly. If you are working out how to install digital menu board screens in a restaurant, café, takeaway or hospitality group, the job is not just about fixing a display to a wall. It is about getting the hardware, positioning, power, connectivity and content delivery right first time.

For most businesses, the cleanest result comes from treating the installation as a commercial AV project rather than a simple screen swap. Consumer TVs may appear cheaper at first, but high daily usage, brightness demands and remote management usually push commercial displays well ahead on reliability and total cost over time.

How to install digital menu board screens the right way

Before any drilling starts, decide what the menu board needs to do. A single screen behind a coffee counter has very different requirements from a three-screen fast food menu or a networked rollout across multiple sites. The installation method depends on screen size, screen orientation, viewing distance, ambient light and whether content will run from an internal system-on-chip display, an external media player or a wider signage network.

In practical terms, most installations follow the same sequence. You assess the wall and fixing method, confirm power and data points, choose the right commercial display, mount and level the screens, connect the playback hardware, then test content and scheduling. The order matters because a good screen in the wrong position still creates a poor customer experience.

Start with the site survey

The site survey is where most avoidable problems are found. You need to know what the wall is made of, whether there are hidden services, how high the screens need to sit and how customers will view them. A solid masonry wall gives you more flexibility than studwork, but either can be used if the mount and fixings are specified correctly.

Sightlines matter just as much as structure. Customers should be able to read the menu without craning their necks, and staff should not lose visibility because the screens have been mounted too low or too far forward. In bright hospitality spaces, window positions and ceiling lighting can create reflections that make pricing and imagery difficult to read. That is often where higher brightness commercial signage displays earn their keep.

Choose commercial-grade hardware

If the menu board is expected to run daily for long hours, commercial hardware is the safer choice. A professional display is built for extended operation, offers better thermal performance and usually provides features such as portrait or landscape support, scheduling, remote control and more consistent panel quality.

Brightness is one of the first specifications to get right. Dim screens may be acceptable in enclosed food courts or darker cafés, but front-of-house areas with daylight need stronger luminance. Screen size should also match viewing distance. A small display can look neat at the counter yet still be unreadable from the entrance queue.

You will also need to decide whether to use integrated signage software via the display itself or connect an external media player. Internal playback keeps the install tidier, but an external player may offer more flexibility if you need more advanced layouts, live data feeds or multi-screen synchronisation.

Mounting and positioning your digital menu board

The mount is not the place to cut corners. Commercial menu board installations typically use fixed wall mounts for a flush look, though tilt mounts can help where the screens are mounted high above the serving area. Video wall style mounting systems may be appropriate for larger multi-screen menu runs where alignment needs to be exact.

Positioning should be planned around customer readability first, not just wall space. In many hospitality venues, the ideal height is one that keeps the centre of the displayed content within a comfortable viewing angle for standing customers. If the display is too high, the top line items become harder to read. If it is too low, staff movement behind the counter may obstruct it.

Spacing between multiple screens needs care as well. Small gaps can look professional if the layout is designed accordingly, but inconsistent spacing makes the installation look improvised. If you are installing a row of screens, mark everything out before fixing the first bracket. Once one screen is even slightly out, the rest tend to follow.

Power, cabling and connectivity

A tidy digital menu board install depends heavily on cable planning. Power sockets, data points and media player locations should be resolved before the screens go up. Surface-mounted trunking may be acceptable in back-of-house areas, but customer-facing spaces usually need a neater finish with concealed cabling where possible.

If you are using external media players, decide whether they will sit behind each screen, in a nearby cabinet or in a central equipment area. Behind-screen placement reduces cable runs but can make maintenance more awkward. A cabinet-based approach can simplify servicing, though it introduces longer HDMI or data runs and may require signal extension.

Network access also needs attention. Wi-Fi may be sufficient for simple cloud-managed signage in some sites, but wired connectivity is often the better commercial option for stability. If the menu board carries time-sensitive pricing, promotional updates or daypart scheduling, a dependable network connection reduces operational risk.

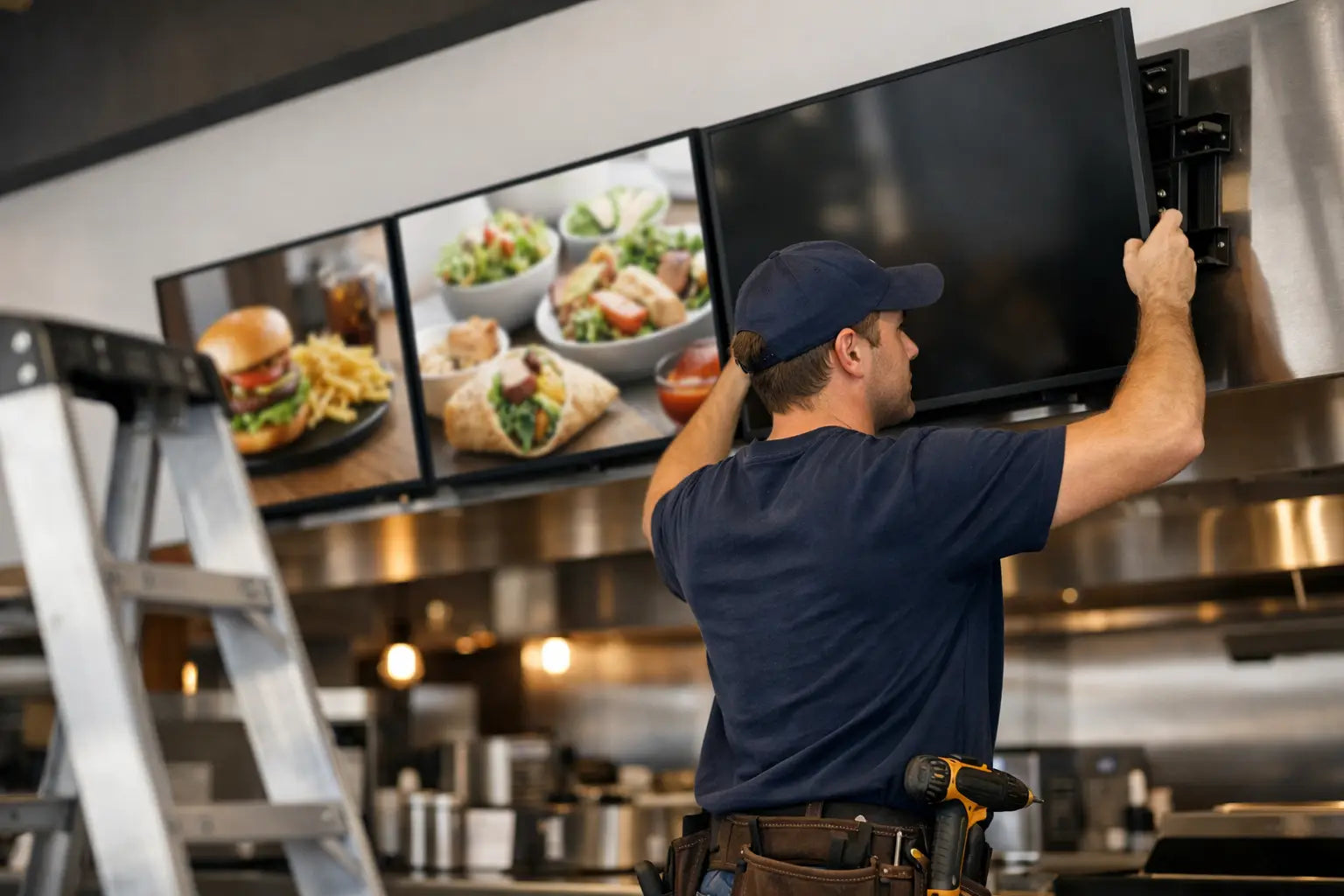

Install and level the screens

Once the wall, mounts and cable routes are prepared, install the brackets to manufacturer specification. Use the correct fixings for the substrate and never assume a standard wall plug will be enough for a larger commercial display. Weight ratings should cover not only the panel but any accessories or player enclosures attached behind it.

When the screens are mounted, check level, vertical alignment and front projection. This is especially important on multi-screen menu boards, where a minor discrepancy becomes obvious from the customer area. It is worth spending extra time here because visual consistency is one of the main things that separates a professional installation from a rushed one.

After mounting, connect power, data and signal feeds with strain relief in mind. Loose hanging cables, tight bends and overloaded sockets all create reliability issues later. The installation should be serviceable, but it should also look clean from normal viewing angles.

Content setup and testing

Knowing how to install digital menu board hardware is only half the job. The screen still needs correctly formatted content, an appropriate CMS and a playback setup that staff can rely on during busy periods. Before handover, test image scaling, menu legibility, transition timing and scheduled changes.

Menus often fail because too much content is forced onto the screen. If text appears cramped from the ordering point, the design needs adjusting. Pricing, categories and promotional panels should all remain readable at the real customer distance, not just when viewed up close during setup.

If the site runs breakfast, lunch and evening menus, confirm that scheduling works properly and that manual override is possible if the venue needs to react quickly. In multi-site operations, central control is usually one of the main commercial reasons to move to digital menu boards in the first place, so content management should be tested with that in mind.

Common installation mistakes

The most common mistake is choosing screens based only on price. Lower-cost displays can be tempting, but if they are not rated for the operating hours or environment, replacement and disruption quickly wipe out any saving. The second is poor brightness selection, particularly in shopfront cafés and QSR locations with strong natural light.

Another issue is underestimating the wall and fixing requirements. A good screen with the wrong bracket or poor anchoring creates both a safety risk and an expensive rework. Finally, many businesses leave software decisions until the end. That can lead to awkward workarounds when the hardware is already installed but the content workflow is still unclear.

When to use a professional installer

Some single-screen menu boards are straightforward enough for an experienced facilities or maintenance team, especially where power and data are already in place. But as soon as the job involves multiple screens, concealed cabling, network planning, custom brackets or rollout across several sites, specialist installation support usually saves time.

A professional installer will typically survey the site, specify compatible hardware, manage the mounting and cable route, configure the player or CMS and test the system under real operating conditions. For businesses where downtime affects service speed and customer experience, that added control is often worth more than the labour saving from a self-install.

For UK businesses planning a dependable commercial setup, this is where a specialist supplier such as Screen Moove can add value beyond simply supplying the screens. Product choice, mounting method, software compatibility and after-sales support all need to line up if the menu board is expected to run properly day after day.

The best digital menu board installations tend to look simple once they are finished. That is usually a sign that the difficult decisions were handled properly at the start, with the right display, the right mount and a clear plan for power, content and long-term support.
