Elo 1004L 10.1" Non-touch - No Stand 400cd/m² Black LCD Monitor | E315290

SKU: E315290
Elo 1004L 10.1" Non-touch - No Stand 400cd/m² Black LCD Monitor | E315290 ELO Monitor Elo
Availability:
Out of stock
📞 Call for stock update.
Free Express Delivery Guaranteed on all orders over £100 ex VAT.
Sold out

£259.61 (Excl. VAT)

- £311.53 (Inc. VAT)
£259.61 - £259.61
- - £311.53
Availability:
Out of stock
payment-icons
Download Product Datasheet i
Trade pricing for verified resellers, proforma issued on official company letterhead for PO processing.
Education & Public Sector Pricing available for schools, universities, NHS, and government organisations. Contact our Public Sector Team on 020 8191 9223 or email info@screenmoove.com.
  • Display Size10"
  • Net Weight1 kg
  • Operating SystemNone
  • VESA Patterns75x75
  • Panel TypeTFT Panel
  • ResolutionWXGA

Book a Free Product Demo

Remote or on-site. No obligation.

Integrator or Installer?

Trade pricing, volume discounts, same-day collection.

Request a Trade Account

Education & Public Sector Solutions

Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.

Create an Account Email Public Sector Team
Official Purchase Orders We accept formal POs with VAT-compliant invoicing for all verified institutions.
Contract & Volume Discounts Competitive rates for multi-site, long-term, or framework-based deployments.
Dedicated Account Management Single point of contact for lead times, coordination, and sourcing.
Flexible 30-Day Terms Available to verified schools, councils, and government bodies.
  • Description
  • Specifications
  • Downloads

  • Elo 1004L 10" Non-touch LCD Monitor | 400 nits, USB-C & Edge Connect Accessories

    The Elo 1004L 10.1-inch non-touch monitor delivers commercial-grade reliability and a sleek, modern design built for business applications. Complete with IK07 impact resistance, IP54 ingress protection and optical bonding for enhanced durability, the 1004L provides long-term performance in demanding environments. Its compact form factor, low-profile design, and multiple mounting options make it easy to integrate into a variety of settings, from point-of-sale and self-service kiosks to kitchen display systems, warehouse automation, access control, and HMI applications. Equipped with USB Type-C, HDMI, and DisplayPort connectivity, along with dual integrated speakers and VESA mounting, the 1004L offers flexible installation options to meet diverse business needs.

  • Category Specification
    Part Number(s) PCAP - E968703
    Non-Touch - E315290
    Enclosure Color Black
    Touch Technology Non-Touch / PCAP 10-Touch
    Diagonal Size 10.1" Active matrix TFT LCD (LED)
    Aspect Ratio 16:10
    Active Area 216.96 x 135.6 mm (8.54" x 5.34")
    Resolution 1280 x 800 (native), other resolutions up to 1920x1200
    Viewing Angle H: ±85° / V: ±85° (170° total)
    Colors 16.7 million
    Brightness LCD: 400 nits
    PCAP: 360 nits
    Response Time 30 ms (typical)
    Contrast Ratio 800:1
    Surface Treatment Anti-glare
    Controls Touch Model: Menu, Power
    Non-Touch: Power + 5-way key
    Settings include brightness, contrast, aspect ratio, sharpness, low blue light, OSD, etc.
    Languages: English, French, Italian, German, Spanish, Japanese, Traditional/Simplified Chinese
    I/O Ports 1x USB Type-C
    1x Mini-DisplayPort
    1x HDMI
    1x DC jack
    4x Micro-USB Elo Edge Connect
    Speakers 2 x 2W internal
    Power USB-C PD or DC jack (6.4mm barrel, 2.0mm pin)
    Power Consumption On: 6.5W
    Sleep: 1.0W (touch) / 0.5W (non-touch)
    Off: 0.25W
    Dimensions 249 x 168 x 25 mm (no stand)
    Weight 0.90 kg (net), 2.2 kg (packaged)

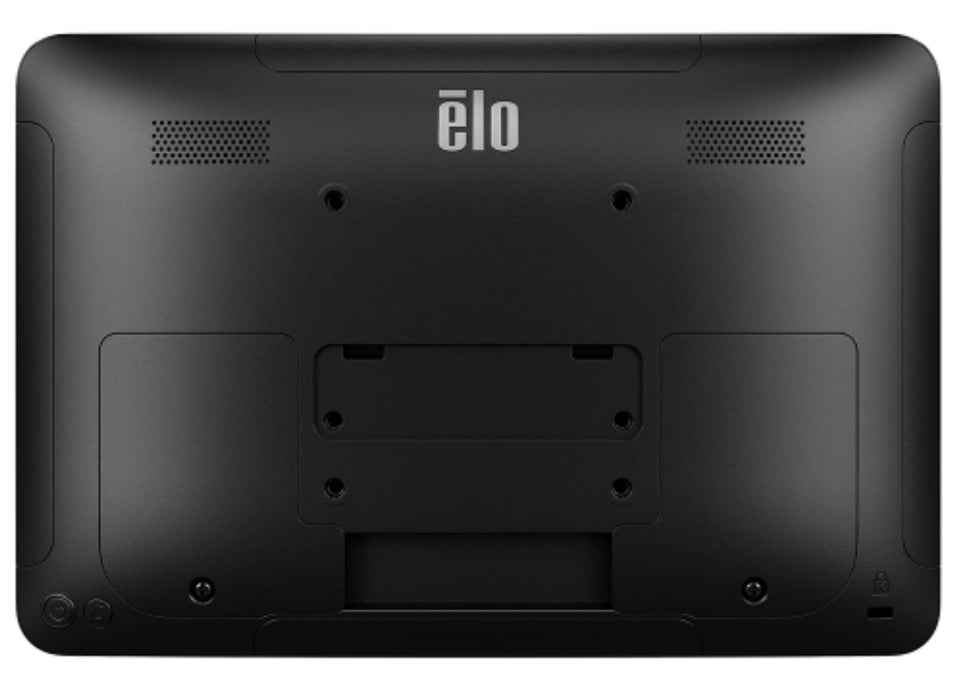

    Mounting 75 x 75 mm VESA rear mount
    Operating Temp 0°C to 40°C
    Storage Temp -20°C to 60°C
    Humidity Op: 20–80% / Storage: 10–95%
    MTBF 50,000 hrs demonstrated
    Ingress/Impact IP54 / IK07
    Certifications CE, FCC, UL, IC, CCC, UKCA, VCCI, PSE, CB, RCM, NOM, BIS, RoHS, WEEE, REACH
    Warranty 3 years (extensions available)
    What's in the Box Touchmonitor, Quick Install Guide, EEI Labels, HDMI cable (1.8m), USB-A to C cable (1.8m), Power brick, Power cables (NA/EU, 1.8m)
    Optional Peripherals MSR, Fingerprint Scanner, Customer Display, Barcode Scanners, Stylus Pen, EMV Cradles, Status Light, 3D Camera, Webcam, RFID, Edge Connect™ Speaker Bar
    Mounts & Stands Flip Stand, Z20 Stand, Wallaby POS Stand, Pole Mounts, Floor Stand, Elo Backpack®, mPOS Stand, various power cables and hubs
  • Description Downloads
    Elo 1004L 10.1" Non-touch - No Stand 400cd/m² Black LCD Monitor | E315290 DataSheet Download
